ATX® Belt Squat Attachment

Write a Review

$539.00

Item No: ATX-BSQ-ADD

4 in stock

DESCRIPTION

Weight Weight The base weight of the item, without any packaging.	29 kg
Dimensions	146 × 32 × 18 cm
Weight Load Capacity Weight Load This is the safe working load of the item, not to be confused with a breaking point.	400 kg
Footprint Footprint This is the area occupied by the item itself. You might need to allocate additional space for the use.	110x139cm
Height	66.5cm
Certification	EN 20957 I.II.IV – S

The ATX Belt Squat Attachment is the perfect alternative for when you don’t have the space and/or budget for a stand alone belt squat machine. Unlike other attachments, the biomechanics of the ATX Belt Squat Attachment are just as good or better than many dedicated machines.

As a matter of fact, the attachment allows you to get the ideal foot positioning so you are not being pulled forward which can happen on poorly designed machines.

Key Features:

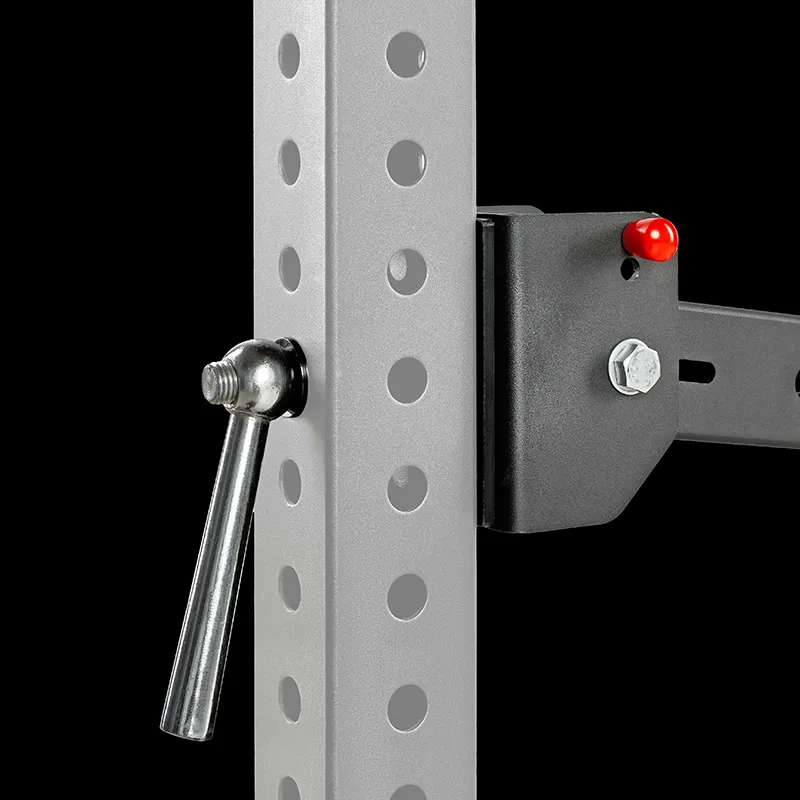

Close-up of the ATX® Belt Squat Option—steel frame with multiple adjustment holes, a metal pin inserted, and a black bracket attached with a red plastic knob and bolt, set against a black background.

Compatibility

Suitable for 60mm – 80 mm Uprights with 21 inner hole diameter and 50/25 mm hole Spacing.

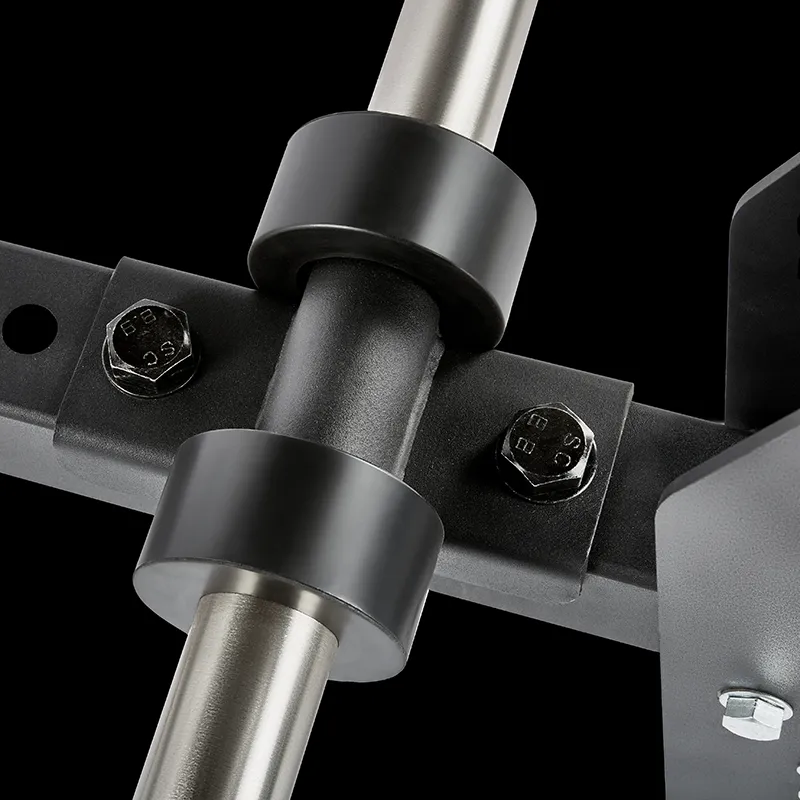

Close-up of metal rods and bolts assembled with black circular clamps against a black background, showing part of the ATX® Belt Squat Option gym equipment structure.

Weight Horns

455 mm long Olympic Weight Horns with thick rubber stoppers on the ends to protect the frame and your weight plates.

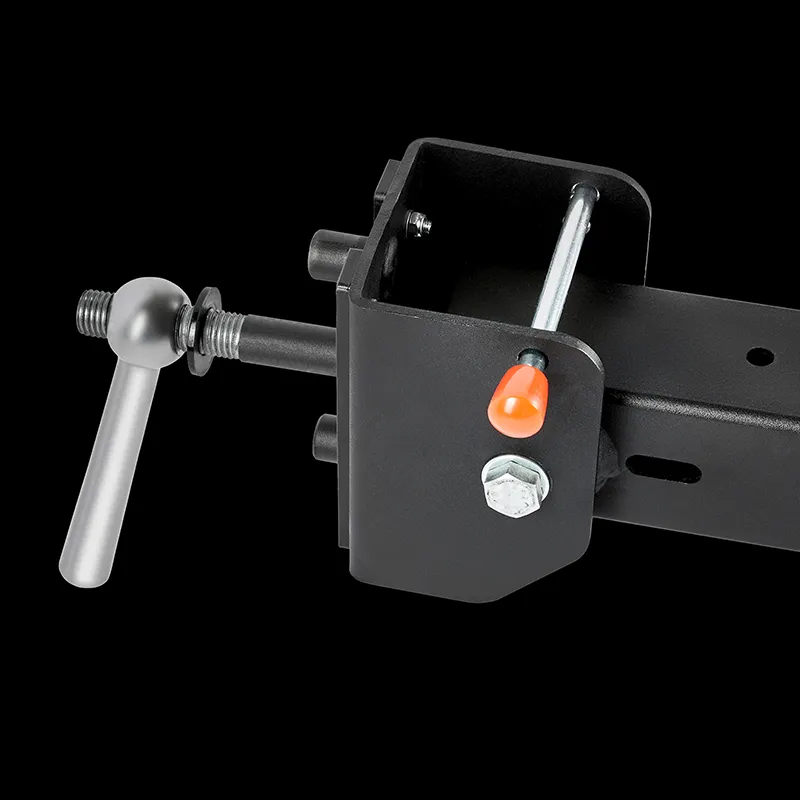

A close-up of the ATX® Belt Squat Option features a black metal hitch mount with a silver handle, bolt, and orange safety pin against a solid black background.

Locking Handle

Quick and easy to lock the belt squat attachment in with the offset locking handle.

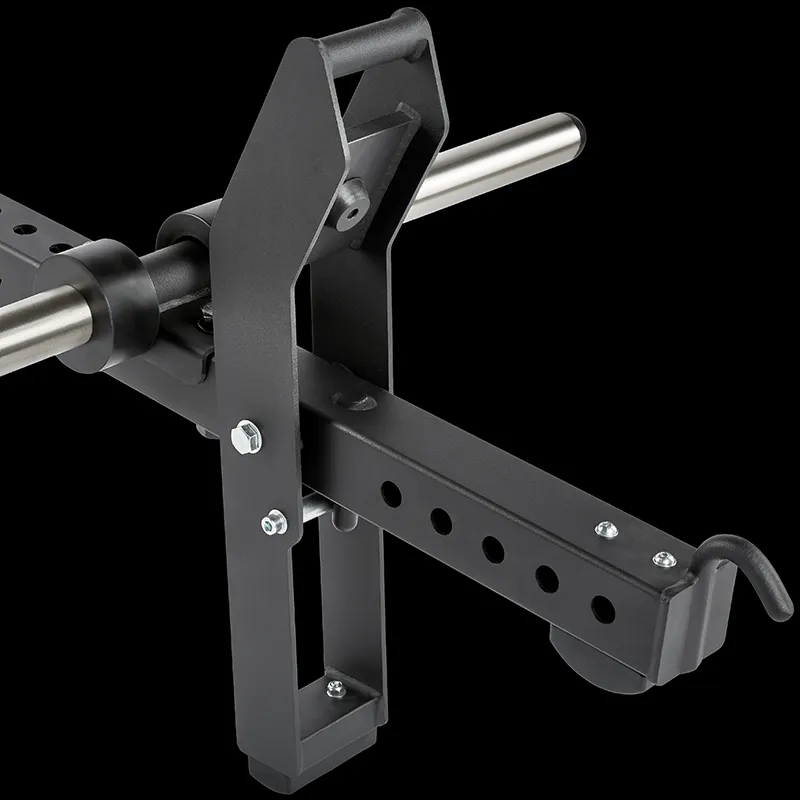

Close-up of the ATX® Belt Squat Option, a black metal adjustable gym attachment with a cylindrical grip handle, multiple adjustment holes, bolts, and a hook, set against a black background.

Start/Stop Mechanism

No need to start at the bottom of the movement with the built in start/stop lever.

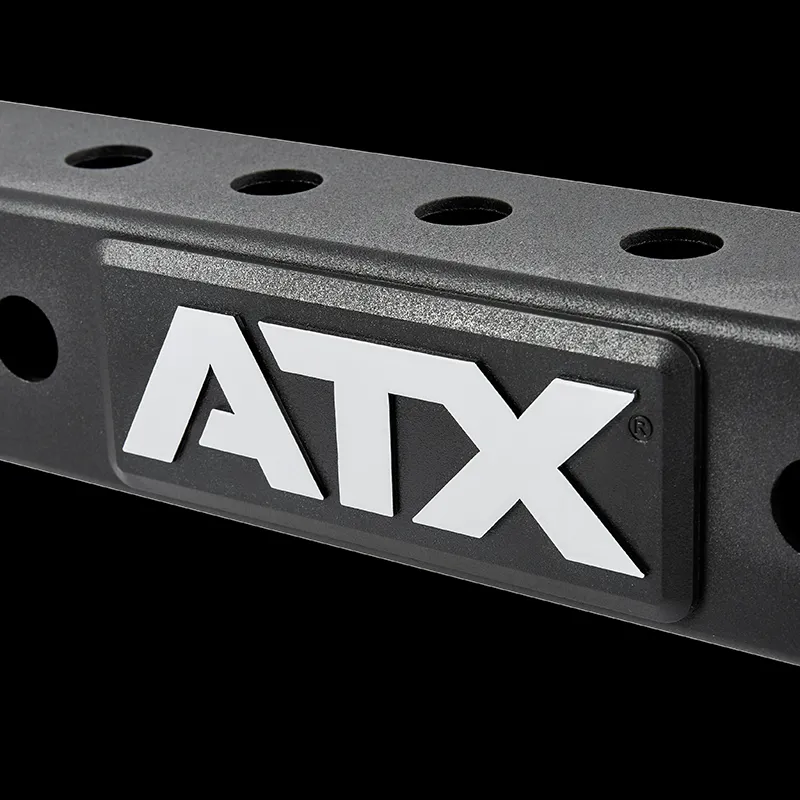

Heavy-Duty Construction

Manufactured out of 70 mm x 70 mm x 3 mm thick steel tube, with a base weight of 27 kgs and a safe working load of 400 kgs.

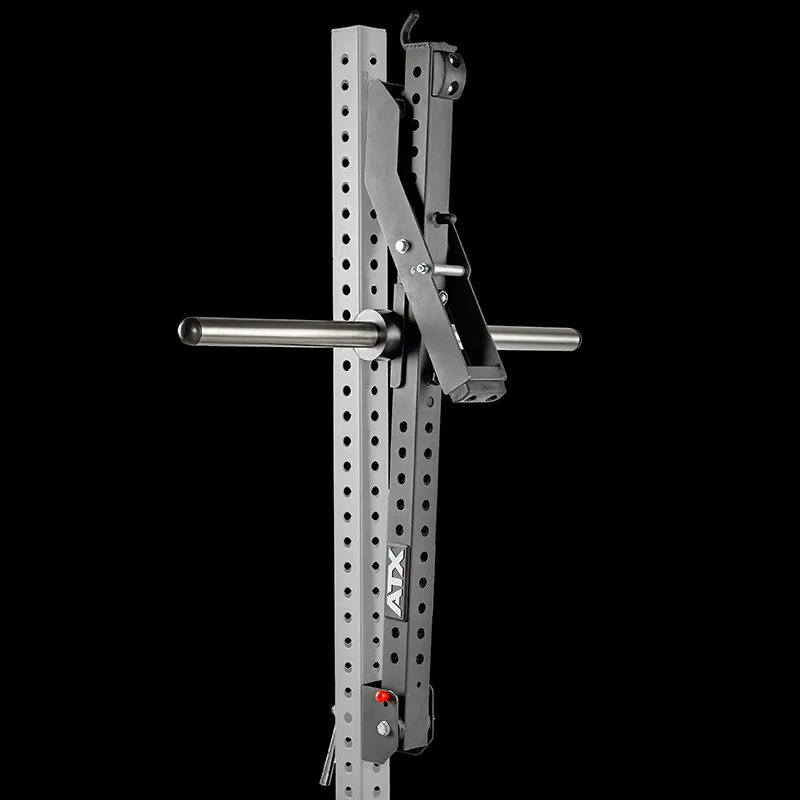

A close-up of the ATX® Belt Squat Option gym rack attachment features multiple adjustment holes and a horizontal handlebar, set against a black background.

Vertical Storage

Locking pin holds the attachment in the vertical position.

The ATX Difference

Fold-Down Lever – probably the most innovative feature of this belt squat attachment for power racks. When lifted off the ground, the lever flips up.

Once you start the exercise, the fold-down support bracket gets out of your way and if you want to reset between lets, just lift the lever back up.

Versatility – the ATX® Belt Squat Option is by no means a one trick pony. Thanks to the Universal Hook, you will be able to attach various accessories such as belt squat belt, front squat harness, zercher strap and even a single, parallel or wide t-bar row handles! And when the belt squat option is not in use, you can store it upright thanks to the built in locking pin.

A bit of rubber for your protection – there is no need to worry about damaging your floor while using the belt squat add-on. Both the fold-down lever and the belt squat come with two extra thick rubber blocks.

Easy to mount – even though the ATX® Belt Squat option weighs 27 kgs, it is still easy to attach to your rack. Simply slide mounting bracket into the upright and use the included lever to lock it into place.

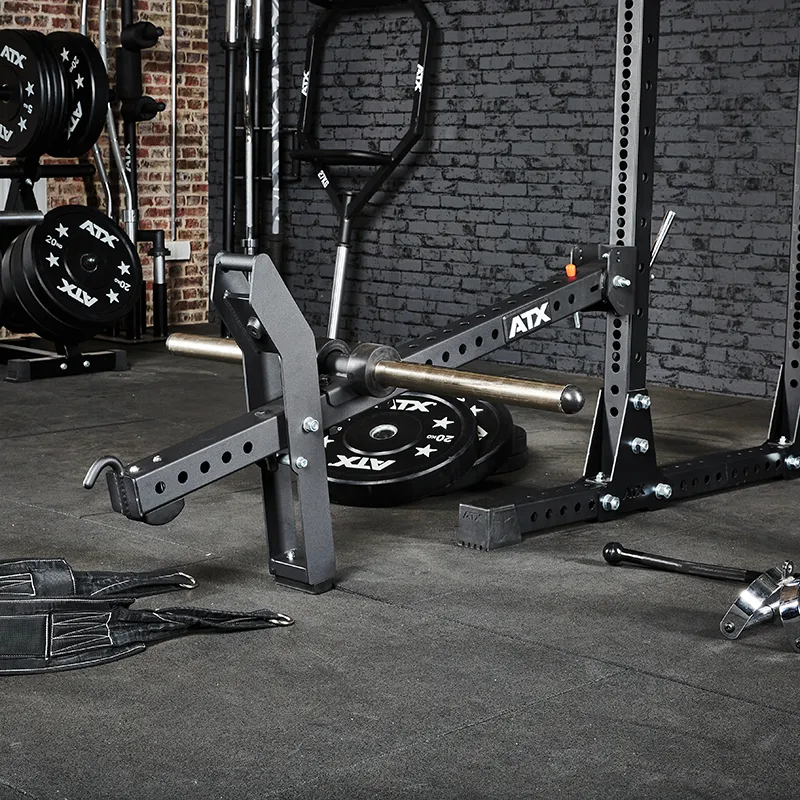

A gym with an ATX® Belt Squat Option, barbell loaded with weights, cable attachments, lifting belts, and extra weight plates against a brick and gray wall.

The Final Word

Don’t let space constraints hold you back. Building big legs is the secret to building a big body – that is what the old school taught us. The ATX Belt Squat Attachment is a great way to add volume to your leg workouts. Without taking up precious space in your gym.

What’s Included? ATX® Belt Squat Option (ATX-BSQ-ADD).

Please note the pictures may feature optional attachments or items which are not included with the unit. This is only to show the possible configurations/use of the unit.

A woman in athletic wear with a ponytail and arm tattoos adjusts the ATX® Belt Squat Option in a weightlifting area featuring black weights and exposed brick walls.

A tattooed woman in athletic wear adjusts the ATX® Belt Squat Option, focusing on securing it in a gym with other equipment and a brick wall backdrop.

Close-up of an ATX® Belt Squat Option in black, featuring multiple adjustment holes, a safety pin, and a barbell holder, set against a gray brick wall.

A woman in gray athletic wear with a tattooed arm and long dark hair tied back adjusts the ATX® Belt Squat Option in a gym with exposed brick walls.

A woman in athletic wear with long dark hair and visible tattoos adjusts the ATX® Belt Squat Option in a gym with brick walls, focused on setting up the equipment.

A person in gray patterned leggings and white Nike sneakers attaches a cable handle to the ATX® Belt Squat Option, preparing for a workout on a rubber gym floor.

A woman uses the ATX® Belt Squat Option in a gym.

A woman in workout clothes uses the ATX® Belt Squat Option in a gym with brick walls and black equipment. She wears a weightlifting belt, gray leggings, a sports bra, and white shoes.

A woman in athletic wear performs a split squat using the ATX® Belt Squat Option on a squat rack in a gym with exposed brick walls and various equipment in the background.

A woman in athletic wear uses the ATX® Belt Squat Option for a single-leg squat in a gym with brick walls and weightlifting equipment in the background.

A person in a gym, dressed in a matching purple workout outfit, prepares to exercise with the ATX® Belt Squat Option. Gym equipment and a brick wall can be seen in the background.

A woman in a gym uses the ATX® Belt Squat Option, wearing a grey sports bra and leggings. She has arm tattoos and is surrounded by weight plates, dumbbells, and other gym equipment.

A woman in athletic wear uses the ATX® Belt Squat Option in a gym with brick walls. She is focused, gripping the equipment with both hands, and 20 kg weight plates are visible.

A woman wearing athletic wear uses the ATX® Belt Squat Option in a gym with brick walls, lifting weights with focus. Tattoos decorate her arms as she works out intensely.

A woman in athletic wear prepares to lift weights with the ATX® Belt Squat Option in a gym, surrounded by equipment and weights, facing away from the camera.

A woman in gray camouflage workout clothes uses the ATX® Belt Squat Option in a gym, standing on a black floor near weight racks and benches, with her back to the camera.

A woman uses the ATX® Belt Squat Option in a gym with brick walls and weightlifting equipment, wearing athletic gear as she performs her workout.

A woman in a purple workout outfit uses the ATX® Belt Squat Option in the gym, gripping the handle with both hands. Weight plates and gym equipment are visible in the background.
