ATX® Combo Rack IPF

The German engineers took their time to make things right. They’ve made a bunch of small yet significant changes which make both the athletes and the loaders/spotters life easier and allow the competitions to run smoothly.

Take the bench press an example, the backrest pad has been manufactured out of Polyurethane foam and features an actual textured surface for improved grip. They have also added wheels and a handle so that you could wheel the whole Bench/Spotter platform in and out in just a few seconds.

ATX® IPF Combo Rack improvements don’t end here:

Uprights

1. Laser-cut numbering system – which is positioned on the back of the upright. This helps the spotter to chuck the pin into the correct hole on the first go.
2. Magnetic adjustment pins – which are manufactured out of solid steel.
3. 8 pins – this rack comes with 8 adjustment pins. You can keep them inside of the upright for quicker height change or store a spare set in the storage holes located next to the lever adjustment arm.

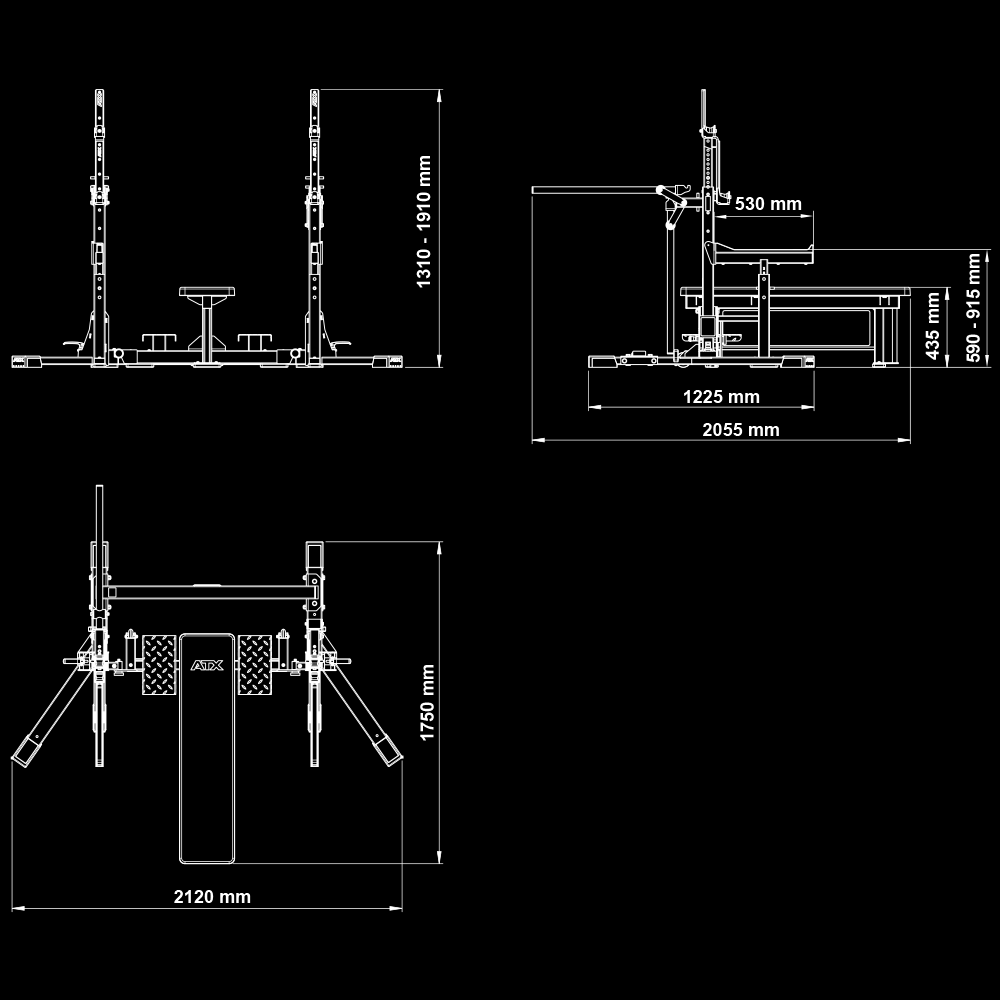

4. The Uprights are adjustable in 25 mm increments. Shortest upright height 1318 mm, highest – 1893 mm (measured from the top of the combo rack, not the j-hook position.)
5. UMHW sleeves – prevent metal to metal contact and help to stabilize the upright by reducing the amount of play.
6. Rubber Stoppers – have been included at the bottom of the rack to prevent the lever adjustment arm from hitting the rack.

Bench & Spotter Platform

1. Polyurethane Foam Backrest Pad – the newest trend in powerlifitng equipment. It provides the athlete with better support while significantly extending its longevity.
2. Textured surface – offers a superior grip.
3. Spotter Platforms – are 32 cm x 18 cm, feature anti-slip design and are situated 18 cm off the floor.
4. Heavy-Duty Wheels – wheel the bench/spotting platform in/out of the rack in seconds.
5. Bench Grip – located at the front of the bench for easier maneuvering.
6. Logo Plate – oversized ATX® logo plate underneath the bench which could be covered in a custom decal.

Spotter Arms

1. Rubber Stoppers – with a hidden screw design. Prevents the barbell’s knurling from getting damaged on exposed metal.
2. Face Savers – elevated thick rubber strip at the back of the spotter arm will literally save your face if the bar is dropped too close to the upright.
3. Height Adjustment Number System – has been laser cut with the numbers facing outward, making the spotters life much easier.
4. Adjustment Increments – the height can be adjusted in 25 mm from 59 mm to 86.5 mm in height.
5. Pinch Proof – the adjustment hole has been lowered to prevent the loaders fingers from being crushed.
6. Detach in seconds – thanks to the built in push/pull pin.
7. Length – the spotter arms are approx. 53 cm long and offer 113 cm elbow room.

New upright tilting mechanism

1. Angles – the uprights can be tilted 7.5° inwards.
2. Adjustment – the angle can be changed single-handedly using the built in lever mechanism
3. Bearings – the upright swivels on oversized bearings for smoother adjustment.

J-hooks

1. Construction – manufactured out of durable nylon with needle bearings for ultra smooth rotation.
2. Lift off – extremely short lip for easy unracking of the barbell.
3. Grooved Rollers – ensure that the bar is not twisted and is sitting perfectly in the middle
4. Rubber Strips – have been bolted on strips to prevent to metal contact
5. Bench J-Hooks – can be adjusted from 74 cm to 134 cm in 2.5 mm increments
6. Squat J-Hooks – can be adjusted from 110 cm to 170 cm in 2.5 cm increments

Technical Bits

1. Construction – manufactured out of 3 mm thick steel – total weight of the rack is 126 kgs
2. Working Load – 600 kgs safe working load capacity.
3. Protection – all adjustable parts have nylon protector strips to prevent metal to metal contact
4. Freestanding – wide base with thick rubber feet for additional stability
5. State of the art machinery – the rack is manufactured using laser cutting and robot-welding machines.
6. Pre-drilled holes – for gyms who want to permanently mount the rack into the floor.
7. Spares – two spare rollers and four replacement pins are included with the unit.
8. Commercial – developed in Germany and certified to EN 20957 I.II.IV Class S for gyms.

What’s Included? ATX® Combo Rack IPF (ATX-COP-700), 2 x spare rollers, 4 x spare locking pins.

Please note the pictures may feature optional attachments or items which are not included with the unit, this is to show the possible configurations/use of the unit.
