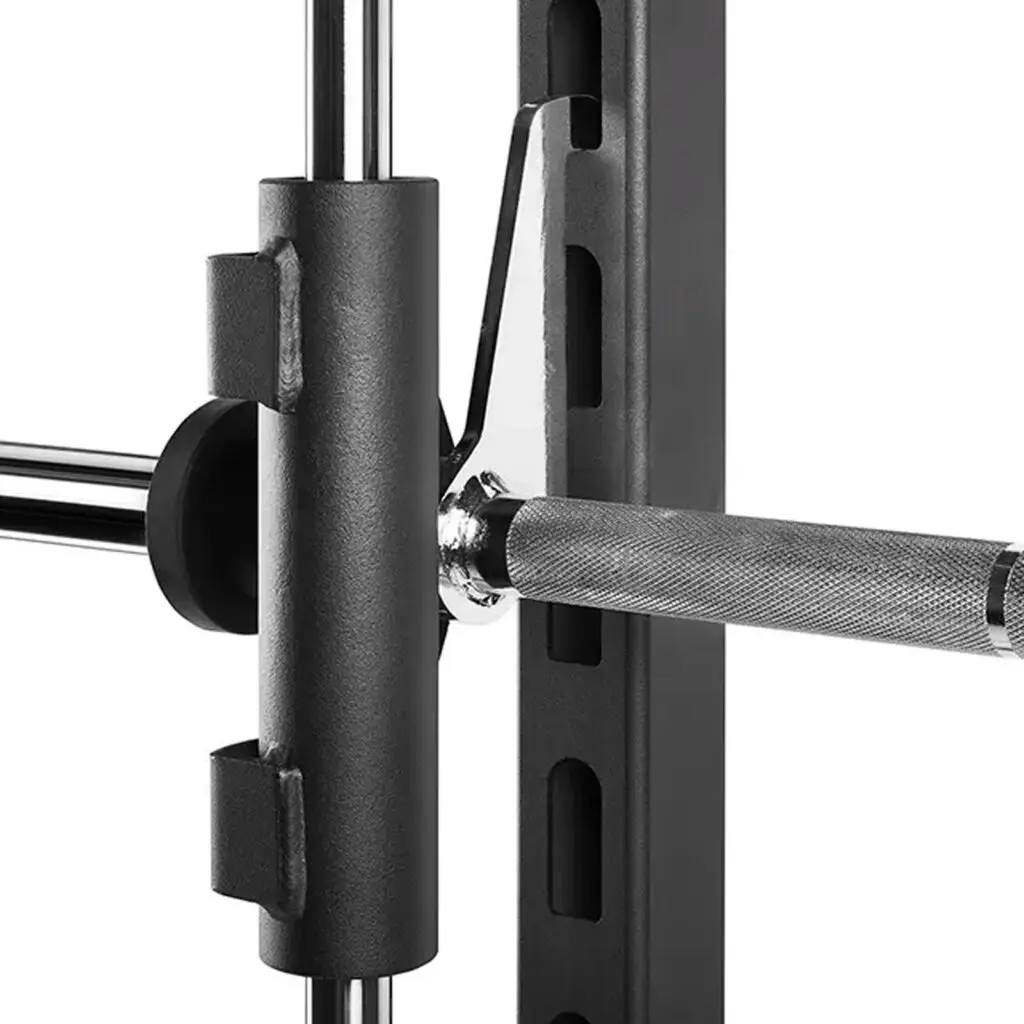

A close-up of the ATX® Smith Machine 500 shows a weightlifters barbell with a knurled grip on a rack with safety hooks. The 198 cm tall machine features adjustable slots and is ideal for gym or fitness center setups, especially in low-ceiling environments.

Close-up view of the ATX® Smith Machine 500 - Low Ceilings (198 cm) featuring a black metal frame and shiny silver support bar. The image focuses on the joint and textured tightening knob, highlighting the machine’s construction and materials.

Close-up of the ATX® Smith Machine 500, showing a metal barbell holder with adjustable movement. The holder features a padded cylindrical grip, and height adjustment numbers are visible on the vertical rack suitable for low ceilings at 198 cm.

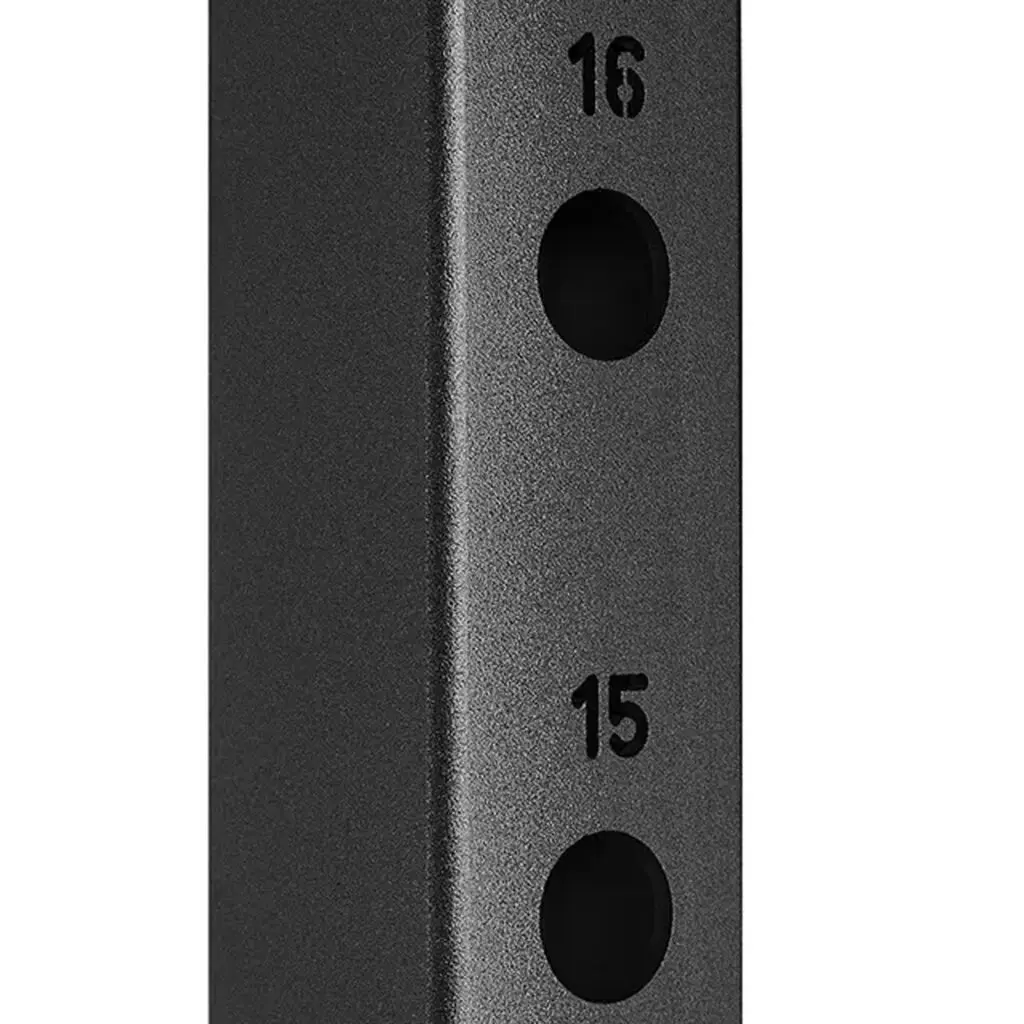

Close-up of a smooth, matte black metal structure, part of the ATX® Smith Machine 500 - Low Ceilings - 198 cm, featuring two vertically aligned round holes with 15 and 16 engraved beside them.

Close-up view of a black, angular metal structure with bolts from the ATX® Smith Machine 500 - Low Ceilings - 198 cm, featuring a vertical shiny metal bar positioned at the corner.

Close-up of a black metal bar with ATX on the protective end cap, part of the ATX® Smith Machine 500 designed for low ceilings (198 cm), featuring multiple holes along its length indicating modular or adjustable use.

Line drawings of the ATX® Smith Machine 500 for low ceilings show front, side, and top views. Dimensions: width 1120 mm, height 1981.6 mm, depth 860 mm; outer support distance 1232 mm; total width with extensions 1890 mm.

ATX® Compact Smith Machine 500 – Low Ceilings – 198 cm

Write a Review

$825.00

Item No: ATX-MPX-500

7 in stock

DESCRIPTION

Weight Weight The base weight of the item, without any packaging.	73 kg
Dimensions	195 × 60 × 50 cm
Lifting Bar	Bearing
Smith Capacity	200 kg
Footprint Footprint This is the area occupied by the item itself. You might need to allocate additional space for the use.	123/189x86cm
Height	198cm
Weight Weight The base weight of the item, without any packaging.	68kg
Load Capacity	200 kg
Lockouts	15
Certification	EN 20957 I.II.IV – H
Gym Warranty	5 years see T&Cs
Grade	Domestic
Hole Grid	Hole size – 21 mm, 16 x Center Distance – 80 mm.

The ATX Compact Smith Machine 500 (ATX-MPX-500) will be a blessing if your home gym has a low ceiling. Alternatively if you are tight on space or budget it is an excellent way to add smith exercises to your workout.

Do not buy this machine if you are looking to move hundreds of kilos. ATX have plenty of other heavier duty smith machines in their range. After personally training on this months it is ideal for someone who values form and control – watch my review below. If you want to lift heavier weight you can always bolt it down.

Key Features:

Top Workmanship

All parts fit together perfectly thanks to state of the art manufacturing process.

Locking Positions

A total of 15 height adjustment positions.

Linear Bearings

For that silky smooth movement.

Stable and Protective

The machine can be mounted to the floor via dynabolts. Thick Rubber feet prevent the unit from sliding.

Low Ceiling Design

Will fit into rooms with ceiling height of 200 cm!

Uprights

50 mm x 50 mm x 3 mm thick uprights with laser cut scaling.

Barbell

Manufactured out of 30mm solid steel. With Medium knurling, hard chrome plating and knurl marking for easier hand positioning.

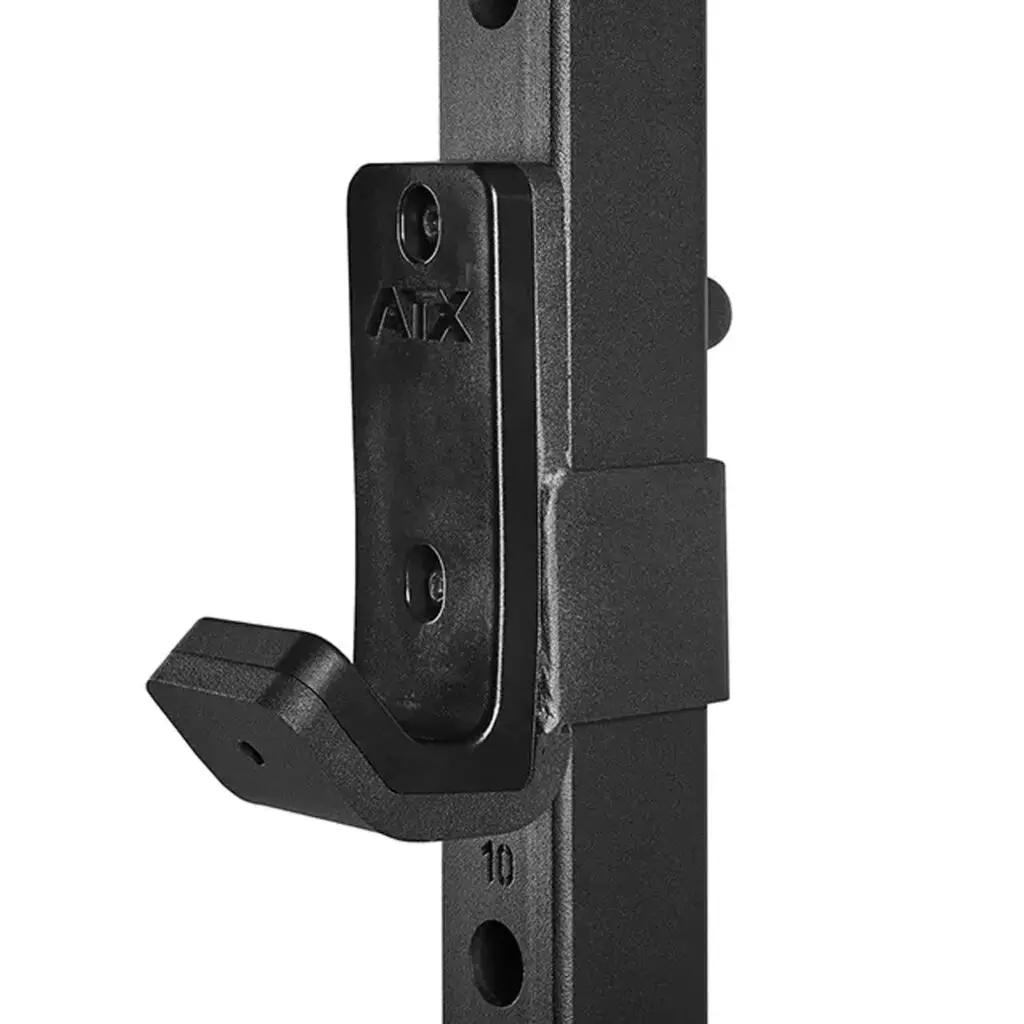

Optional J-Hooks

Made out of 10 mm thick steel with barbell protection. Rated to 400 kgs.

Optional Spotters

Compatible with the OPTIONAL ATX-SPO-500 Spotter Arms. Note – if you are planning on using the machine for free weights we recommend you bolt it down.

ATX-SB35-0500 MPX-500 smith machine safety spotter arms

ATX-SB35-0500 safety spotter arms for incline press

In a gym with concrete walls, a person in black is using the ATX® Smith Machine 500 (198 cm) for bench pressing, surrounded by fitness equipment.

A person, in a black ATX t-shirt and shorts with white socks and light shoes, performs a squat with a barbell on their shoulders inside a gym featuring an ATX® Smith Machine 500 for low ceilings (198 cm), with a weight bench and other equipment visible in the background.

A man is doing a barbell squat with the ATX® Smith Machine 500 in the gym. He wears a black t-shirt and shorts. The gray squat rack holds weights on both sides of the bar, and black mats cover the gym floor.

Dressed in black workout clothes, a person lies on the ATX® Smith Machine 500 - Low Ceilings, lifting a barbell with weights. The gym background reveals a grey wall and various equipment.

A person is lifting a blue barbell on an ATX® Smith Machine 500 designed for low ceilings at the gym, wearing a black ATX t-shirt. The background features a concrete wall.

A person in athletic wear performs a squat using an ATX® Smith Machine 500 - Low Ceilings - 198 cm with weighted barbells marked 10 kg and 20 kg. A concrete wall and gym equipment are visible in the background.

A person is using the ATX® Smith Machine 500 in a gym with gray walls and black flooring, wearing a black athletic outfit.

Model Height – 186 cm.

Walk-Through Innovation

The walk-through design of the ATX® Smith Machine 500 is a game changer. This isn’t just about utilizing space efficiently by placing it across doorways or using the space behind for storing cable attachments. The German engineering behind this feature ensures stability without the need for obstructive crossbeams, making it the ideal companion for using any adjustable bench.

Compact Smith Machine Features

Precision Placement: Laser-cut holes in the base serve as a guide for bench alignment and squat positioning.
Grip: With 50mm x 50mm uprights and a built-in locking mechanism, your grip space is maximized.
Expandable Design: Easily convert to a half rack with optional J-Hooks and Spotters.
Clear Markings: Laser-cut hole markings accommodate both smith machine and optional half rack attachments.

Robust Construction

Solid Steel Barbell: Crafted for durability and performance. We supply 50mm Olympic sleeves.
Stress-Free Assembly: Pre-welded support brackets enhance stability and ease assembly.
Reinforced Structure: Top and bottom brackets fortify the machine’s integrity.
Quality Components: Although this is a lighter duty ATX smith machine it still uses the best quality materials.

Ultra-Smooth Operation

The ATX® Smith Machine 500 boasts solid steel guiderails with a sleek chrome finish, enhancing both the machine’s smoothness and stability. Elevating the performance, ATX® incorporates linear bearings in the bar housing, offering a significant advantage over the conventional nylon sleeve design by reducing friction as the bar moves along the guiderails.

Please note: Free Weight Barbell, Collars, Weight Plates, J-Hooks are all sold separately.

The Final Word

Just like most things in life, purchasing gym equipment involves compromise. We all want the best but with space and financial constraints we all have to make sacrifices. But that doesn’t mean your training has to suffer – in some ways it can get better.

That pretty much sums up my experience with this little compact smith machine. Not being a massive fan of smith machines, I would have easily overlooked this little gem. But I like to try out the gym equipment I sell so I put it through it’s paces.

Our mezzanine floor where this is set up has a bit of bounce. So I honestly don’t know how stable this machine really is. But even on this unstable floor I just really slowed and controlled my form. For smith machine squats I was lifting bugger all – really embarrassing to be honest. However the deep reps with a pause and slow pace cooked my quads. So much so I got hooked.

Bent over smith rows is another favourite of mine. They are great on this smith because it has a really low bottom out point.

So if you are tight on space and money plus not looking at breaking world records. This might be the smith machine for you.

What weight plates do I use?

The lifting bar is 30mm. We supply Olympic Sleeves so you can Olympic plates. It is not suitable for standard weight plates
