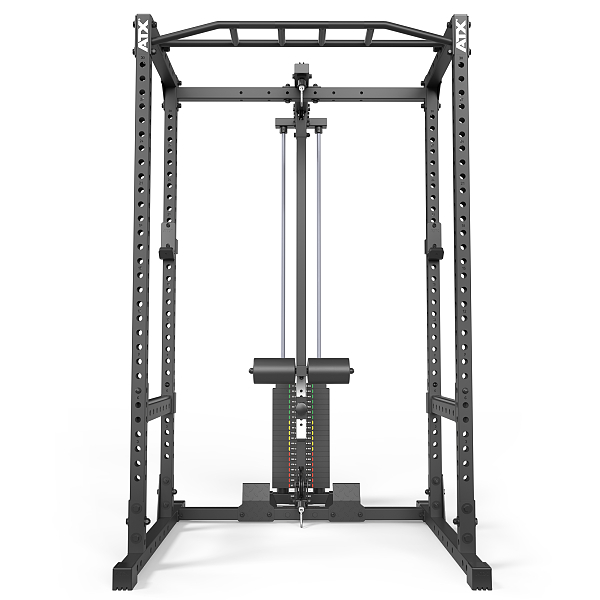

Power rack with an integrated cable pulley system, adjustable ATX Lat Option 510 100kg Stack 195cm, and a pull-up bar across the top.

ATX Lat Option 510 100kg Stack 195cm

Write a Review

$1,395.00

Item No: ATX-LTO-510-SW

1 in stock

DESCRIPTION

Weight Weight The base weight of the item, without any packaging.	154 kg
Rack Series	500
Weight Weight The base weight of the item, without any packaging.	140kg
Colour	Black
Inclusions Inclusions These are the specific items that you will receive when you purchase the product. Some products are shown with items that are not included for demonstration purposes.	Lat Tower, Footrests, 3 x Carabiners, Extension Chain
Certification	Domestic
Safe Working Load	140kg
Height	197cm
Warranty	5 Years – T & Cs

Say hello to the ATX-LTO-510-SW, a lat pulldown option that makes back day a walk in the park. This thing hooks onto your low ceiling ATX power rack and comes with a 100 kg weight stack. Smooth as butter, built tough, and ready to roll for all your pulling needs.

It fits the ATX PRX 510, 510-XS, 610 and 710 power racks, and it is certified to EN 20957 I.II.IV Class H (home).

Key Features:

ATX Lat Option 510 100kg Stack 195cm featuring black weight plates labeled in 11-pound increments, with a red selector pin inserted at the 77-pound position.

100 kg Weight Stack

20 plates in 5 kg increments with a magnetic selector pin, so it is easy to adjust for whatever you are lifting.

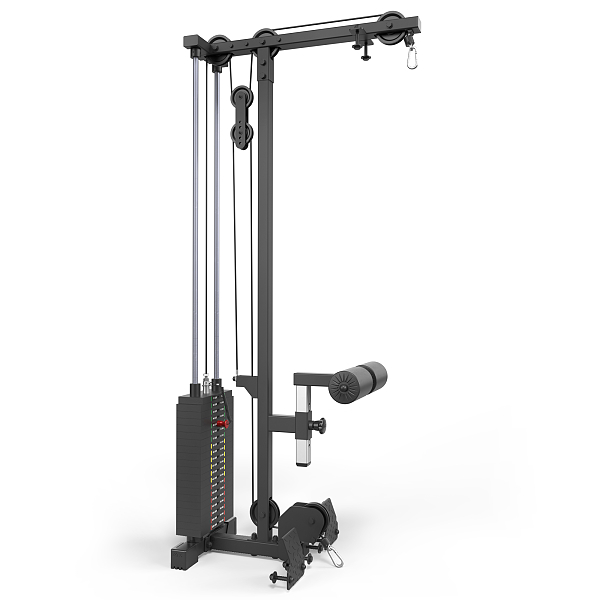

Close-up of the pulley system on an ATX Lat Option 510 100kg Stack 195cm, showing black wheels, vertical guide rods, and steel cables.

Dual Rollers

Upper and lower cables let you switch from pulldowns to rows with no hassle.

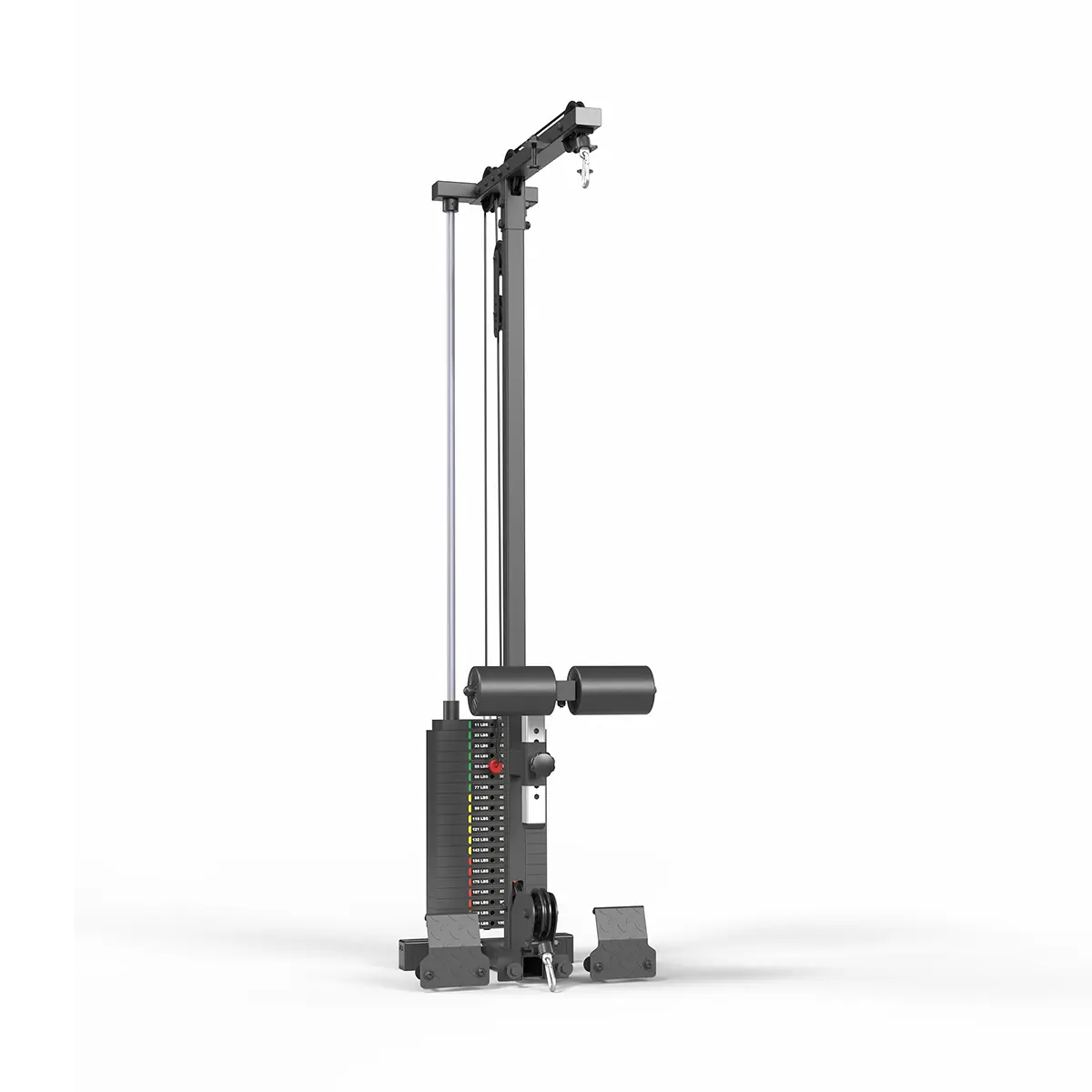

ATX Lat Option 510 100kg Stack 195cm weight stack for a pulldown machine, featuring labeled plates, a selector pin, and padded knee rollers.

Pads and Foot Plates

Knee rollers keep you steady and steel foot plates let you brace for seated rows.

Dimensions and Specifications

Height: 1972 mm
Stroke: 1410 mm
Weight stack: 100 kg (20 x 5 kg) with a magnetic selector pin and tether cord
Weight ratio: 1:1
Net weight: 140 kg
Frame tube: 60 x 60 x 2 mm, black fine-texture powder coat
Pulleys and cables: ball-bearing pulleys and stretch-free steel cables with a black plastic sheath
Compatibility: ATX PRX 510, 510-XS, 610 and 710 power racks
Certification: EN 20957 I.II.IV Class H (home)

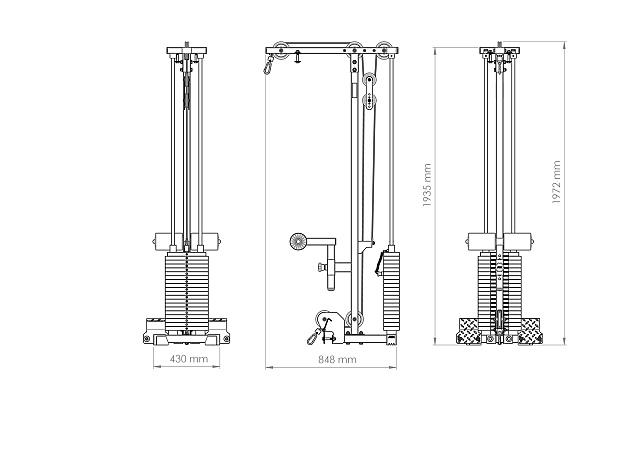

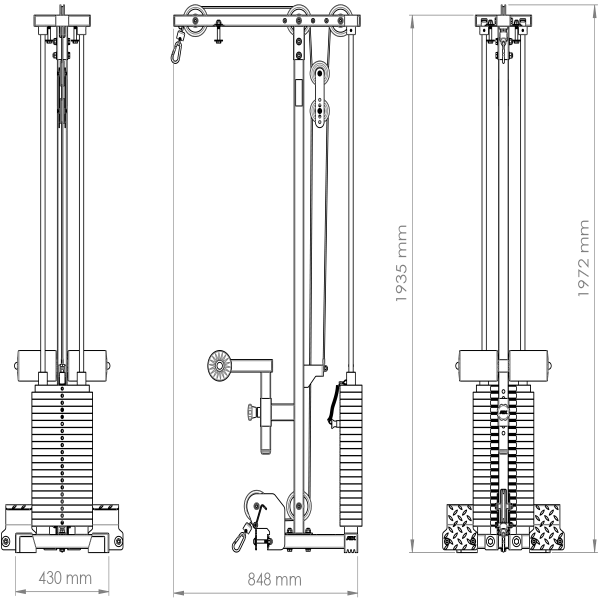

ATX lat option 510 weight stack dimension drawing showing 1972 mm height

Smooth 1:1 Pulling

No funny business with pulleys: you lift what you stack. The direct 1:1 ratio means no loss of load. Ball-bearing rollers and slick bush guides make every rep feel spot-on.

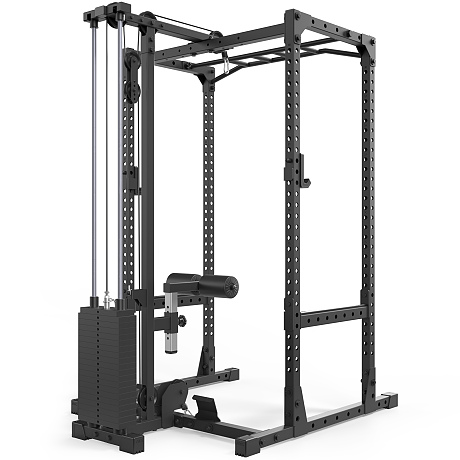

Fits Your Power Rack

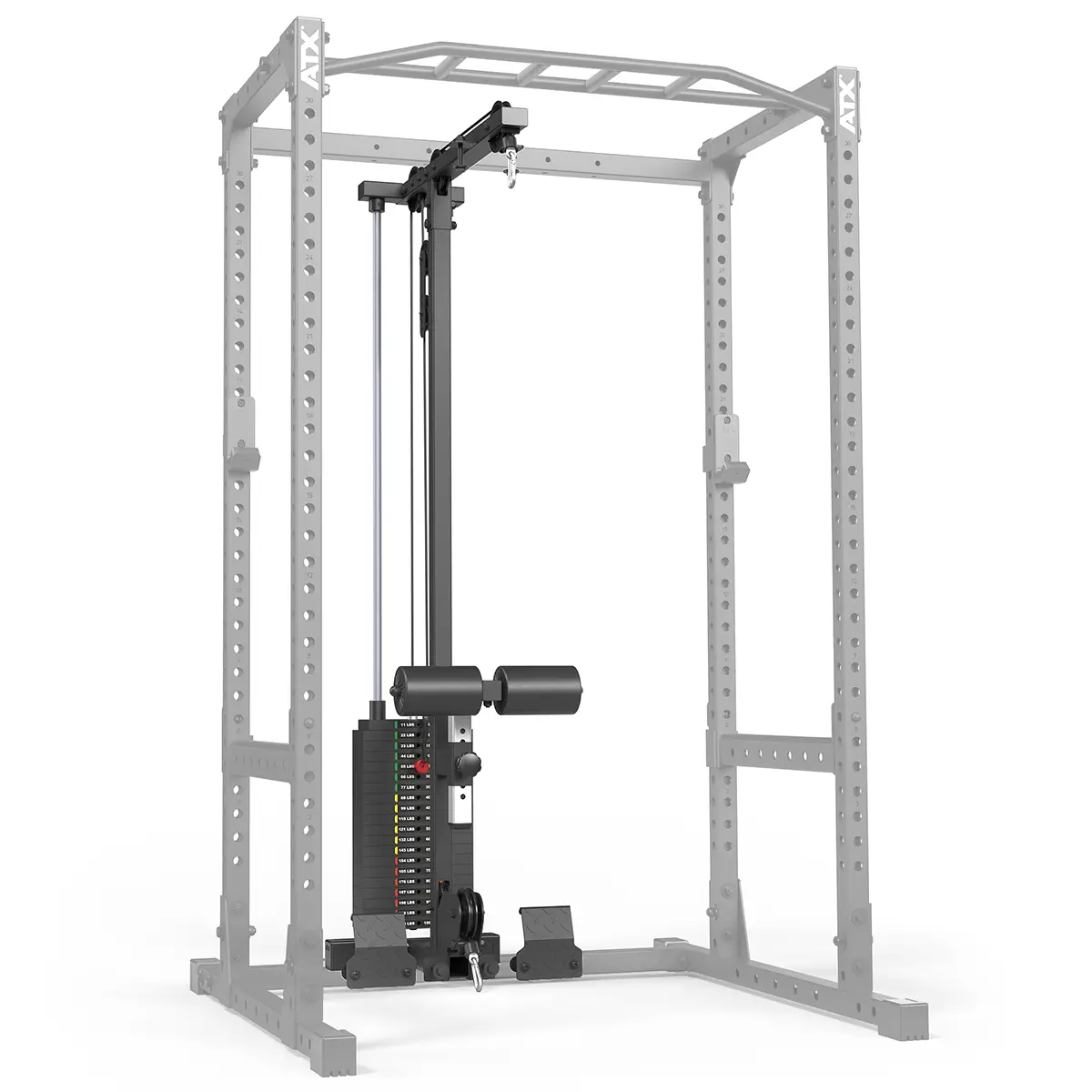

3D render of the ATX lat tower with a 100 kg weight stack fitted to a power rack shown in light grey

This lat tower attaches to the ATX PRX 510, 510-XS, 610 and 710 power racks. The rack shown in the pictures is not included.

It is delivered dismantled with assembly instructions.

Gym-Quality Pulls at Home

This gem is a great fit if you want gym-quality pulls without leaving home. Slap it on your rack, stack some weight, and watch your lats take off. It’s simple, strong, and built for lifters who mean business.
