ATX® Cable Crossover 500 198cm

ATX®
$1,395.00
Item No: ATX-CCS-500

1 in stock

DESCRIPTION

Weight

Weight

The base weight of the item, without any packaging.

73.9 kg
Dimensions 190 × 60 × 60 cm
Weight

Weight

The base weight of the item, without any packaging.

70kg

Footprint

Footprint

This is the area occupied by the item itself. You might need to allocate additional space for the use.

279/195x100cm

Height

198cm

Weight Load Capacity

Weight Load

This is the safe working load of the item, not to be confused with a breaking point.

125kg

Certification

EN 20957 I.II.IV – H

Warranty

3 years see T&Cs

The ATX Cable Crossover 500 – 198 cm (ATX-CCS-500) combines high and low cable outlets with two plate-loaded carriages rated to 125 kg each. Its 198 cm machine height is useful when you are planning a home gym with limited ceiling space, but measure your room and allow installation and exercise clearance before choosing a location. Smash cable flys, rows, pulldowns and suitable arm or leg exercises with the appropriate handles and setup.

Ball-bearing carriage rollers and swivelling pulley housings are designed to keep the cable movement smooth. The 2:1 ratio gives approximately half the loaded plate resistance at the handle before friction, while the freestanding frame keeps both stations together in a 279 x 100 cm footprint.

Key Features:

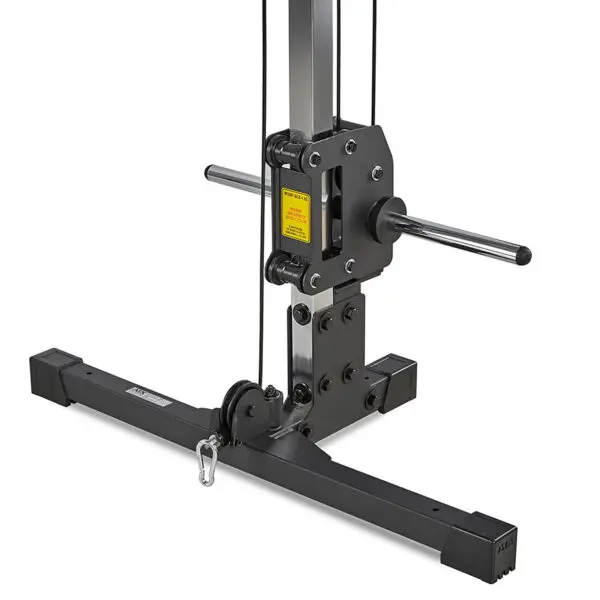

Plate-loaded carriage and base cable outlet

125 kg per Carriage

Two independent weight carriages rated to 125 kg each – 2 x 125 kg.

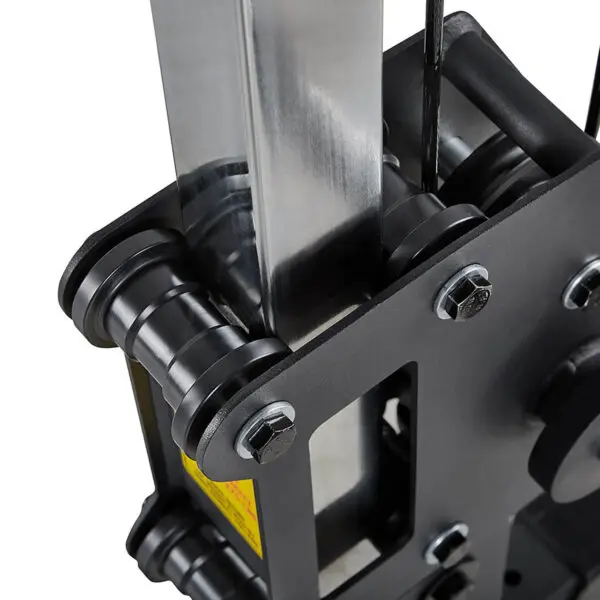

Ball-bearing rollers guiding the weight carriage

Ball-Bearing Carriages

Each carriage runs on four double-ball-bearing guide rollers.

ATX CCS-500 plate-loaded Cable Crossover three-quarter view

High and Low Cable Outlets

Use upper and lower cable positions without rerouting the cables.

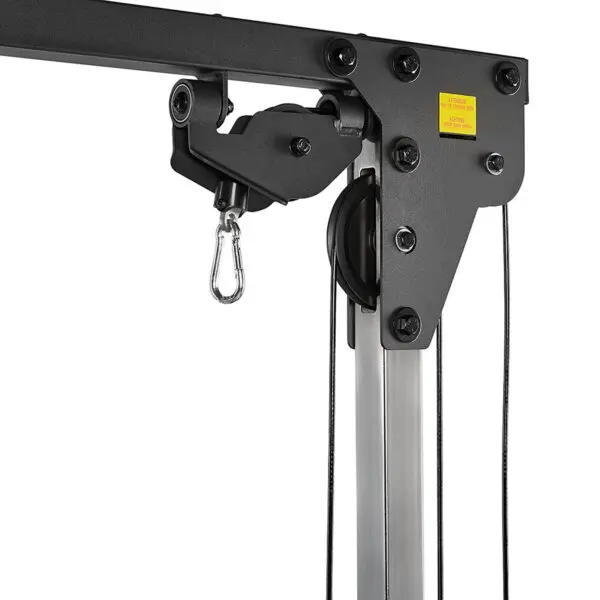

Upper swivelling pulley and carabiner attachment point

180 Degree Swivelling Housings

Ball-bearing pulley housings can swivel through 180 degrees.

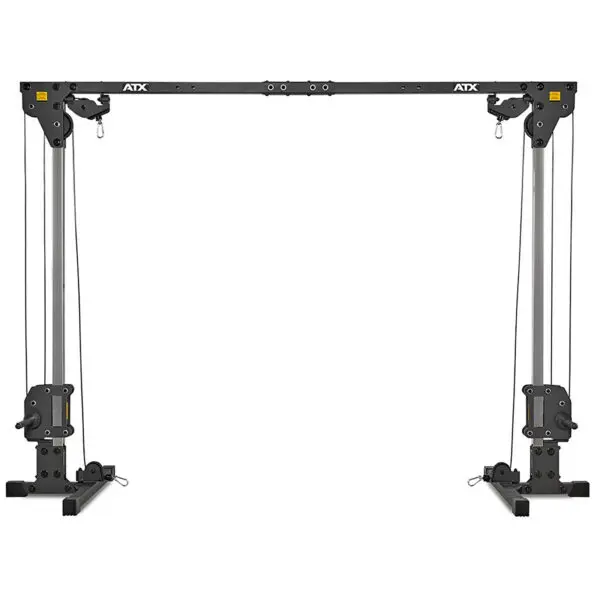

ATX CCS-500 Cable Crossover front view

2:1 Weight Ratio

Approximately half the loaded plate resistance reaches the handle before friction.

ATX CCS-500 plate-loaded Cable Crossover three-quarter view

198 cm Machine Height

A low overall height for planning your home gym cable station.

Dimensions

  • Overall span: 279 cm.
  • Overall depth: 100 cm.
  • Overall height: 198 cm.
  • Net weight: 70 kg.
  • The drawing marks 195 cm between the upper cable-outlet positions.
  • The 195 cm marked span is not an alternative 195 cm overall footprint.
  • Allow extra room for loading plates access assembly and exercise movements.

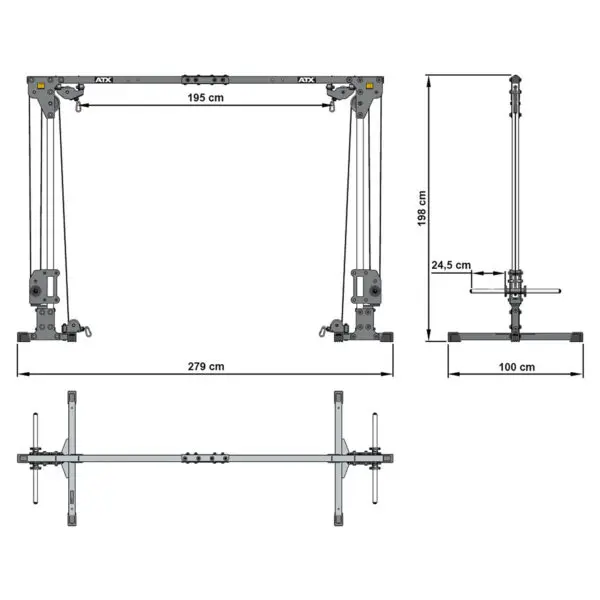

Cable Crossover drawing showing overall dimensions and upper outlet span

Why You Need This

Low-Height Cable Training: the 198 cm machine height can help when planning a shed or garage gym. It is not a promise that the machine will fit every room below 2 m – check the available height and the clearance needed to assemble and use it.

Exercise Options: upper and lower outlets give you different cable angles for chest, back, arm and leg exercises with suitable accessories. Changing the handle connection is different from rerouting the cable system.

Roller-Guided Movement: the ball-bearing rollers support the plate carriages as they travel along the uprights. The supplier specifies a freestanding layout; keep the area around the base feet clear rather than assuming any design removes all trip hazards.

Understand the Load and Ratio

The supplier lists 2 x 125 kg: a maximum plate load of 125 kg on each carriage. This is not 125 kg per loading pin or 250 kg on one side. The 2:1 ratio changes handle resistance, not the permitted plate load.

For example, 100 kg loaded on one carriage corresponds to approximately 50 kg-equivalent resistance at that cable station before friction. Actual resistance depends on the setup and friction, and the size of any loading increment depends on the plates you use.

Plate Fit and Included Hardware

The machine uses 30 mm plate-loading pins. Sam’s package includes four 50 mm Olympic plate adaptors for compatible Olympic plates. Four carabiners are included; the pictured training handles and weight plates are sold separately.

Exercise Examples

Person using a lower cable outlet on the Cable Crossover
Existing exercise example. Handles and plates are sold separately.
Person demonstrating several exercises on the Cable Crossover
Existing exercise examples. Handles and plates are sold separately.

Additional Information

  • Product code: ATX-CCS-500. ATX 500 Series.
  • Certification: EN 20957 I.II.IV – H (Home).
  • Maximum plate load: 125 kg per carriage; two carriages rated 2 x 125 kg.
  • Cable ratio: 2:1. This does not increase the carriage load limit.
  • Carriage guidance: four double-ball-bearing rollers per carriage.
  • Pulleys: double ball bearings with 180 degree swivelling housings.
  • Cables: steel with a protective plastic coating.
  • Layout: freestanding construction with upper and lower cable outlets.
  • Plate loading: 30 mm standard pins; four 50 mm adaptors included in Sam’s stated package.
  • Included: one 198 cm-high plate-loaded Cable Crossover with two weight carriages and four carabiners plus Sam’s four-adaptor package.
  • Not included: weight plates training handles or other illustrated accessories.
  • Delivery: supplied disassembled with assembly instructions.

Key Takeaways

  • 198 cm-high home-use crossover with a 279 x 100 cm footprint.
  • 125 kg maximum plate load per carriage – 2 x 125 kg across the two stations.
  • High and low outlets with a 2:1 ratio.
  • Ball-bearing carriage rollers and swivelling pulley housings.
  • Four carabiners included; training handles and plates sold separately.
