ATX® Cable Pull Tower 90kg

ATX®
$3,325.00
Item No: ATX-CPT-800-S90

Out of stock

Notify me when back in stock.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

DESCRIPTION

Weight

Weight

The base weight of the item, without any packaging.

223 kg
Dimensions 226 × 80 × 55 cm
Weight

Weight

The base weight of the item, without any packaging.

217kg

Footprint

Footprint

This is the area occupied by the item itself. You might need to allocate additional space for the use.

132x105cm

Height

229cm

Weight Load Capacity

Weight Load

This is the safe working load of the item, not to be confused with a breaking point.

160kg

Certification

EN 20957 I.II.IV – S

Warranty

5 years see T&Cs

Need a versatile cable setup for your gym? The ATX Cable Pull Tower 90kg (ATX-CPT-800-S90) combines a 90 kg selectorised stack with a height-adjustable swivelling pulley. The current supplier dimensions are 132 cm wide x 105 cm deep x 229 cm high, with a stated net weight of 217 kg. Choose from 37 outlet heights for cable rows, pushdowns, face pulls and other exercises with suitable training handles sold separately.

Installation safety: the supplier says cable towers should always be bolted to the floor to help prevent tipping. Floor anchors and screws are not included.

Key Features:

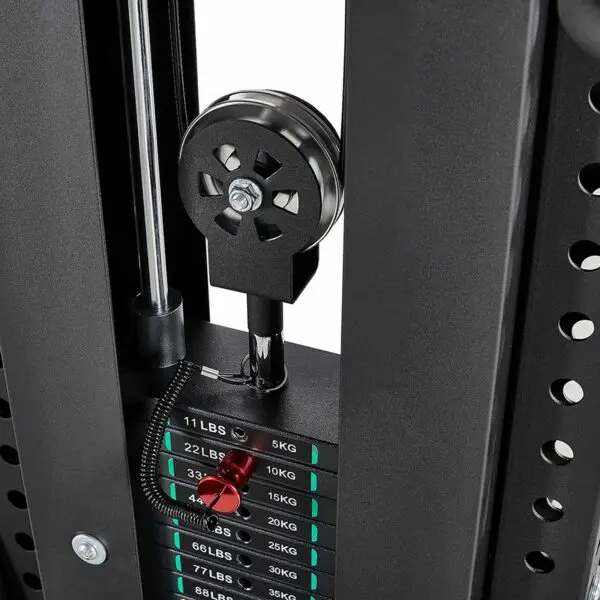

Selectorised 90 kg stack and upper stack pulley

90 kg Weight Stack

The included selectorised stack uses 5 kg steel-plate steps and protective covers.

Height-adjustable swivelling cable outlet and support handle

37 Outlet Heights

Positions are spaced 5 cm apart from approximately 25 to 205 cm floor-to-eyelet height.

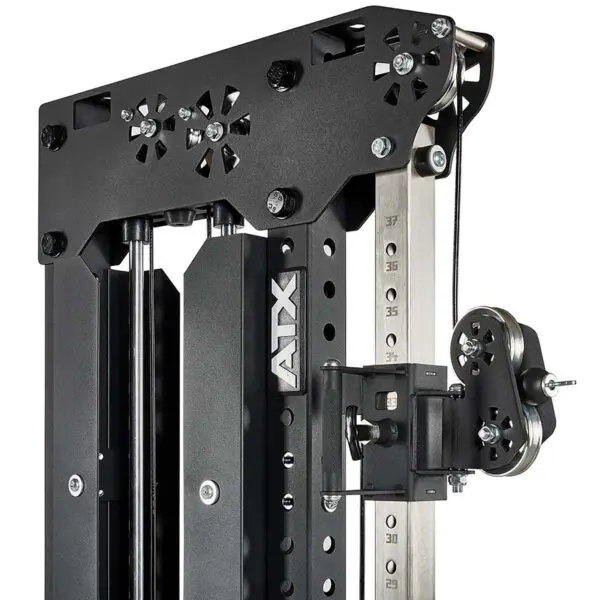

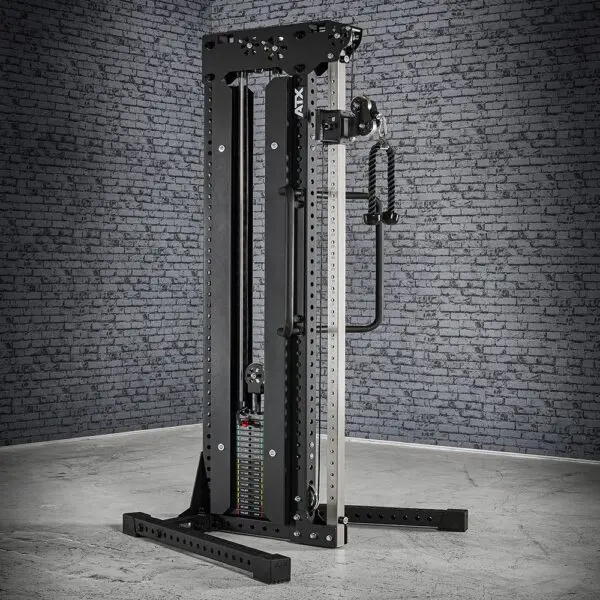

Swivelling pulley housing and indexed upright with an optional rope
Optional training rope shown. Sold separately.

170 Degree Swivel

The pulley housing swivels through 170 degrees for angled cable movements.

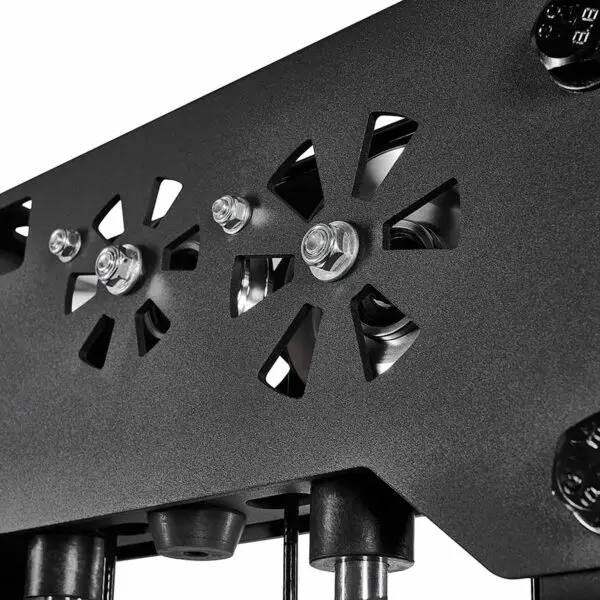

Upper tower pulley plate and cable guide assembly

Aluminium Pulleys

Ball-bearing aluminium pulleys guide the protected steel cable.

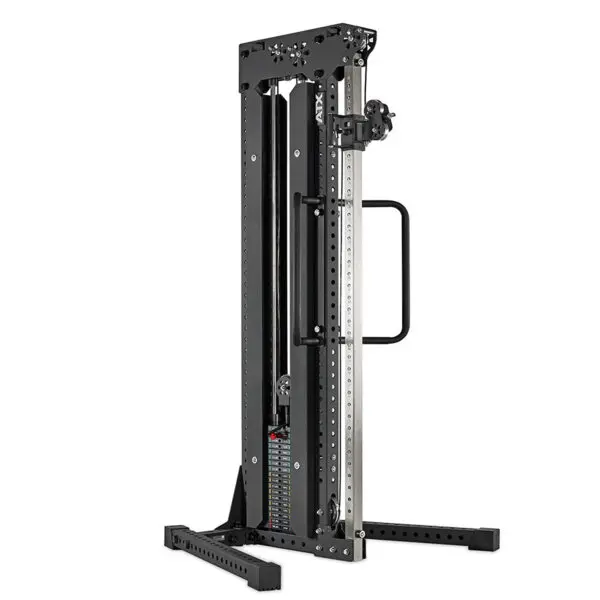

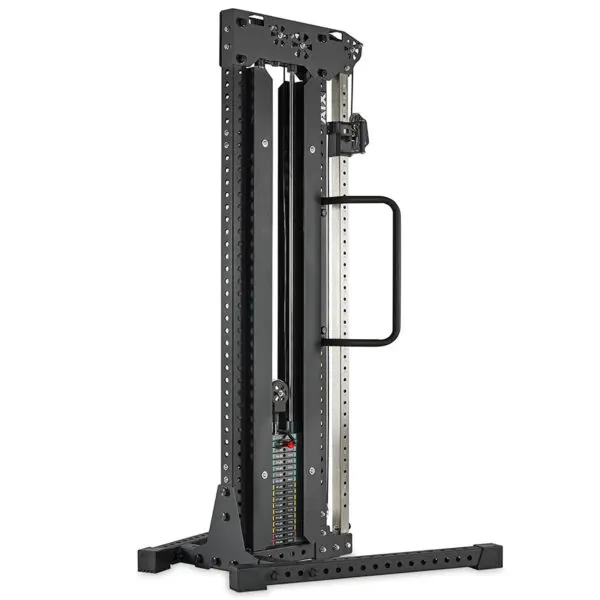

ATX Cable Pull Tower 90 kg front three-quarter view

260 cm Stated Cable Travel

The supplier specifies a maximum cable extension travel of 260 cm.

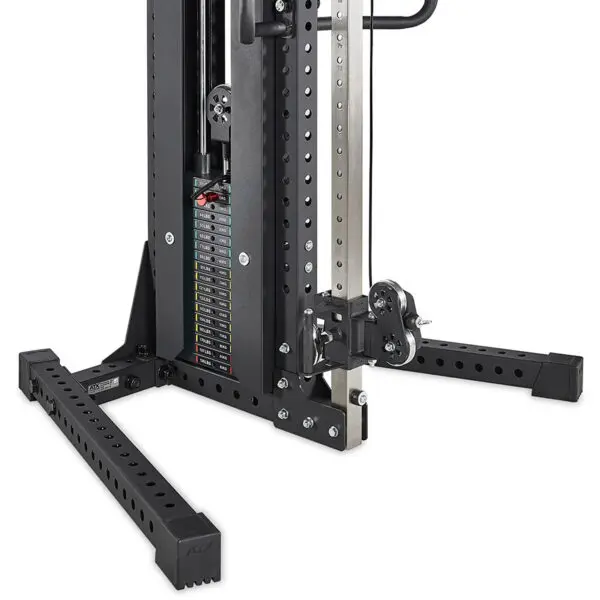

ATX Cable Pull Tower rear three-quarter view with support brackets

Two Support Brackets

The two holding supports can be positioned at the required height; exercise cable grips are separate.

Dimensions

  • Overall width: 132 cm.
  • Overall depth: 105 cm.
  • Overall height: 229 cm.
  • Stated net weight: 217 kg.
  • Adjustable cable-eyelet height: approximately 25 to 205 cm.
  • Pulley positions: 37 at 5 cm spacing.
  • Maximum cable extension travel: 260 cm as stated by the supplier.
  • Allow additional room for assembly cable movements and access around the anchored unit.

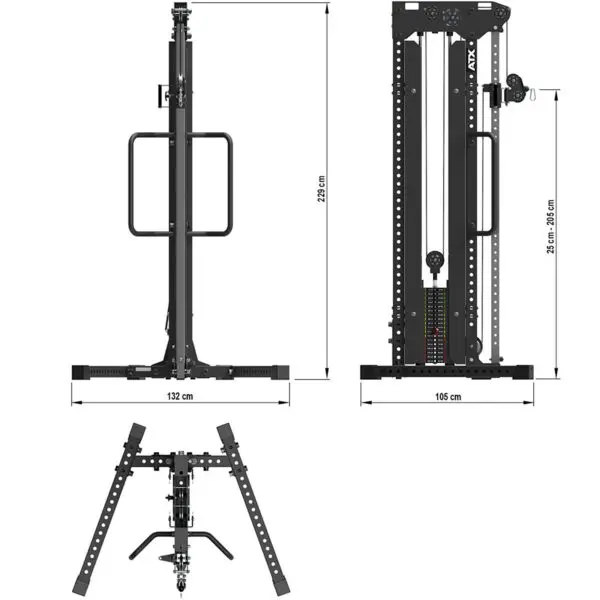

Cable Pull Tower drawing showing 132 cm width 105 cm depth and 229 cm height

Why You Need This

Exercise Options: one adjustable outlet gives you different pulling angles for back, arms, core and leg exercises with appropriate accessories. Training handles are not part of the supplied tower.

Space Planning: use the 132 x 105 cm footprint and 229 cm overall height when planning your installation. Measure the available room and allow additional space for access assembly and your chosen cable movements.

Smooth and Adjustable: the 90 kg stack, ball-bearing aluminium pulleys and height-indexed outlet provide a straightforward way to change the setup between cable exercises.

Understand the Stack and Ratio

The supplier labels the transmission as 1:2. Expressed as cable travel versus stack travel, this is the 2:1 convention used in Sam’s existing copy. In ideal terms, a fully selected 90 kg stack contributes approximately 45 kg-equivalent resistance at the cable before friction; this is not a measured handle-force certification.

The stack changes in 5 kg steps, giving an approximately 2.5 kg-equivalent change in the ideal cable contribution at this ratio. Optional add-on or intermediate stack weights are available separately for finer loading. Follow the model-specific instructions and do not confuse stack mass or nominal resistance with another structural or user-load rating.

Floor-Standing Does Not Mean Unanchored

The supplier describes a freestanding layout but separately says cable towers should always be fixed to the floor for safety. The anchoring note takes priority over any assumption that a floor-standing tower can be used unsecured.

Suitable floor anchors and screws are not included. Follow the supplied assembly instructions and obtain fixings appropriate to the floor and installation. This marketing drawing is not a drilling template or a substitute for the fixing instructions.

Cable Pull Tower perspective frame and base drawing

Set Up Your Cable Training

The swivelling outlet is handy for angled pulls and twists, while the engraved height scale helps you return to your preferred settings. At 105 cm deep and 229 cm high, measure your gym in Sydney, Melbourne or Brissy before choosing a location. Pair it with a suitable lat bar, stirrup grip or ankle strap purchased separately.

The existing training videos are retained as exercise references, not as installation instructions or an independent test of this tower.

Additional Information

  • Product code: ATX-CPT-800-S90. ATX 800 Series.
  • Certification: EN 20957 I.II.IV – S (Studio).
  • Included stack: 90 kg with 5 kg steel plates and protective covers.
  • Cable system: 1:2 supplier ratio; ball-bearing aluminium pulleys and protective plastic-covered steel cable.
  • Guide rods: solid material with hard chrome finish.
  • Adjustment: 37 engraved height settings at 5 cm spacing with one-hand operation.
  • Support brackets: two holding supports mountable at the required height.
  • Included: one Cable Pull Tower with stack covers support brackets and carabiner hardware.
  • Delivery: supplied disassembled with assembly instructions.
  • Installation: supplier says always bolt the tower to the floor. Floor anchors and screws are excluded.
  • Not included: cable-training handles ropes bars ankle straps optional intermediate weights or other pictured accessories.

Key Takeaways

  • 90 kg included stack with 37 cable-height positions and a 170 degree swivel.
  • 132 x 105 cm footprint and 229 cm overall height.
  • Maximum stated cable travel 260 cm.
  • Studio class S certification with a stated 217 kg net weight.
  • Plan floor anchoring and purchase suitable exercise handles separately.
