Sam's FitnessGym EquipmentBodyweightATX® Folding Wall Mounted Dip Handles
The ATX® Folding Wall Mounted Dip Handles feature a black metal wall-mounted design with two angled handles and the ATX logo on the side, offering added versatility for upper body workouts as part of your training routine.

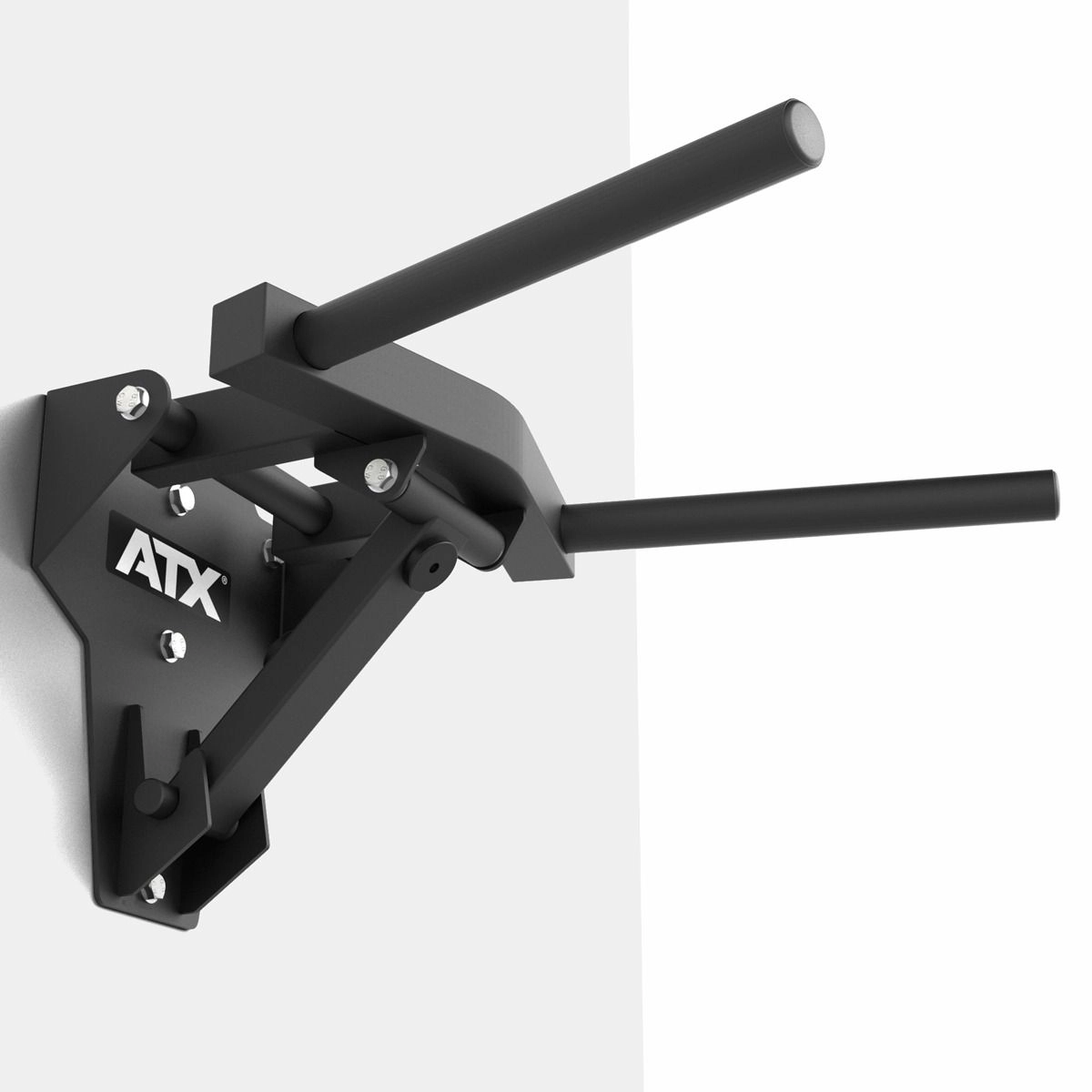

ATX® Folding Wall Mounted Dip Handles in black metal, mounted on a white wall with the ATX logo visible on the bracket, featuring two parallel handles that extend outward and upward for exercise use.

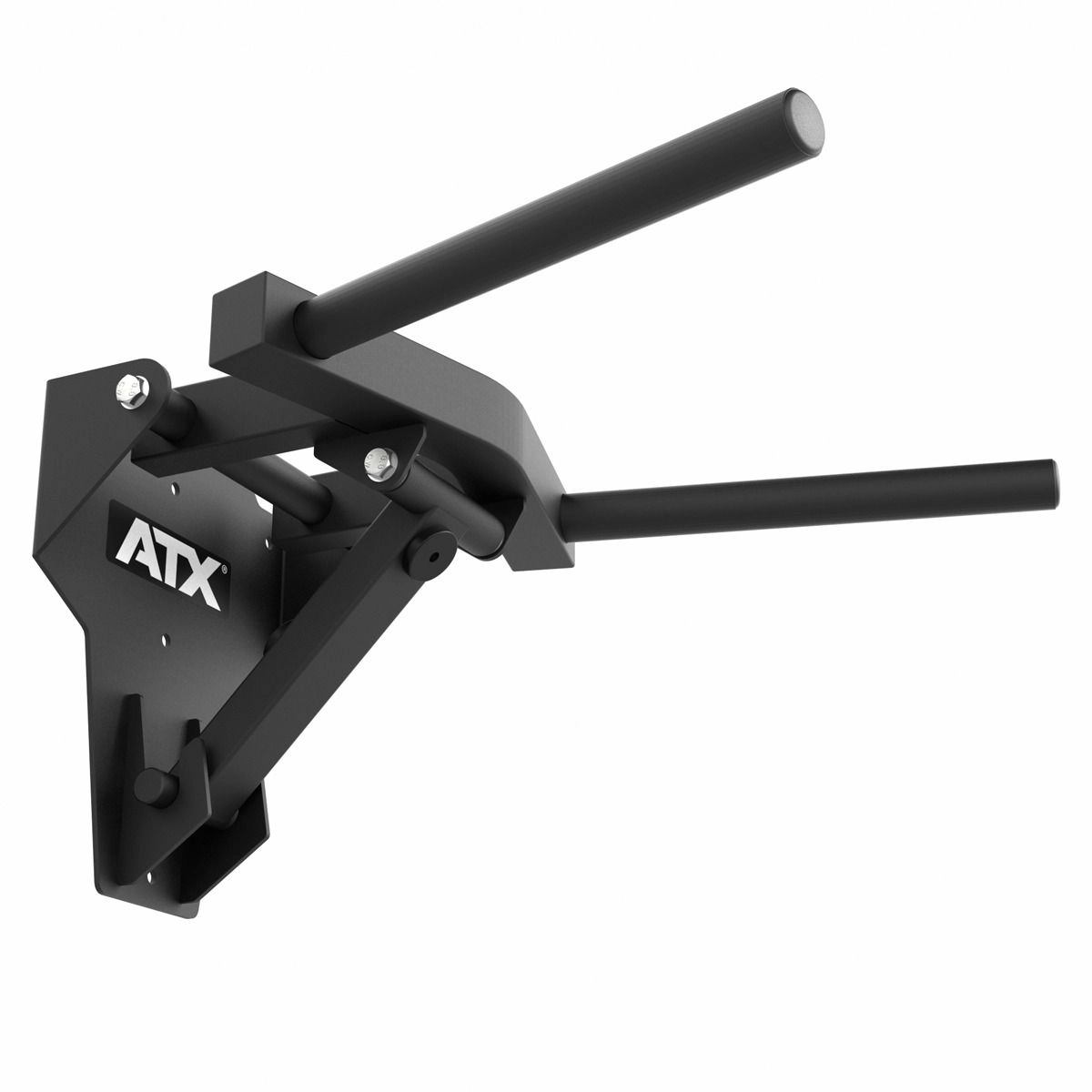

The ATX® Folding Wall Mounted Dip Handles are attached to a wall, featuring two parallel handles angled downward for bodyweight exercises such as dips. The background is plain and light-colored.

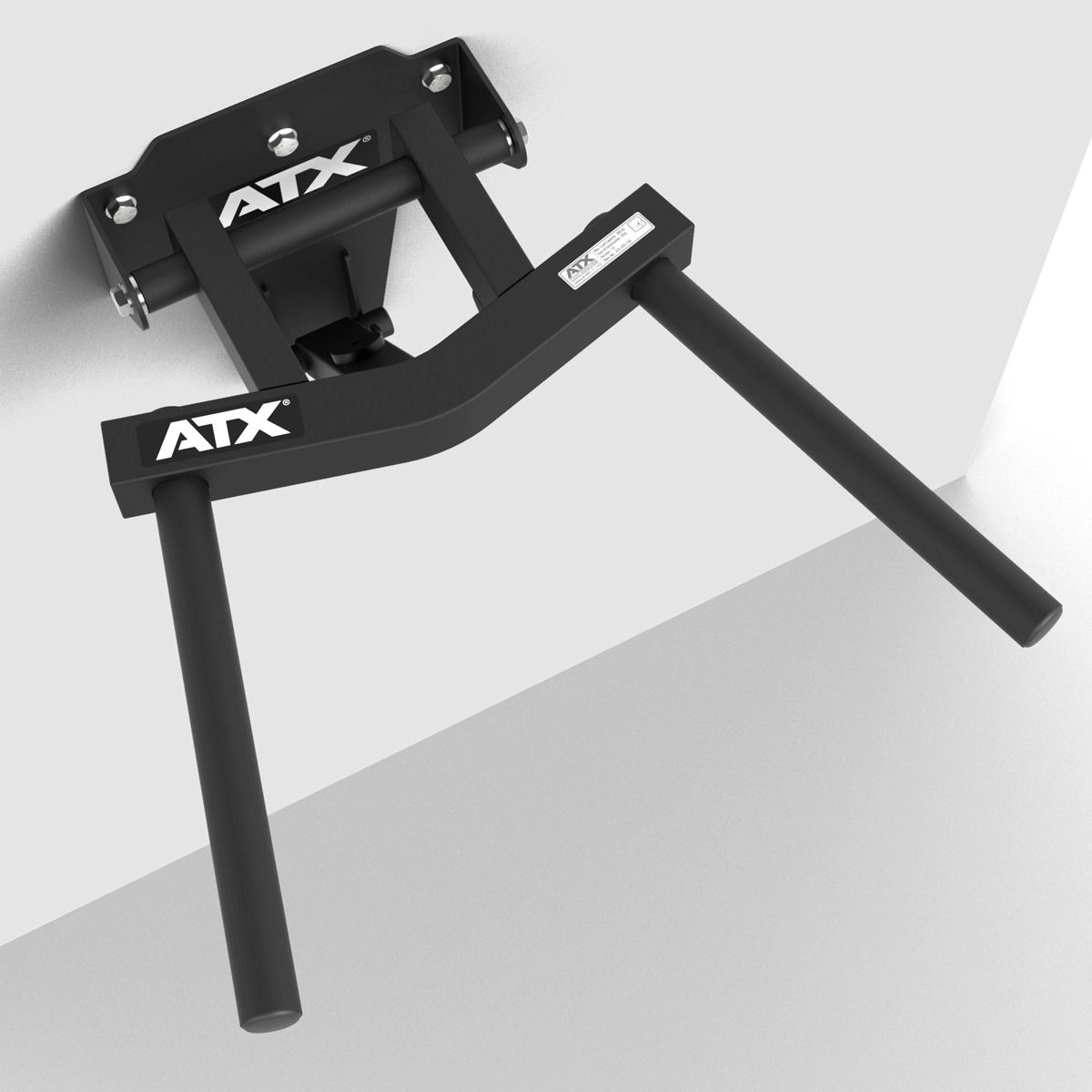

Introducing the ATX® Folding Wall Mounted Dip Handles—black metal dip bars featuring the ATX logo in white. Designed for efficient upper body workouts such as dips, this equipment includes two angled handles and robust mounting plates. The folding design offers a space-saving solution while ensuring uncompromised strength and stability.

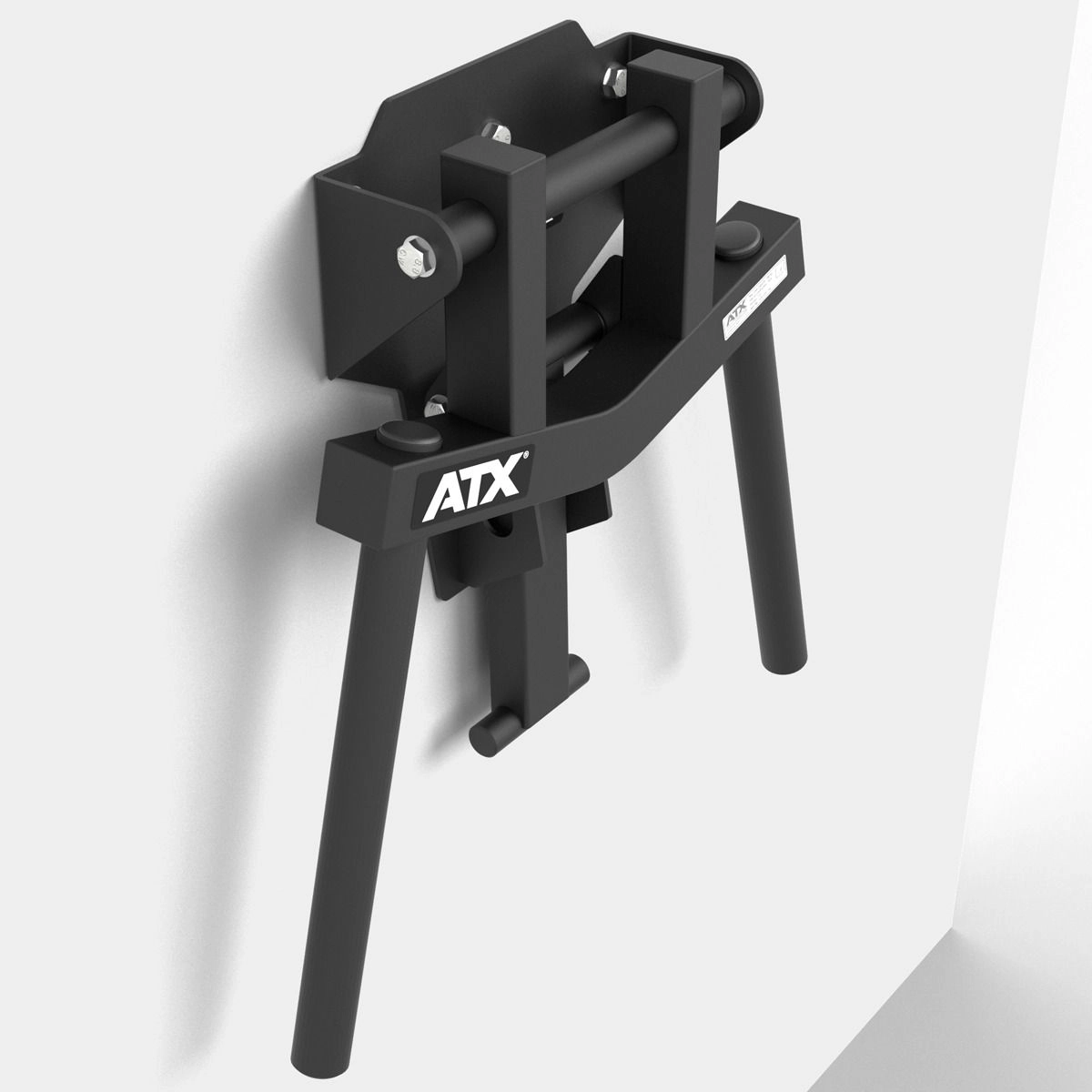

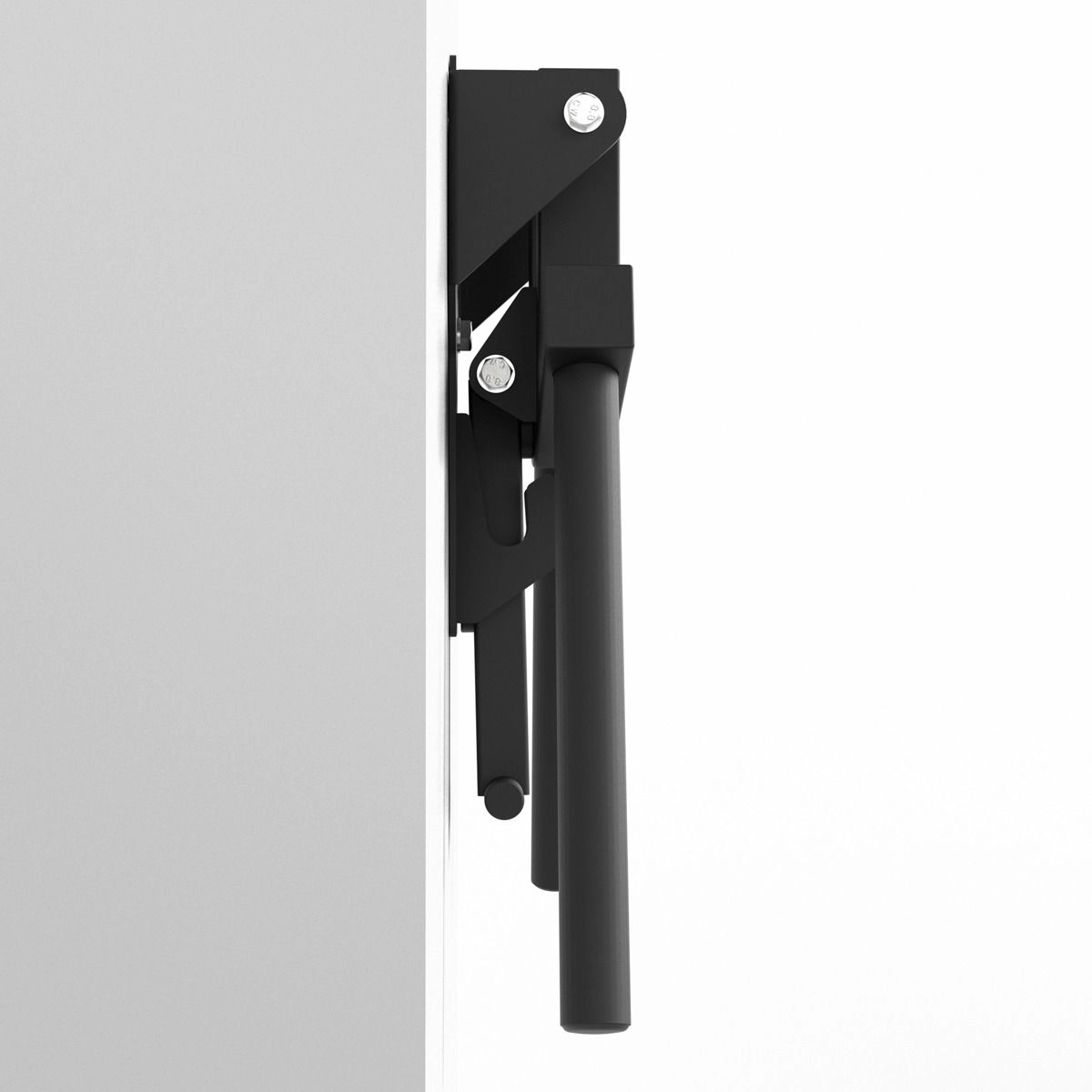

ATX® Folding Wall Mounted Dip Handles in black metal, folded flat against a white wall and viewed from the side, highlighting their compact, space-saving design.

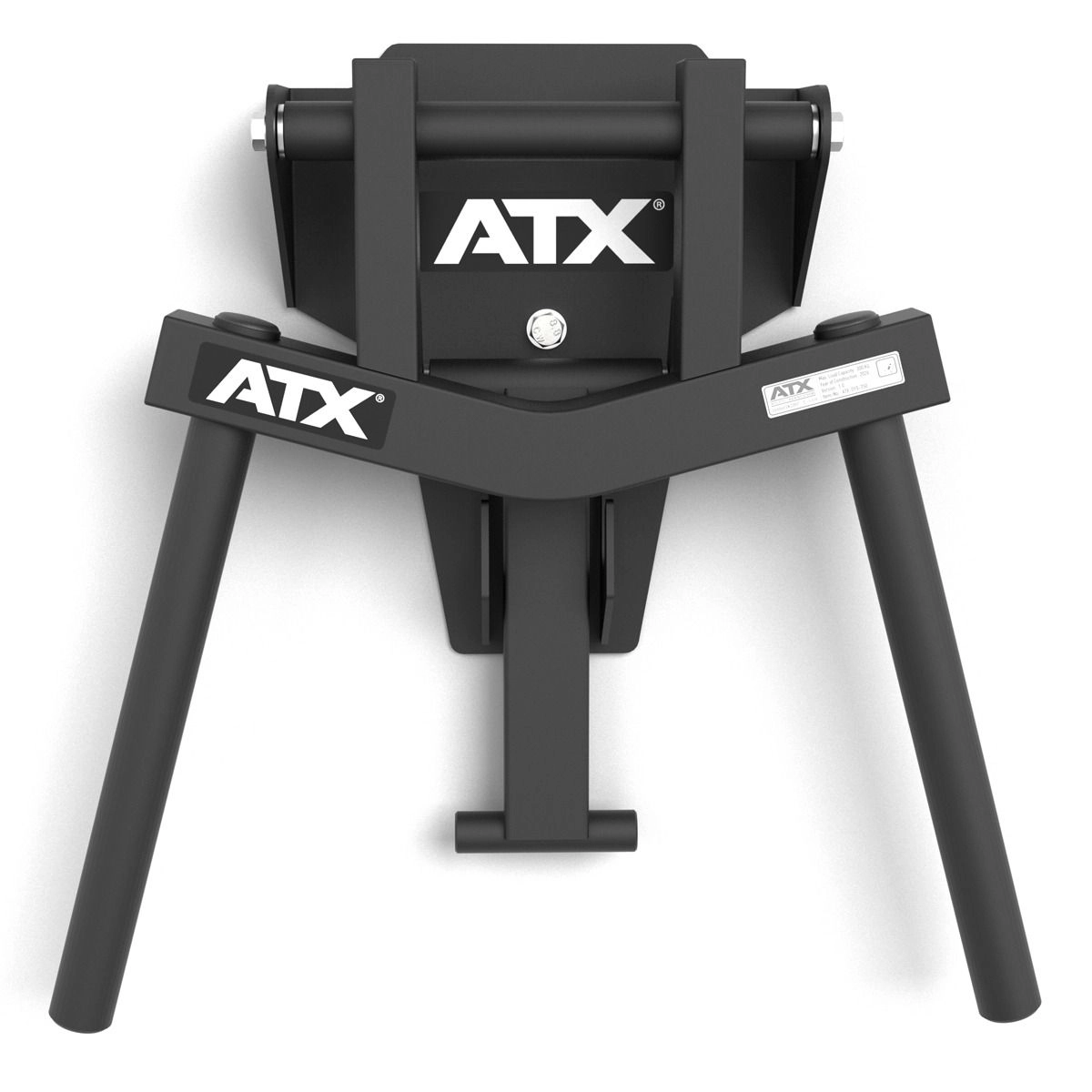

Black ATX® Folding Wall Mounted Dip Handles, shown from above, featuring two angled handles and a sturdy metal frame. White ATX logos are visible on the front and side of the device.

ATX® Folding Wall Mounted Dip Handles

Write a Review
ATX®
$295.00
Item No: ATX-FDB-720

1 in stock

DESCRIPTION

Weight

Weight

The base weight of the item, without any packaging.

 20 kg
Dimensions 75 × 75 × 14 cm
Weight

Weight

The base weight of the item, without any packaging.

18.5kg
Footprint

Footprint

This is the area occupied by the item itself. You might need to allocate additional space for the use.

70x68x71.5cm
Certification

EN 20957 I.II.IV – S
Weight Capacity

350 kg

The ATX® Folding Wall Mounted Dip Handles are yet another classic piece of German engineering. Space is becoming a premium in many training facilities. Everybody is looking to maximise the functionality of every square inch of their gym.

The ATX® Wall Mounted Dip Bars were a great idea. They are solid and space efficient. However ATX wanted a solution for those who had even less space. Or wanting to make movement easier in their gym.

Key Features:

A pair of ATX® Folding Wall Mounted Dip Handles, featuring black metal construction, angled handles, and AXX branding, is showcased against a gray wall with a black background on the right side.

Quick-Folding Function

Set it up in seconds!

A pair of ATX® Folding Wall Mounted Dip Handles—featuring a black metal construction with a cylindrical arm—are installed against a vertically split background in black and gray tones.

Space Saving Design

Sticks out only 13 cm off the wall when folded down.

Close-up of a black ATX® Folding Wall Mounted Dip Handles gym equipment part, highlighting its sturdy metal frame, bolts, and a label with specifications, set against a black background.

Heavy-Duty Construction

High base weight of 18.5 kgs and a safe working load of 350 kgs!

  1. Innovative Space saving design – wall mounted and fold away when not in use. It sticks out only 13 cm off the wall once folded.
  2. An extremely high weight load capacity of 350 kgs thanks to high quality materials and precision engineering.
  3. The backing plate has been manufactured out of a solid 8 mm thick steel sheet and is secured to the wall using 4 bolts*.
  4. The sabre tooth locking system ensures optimal stability as the locking pin rests on two laser cut steel sheets. This prevents the unit from flexing allowing the user to focus on the exercise.
  5. The self lubricating Copper Bushings may not be a necessary addition but it is definitely worth praise. They keep the set up process smooth and quiet even after years of use.
  6. The grips themselves have been manufactured out of thick ∅45 mm tubing and have been angled to reduce the stress on the users joints.
The ATX® Folding Wall Mounted Dip Handles have a black, sturdy metal frame with two angled legs and folding arms. They are designed for use with exercise equipment and feature a logo on top and a specifications label.
ATX® Folding Wall Mounted Dip Handles made of black metal in ATX style, featuring two angled arms, mounted on a white brick wall and viewed from the front.
ATX® Folding Wall Mounted Dip Handles are attached to a white brick wall beside a black adjustable workout bench, with tall beige curtains and a window in the background.
The ATX® Folding Wall Mounted Dip Handles in sleek black are securely mounted to a brick wall in a home gym, with an adjustable weight bench placed below and a window with curtains visible in the background.
A home gym room featuring ATX workout equipment, including a bench, a wall-mounted machine equipped with ATX® Folding Wall Mounted Dip Handles, and other gear arranged on black mats. White brick walls, a shelf displaying plants, and a leafy plant in the foreground are also visible.
A home gym setup featuring ATX® Folding Wall Mounted Dip Handles, an adjustable weight bench, and a set of dumbbells arranged on the floor against a light brick wall near a window with gray curtains.
Modern home gym featuring black ATX® Folding Wall Mounted Dip Handles, an adjustable bench, weights, and a white brick wall in the background. Shelves with decor can be seen on the upper left.
Line drawing of the ATX® Folding Wall Mounted Dip Handles featuring two parallel handles extending outward and a back plate for secure attachment, depicted in white outlines on a black background.
Technical drawing of the ATX® Folding Wall Mounted Dip Handles, featuring multiple views displaying dimensions, angles, and exact measurements for length, height, and hole placements on a black background.

The Footprint: Width 36 cm (Mounting Plate) 70 cm (Total), Height – 43 cm (Unfolded), 68 cm (folded), Depth – 71.5 cm (Unfolded), 13 cm (Folded)

What’s Included? ATX® Folding Wall Mounted Dip Handles (ATX-FDB-720)

Please note the pictures may feature optional attachments or items which are not included with the unit, this is to show the possible configurations/use of the unit. Mounting Bolts are NOT included, the type you will need will depend on the surface you are planning on mounting it on.
