ATX® Gladiator Chin Up Bar

ATX®
$259.00
Item No: ATX-PUX-730

Out of stock

Notify me when back in stock.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

DESCRIPTION

Weight

Weight

The base weight of the item, without any packaging.

21 kg
Dimensions 128 × 64 × 15 cm
Weight

Weight

The base weight of the item, without any packaging.

20kg

Footprint

Footprint

This is the area occupied by the item itself. You might need to allocate additional space for the use.

131x63x45.5cm

Certification

EN 20957 I.II.IV – S

Weight Capacity

350 kg

Warranty

5-Years T&C's

The ATX Gladiator Chin Up is massive. If you have no space constraints this is the chin-up you should be looking at.

Key Features:

ATX Gladiator chin up bar angled view

Commercial Quality

Certified to EN 20957 I.II.IV Class S for studio use.

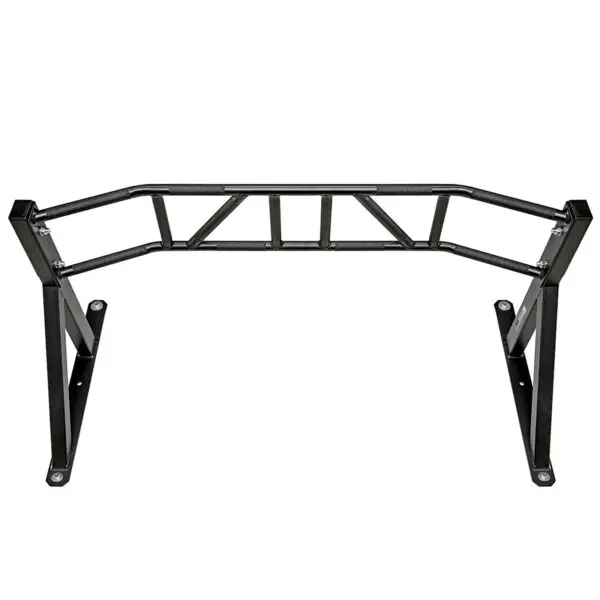

ATX Gladiator chin up bar front view

Heavy Duty

The supplier lists a load capacity of up to 350 kg.

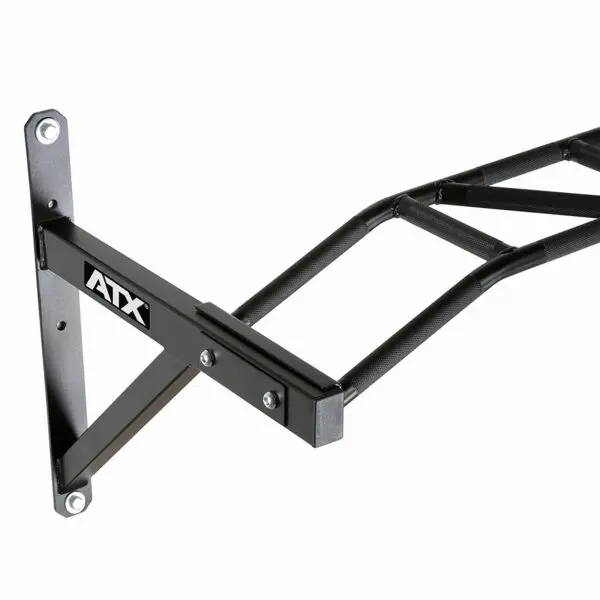

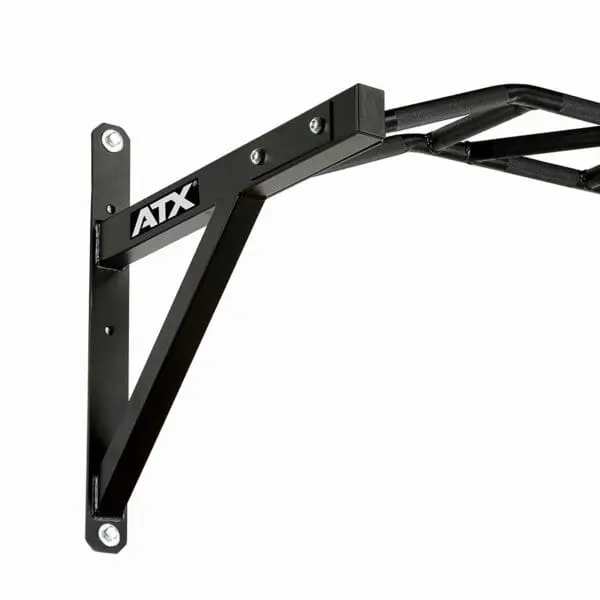

Triangular wall support bracket

Quality Construction

Thick-walled steel construction with triangular wall supports.

Wall bracket and parallel grip bars

Multi-Grip

Wide to narrow grips with straight and angled hand positions.

ATX Gladiator chin up bar front view

28 mm Grip Bars

Double parallel bars made from thick-walled steel tube.

Knurled grip bars close up

Knurled for Grip

Textured knurling helps you hold on through your pull-ups.

Dimensions and Grip Options

  • Overall width: 130 cm.
  • Wall projection to the outer edge: 58 cm.
  • Overall height: 60 cm.
  • Product weight: approximately 21 kg.
  • Grip diameter: 28 mm.
  • Parallel grip widths: 120 mm and 680 mm.
  • Angled parallel grip width: 400 mm at 35 degrees.
  • Maximum outer angled grip width: 1200 mm.
  • Straight overhand and underhand grip widths: 320 mm and 480 mm.

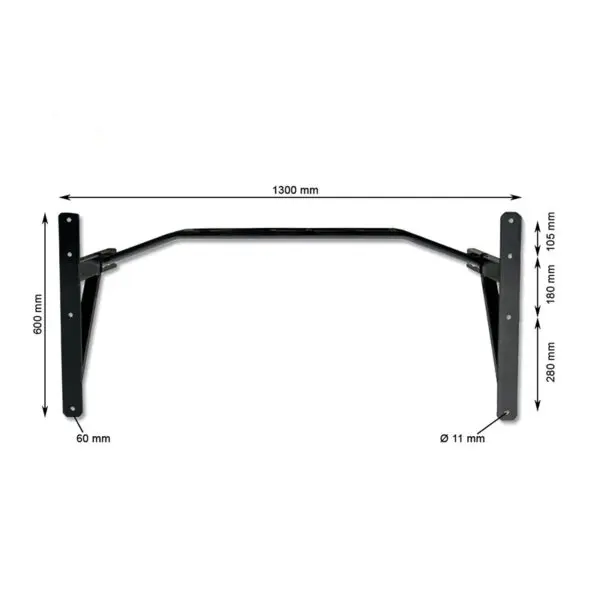

See the drawing for mounting details. The wall plates are 60 mm wide with 11 mm mounting holes. Check the supplied instructions and the actual unit before drilling.

ATX Gladiator mounting dimensions drawing

Train like a Gladiator

With multiple grips, you can vary your training more than you would with a normal chin up. The grip varies from wide to narrow, with horizontal to vertical hand placement.

Pull-ups are a great exercise for the back, and with the variety of grips this bad boy offers you can train your back and arms with a range of hand positions.

The Gladiator Chin Up is heavy duty, with a supplier-listed load capacity of up to 350 kg. The supporting wall, fixings and movements performed must also be suitable for the intended load.

Knurled grip bars close up

A Massive Wall-Mounted Chin Up

Thick plate steel backing plates are combined with 28 mm round steel tube. The black satin finish has a fine texture, and the grip bars are knurled for better grip.

Person holding the ATX Gladiator chin up bar

Additional Information

  • Included: 1 x ATX Gladiator Chin Up Bar (ATX-PUX-730) with assembly instructions.
  • Delivery state: Supplied disassembled for assembly.
  • Not included: Wall mounting bolts and anchors. Eight suitable wall anchors are required. Choose fixings to suit the wall construction.
  • Installation: Wall-mounted using anchors. The commercial rating must be considered alongside the structure it is affixed to and the movements performed.
  • Certification: EN 20957 I.II.IV Class S for studio use.
  • Finish: Black satin with a fine texture.
  • Optional items: Pictures may feature optional attachments or items which are not included. These show possible configurations or use.

Key Takeaways

  • Multiple straight and angled grips for varied pull-up training.
  • 28 mm knurled steel grip bars and a substantial wall-mounted construction.
  • 130 cm wide with a 58 cm wall projection and a 60 cm overall height.
  • Supplied disassembled with instructions. Wall fixings must be sourced separately.
