ATX® Lat Option 510 195cm

ATX®
$425.00
Item No: ATX-LTO-510-PL

1 in stock

DESCRIPTION

Weight

Weight

The base weight of the item, without any packaging.

23 kg
Rack Series

500

Weight

Weight

The base weight of the item, without any packaging.

22kg

Colour

Black

Inclusions

Inclusions

These are the specific items that you will receive when you purchase the product. Some products are shown with items that are not included for demonstration purposes.

Lat Tower, 2 x Olympic Adapters, Extension Chain, 3 x Carabiners

Certification

Domestic

Safe Working Load

140kg

Height

198cm

Warranty

5 Years – T & Cs

Simple, compact yet heavy-duty. This lat tower option will take up minimal space yet will provide you with a wide range of accessory exercises.

The ATX Lat Option 510 was originally designed for people who have limited ceiling height. It bolts on to the ATX PRX 510, 610, 660 and 710 power racks, and it is certified to EN 20957 I.II.IV Class H (home).

Key Features:

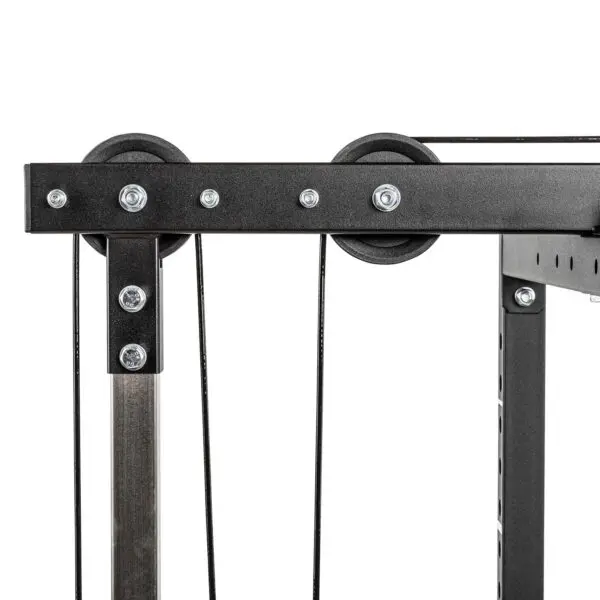

Top beam of the ATX lat tower option with two pulleys and cables running down the square guide rail

Upper and Lower Pulleys

Pull from the upper or lower cable pulley without any rebuild.

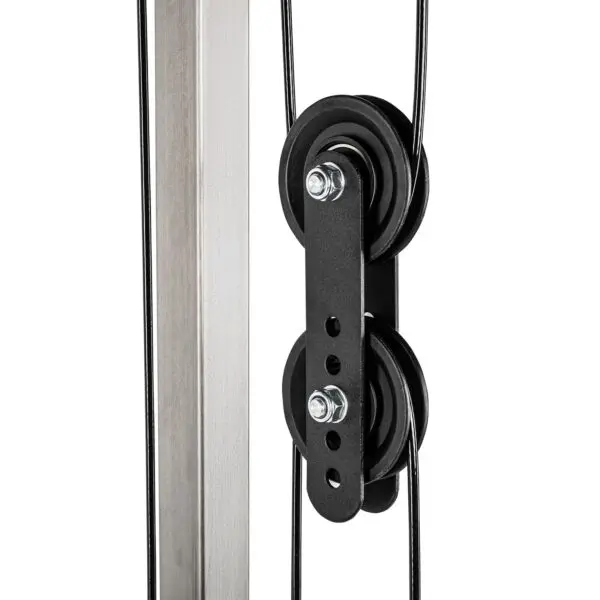

Close-up of the two ball-bearing pulleys on the ATX lat tower option beside the chrome square rail

Ball-Bearing Pulleys

Ball-bearing pulleys and stretch-free steel cables with a black plastic sheath give a smooth, jerk-free run.

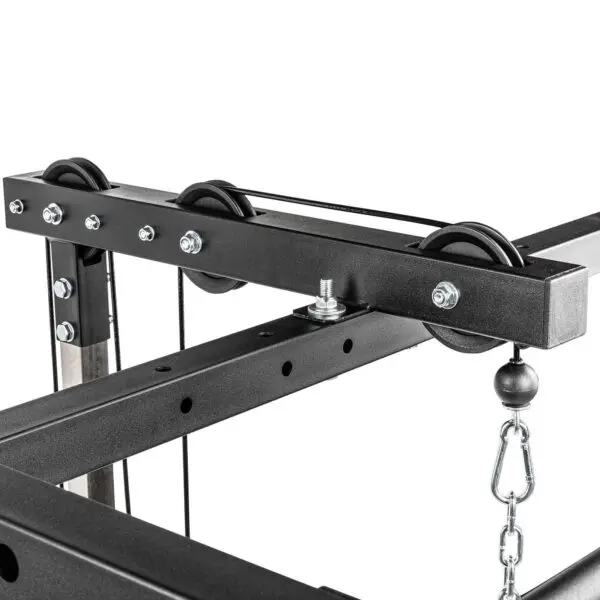

Top pulleys of the ATX lat tower option with a chain and ball hanging below

Extension Chain

Hang different handles from the chain, with 3 carabiners included, to set your pull position.

Dimensions and Specifications

  • Overall height: 1982 mm
  • Overall width at the base: 560 mm
  • Stroke: 1410 mm
  • Weight ratio: 1:1 with no pulley effect
  • Safe working load: 140 kg
  • Net weight: 21 kg
  • Frame tube: 60 x 60 x 2 mm, black fine-texture powder coat
  • Plate sleeves: 30 mm diameter and 21.5 cm long as standard, with Olympic adapters (BB-OA-250-PVC) for 50 mm plates
  • Foot support: two steel foot plates
  • Compatibility: ATX PRX 510, 610, 660 and 710 power racks
  • Certification: EN 20957 I.II.IV Class H (home)
Technical diagram showing front, side, and top views of the ATX® Lat Option 510 195cm cable attachment with labeled dimensions.

Square Guide Rail

It operates on a single 60 mm x 60 mm square guide rail. This unique design allows the manufacturer not only to reduce the costs but also retain structural integrity.

The square upright is polished and chromed so that the carriage, which features nylon bushings, can operate smoothly.

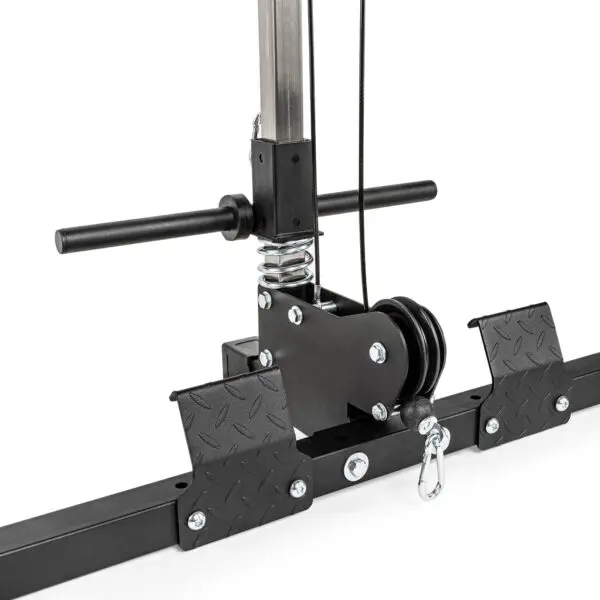

ATX lat tower carriage with plate sleeve spring and two textured foot plates

Direct 1:1 Plate Loading

The direct 1:1 weight ratio means there is no loss of load and no pulley effect, so the plates you load are the weight you lift, up to 140 kg. Two foot plates let you brace your feet for seated rows. The standard sleeves are 30 mm, and you can upgrade to 50 mm Olympic plates with the BB-OA-250-PVC adapters.

Fits Your Power Rack

ATX® Lat Option 510 195cm black steel power rack with a cable pulley attachment, pull-up bar, and barbell hooks.

This lat tower has been designed for the ATX PRX 510, 610, 660 and 710 power racks and is not designed to fit other racks.

If you are handy with the tools, fitting it to another rack would need your own modifications.

It is delivered disassembled with assembly instructions.

Additional Information

What Is Included?

  • ATX Lat Option 510 (ATX-LTO-510)
  • 2 x Olympic Adapters (BB-OA-250-PVC) for the weight carriage
  • 2 x foot plates
  • Extension chain
  • 3 x carabiners
  • Assembly instructions

Not included: the power rack, weight plates, and any lat bars, handles or seat shown in the pictures.

Please note the pictures may feature optional attachments or items which are not included with the unit, this is to show the possible configurations/use of the unit.

Key Takeaways

  • Compact plate-loaded lat tower that bolts on to the ATX PRX 510, 610, 660 and 710 power racks
  • Direct 1:1 weight ratio with upper and lower pulleys and no rebuild
  • Chromed 60 x 60 mm square guide rail with ball-bearing pulleys
  • Rated to 140 kg with two foot plates and an extension chain
  • 30 mm sleeves as standard and Olympic adapters for 50 mm plates
  • Certified to EN 20957 I.II.IV Class H (home)
