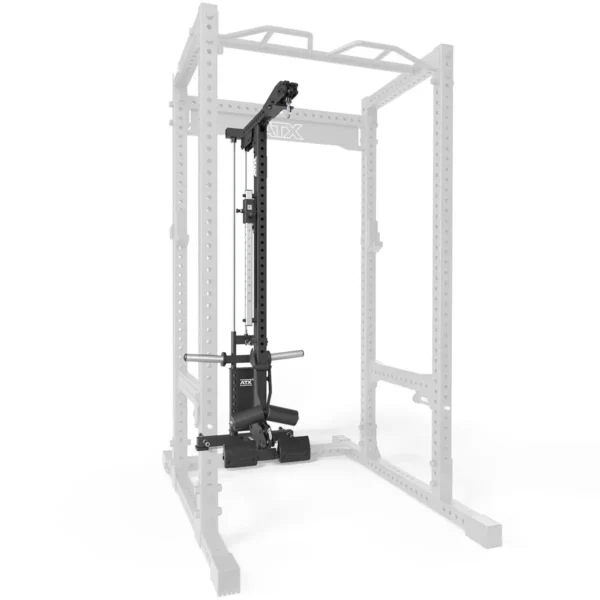

The black ATX® Lat Option 780 Plate Loaded is mounted on a light gray power rack frame, featuring handles for various exercises. This sturdy metal rack has multiple adjustment holes.

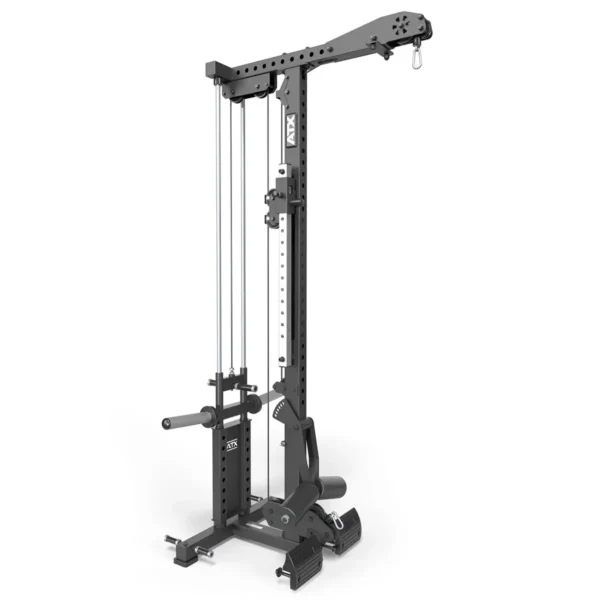

The ATX® Lat Option 780 Plate Loaded is a black adjustable cable machine featuring a pulley system, weight stack, foot braces, and cable handles, designed for versatile resistance training with a plate-loaded lat pulldown attachment.

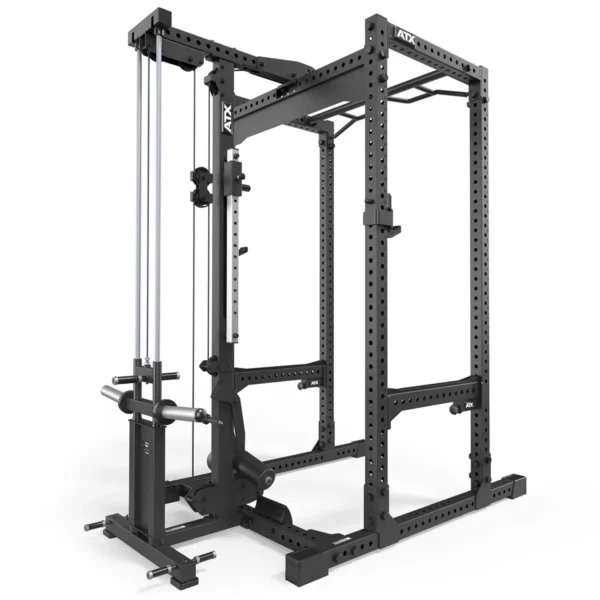

The ATX® Lat Option 780 Plate Loaded is a black power rack featuring a cable pulley system, adjustable bars, and multiple customization holes. Its sturdy metal frame supports weightlifting and strength training exercises, all within a clean, compact design.

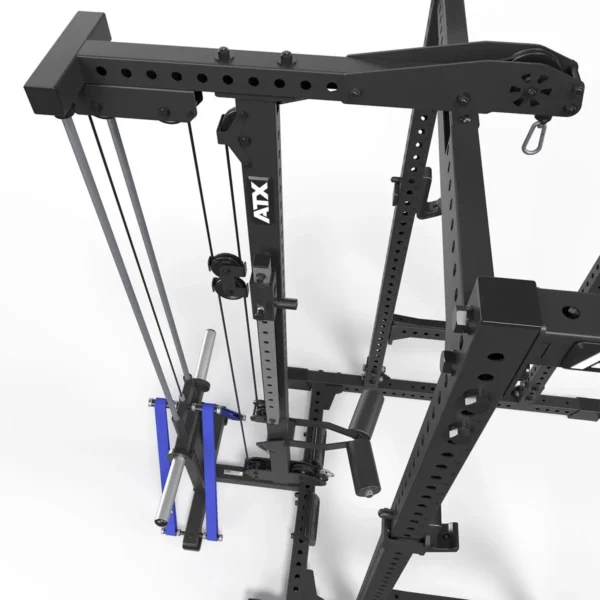

A top view of the ATX® Lat Option 780 Plate Loaded system attached to a power rack, showing a black cable pulley setup with multiple pulleys and metal cables. It features a long silver bar with blue accents for weightlifting exercises against a plain white background.

ATX® Lat Option 780 Plate Loaded

Write a Review

$1,095.00

Item No: ATX-LTO-780-PL

4 in stock

DESCRIPTION

Weight Weight The base weight of the item, without any packaging.	73 kg
Dimensions	2.22 × 0.42 × 0.14 cm
Weight Weight The base weight of the item, without any packaging.	67 kg
Colour	Black
Certification	Commercial
Safe Working Load	150 kg
Height	228cm
Warranty	5-Years T&C's

The ATX PRX-780 Power Rack is a beast. Add the ATX-LTO-780-PL Power Rack Lat Pulldown Option and now you have an all in one trainer. This lat pulldown option combines functionality with durability, making it an essential addition to your home gym or commercial studio setup.

Built with a weight plate holder for 50 mm Olympic plates, this attachment is decked out with chrome-plated weight horns that are slightly angled so you won’t need bar clips. This design allows you to load up the weight, without being restricted to a weight stack.

The carriage is kitted with nylon bushes delivering silky-smooth operation with every pull, ensuring jerk-free and efficient movement. With a 1:1 weight ratio, the lat pulldown station supports up to 150 kg (330 lbs) of weight, accommodating athletes of all levels.

Key Features:

Cable Length Adjustment

Set your start height and grip position to suit users from 155 cm to 200 cm tall.

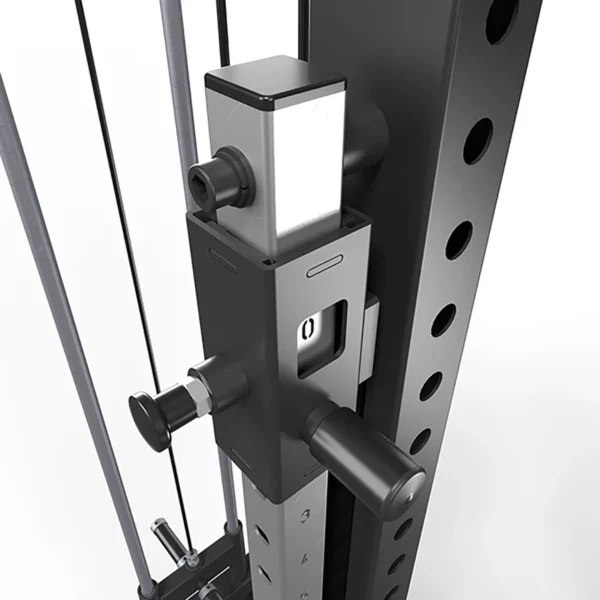

Detent Pin and Lasered Scale

Change your setting in seconds with a spring detent pin and a laser cut scale, so it is easy to find the same height again.

Close-up of the dual ball bearing pulley block and carabiner on the ATX LTO 780 lat option

Dual Pull Points

Switch seamlessly between upper and lower pulldown options without the need for conversion. Ball bearing dual track pulleys keep the cable running clean.

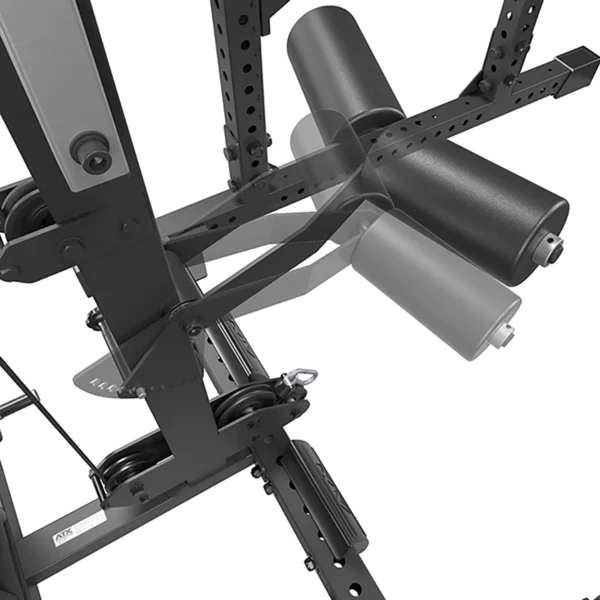

Close-up of the adjustable leg support with black urethane pad rollers on the ATX LTO 780 lat option

High-Quality Rollers

Adjustable leg support pad rollers made of wear-resistant urethane provide comfort and stability. Fold them away when you are done.

Close-up of the textured non-slip foot support on the ATX LTO 780 lat option with ATX branding

Non-Slip Footrests

Large footplates with a non-slip surface provide a secure base for seated rows and other exercises.

Close-up of a chrome roller band peg with a blue resistance band attached on the ATX LTO 780 lat option

Resistance Band Integration

Roller band pegs enable the attachment of resistance bands for variable intensity training.

Built for Performance and Safety

This lat pulldown attachment ensures secure and stable operation with its heavy-duty build. It is made from 70 x 70 x 3 mm square steel tube with laser cut 5 to 8 mm steel plates, and the rubberised feet are floor friendly and non-slip. The adjustable leg support pads and ergonomic design make it suitable for a wide variety of exercises, including lat pulldowns, seated rows, and other upper-body movements, giving you maximum versatility in one compact unit.

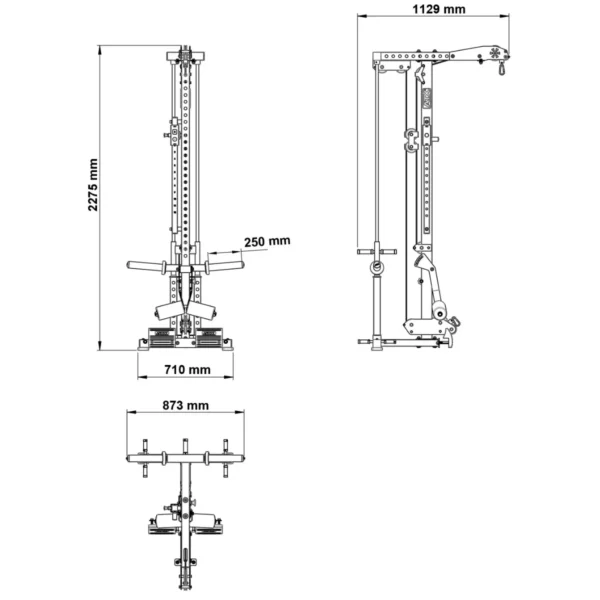

Dimension drawing of the ATX LTO 780 plate loaded lat option showing 2275 mm height 1129 mm depth and 710 mm width with 873 mm across the plate sleeves

Additional Information

Fits the ATX 780 rack series, such as the ATX PRX-780 Power Rack.
Plate loaded with 50 mm chrome plate sleeves, angled so plates stay put without collars.
1:1 weight ratio with a safe working load of 150 kg, plus upper and lower pull functions.
Cable length adjustment suits users from 155 cm to 200 cm tall.
Studio certified to EN 20957 I.II.IV Class S.
Size: 2275 mm high, 1129 mm deep, 710 mm wide (873 mm across the plate sleeves). Weight 67 kg.
Ships disassembled with assembly instructions. The power rack, plates, bands and other accessories shown are not included.

Upgrade your training regimen with the ATX-LTO-780-PL Power Rack Lat Pulldown Option, a must-have for anyone serious about strength training and functional fitness.
