ATX® Headrest Extension PU

ATX®
$75.00
Item No: ATX-OP-HPAD-130

Out of stock

Notify me when back in stock.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

DESCRIPTION

Weight

Weight

The base weight of the item, without any packaging.

4.5 kg
Dimensions 46 × 26 × 14 cm
Construction

Polyurethane Foam with Laminated wood base

Footprint

Footprint

This is the area occupied by the item itself. You might need to allocate additional space for the use.

44.5×26.5x11cm

Weight

Weight

The base weight of the item, without any packaging.

2kg

Inclusions

Inclusions

These are the specific items that you will receive when you purchase the product. Some products are shown with items that are not included for demonstration purposes.

Sold individually.

Colour

Black

Tall lifters, this one is for you. The ATX Headrest Extension PU adds up to 240 mm to the support surface of a compatible ATX MBX Multibench, so you are not left hanging off the end mid-set. It is a practical way to make your bench work better for your height.

This is the PU version, with form-stable polyurethane padding and an embossed surface. It fits the listed 2023-II and PU bench versions equipped with a Rear Tube Adapter. Check both the bench generation and adapter before ordering.

Key Features:

Animated PU headrest extension showing 185 and 240 mm

Extra Reach

The supplier lists 185 mm or 240 mm of support extension, up to 240 mm maximum.

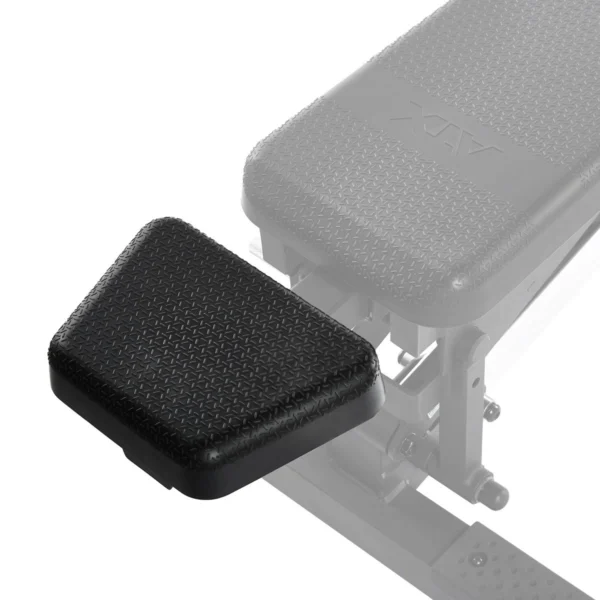

PU headrest alongside the bench backrest

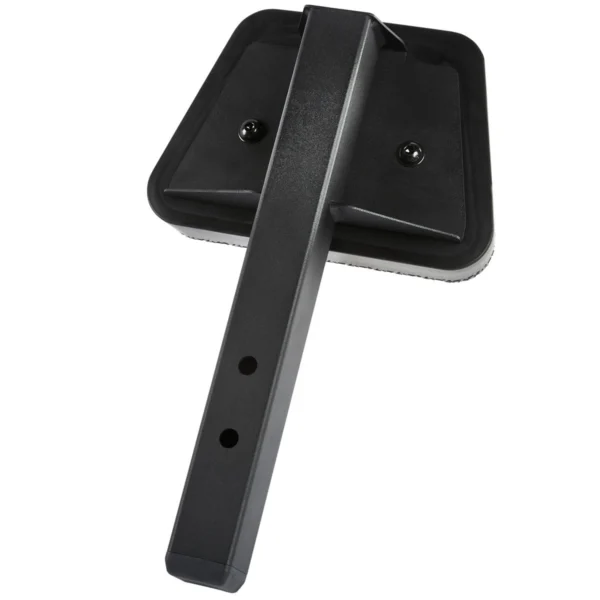

Quick Add

The mounting stem slides into the guide bushings on a compatible bench.

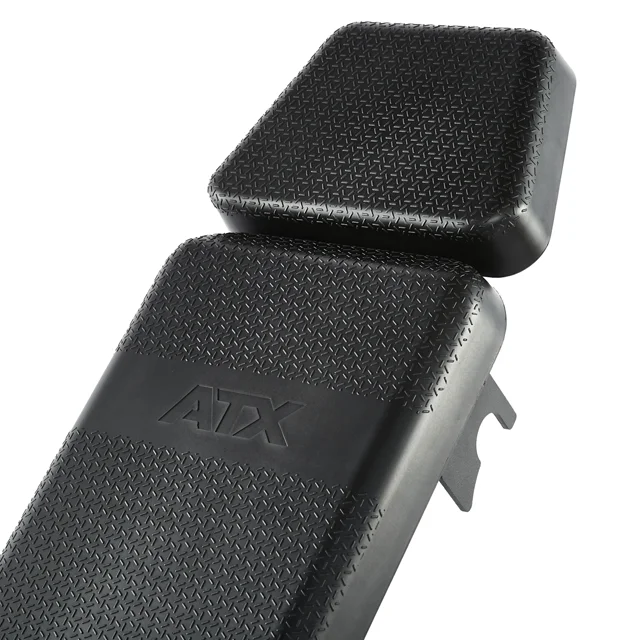

PU headrest fitted beside the textured bench backrest

Form-Stable PU Padding

Polyurethane padding provides a supportive surface with lasting resilience.

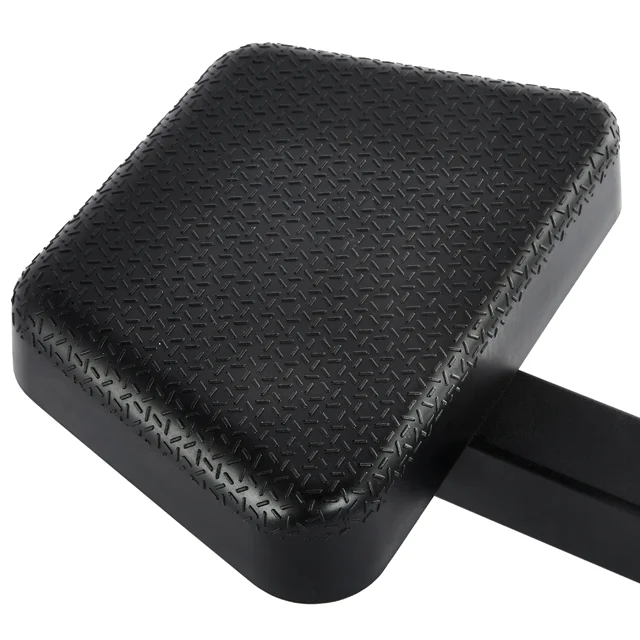

Embossed PU headrest surface close up

Embossed Surface

The textured surface helps provide grip against the pad.

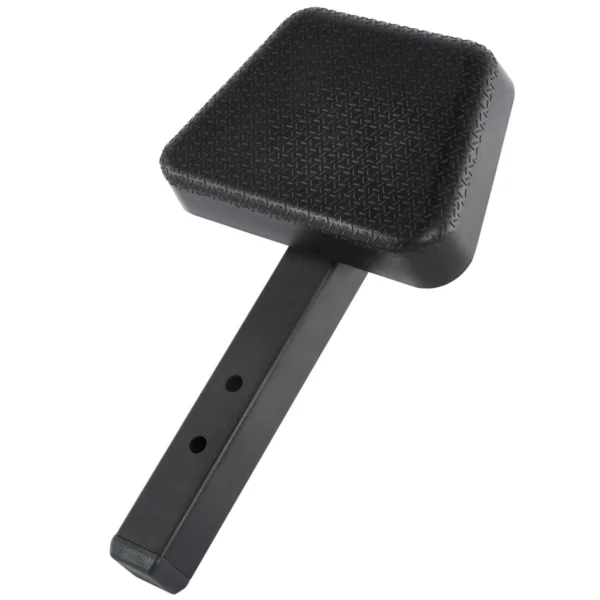

Embossed PU headrest surface and rounded edge

Closed PU Surface

A closed, non-porous outer surface is moisture-repellent and hygiene-friendly.

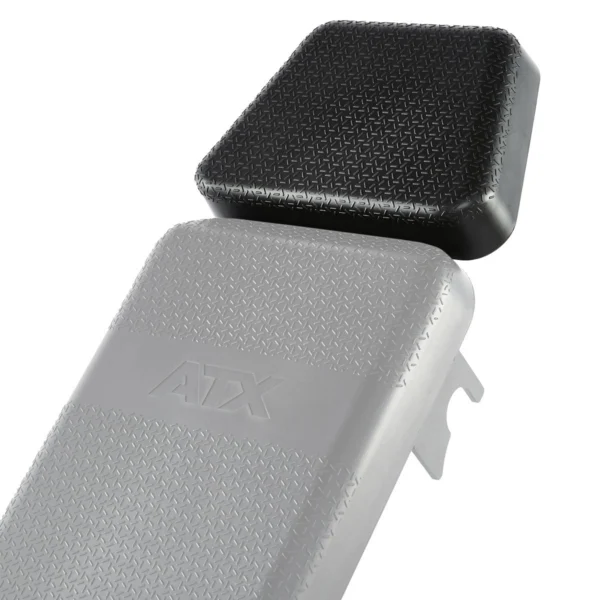

PU headrest fitted to the end of a bench

Model-Specific Fit

For the listed 2023-II and PU benches equipped with a Rear Tube Adapter.

Dimensions and Specifications

  • Overall assembly length: 445 mm / 44.5 cm.
  • Overall width: 265 mm / 26.5 cm.
  • Overall depth: 110 mm / 11 cm.
  • Pad depth shown in the drawing: 50 mm.
  • Pad length shown in the drawing: 185 mm.
  • Product weight: 2 kg.
  • Support extension stated by the supplier: 185 mm or 240 mm, up to 240 mm maximum.
  • Padding: form-stable polyurethane (PU).
  • Surface: embossed with a closed, non-porous outer layer.
  • Pad colour: black.

The 445 mm overall length includes the mounting stem; it is not the extra bench length. The 110 mm assembly depth and 50 mm pad depth are separate measurements.

PU headrest assembly and pad dimension drawing

Technical Drawings

PU headrest extension isometric wireframe drawing
PU headrest assembly and pad technical dimensions

Fits These

Suitable for the following 2023-II and PU model versions when fitted with the required Rear Tube Adapter:

  • ATX-MBX-650
  • ATX-MBX-650-PU
  • ATX-MBX-660
  • ATX-MBX-660-PU
  • ATX-MBX-750
  • ATX-MBX-750-PU

This is not a universal fit for every ATX bench. Confirm the version and mounting arrangement; do not assume an older model or a bench without the Rear Tube Adapter will accept it.

PU headrest stem fitted into bench guide bushings

Why Grab It?

If you are sick of short benches cramping your style, this PU headrest is a practical bit of kit that gives you more support length. It is designed for taller lifters using the compatible MBX bench versions.

The polyurethane pad is form-stable, with an abrasion-resistant embossed surface. Its internal cellular structure provides resilience, while the closed outer surface resists moisture and supports straightforward hygiene maintenance.

Compatible PU bench with headrest extension installed

Additional Information

  • Included: 1 x ATX Headrest Extension PU assembly (ATX-OP-HPAD-130), including its mounting stem. Sold individually.
  • Not included: The bench shown in the photos. The stated delivery scope is the PU headrest only.
  • Required bench feature: A Rear Tube Adapter on one of the listed compatible 2023-II or PU bench versions.
  • Mounting: The headrest stem inserts into the guide bushings of the compatible bench mounting arrangement.
  • Extension: 185 mm or 240 mm as stated by the supplier. This is separate from the 445 mm overall headrest-assembly length.
  • Material: PU padding with a closed, non-porous, embossed outer surface.
  • Illustrations: Bench photos demonstrate fitment and use. They do not mean a bench or separate bench-adapter upgrade kit is included.

Key Takeaways

  • PU headrest extension for the listed compatible ATX MBX benches.
  • Adds up to 240 mm of support length, with 185 mm and 240 mm shown in the existing demonstration.
  • Requires the correct 2023-II or PU bench version and Rear Tube Adapter.
  • 445 mm long x 265 mm wide x 110 mm deep overall, weighing 2 kg.
  • One PU headrest assembly supplied; bench not included.
