ATX® Power Rack 610 System 198cm for Low Ceilings

ATX-PRX-610-SYS
ATX®

Notify me when back in stock.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

The ATX® PRX 610 rules out another excuse for not having a home gym. This Power Rack System features High and Low pulley, Multigrip Chin Up Bar, Durable spotters and J-hooks all while taking up minimal space. The overall height of this station is just 198cm!

$1,370.00

Notify me when back in stock.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
  Australia-wide Shipping
  Quality After-Sales Support
  Best Prices Everyday
  Operating for 20 Years
50 x 50 x 2 mm
bolt M12

Series 500

60 x 60 x 2 mm
bolt M12

Series 600

60 x 60 x 3 mm
bolt M12

Series 600

70 x 70 x 2 mm
bolt M12

Series 700

70 x 70 x 3 mm
bolt M20 / M12

Series 700

80 x 80 x 3 mm
bolt M20

Series 800

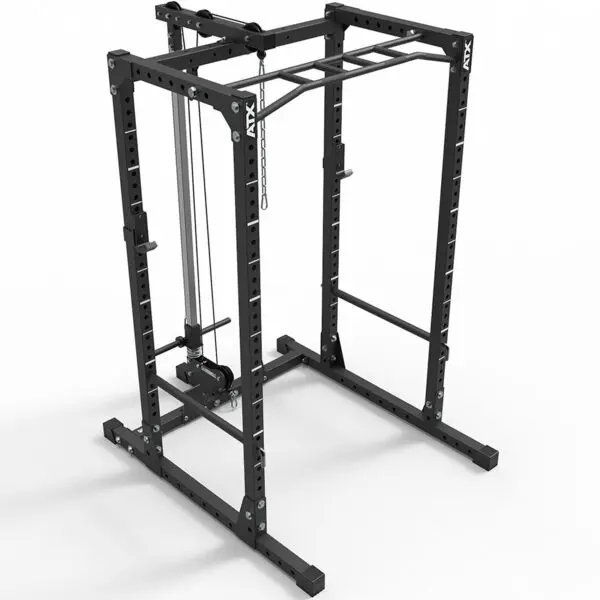

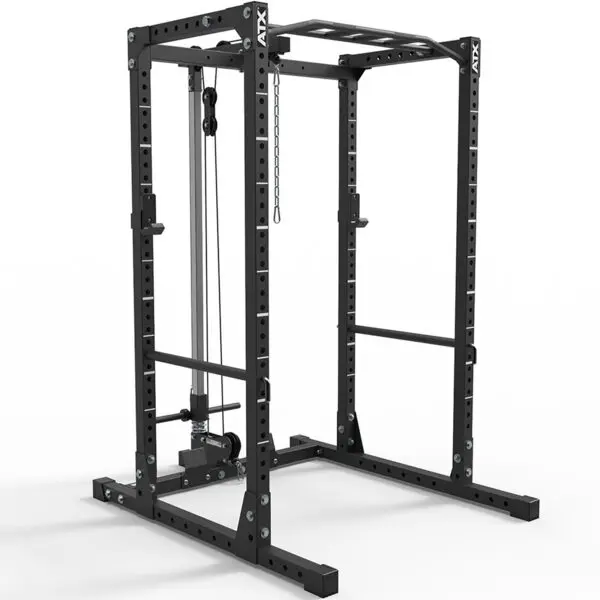

ATX®Power Rack 610 System 198cm for Low Ceilings

A Power Rack with a high and low pulley is high on the priority list for many people exploring home gym options. However height can be an issue, especially in sheds and garages. ATX have come up with a solution for this issue so you don’t have to abandon your power rack dream.

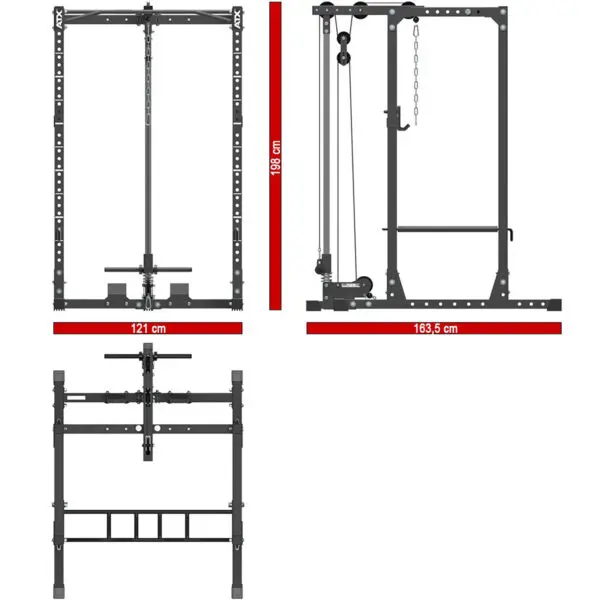

It has been designed for ceilings of under two meters, even with the lat pulldown attached to the back of it, the overall height sits at just 198 cm!

On top of that this power cage comes packed with loads of great features:

  1. High Base Weight ‐ 97.5kg.

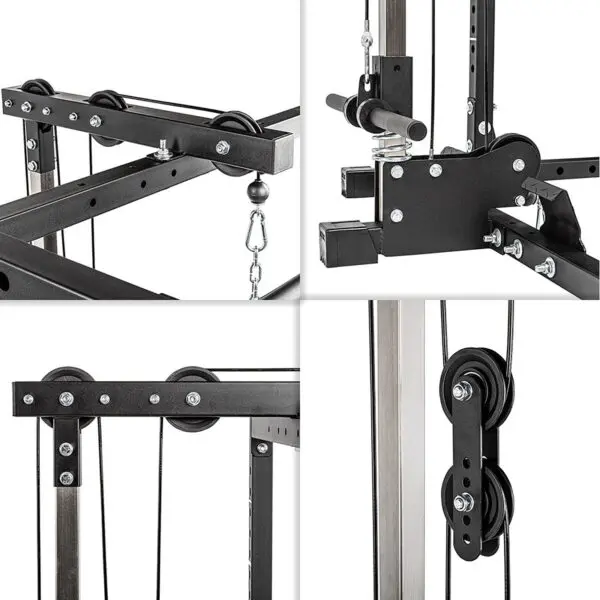

  2. Lat pulldown with High and Low Pulley for all your accessory exercises.
  3. Certified for domestic use (EN 20957 I.II.IV ‐ H).
  4. 5-Year Manufacturers Warranty.
  5. Exceptionally compact footprint- the rack is only 163.5 cm deep!

Robust construction

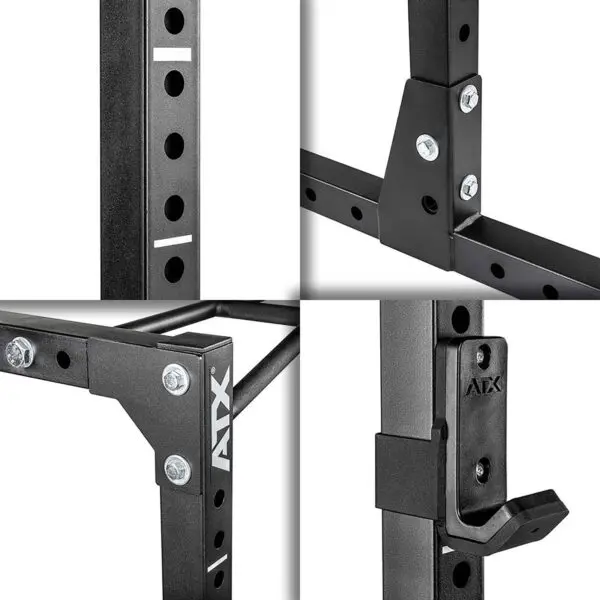

There are a lot of power cages on the market with similar 60 mm x 60 mm x 2 mm uprights. What makes the PRX 610 stand out from the competition is the reinforcement brackets at the top and bottom of the rack. To make it even more stable, durable and easy to assemble, the PRX 610 Power Rack comes with robot-welded support brackets.

Accessories

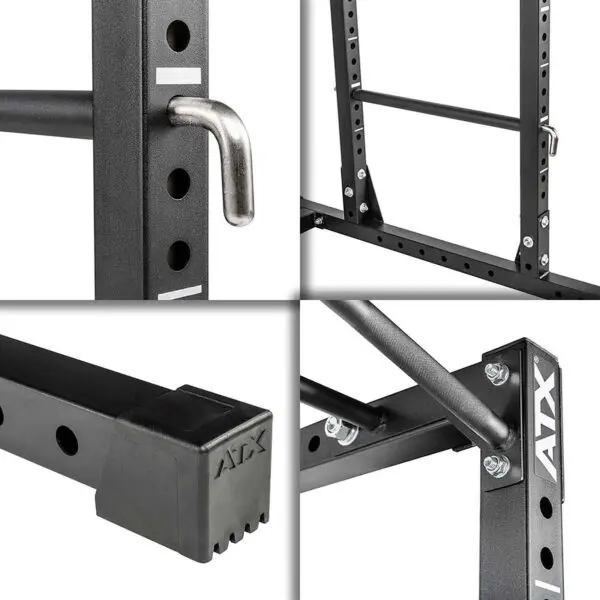

As standard, this power cage comes with Multi-Grip Chin-Up Bar, J-Hooks and Spotter Bars. ATX®are known for going out of their way to provide a superior product, even if it is designed for domestic use.

The J-Hooks are manufactured out of bent 10 mm thick steel sheet and feature a nylon sleeve, to protect your barbell from damage and reduce the noise whilst training.

The same goes with spotters: 20 mm thick, bent solid steel rod alongside protective sleeve will catch weights up to 500kg!

Lat Tower

German Engineers always opt for a simple lat tower option design which allows it to keep itÆs 1:1 Ratio (No Mechanical Advantage).

This is great so you don’t have to buy additional weight plates.

With the reduced height of the power cage, the Lat Tower also had to be reduced to 198 cm in order to be used in places with low ceilings. The top carabiner sits at 175 cm above the floor, which gives you plenty of room to get the full extension.

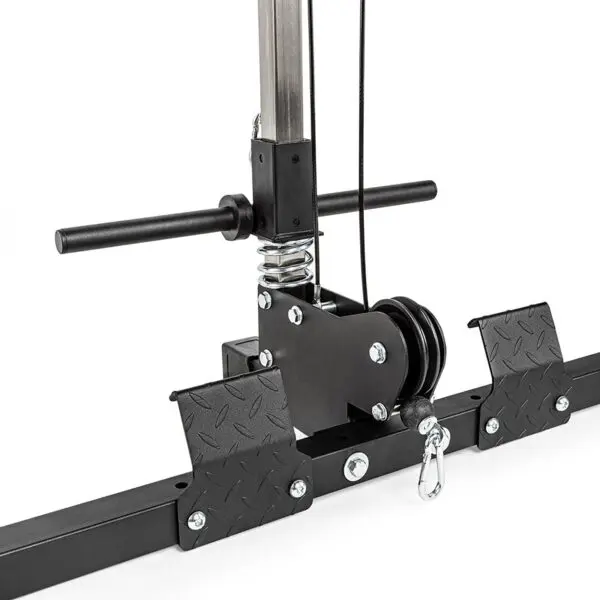

Footrests

This tower had been engineered to withstand loads of up to 140 kgs, so adding footrests to the tower was definitely a welcome addition.

What is missing in this lat pulldown is the knee pads, which prevent you from lifting up during heavy lat pulldowns. This only becomes a problem when you are lifting around 80% of your bodyweight. You can simply work around this problem by doing chin up on the included multi-grip pull up bar.

Compact footprint

Due to the unique design and German ingenuity, the PRX 610 Power Cage System still boasts the same stability and compact footprint as the full-sized cages. The ample training space inside of the power cage allows you to comfortable wheel the bench inside the cage and bench and shoulder press without any issues.

IMPORTANT

We stock a variety of different power cage attachments and would very much like to give you the opportunity to choose the accessories you want and need.

What you will be getting with the base listing:
ATX®Power Rack 610 198cm (ATX-PRX-610), ATX®Lat Option 510 195cm Plate Loaded (ATX-LTO-510), Chin Up Bar, J-Hooks (ATX-FHT5-0600), Pin Pipe Spotter Bars (ATX-PPS-65), 2 x Olympic Adaptors for the Weight Carriage (BB-OA-250-PVC), 2 x Carabiners, Extensions Chain

What do you need to choose?
Cable Attachments (Optional)

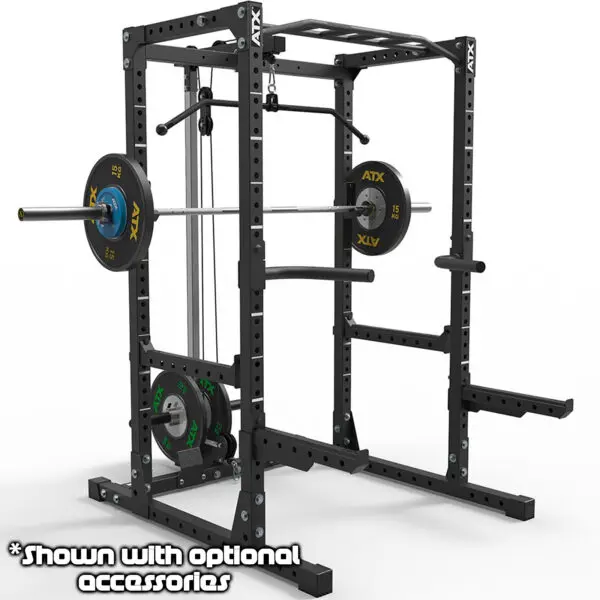

Please note the pictures may feature optional attachments or items which are not included with the unit, this is to show the possible configurations of the unit.

Scroll down to see the range of compatible accessories!

Related Products

Gym Cable Attachments

Product Specifications

Rack Series

600

Weight

108kg

Footprint

121x164cm

Colour

Black

Inclusions

Base Rack, J-Hooks, Spotter Bars, Multi-Grip Chinup Bar, Lat Option, Olympic Sleeves

Certification

Domestic

Safe Working Load

650kg

Height

198cm

Warranty

5 Years – T & Cs

ATX® Flip Down Spotters 6/65

Weight 9 kg
Rack Series

600

Weight

8kg per pair

Construction

Made of 50 x 50 x 3 mm thick steel profile and 5 mm thick sheet steel

Colour

Black

Inclusions

1 x Pair of ATX Spotter Bars 6/65

Safe Working Load

400kg

Warranty

5-Year Manufacturer's Warranty

ATX® Spotter Arms 600

Weight 8.8 kg
Rack Series

600

Construction

5mm Sheet steel

Weight

8kg per pair

Footprint

Length: 60.5cm (50cm Usable Space); Width: 6.55cm; Height: 17cm

Colour

Black powder coat

Inclusions

1 x Pair of ATX Spotter Arms 600

Safe Working Load

300kg

Warranty

5-Year Manufacturer's Warranty

ATX® 600 Dip Handles

Weight 6.4 kg
Rack Series

600

Construction

Steel thickness – 3.6 mm, Mounting Bracket – 6 mm. Handle Diameter – 45 mm

Weight

6kg

Footprint

Width: 32cm; Height: 17cm; Depth: 35cm

Colour

Satin Black

Inclusions

1 x Pair ATX of600 Dip Handles

Safe Working Load

160kg

Warranty

5 Year Warranty.

ATX® PRX Monolift

Weight 14 kg
Rack Series

600, 700, 800

Construction

14mm / 6mm Steel Sheet, Nylon Sleeves, Rubber Stoppers

Weight

14kg per pair

Footprint

35 cm x 8 cm x 34 cm. The monolift sticks out 24.5 cm from the rack.

Colour

Black/Red

Inclusions

1 x pair ATX? PRX Monolifts

Safe Working Load

300kg / pair

Warranty

5-Year Manufacturer's Warranty

ATX® PRX Jammer Arms

Weight 24 kg
Rack Series

600, 700, 800

Weight

20kg (Pair)

Footprint

93 x 64 x 29cm (per piece)

Inclusions

ATX? PRX Jammer Arms + 2 x Olympic Sleeves

Safe Working Load

250kg (pair)

Warranty

5-Year Manufacturer's Warranty
