ATX® Lat Option 520 215cm

ATX®
$445.00
Item No: ATX-LTO-520-PL

7 in stock

DESCRIPTION

Weight

Weight

The base weight of the item, without any packaging.

23 kg
Dimensions 2.025 × 0.205 × 0.215 cm
Rack Series

500

Weight

Weight

The base weight of the item, without any packaging.

22kg

Colour

Black

Inclusions

Inclusions

These are the specific items that you will receive when you purchase the product. Some products are shown with items that are not included for demonstration purposes.

Lat Tower, Weight Carriage, Footrests, 3 x Carabiners, Extension Chain, 2 x Olympic Sleeves

Certification

Domestic

Safe Working Load

140kg

Height

218cm

Warranty

5 Years – T & Cs

If you are one of the lucky owners of the ATX Power Rack, you can attach a high and low Lat Machine Option to your Power Cage and expand the variation of exercises you can perform on it.

Don’t be fooled by the simple design. The weight carriage runs on slide strips along a single chromed 60 mm x 60 mm square guide rail, which keeps it running smoothly under load.

The ATX Lat Option 520 fits the ATX PRX 520, 520-XS, 620 and 720 power racks, and it is certified to EN 20957 I.II.IV Class H (home).

Key Features:

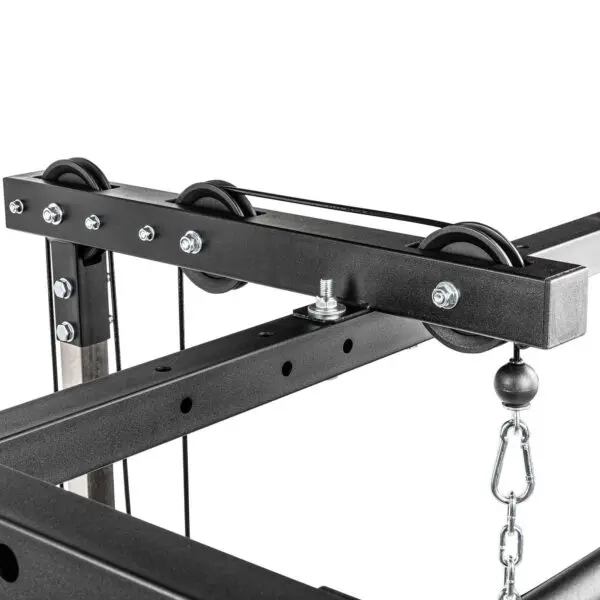

Top beam of the ATX lat tower option with pulleys and a chain with a ball hanging below

High and Low Pulley

Pull from the upper or lower pulley without any rebuild, with an extension chain for your handles.

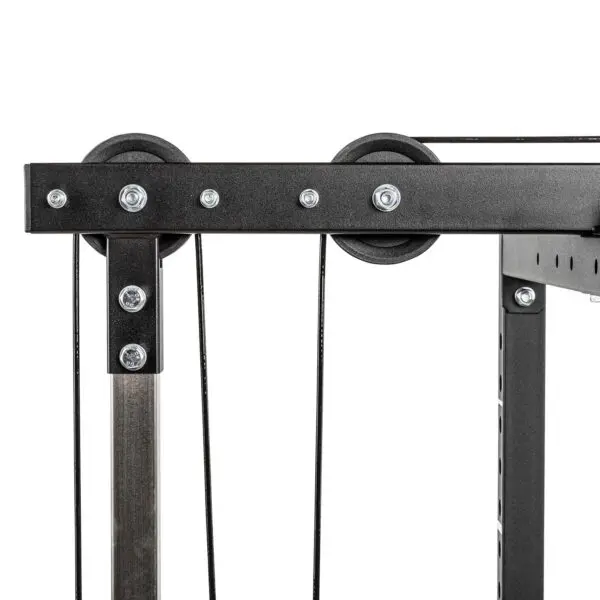

Close-up of the two ball-bearing pulleys on the ATX lat tower option beside the chrome square rail

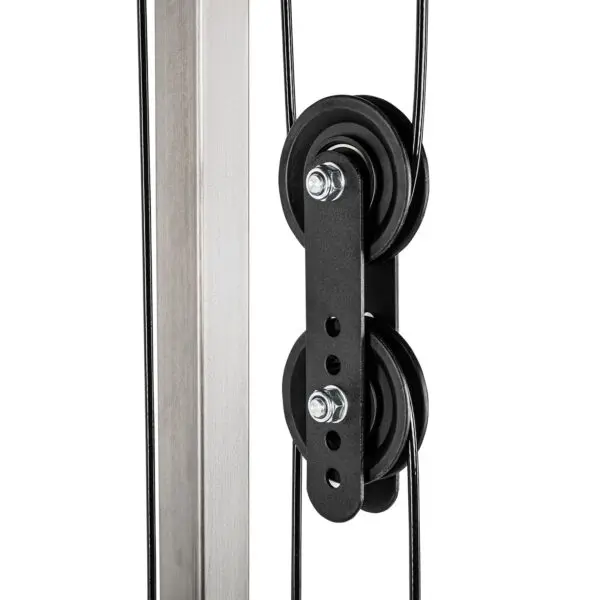

Ball-Bearing Pulleys

Ball-bearing pulleys and stretch-free steel cables with a black plastic sheath for a smooth, jerk-free run.

ATX lat tower option standing on its own with the chain hanging from the top beam

1:1 Ratio, Rated to 140 kg

A direct 1:1 ratio means no mechanical advantage. The tower stands 218 cm tall.

Dimensions and Specifications

  • Overall height: 2182 mm
  • Overall width at the base: 560 mm
  • Stroke: 1610 mm
  • Weight ratio: 1:1
  • Safe working load: 140 kg
  • Net weight: 22 kg
  • Frame tube: 60 x 60 x 2 mm, black fine-texture powder coat
  • Plate sleeves: 30 mm diameter and 21.5 cm long as standard, with Olympic adapters (BB-OA-250-PVC) for 50 mm plates
  • Foot support: two steel foot plates
  • Compatibility: ATX PRX 520, 520-XS, 620 and 720 power racks
  • Certification: EN 20957 I.II.IV Class H (home)
Technical line drawing of the ATX® Lat Option 520 215cm gym cable pulley machine showing front, side, and top views with dimensions in millimeters.

Minimalist Design

ATX use 60 mm x 60 mm structural steel as the guide rail, the same size as the uprights on the 620 Power Racks. By polishing it, the upright not only provides structure, but a smooth system for the weight carriage.

You get a solid Power Rack System at an affordable price. No costly materials are used for aesthetics or poor design features, and everything on this lat tower serves a purpose or dual purposes.

Please note, the guide rail will come without any lubrication (for easier and safer assembly). It is recommended to use 3-in-One Multipurpose Oil Lubricant for optimum performance. If you are planning on using other lubricants, make sure that they are not petroleum-based ones, as they can damage the rubber parts on this machine.

Top beam of the ATX lat tower option with two pulleys and cables running down the square guide rail

Inclusions

This Lat Pulldown Option comes with footrests. They are made from thick steel sheet with raised ridges to help stop your feet slipping when you are going after your personal best on cable seated rows.

With this Lat Pulldown you will also receive three carabiners and an extension chain. It is delivered disassembled with assembly instructions.

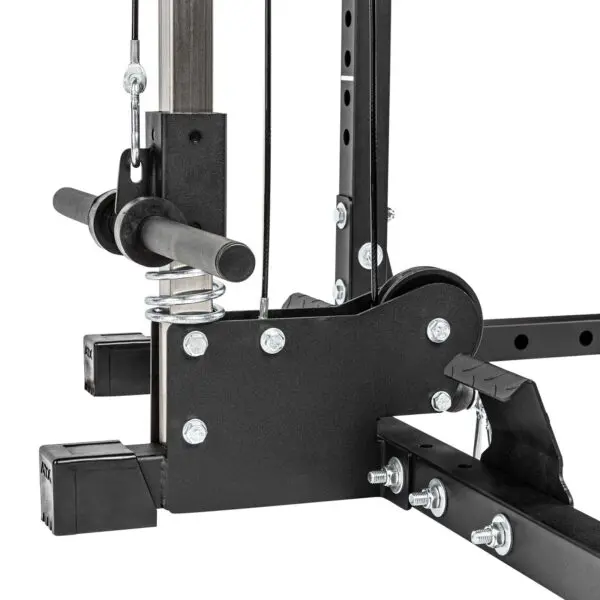

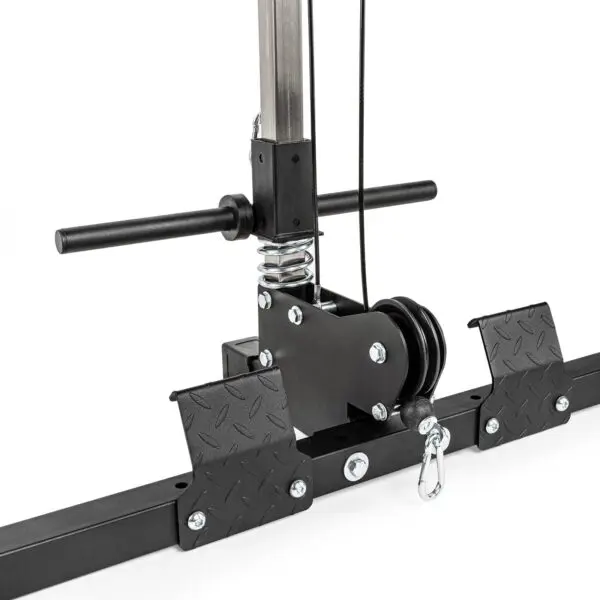

ATX lat tower carriage with plate sleeve spring and two textured foot plates

Additional Information

What Is Included?

  • ATX Lat Option 520 215cm (ATX-LTO-520-PL) with weight carriage
  • 2 x Olympic Adapters (BB-OA-250-PVC) for the weight carriage
  • 2 x steel foot plates
  • 3 x carabiners
  • Extension chain
  • Assembly instructions

Not included: the power rack, weight plates, and any lat bars, handles, rope or row seat shown in the pictures.

Please note the pictures may feature optional attachments or items which are not included with the unit, this is to show the possible configurations/use of the unit.

Key Takeaways

  • Plate-loaded high and low lat tower for the ATX PRX 520, 520-XS, 620 and 720 power racks
  • Direct 1:1 ratio, rated to 140 kg
  • Chromed 60 x 60 mm square guide rail on slide strips with ball-bearing pulleys
  • Includes steel foot plates, an extension chain and 3 carabiners
  • Certified to EN 20957 I.II.IV Class H (home)
  • Comes with a 5-year manufacturers warranty
