Sam's FitnessGym EquipmentCable MachinesATX® Single Cable Station – Wall Mounted
A vertical cable exercise machine with adjustable handles, designed for strength training. This sleek metallic cable trainer is wall-mounted and set against a plain white background, perfect for any modern workout space.
A folded home gym cable crossover machine with a compact, vertical design. This wall-mounted cable machine features pulleys, handles, and a sturdy metal frame, ideal for space-saving indoor workout setups.
Three perspectives of a cable trainer used for strength training. The equipment is shown from the front, side, and rear angles, featuring pulleys, adjustable weights, and handles for various exercises. This metallic single cable machine boasts sleek black accents.
A close-up of a cable trainer on a home gym machine showcases black straps, metal chains, and adjustable handles. This setup, akin to the wall-mounted cable machine design, is perfect for various strength training exercises.
Close-up view of a metallic gym machine part with sleek gray steel columns, black handles, and visible cables and bolts. The design appears sturdy and polished, ideal for strength training on a wall-mounted cable machine.
Close-up of a metal adjustment mechanism with a red knob labeled To Adjust Loosen Then Pull. The mechanism is part of a polished metal frame, possibly from a wall mounted cable machine or similar exercise equipment.
Two black resistance band handles with metal rings sit on a white background. Their ridged grips are connected by strong fabric loops, perfect for enhancing your single cable machine workout.

ATX® Single Cable Station – Wall Mounted

Write a Review
ATX®
$1,625.00
Item No: ATX-FTX-2000

Out of stock

Notify me when back in stock.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

DESCRIPTION

Weight

Weight

The base weight of the item, without any packaging.

 118 kg
Dimensions 226 × 44 × 27 cm
Weight

Weight

The base weight of the item, without any packaging.

118kg
Footprint

Footprint

This is the area occupied by the item itself. You might need to allocate additional space for the use.

39x39cm
Height

222cm
Weight Load Capacity

Weight Load

This is the safe working load of the item, not to be confused with a breaking point.

50kg
Certification

EN 20957 I.II.IV – S
Warranty

5 years see T&Cs

Running out of space but craving workout variety? The ATX Single Cable Station – Wall Mounted (ATX-FTX-2000) is your gym game-changer, packing a high/low pulley and 50kg weight stack into a crazy-compact 40cm x 40cm footprint. This German-engineered beast bolts to your wall, delivering hundreds of exercises—think lat pulldowns, cable curls, leg abductions, and rehab moves—all in a space smaller than your barbell rack. Perfect for home gyms, PT studios, or physios, it’s smooth, sturdy, and built to last.

Key Features:

Close-up of a weight stack on a single cable machine, showing weights labeled in kilograms ranging from 2.3 to 25. The selector pin is inserted at 9 kg, and the stack has a coiled attachment. The gym equipment boasts a sleek metallic finish.

Weight Stack

50 kgs weight stack in 2.5 kg increments (20 x 2.5 kgs). With 2:1 ratio when using a single handle – perfect for fine weight adjustments.

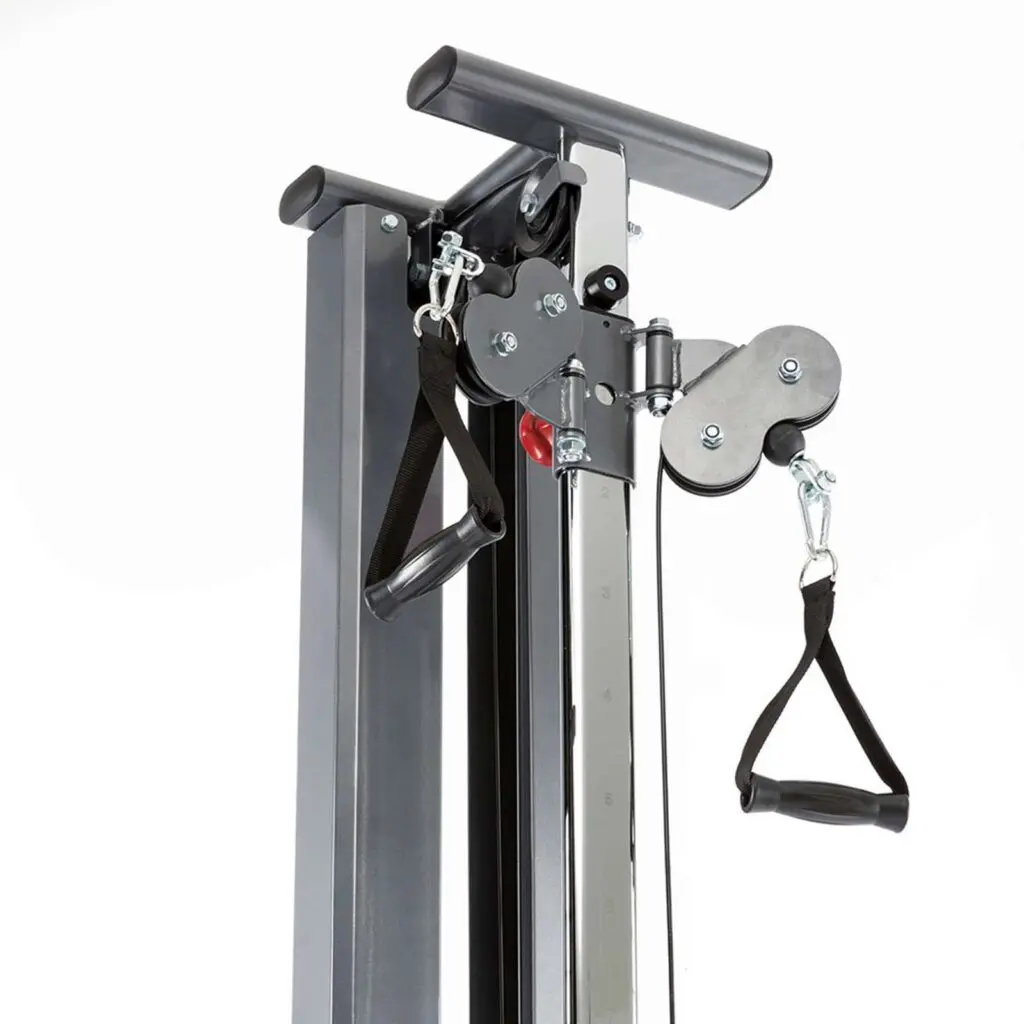

A close-up of a cable trainer on a home gym machine showcases black straps, metal chains, and adjustable handles. This setup, akin to the wall-mounted cable machine design, is perfect for various strength training exercises.

Swivelling Pulley Housing

The pulley housing swivels on bronze bushings which will provide you with a smooth and quiet movement.

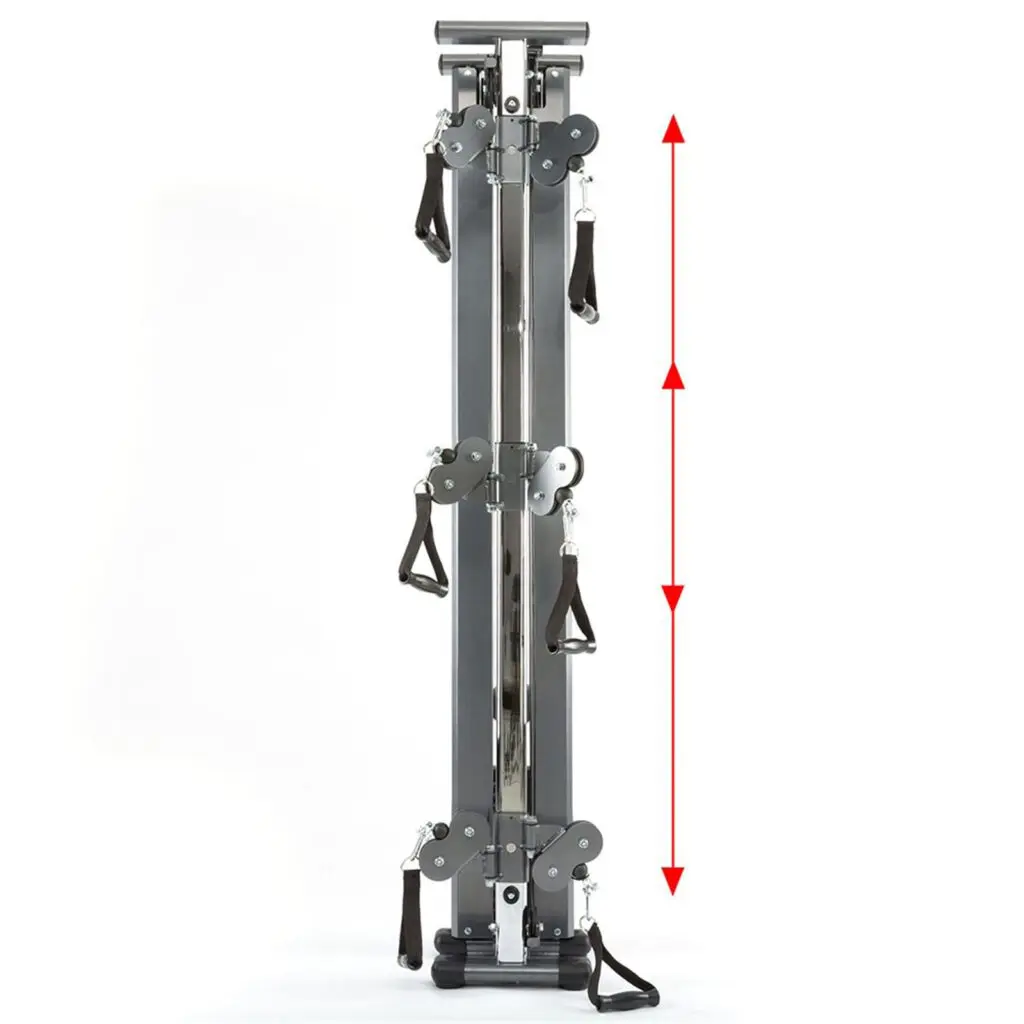

A vertical cable exercise machine with pulleys and handles on both sides, featuring a central rail with sliders for upper body workouts. The entire setup is displayed against a plain background, with red arrows indicating the height.

Adjustment Positions

A total of 18 height adjustment positions. With the lowest being 30 cm off the floor and the highest – 195 cm.

Max Cable pull: Single Handle – 270 cm, Both Handles – 135 cm.

Close-up of a metal adjustment mechanism with a red knob labeled To Adjust Loosen Then Pull. The mechanism is part of a polished metal frame, possibly from a wall mounted cable machine or similar exercise equipment.

Adjustment Knob

The main upright features a hard chrome plating, laser engraved hole positions, custom sleeves and a pull pin which can be tightened to remove any slack.

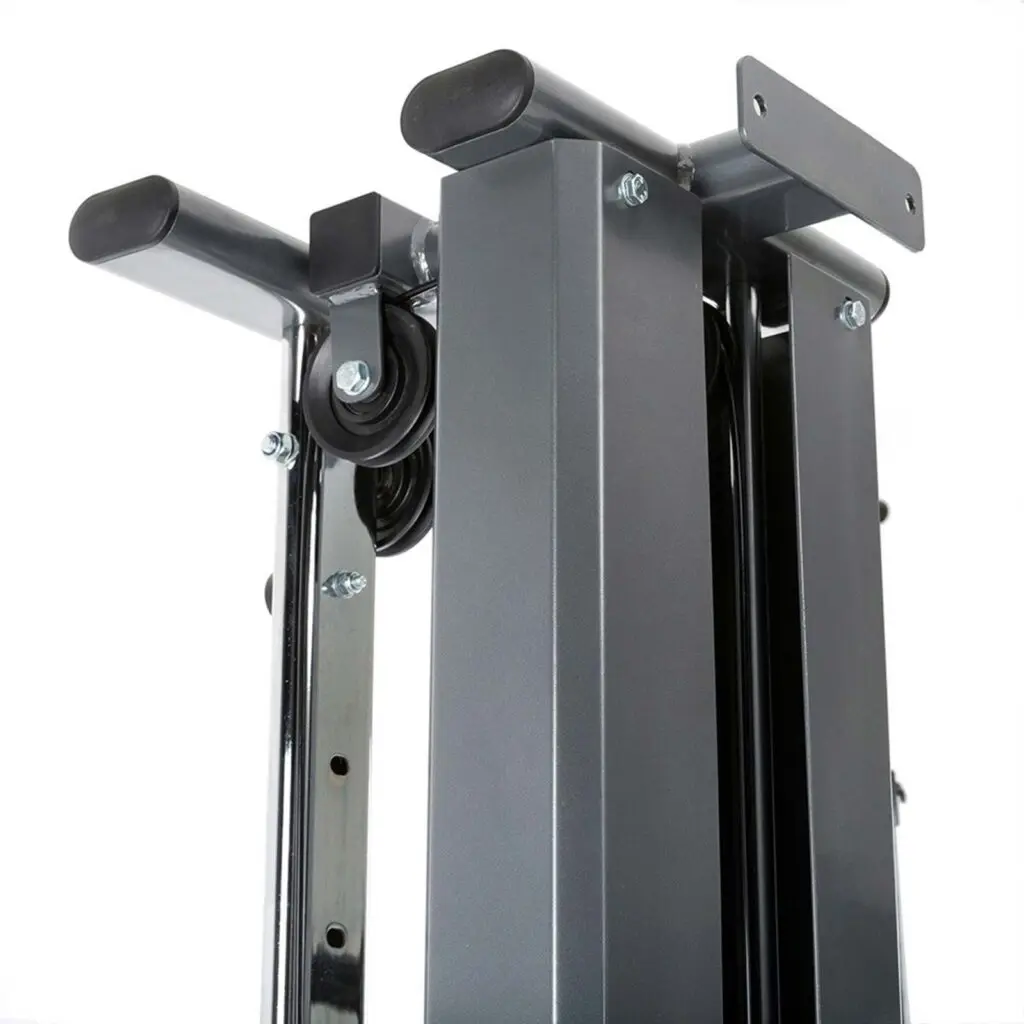

Close-up view of a metallic gym machine part with sleek gray steel columns, black handles, and visible cables and bolts. The design appears sturdy and polished, ideal for strength training on a wall-mounted cable machine.

Compact Mounting

The Mounting Bracket is approx. 180 mm wide with the holes being spaced out approx. 150 mm apart.

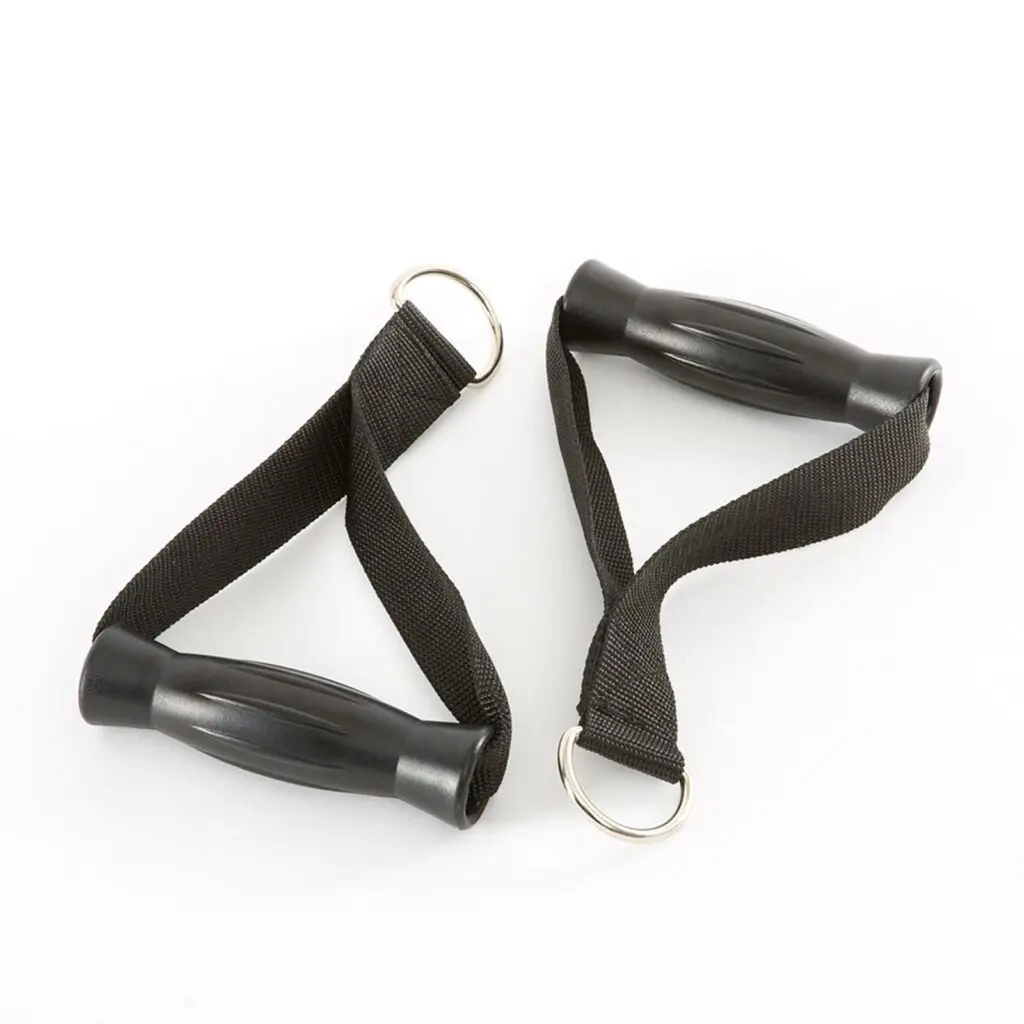

Two black resistance band handles with metal rings sit on a white background. Their ridged grips are connected by strong fabric loops, perfect for enhancing your single cable machine workout.

Included Nylon Handles

You will receive a pair of ergonomic single handles to get your started on this hyper-versatile unit

A woman in a brown athletic outfit stands in a well-lit, spacious gym using a single cable machine. The gym is equipped with weights, kettlebells, and other fitness equipment.
A woman in a brown athletic outfit skillfully uses a single cable machine at the gym. Various weights and exercise equipment are visible in the background.
A woman kneels next to a wall-mounted cable machine in a gym, preparing to exercise. She wears a brown athletic outfit. The gym's backdrop is filled with various equipment, including weights and kettlebells.
A person exercises using a single cable machine in the gym. They are kneeling and pulling a cable with one arm. The gym boasts various equipment, including weights, kettlebells, and barbells visible in the background.
A woman in a workout outfit skillfully uses the cable exercise machine to perform a tricep exercise in the gym. Wearing a sports bra and leggings, she grips the cable with both hands, while the wall-mounted cable trainer and surrounding mirrors reflect her determined focus.
A woman in athletic wear exercises at a gym using a wall-mounted cable machine. Various weights and equipment, including kettlebells and weight plates, fill the background. The gym boasts a modern, industrial design.
A woman in athletic wear is exercising on a single cable machine in a gym. She holds the handles by her sides, working out in a spacious area surrounded by various gym equipment like kettlebells and weight plates.
A person in brown activewear is performing tricep exercises on a cable trainer in a gym. Nearby are kettlebells and weight plates. The gym is equipped with various workout machines and equipment.
A woman in athletic wear exercises on a single cable machine at the gym. She is focused on her workout, surrounded by various equipment like kettlebells, weight plates, and benches. The gym has a modern and industrial design.
A woman in workout attire uses a single cable machine in a gym. She adjusts the weight stack, surrounded by equipment like kettlebells and barbells. The setting boasts a modern industrial look with exposed beams and a concrete wall.
A woman in workout attire uses a single cable machine at the fitness center. She's lifting a cable attachment with weights and kettlebells nearby. The room is filled with exercise tools under fluorescent lighting, enhancing the array of fitness equipment.
A woman in athletic wear exercises at a gym, using a wall-mounted cable machine. She stands with one foot in a strap, focused on her workout. Various equipment like kettlebells and weights are visible around her, enhancing the dynamic gym atmosphere.
A woman in athletic attire uses a wall-mounted cable machine for a leg exercise in a gym. She wears a brown sports bra and leggings, with a resistance band around her ankle. The gym is equipped with weights and other fitness equipment.
A woman exercises at a gym, using a single cable machine. She wears a beige workout outfit and ankle straps, performing a leg movement. Gym equipment, including weights and kettlebells, is visible in the background.
A woman in athletic wear is exercising at a gym, using a wall mounted cable machine for a leg workout. She stands sideways, holding the machine for support. The gym features various equipment, including kettlebells and weight plates, visible in the background.
A woman in athletic attire stands in a gym holding the handle of a wall-mounted cable machine. She's wearing a brown sports bra and leggings with white sneakers. The gym is equipped with weights and kettlebells in the background, setting the scene for her intense workout session.
A woman in athletic attire exercises on a wall-mounted cable machine in a gym. She is pulling the cable with one hand while standing. Various gym equipment, like kettlebells and weight plates, are visible in the background.
A woman in athletic wear stands in a gym, using a wall mounted cable machine for her tricep pull-down exercise. The gym is equipped with weight plates, kettlebells, and other exercise equipment.
A person wearing athletic clothing performs a cable workout in a gym, standing confidently at the single cable machine. Surrounded by weights and kettlebells, they grip the handles with purpose. The gym is dimly lit with industrial-style decor, adding to the focused ambiance.

Sam’s Review

The ATX Single Cable Station is one of my favourite machines. I have been using it for over 5 years and still loving it.

BUILD

Normally I like to take a deep dive into the build quality of the machines I review. That is what we get a lot of questions about. However, on this machine, there is not much to go through as it is very basic.

There is just a base. Guide rails for the weight stack. A chrome upright for the adjustable pulleys.

There are 2 pulleys – one for low pulley work and the other for high pulley work. They swivel on bushes. You adjust the height with the commercial pull pin. There are 18 height adjustment positions.

From there the cables run through pulleys to the weight stack.

The weight stack is 50kg. It has 20 x 2.5kg weights, with a 2:1 ratio.

It has covers to make it look good and prevent people from pinching appendages on the weight stack.

The whole unit is then bolted to the wall with brackets at the top and bottom. It comes standard with two nylon stirrup handles.

A woman in a brown athletic outfit stands in a well-lit, spacious gym using a single cable machine. The gym is equipped with weights, kettlebells, and other fitness equipment.

REVIEW

Now I have probably lost a lot you beasts at the 50kg weight stack part. For those of you who don’t understand the 2:1 ratio I will probably lose some more. With a 2:1 ratio you will effectively only be lifting 25kgs. So, I can hear you all saying that is nowhere near enough weight.

Well the actual machine we have in our gym is very old. At least 6 years old and these models only had 40kg weight stack. Even with this weight stack I never find myself wanting more weight. Linas here has held Australian bench press records and he has not been wanting more weight.

Yes there are ways I could lift this stack. But not with the many exercises that I do on this machine. This machine is all about doing your isolation and accessory work. You break the records with a barbell. Not with this machine.

For all you specimens out there we are lucky to have Lee Priest to show just a fraction of the exercises you can do on this machine. Most importantly he shows you how to do them properly.

You will notice that Lee always performs the movements with textbook form – controlled movements in the correct position to isolate the target muscle. If you follow this simple advice you won’t need a lot of weight. You will work the target muscle without stressing your joints – this is the purpose of this machine.

Without prompting, Lee started doing two handed movements. This machine is not designed for two handed movements. But you can do them. I do them regularly myself. Naturally it is not quite as good as a dedicated two handed machine, but given the footprint it is pretty bloody good.

However mostly I do the exercises with one cable. I like doing isolation work one arm at a time. Working between each arm without rest, trying to keep my heart rate up so I can burn some calories. It is the best way to finish off a workout.

WHO IS THIS MACHINE FOR?

My trusty guide of valuing gym equipment revolves around 3 simple metrics – functionality, space & money.

The FTX-2000 ranks off the chart for functionality and space – as mentioned at the start, this thing does so much for such little space. We currently sell this machine for $1,700 so it is not cheap.

To put it simply, if $1,700 is not a lot of money for you and you have the space, then this is a no brainer. Especially if you are an old fart like me. Once you play around with this machine and figure out all the exercises you can do with it, you won’t be able to live without it.

The worse thing about getting old is that you want to train hard and often. But sadly your body doesn’t want to. For a nut job like me that is not going to work. I need to train nearly every day or I start going crazy.

This machine is perfect for that fix. I can come out and do some slow and controlled isolation work on all muscle groups. You can get a pump, clear the head and your body is not going to be aching the next day.

Plus if you have got kids and they are starting to train with you then this is perfect. So many exercises, easy to set up and change for different heights.

Even for the younger and more serious trainers. You need to do accessory work and you need to do it with proper form. Small muscles do not need a lot of weight – I just want to make it clear that this machine is not just for pensioners. As I said before Linas has used this in training for national and international competitions.

For gyms and studios, if you have got a column in your gym and you can bolt one into it, then this is a no brainer. Or if you don’t think you had room for a cable crossover you can bolt two of these to the wall –

A modern gym room with black walls and red lighting features various exercise equipment, including a single cable machine. The glass door reflects more gym space, and the DJ Sessionz logo is visible on a banner near the entrance.

INSTALLATION AND ASSEMBLY

The actual machine is not too hard to build. The hard part is mounting it to the wall. It is hard if you have no experience doing that. If you have experience it is not too bad.

Whenever you drill anything into a wall, spend more time measuring than drilling. You can never measure enough ways if you are inexperienced.

RELATED PRODUCTS

  • The Tricep Rope Attachment is a black, textured rope with two rubber handles and a metal hook for gym equipment, designed for strength training effectiveness.

    Tricep Rope Attachment

    $13.00
    Add to cart
  • A vibrant yellow Spud Inc Hooker Strap with a metal clip and a black and yellow Summit logo in stylized text, displayed in a loose loop against a plain white background.

    Spud Inc Long Ab Strap

    $75.00
    Select options This product has multiple variants. The options may be chosen on the product page
  • The Revolving Straight Bar is a chromed metal gym cable attachment with rubber grips on both ends, ideal for triceps press-downs. It features a central loop for pulley system connections.

    Revolving Straight Bar

    $23.00
    Add to cart
  • The Close Grip Cable Row Handle has a V-shaped design, textured handles for excellent grip, a central hole for attachment, and a shiny silver finish, ideal for close grip cable rows.

    Close Grip Cable Row Handle

    $23.00
    Add to cart
  • The Power Maxx Tricep Rope XL, a black gym rope cable attachment with rubber ends, is suspended against a plain white background.

    Power Maxx Tricep Rope XL

    $19.00
    Add to cart
  • The Tricep V Bar Extension, a chrome V-shaped tricep pushdown cable attachment, features a knurled grip, two circular end caps for secure handling, and a central loop for easy gym equipment attachment.

    Tricep V Bar Extension

    $25.00
    Read more
  • The Spud Inc Gorilla Fingers (Copy) are black rubber grips featuring textured surfaces and metal loops at the ends for secure attachment to kayak paddles.

    GymPin Ergo Handle Pair

    $85.00
    Read more

CUSTOMER REVIEWS

2 reviews for ATX® Single Cable Station – Wall Mounted

  1. Dale –

    Great machine. I’ve had mine for 3 years and it works perfectly. It takes up minimal space. I have a range of different attachments to get a wide variety of exercises.

  2. Bill –

    I’ve had this compact beauty for a few years now ,in my opinion it’s a gem. Takes up almost no space, it’s as smooth as silk and can do a multitude of exercises, either single or double handed. join the cable ends together for lat pull downs and seated rows or just use the supplied handles for whatever you choose. It is 1to1 ratio pulling both cables together or 2 to 1 pulling one cable only ,makes it a very useful piece of equipment. I use it with the atx triplex 670 which for me is a combination that has given me some great workouts.

    • sam-lucas –

      Thanks so much Bill. I planned on doing another video on this machine because I keep using it for different exercises too – so you stole my thunder!
      We have now got loads of those new fancy dual cable machines in the showroom but they are all downstairs. I like training upstairs in summer because it is so hot and the FTX-2000 is the only cable option.
      Been doing 2 handed side laterals but you either have rear or front facing emphasis. On a flat bench I do seated mid rows – our machine is that old it only has a 40kg stack. So I do the reps slow with a good 2-3 second hold at peak contraction. Feels better than doing them on a dedicated seated row.
      Thanks again mate and all the best for the training in 2026.
