ATX® T-Bar Row Machine

Write a Review

$945.00

Item No: ATX-TBR-700

Out of stock

DESCRIPTION

Weight Weight The base weight of the item, without any packaging.	73 kg
Dimensions	113 × 38 × 40 cm
Mounting Type	Free Standing
Weight Weight The base weight of the item, without any packaging.	73kg
Weight Capacity	300kg
Height	55cm
Certification	EN 20957 I.II.IV – S
Footprint Footprint This is the area occupied by the item itself. You might need to allocate additional space for the use.	181x78cm

The Plate Loaded T-Bar Row Machine from ATX has been designed with serious lifting in mind. The grips are knurled so you can use gym chalk up for a good grip, along with the dual bearings at the pivot point. It’s an absolute dream to use.

Lee Priest demonstrates how to use the T-Bar Row. Please Note: The demo video is on the older model T-Bar Row.

Key Features:

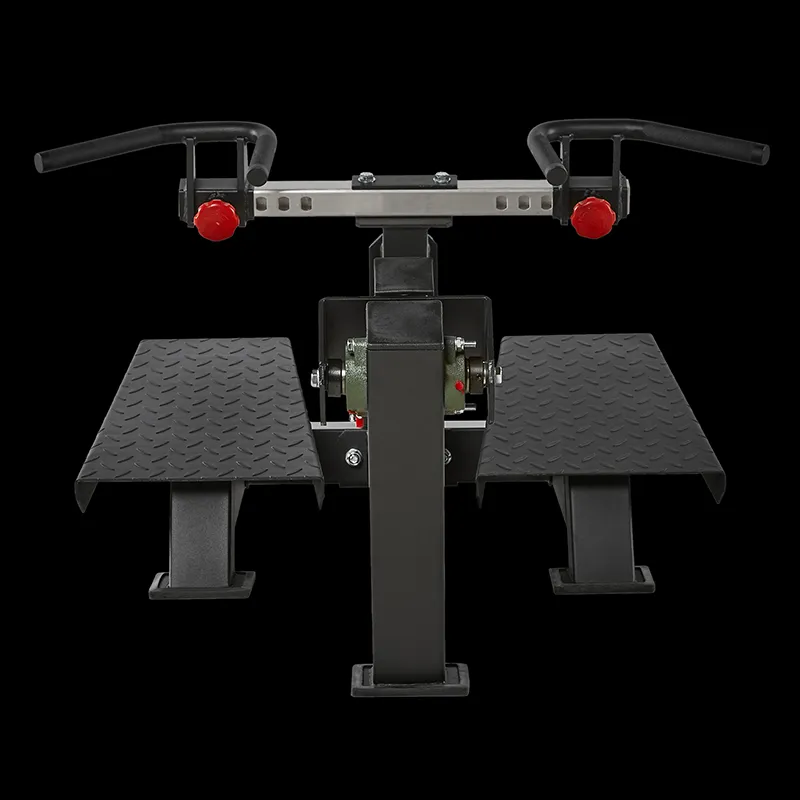

Front view of a black seated calf raise machine with textured foot platforms, two handles, and red adjustment knobs, set against a black background—perfect to pair with your ATX® T-Bar Row Machine for a complete strength-training setup.

Adjustable Handles

Choose from 10 different grip widths ranging from 13.5 cm to 96cm

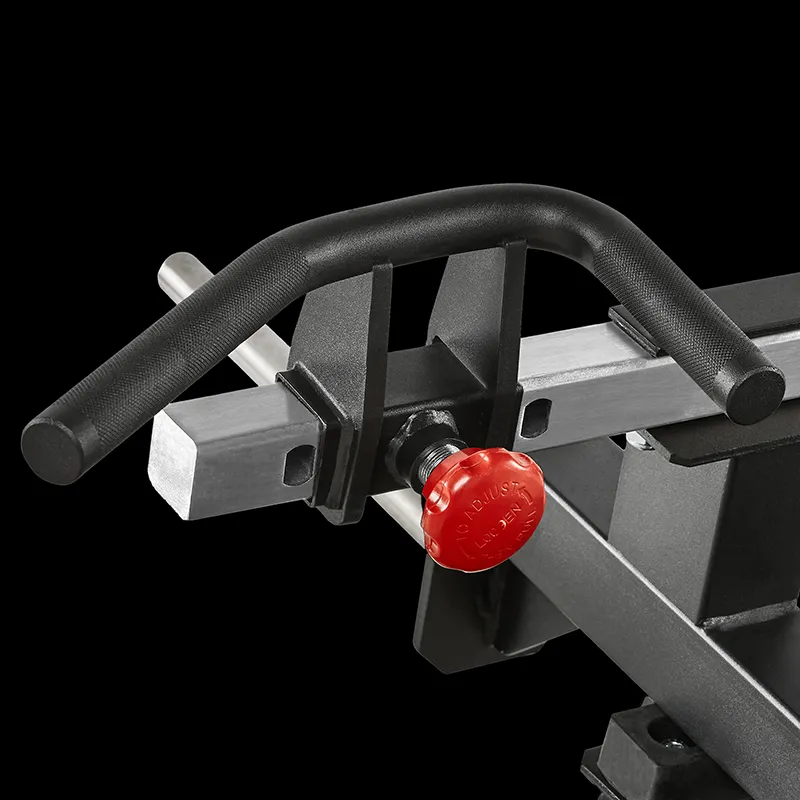

Close-up of the ATX® T-Bar Row Machine's adjustment mechanism, featuring a black handle and red knob mounted on a silver bar against a black background.

Solid Steel Grips

Choose from parallel or straight grip variations.
Grip diameter – 28mm.

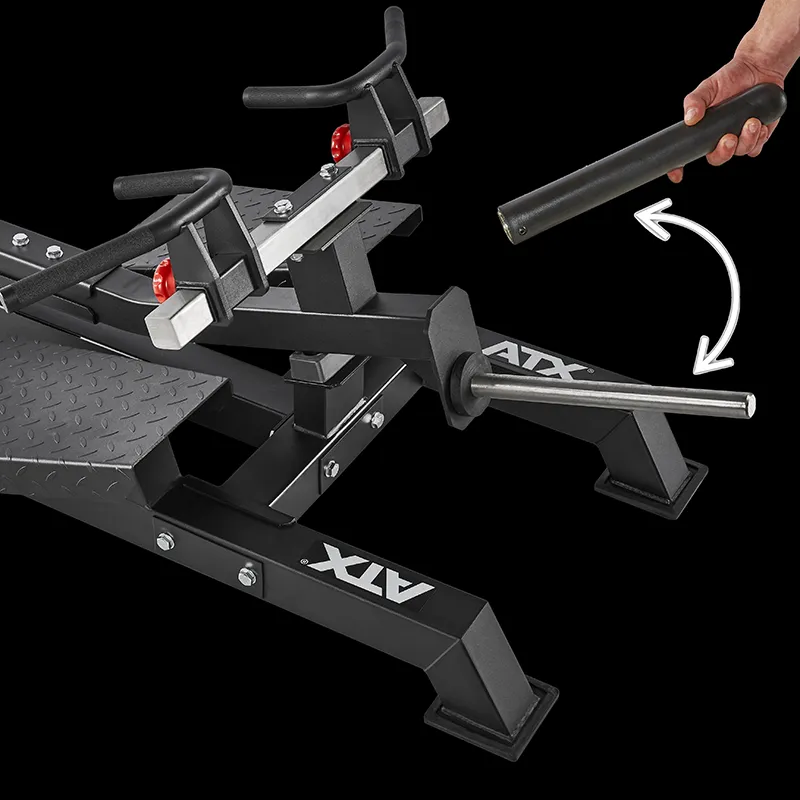

A close-up of the ATX® T-Bar Row Machine shows a hand holding a removable cylindrical attachment next to the bar, demonstrating how the attachment fits onto the equipment.

Olympic Weight Horn

Supports Olympic Weight Plates with inner hole diameter of +51 mm.

Total loading space – 350 mm.

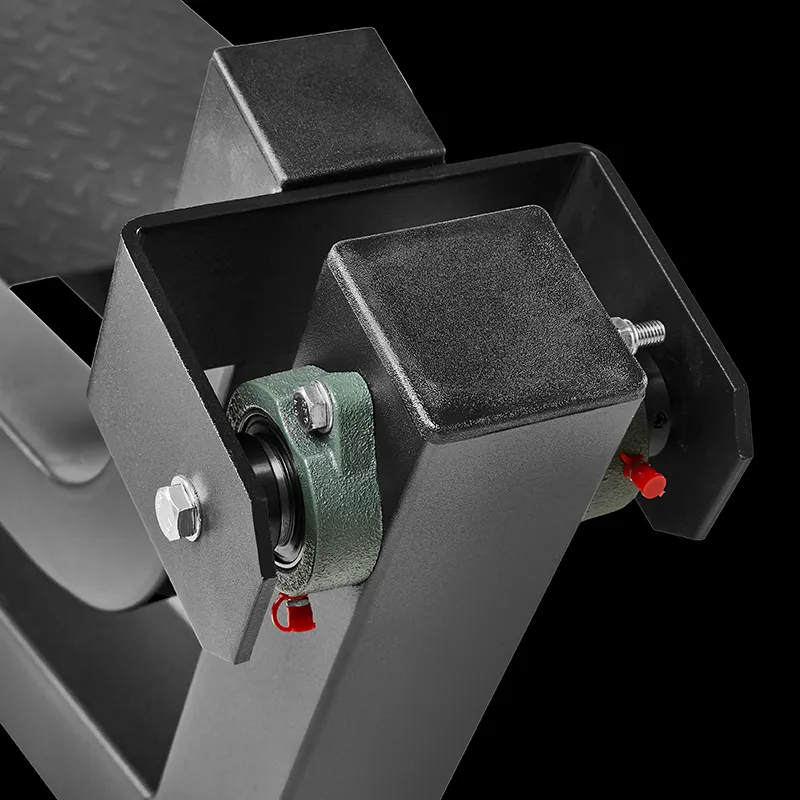

Close-up of a black metal mechanical component from the ATX® T-Bar Row Machine featuring a bolt, bearing housing, connecting parts, and red locking pins, all set against a black background.

Industrial Bearings

Provide smooth and quiet movement.

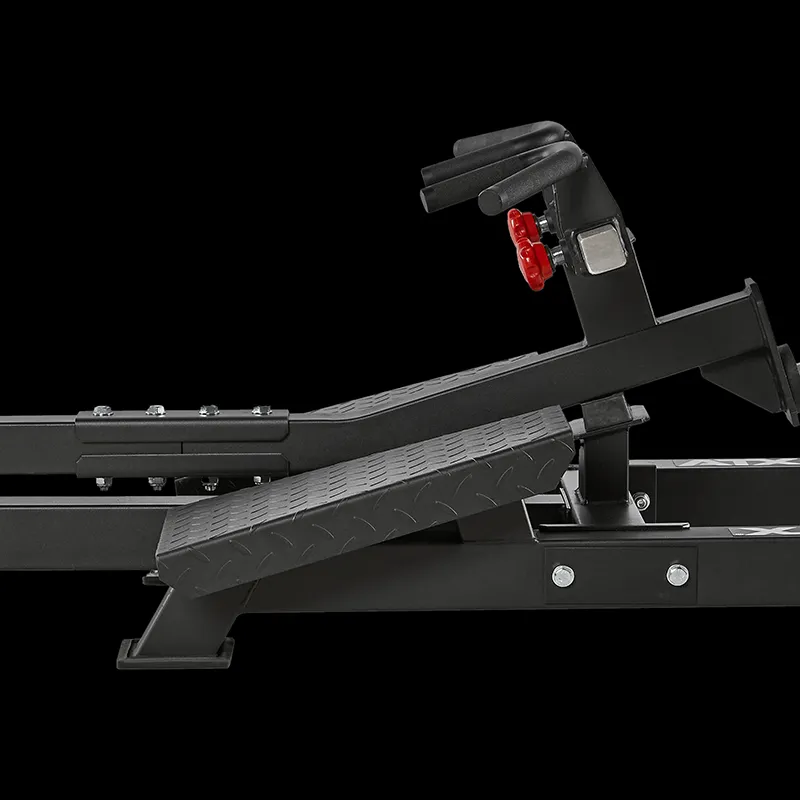

Close-up side view of the ATX® T-Bar Row Machine footplate and adjustable footrests, featuring a red adjustment knob and textured surface, set against a solid black background.

Angled Footplate

For optimal ergonomics.

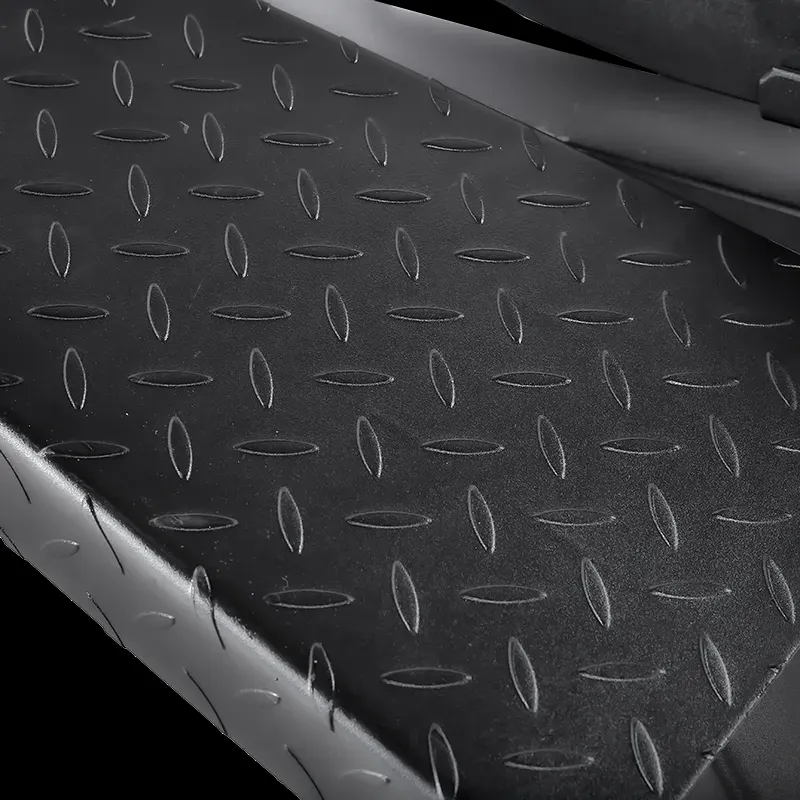

Close-up of a black metal surface with a raised oval tread pattern, similar to that on the ATX® T-Bar Row Machine, designed for optimal slip resistance.

Anti-Slip Finish

Corrugated surface with fine structure powder coating.

Adjustable T-Bar Row Machine

The handle on a T-Bar Row can make a world of difference. The angle and the width all impact how much range you can get and what areas you can target.

The handle has multiple adjustments/angles. Two different angles on the handle, plus the five adjustment widths giving you ten different positions ranging from 18cm to 85cm.

Close-up of gym equipment featuring a Plate Loaded T-Bar Row with a metal handlebar, two footplates, and red adjustment knobs. Arrows indicate movement direction of the handlebars. The equipment is labeled ATX.

300kg Load Rating!

There is ample loading area to pile on the plates if you truly are a beast. But for most of us, the design elements mentioned above will mean that you won’t go anywhere near the load capacity of this machine. With your back perfectly isolated, your ego might be in for a crushing blow when you can’t replicate your favourite bodybuilder’s lifts!

Footplate

Wide – makes it suitable for people of all sizes.
Angled – allows you to have a better leg drive throughout the whole movement.
Anti Slip – you will never have to worry about your feet skidding, the footplates come with elevated metal grooves which will never wear off!

Industrial bearings

A top-quality machine requires top-quality parts. Our ATX® T-Bar Row machine comes with industrial bearings, which provide you with smooth movement for years to come!

Close-up of a Plate Loaded T-Bar Row machine part with a textured metal surface and bolts. Visible components include the ATX black metal frame and green bearing housings.

What’s Included? ATX T-Bar Row (ATX-TBR-700), Olympic sleeve (BB-OA-350-PVC) for Olympic weight plates. They slide over 30mm steel horns. If you intend on using standard weight plates, the internal hole needs to be 31+mm.

Please note the pictures may feature optional attachments or items which are not included with the unit, this is to show the possible configurations/use of the unit.
