ATX® Trinity Tower 135 kg

Write a Review
ATX®
$3,945.00
Item No: ATX-LSW-850

2 in stock

DESCRIPTION

Weight

Weight

The base weight of the item, without any packaging.

 327 kg
Dimensions 230 × 54 × 47 cm
Weight

Weight

The base weight of the item, without any packaging.

287 kg
Weight Capacity

180 kg
Height

235 cm
Certification

EN 20957 I.II.IV – S
Footprint

Footprint

This is the area occupied by the item itself. You might need to allocate additional space for the use.

110×176/202 cm

The ATX Trinity Tower sits proudly on the top shelf when it comes to commercial lat pulldowns. Basically ATX have gone all out when designing this machine. Not only is it built with the highest quality materials, it packs loads of unique features. But most importantly it is just an amazing lat machine to use.

It is easy to set up. The seat pivots effortlessly between seat rows and lat pulldowns. The leg lock for the high pulley doubles as the footrest for rows. You adjust it via a pull pin and there are laser cut numbers for easy positioning.

ATX have designed a unique height adjustment system for the high pulley. You can raise or lower your start/stop position with an ingenious mechanism. If you are a personal trainer this makes setting up for clients so much easier.

Key Features:

The ATX® Trinity Tower 135 kg is a black cable pulley machine with adjustable weight stacks, metal frame, and cable attachments. White arrows show vertical movement for both the pulley and height adjustments.

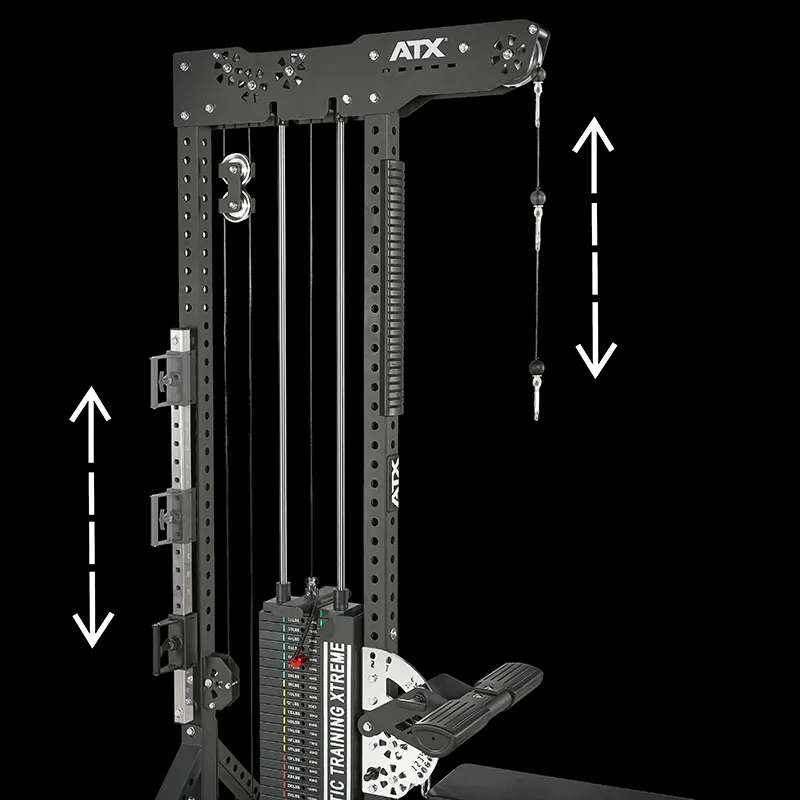

Adjustable Cable System

Extend cable stretch from 155cm to 200cm for perfect positioning on rows, pushdowns, or laying pulldowns.

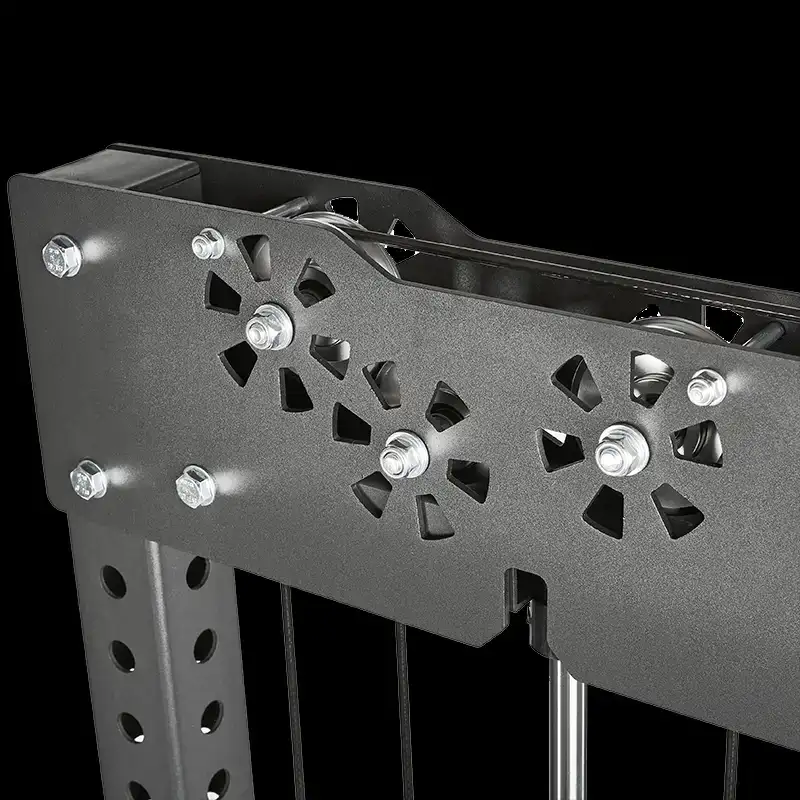

Close-up of the ATX® Trinity Tower 135 kg, a black metal component with bolted joints, patterned cutouts, exposed pulleys, and rods—fitness machine equipment set against a black background.

Stable Construction

Dual uprights, angled rear supports, and braced joints for stability

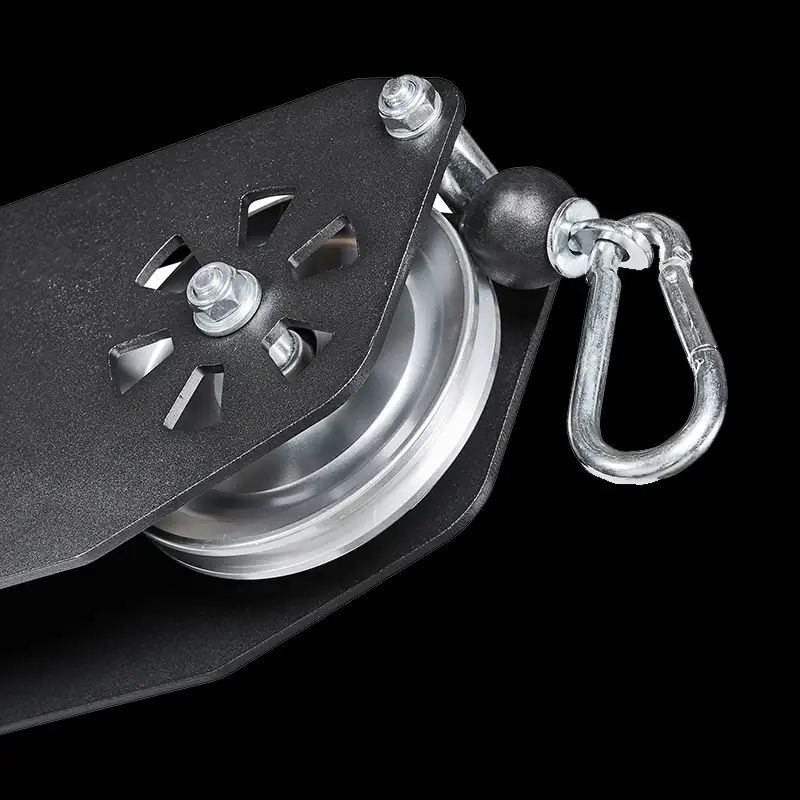

Close-up of the ATX® Trinity Tower 135 kg featuring a metal pulley system with a silver wheel, black bracket, bolts, and a snap hook against a solid black background.

Ultra-Smooth Action

Double-bearing aluminum pulleys, hard-chrome 20mm guide rails, and stretch-free cables glide like butter under max load.

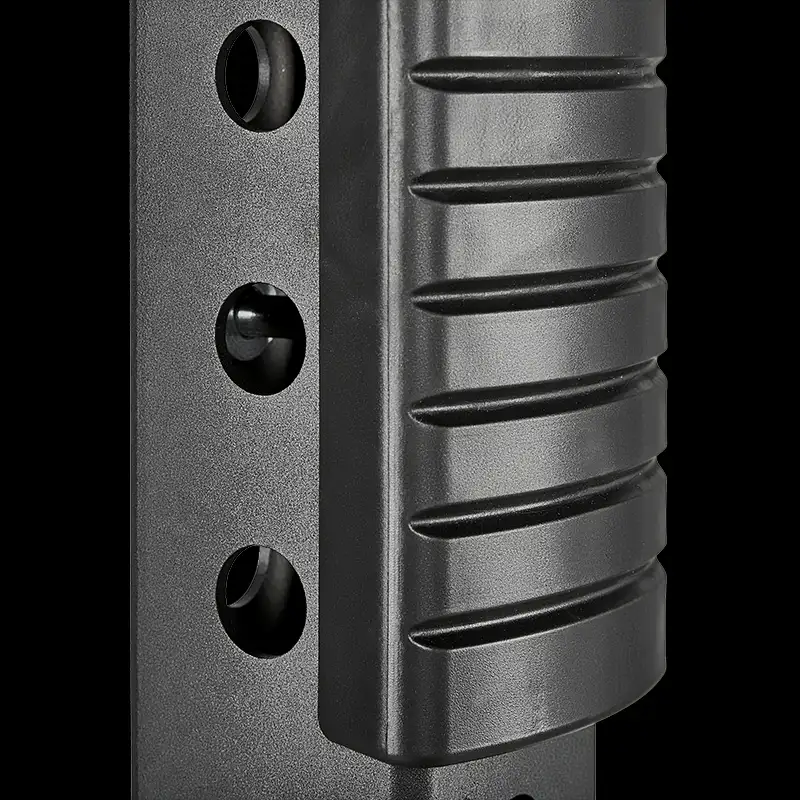

Close-up of the ATX® Trinity Tower 135 kg, featuring three round holes on the left and a ribbed, textured surface on the right, set against a black background.

Rubber Edge

Added protection to both your cable attachments and the upright.

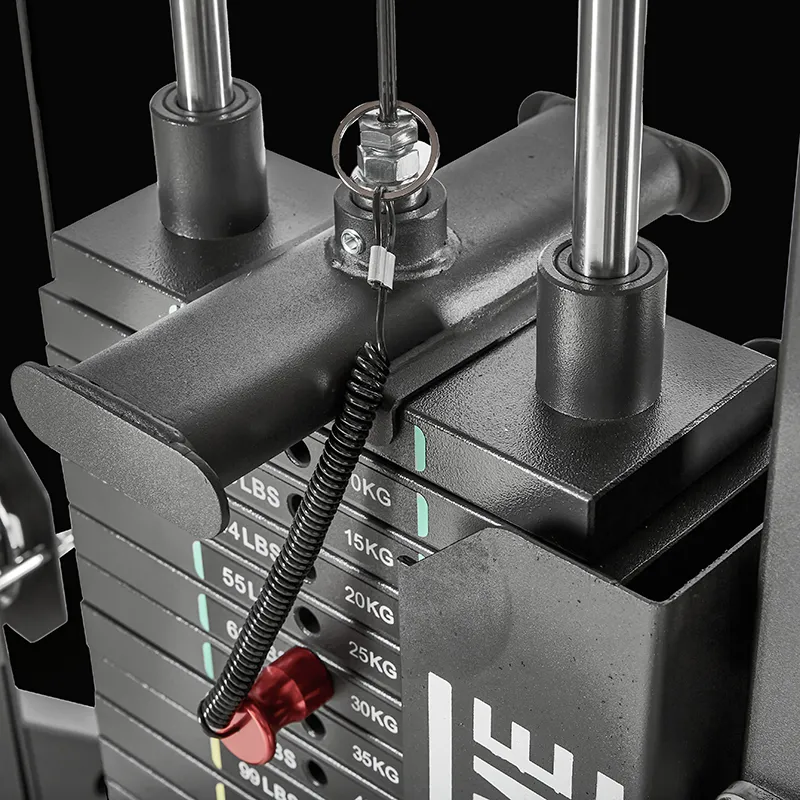

Close-up view of the ATX® Trinity Tower 135 kg weight stack, featuring labeled plates in pounds and kilograms, a selector pin, and cables, set against a black background.

135kg Weight Stack

27 x 5kg plates for heavy pulls, with a 1:1 ratio for true-to-weight lifting (no mechanical advantage).

Close-up of the ATX® Trinity Tower 135 kg fitness machine showing its weight stack with numbered plates, cables, and multiple adjustment mechanisms.

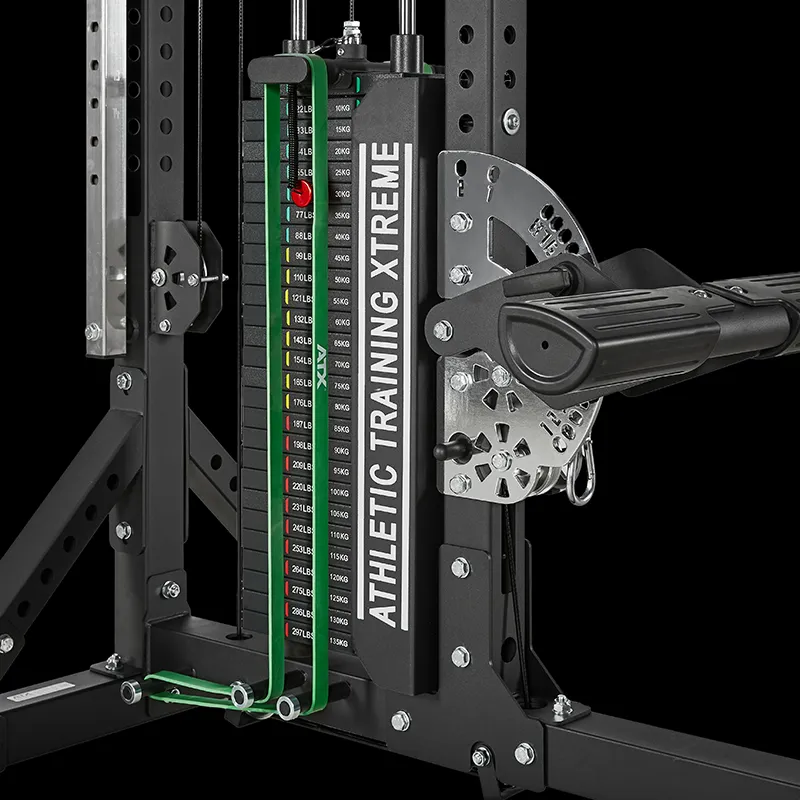

User-Friendly Extras

Resistance band holders for added challenge, weight stack cover for safety

Close-up of the weight stack on the ATX® Trinity Tower 135 kg, showing weight increments, adjustment pin, and angular footrests.

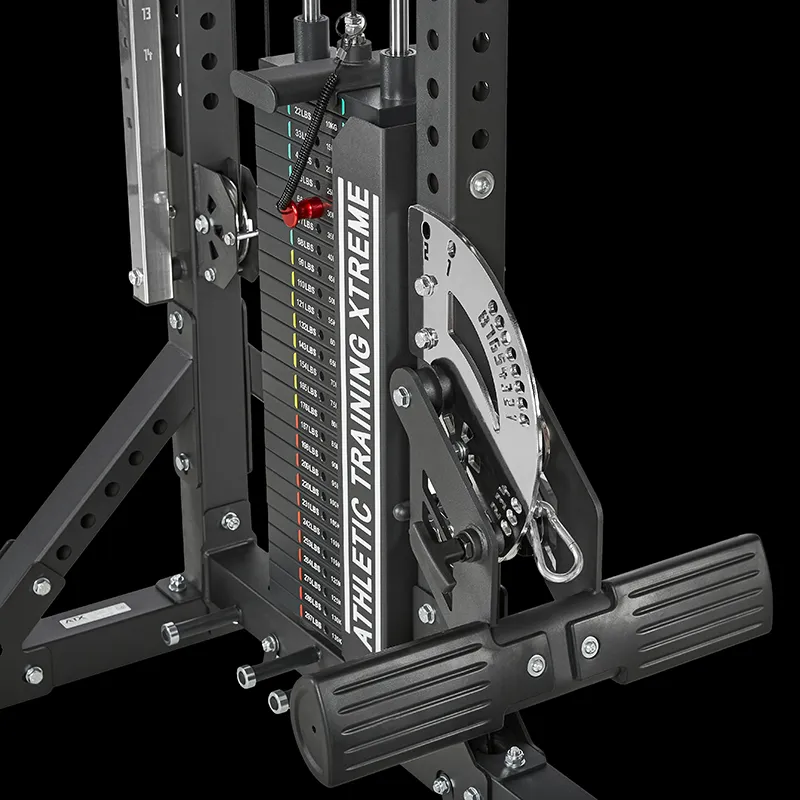

Foot/Knee Rest

The foot and knee rest folds down with a spring loaded pull pin.

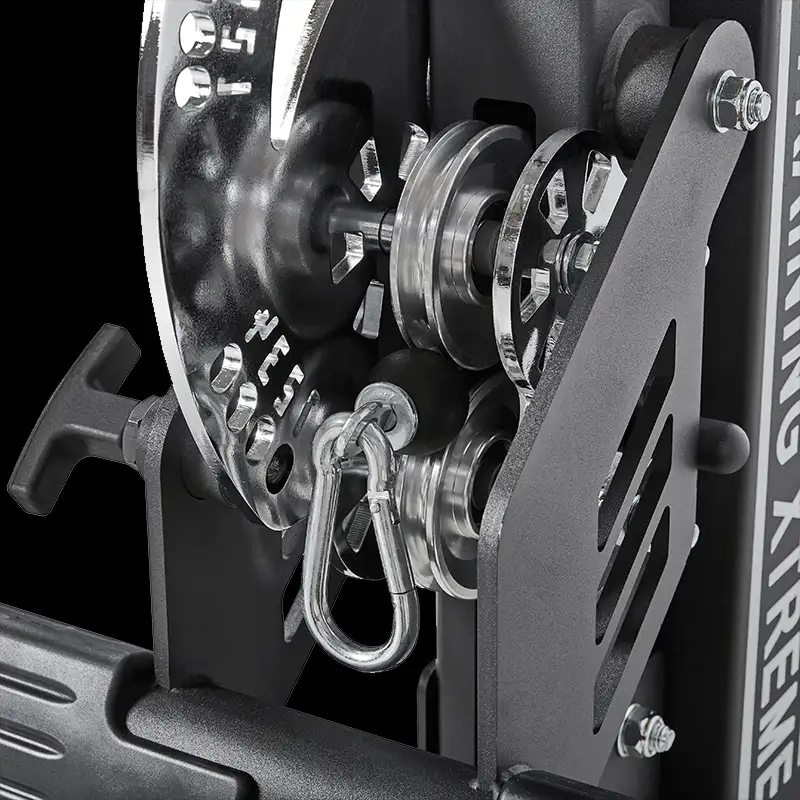

Close-up of the ATX® Trinity Tower 135 kg’s pulley system, showing metal weights, pulleys, a carabiner clip, bolts, and part of the black frame with slotted panels and textured grips.

Laser Cut

Top tier craftmanship thanks to state-of-the-art laser production.

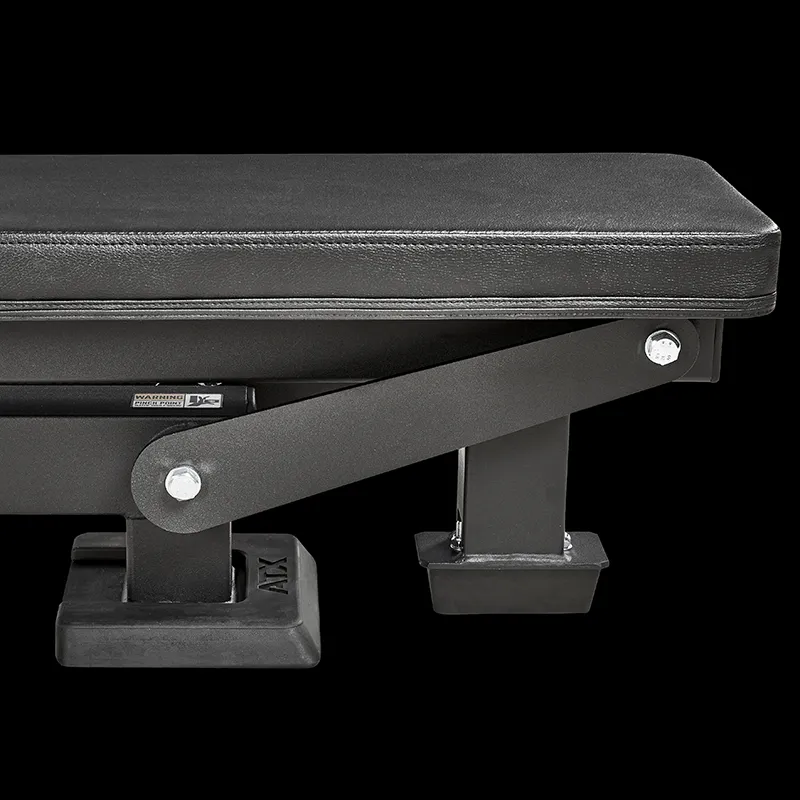

Close-up of the ATX® Trinity Tower 135 kg, featuring a black padded gym bench with a sturdy metal frame and rectangular support legs, set against a solid black background.

Folding Seat

The seat fold down for seated rows or laying high pulley rows.

Frictionless

A lot of engineering went into making the ATX® Trinity Tower the smoothest lat pulldown ATX® have produced:

A close-up of a weight stack from an ATX® Trinity Tower 135 kg machine shows multiple weight plates, adjustment pins, and a cable system designed for resistance training and strength exercises.
  • 20 mm thick solid steel guiderails offer no flex at all even when rowing 135 kgs.
  • Hard Chrome Coating – not only provides you with a smoother surface to glide on, but also boasts great durability.
  • Double-Bearing Aluminum Pulleys – nylon pulleys do the trick, but aluminum just look better. In a gym environment it is one less thing halfwits can break.
  • Stretch free cable – the cable flexes much easier compared to the industry standard gym cable providing with that bit of extra smoothness and longevity.
  • ATX® have chosen CNC machined weight stack plates instead of traditional cast iron weight stack plates.
  • Seat pivots on industrial bearings.
  • Custom leg lock/foot plate design. Adjusts with commercial pop pin. Laser cut numbering

Cable Adjustment System

It is all about quality and ease of use with the ATX-LSW-850. The innovative cable adjustment system allows you to lower the cable to the correct starting position.

The cable adjustment system is located on a side of the machine. It is a simple pull pin handle with laser engraved markings for easier identification. A lot of work went into making the system functional, for example half of the mechanism is embedded into the machine, so you don’t have any unnecessary cable hanging around.

The cable adjustment system is not only great for dialing in your start/stop position. It makes exercises like the Cable Mid Row really easy to perform.

What’s Included? ATX® Trinity Tower 135 kg (ATX-LSW-850), 2 x Carabiners, Extension Chain.

Please note the pictures may feature optional attachments or items which are not included with the unit, this is to show the possible configurations/use of the unit.
