Ironmaster Valhalla ALL IN ONE GYM

Ironmaster
$5,450.00
Item No: IM3000

Out of stock

Notify me when back in stock.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

DESCRIPTION

Weight

Weight

The base weight of the item, without any packaging.

432 kgs (950 lbs)

Weight Load Capacity

Weight Load

This is the safe working load of the item, not to be confused with a breaking point.

Smith Bar – 1000 lbs (454 kgs), Chin Up 300 lbs (136 kgs),

Footprint

Footprint

This is the area occupied by the item itself. You might need to allocate additional space for the use.

Width – 201 cm Depth – 157.5 cm

Height

223.5 cm

Inclusions

Inclusions

These are the specific items that you will receive when you purchase the product. Some products are shown with items that are not included for demonstration purposes.

Main frame, self-spotting lifting bar, dual adjustable functional pulleys, 2x 200 lb weight stacks, lat pull bar, 2 x stirrup handles, long bar pad, ultimate chin-up station, landmine attachment, barbell holder and 5 storage attachment hooks.

Weight Stack

2 x 200 lbs (20 x 10 lbs)

Weight Stack Ratio

Cable Crossovers – 2:1 (max load 100 lbs per hand), Lat Pulldown/Seated Row – 1:1 (Max Load – 400 lbs)

Warranty

1 year for normal wear items such as rubber, upholstered parts and surface finishes. 10 years for frame and structural components. Warranty covers in home use only.

The Ironmaster IM3000 Valhalla All in One Gym is the result of decades of engineering expertise. It combines Ironmaster’s self-spotting Smith-style system with a full-width functional trainer and high/low pulley system. Throw in a multi-grip chin-up bar, landmine and weight storage – you have got one mean All in One Gym.

Key Features:

IM3000 adjustable pulley trolley and D-handle

Full-Width Functional Trainer

Two adjustable pulleys span approximately 178 cm with up to 100 lb resistance per hand.

IM3000 low-row pulley and bench-height foot plates

High and Low Cable Stations

Use both weight stacks together for up to 400 lb of pull.

IM3000 self-spotting bar with safety stop and weight plate

Self-Spotting Lifting Bar

A 32 mm bar rated for 1000 lb with lockout positions every inch.

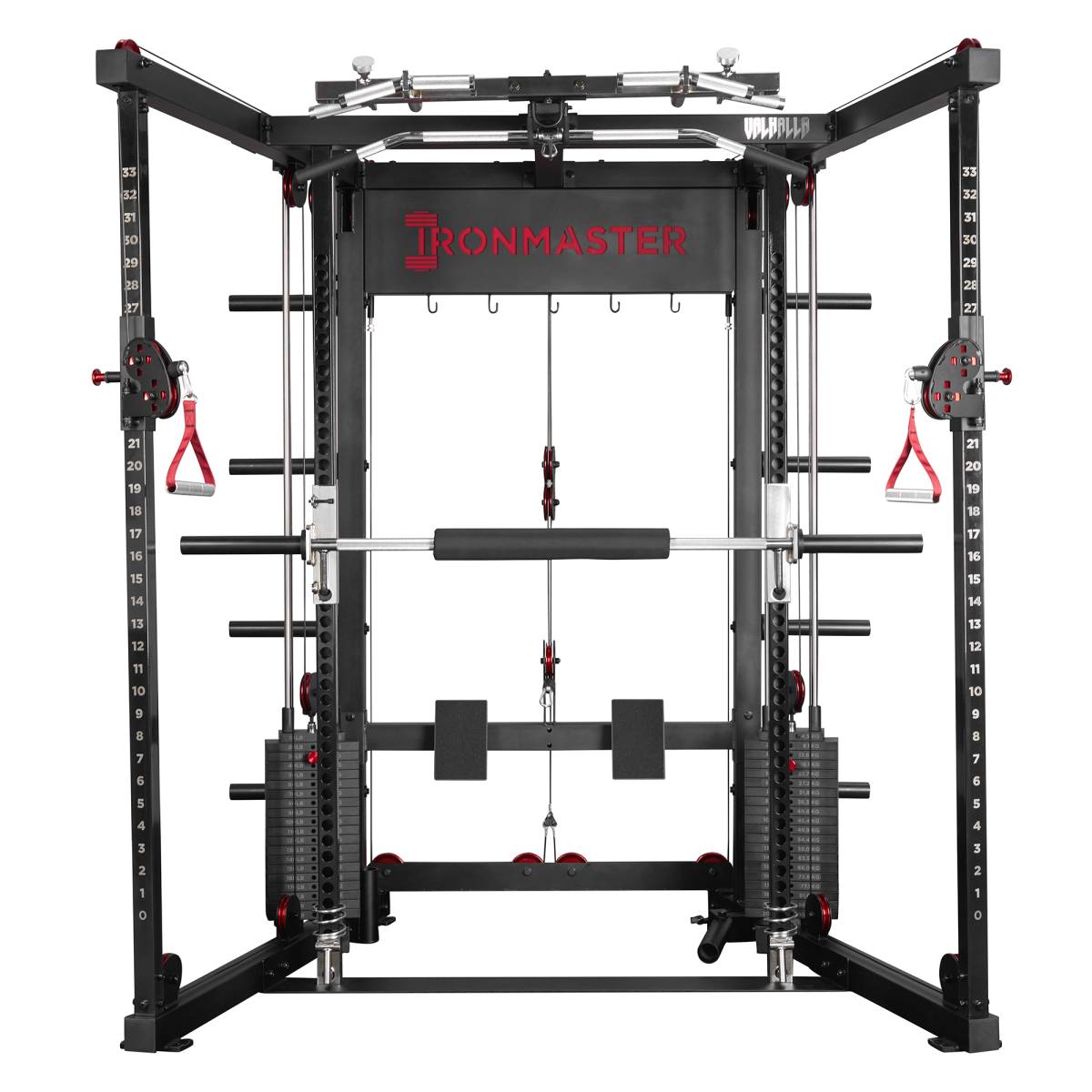

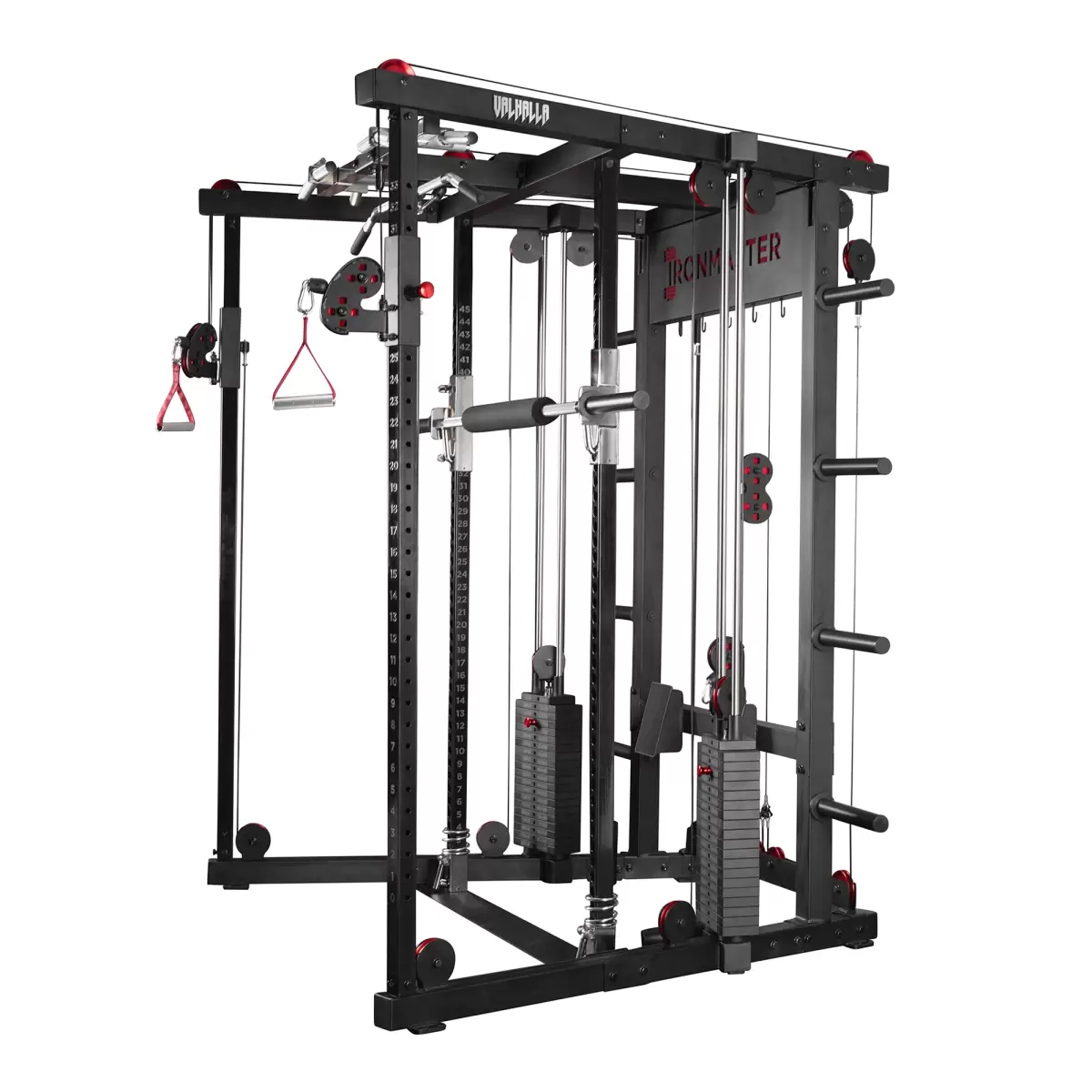

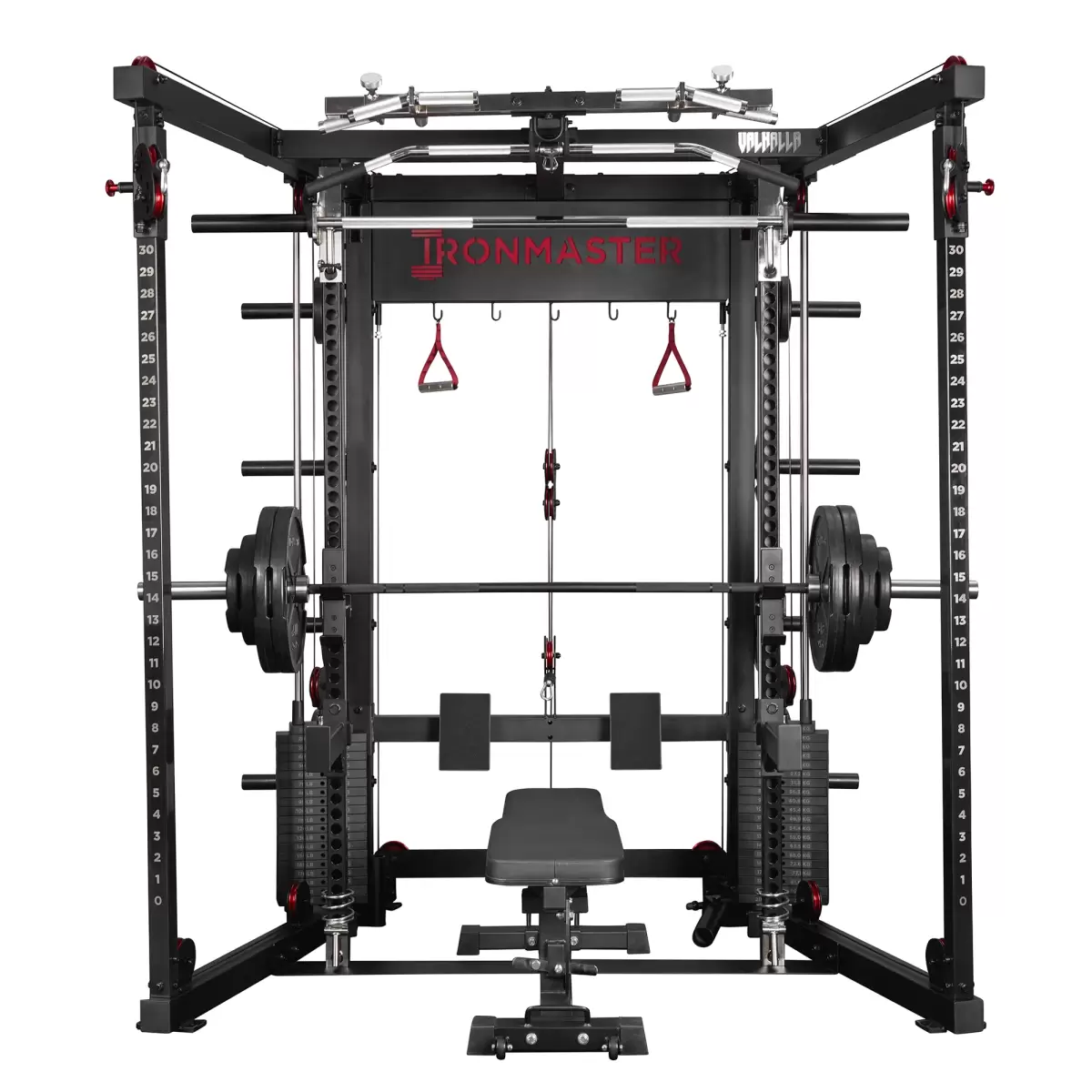

Ironmaster IM3000 Valhalla front view

Adjustable Chin-Up Station

Neutral, angled and wide-grip options support a range of pull-up movements.

IM3000 side view with Olympic plate storage

Built-In Storage

Eight 12-inch Olympic plate horns plus barbell storage and five attachment hooks.

IM3000 shown with optional bench and free barbell setup

Free-Bar Half Rack

Add the separately sold barbell hooks and spotting arms for free-bar training.

Dimensions and Space Planning

  • Frame width: approximately 201 cm (79 inches).
  • Frame depth: approximately 157.5 cm (62 inches).
  • Frame height: approximately 223.5 cm (88 inches).
  • Base unit weight: 432 kg.
  • Functional pulley spacing: 70 inches (approximately 178 cm).

Allow room to train: The frame footprint is not the full working area. Allow extra space for loading plates, extended cable movements, benches and a free Olympic barbell. Ironmaster’s published clearance recommendations differ between its text and diagrams; confirm your planned setup and room dimensions with Sam’s before installation.

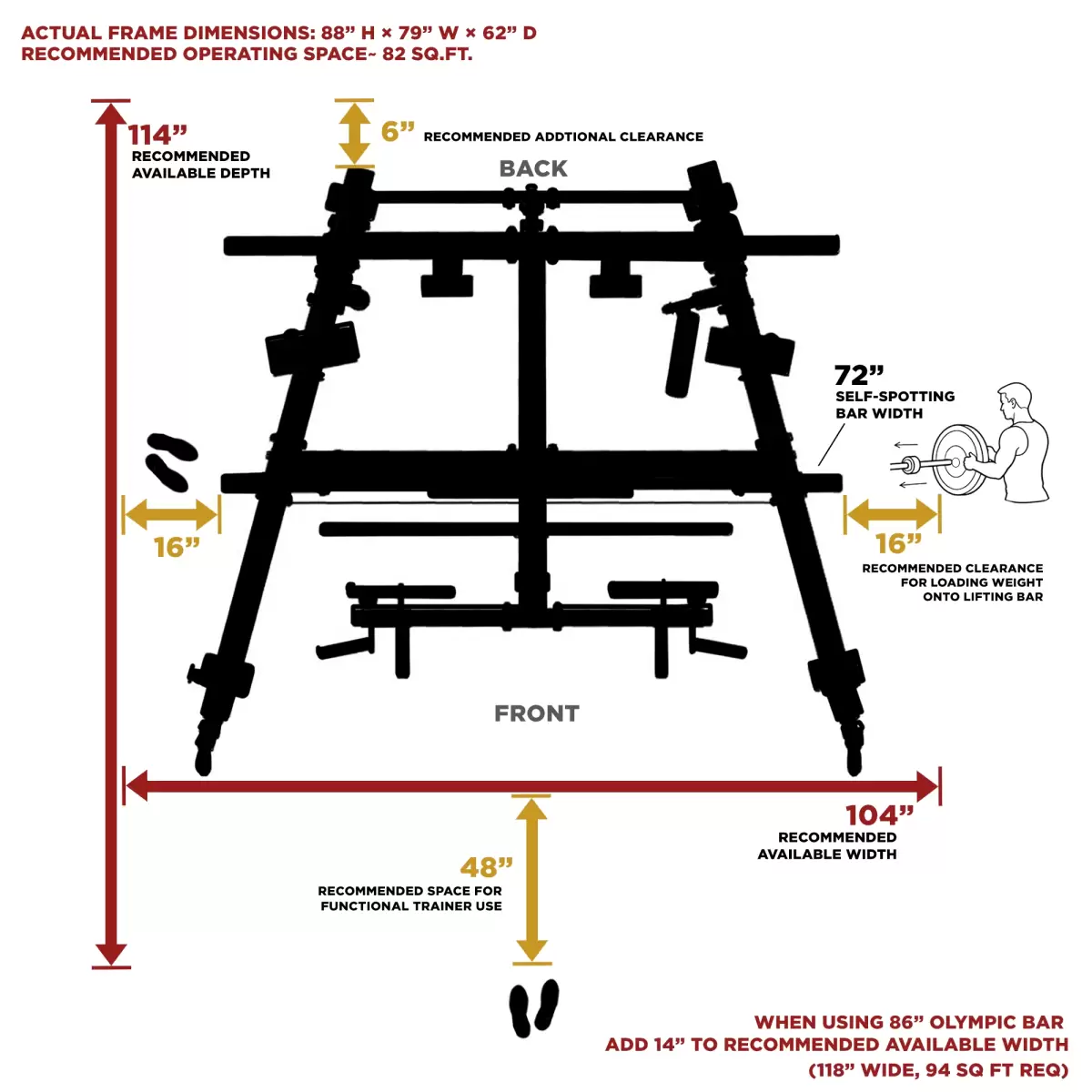

IM3000 training-clearance diagram with 104-inch width

Functional Trainer

  • 178 cm width will give you plenty of range for your cable flys.

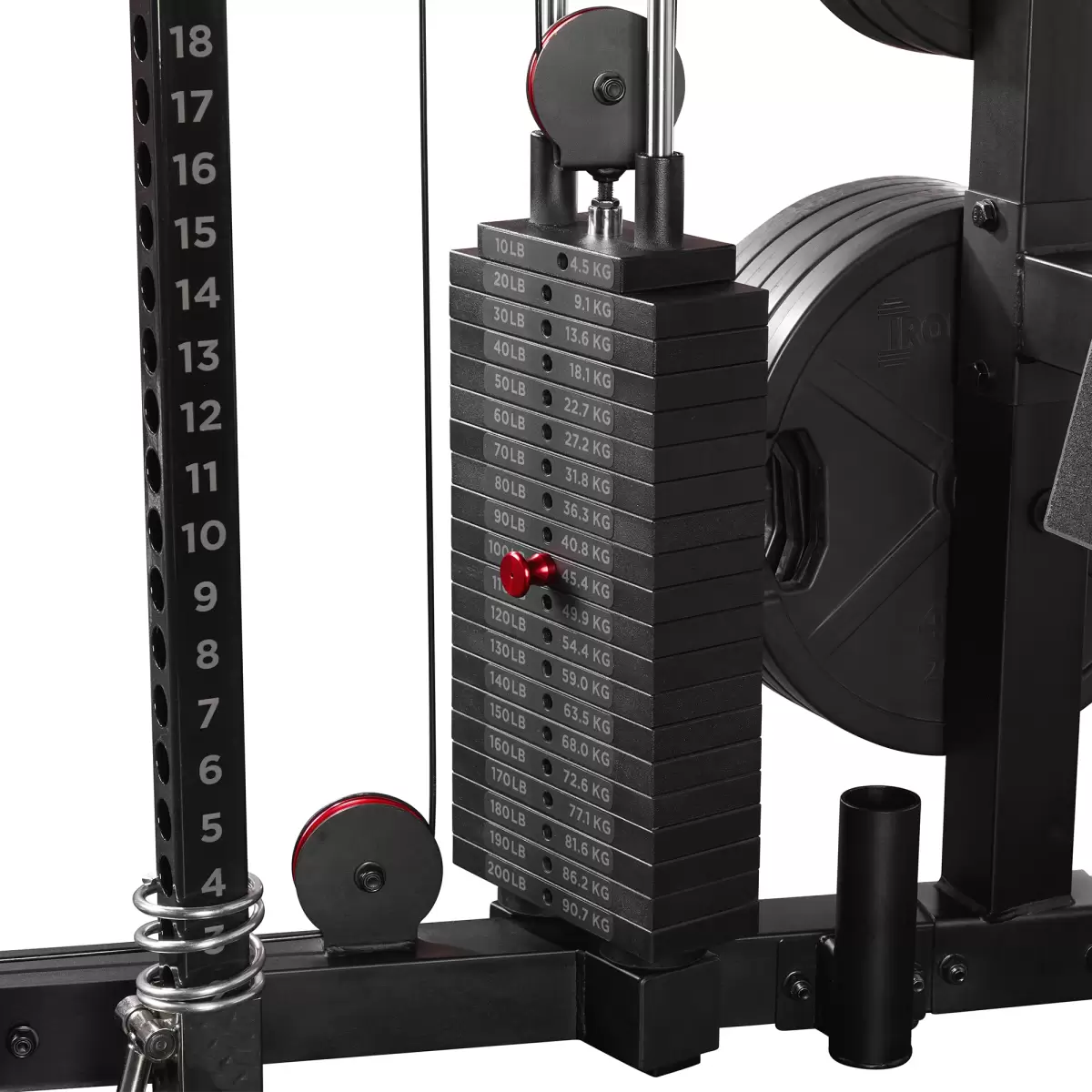

  • 2 x 200 lb weight stacks in 10 lb increments with a 2:1 pulley ratio at each adjustable functional pulley.
  • Each side provides 5 – 100 lb of cable resistance (approximately 2.3 – 45.4 kg).
  • Red anodised aluminium pulleys with bearings for some bling.
  • Pair of red nylon stirrup handles with aluminium grips included.
  • Numbered front rails make it easier to repeat your setup.

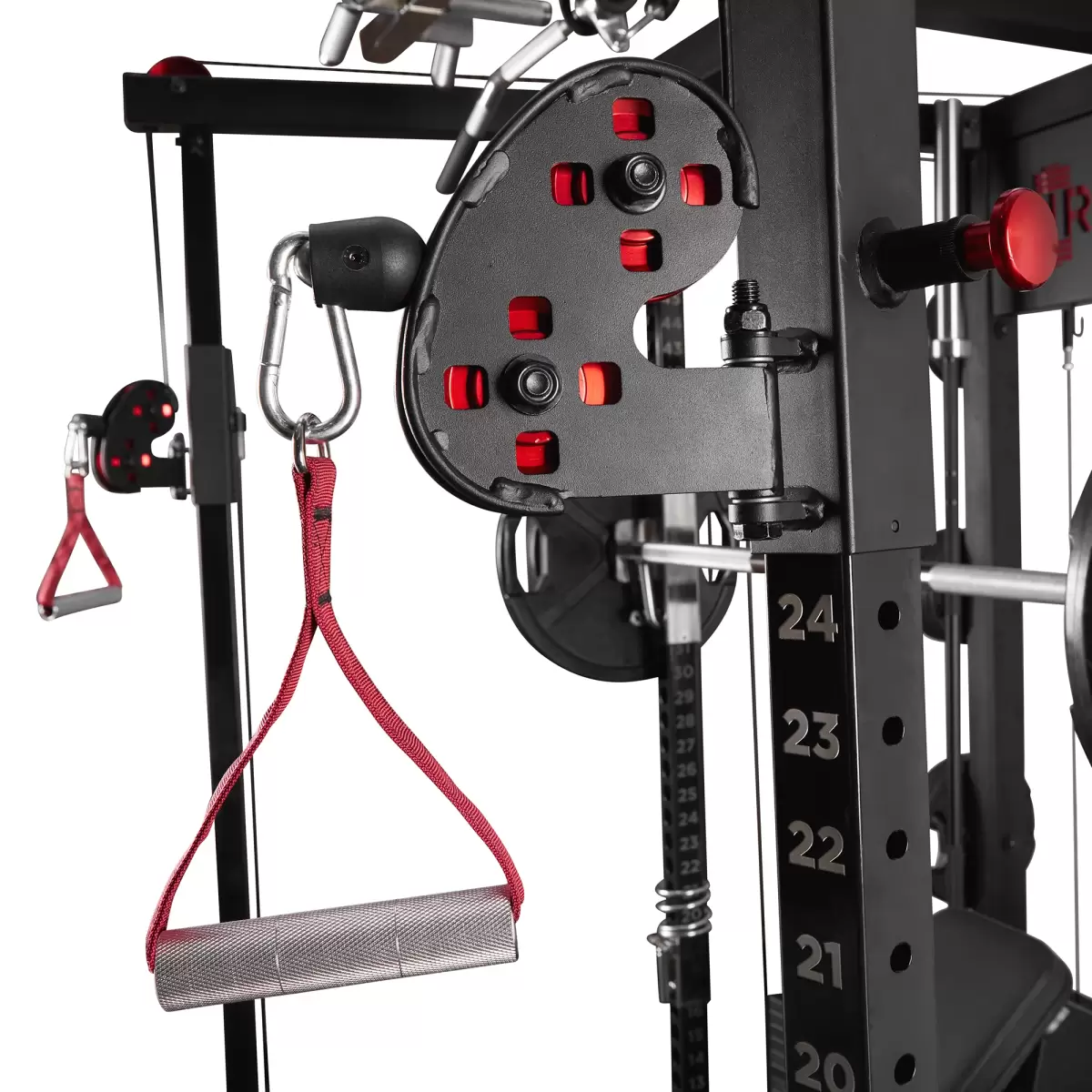

IM3000 adjustable pulley trolley and D-handle

High and Low Pulley

  • Proprietary dual-to-single connection – pull up to 400 lb (approximately 181 kg)!
  • The assembly manual specifies a 1:1 ratio at the central high and low stations, with both stacks working together.

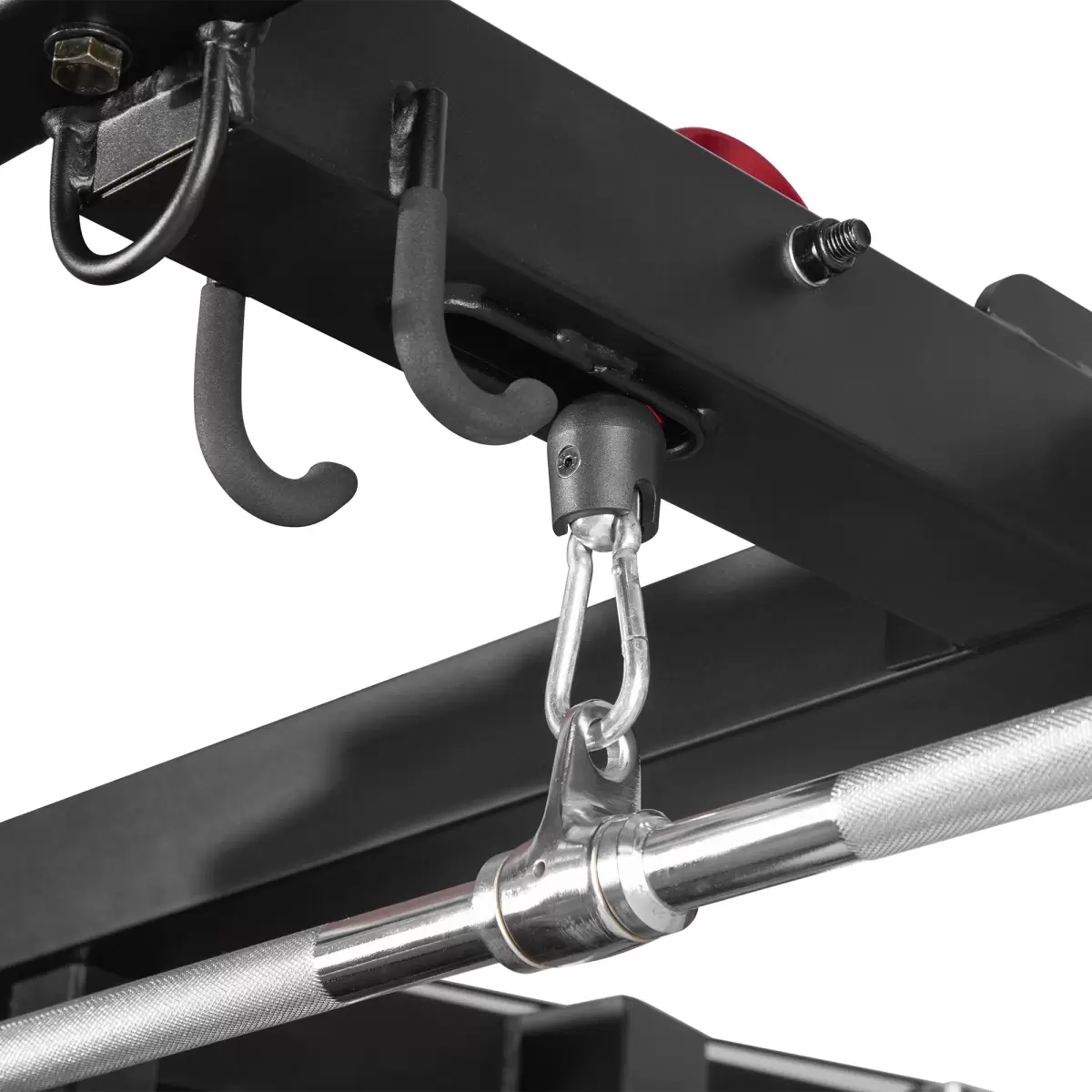

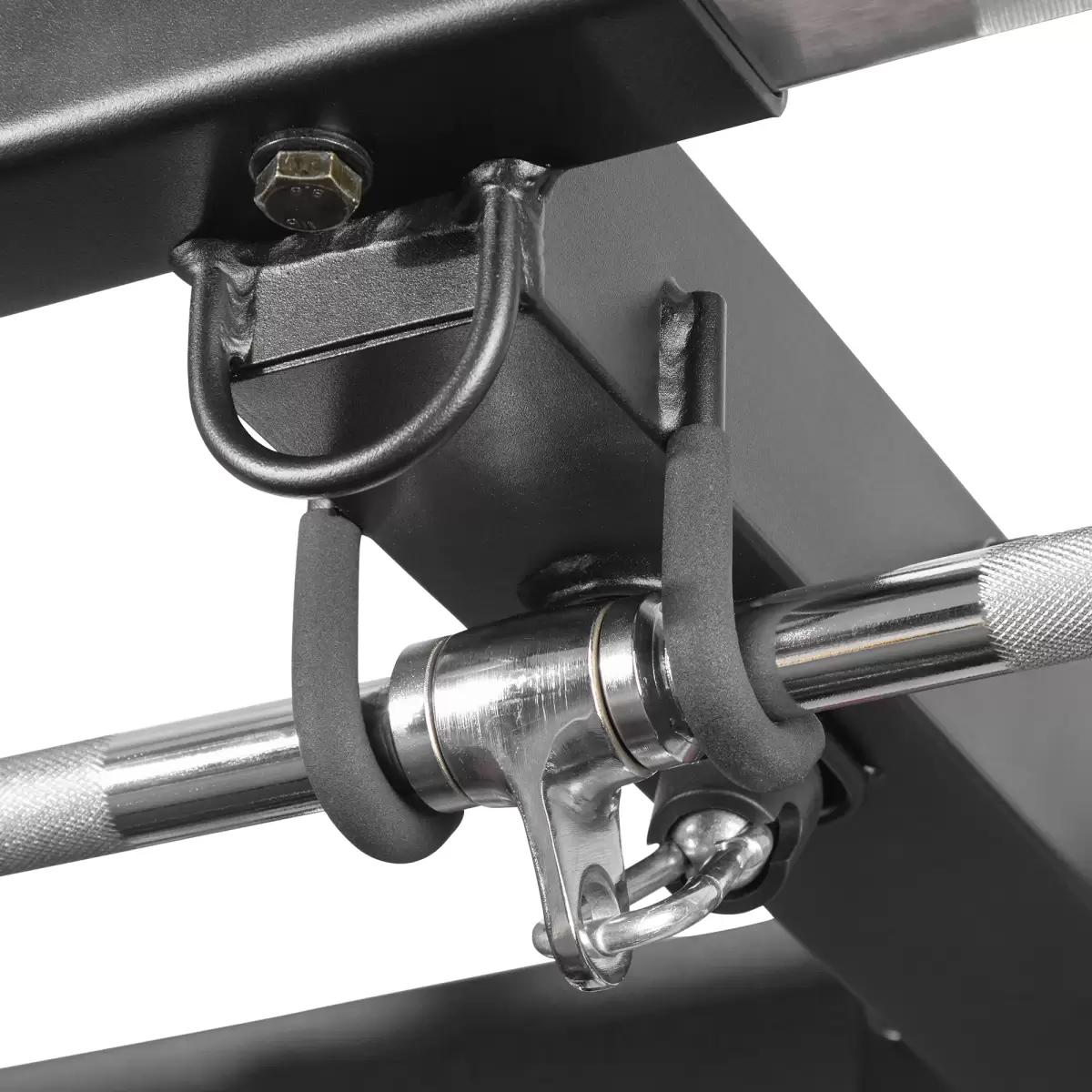

  • Upper pulley has attachment storage – you can store your lat pull bar, which is included.
  • Do seated rows sitting on your bench, not on the floor. Bench-height footplates for when you go heavy. Bench sold separately.

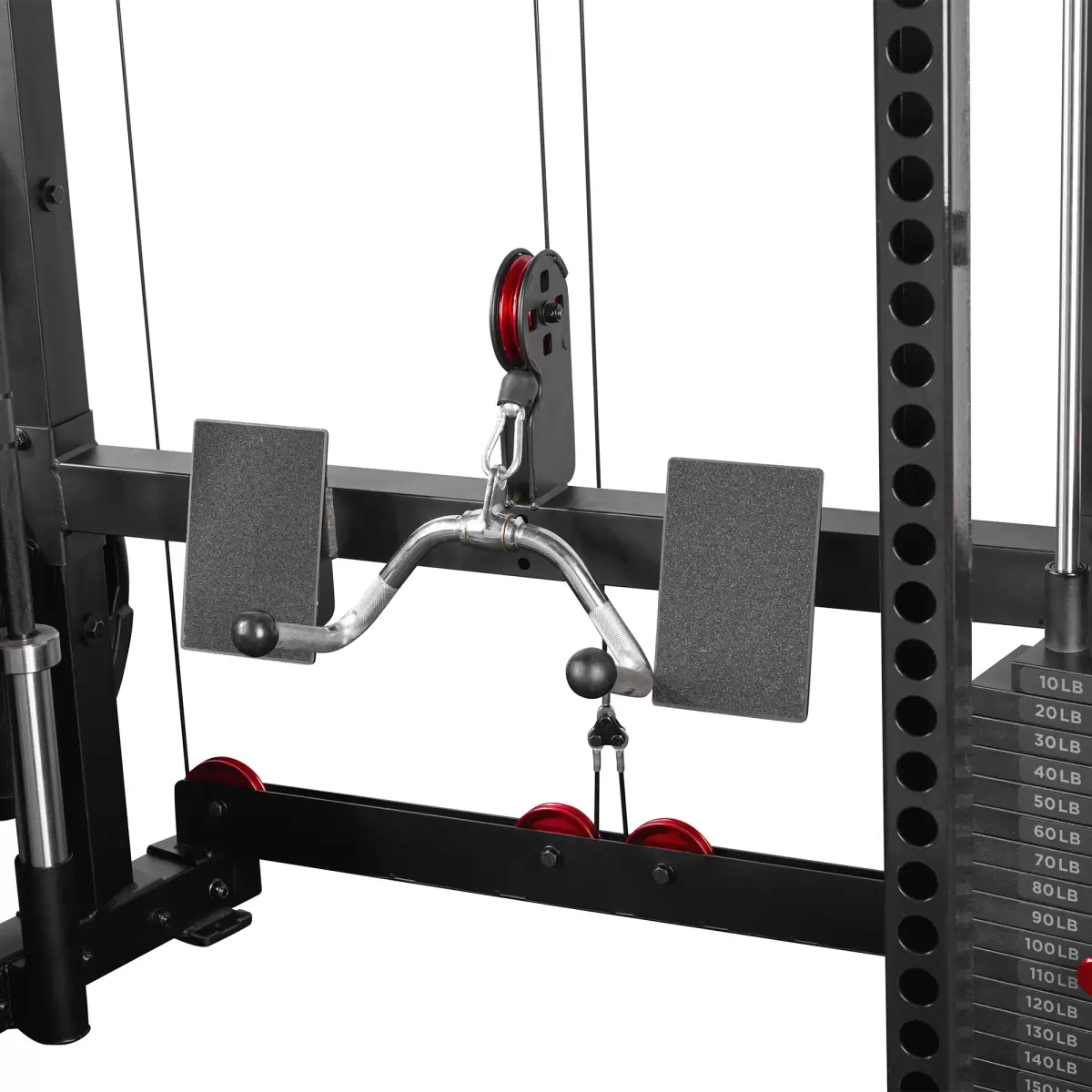

IM3000 low-row pulley and bench-height foot plates

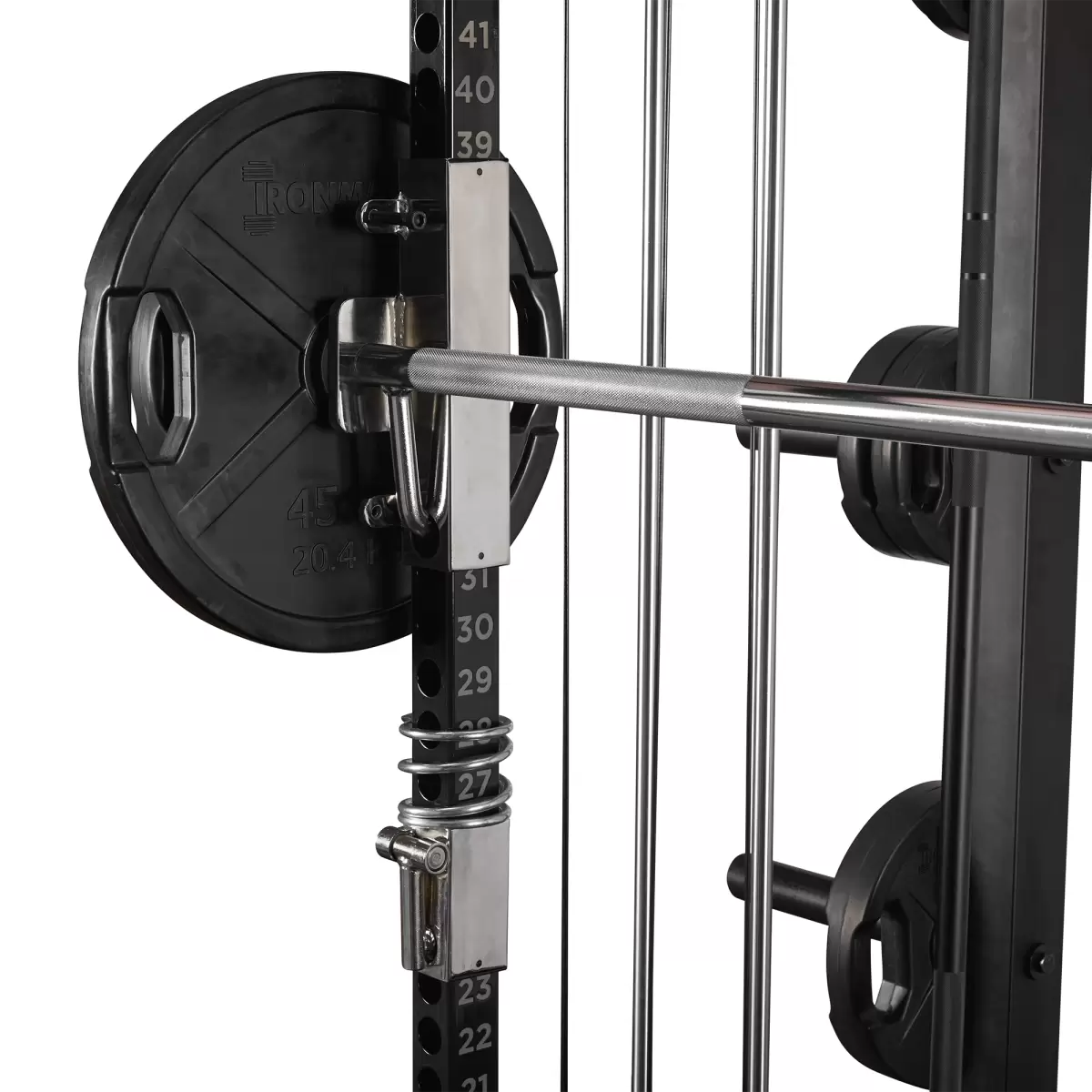

Self Spotting Smith Lifting System

  • A guided lifting bar with close-spaced lockout points and coiled steel spring safety stops.
  • Lockout holes every inch. The guide rails are numbered so you will not be fumbling for the right hole.
  • Lifting bar is approximately 32 mm thick and rated for 1000 lb (approximately 454 kg).
  • The empty lifting bar weighs approximately 32 lb (14.5 kg), as specified in the assembly manual.
  • Lock the bar in place as instructed in the manual to anchor yourself for heavy lat pulldowns.
  • Can be used for leg presses with the optional leg press attachment, sold separately.
  • The locked bar can also be used for Nordic curls and Bulgarian split-squat support.
IM3000 self-spotting bar with safety stop and weight plate

And More! One Integrated Gym

  • Ultimate Chin Up: Adjustable neutral, angled and wide-grip options.
  • Weight Plate Storage: 8 x 12-inch (30.5 cm) Olympic weight horns, spaced for bumper plate storage.

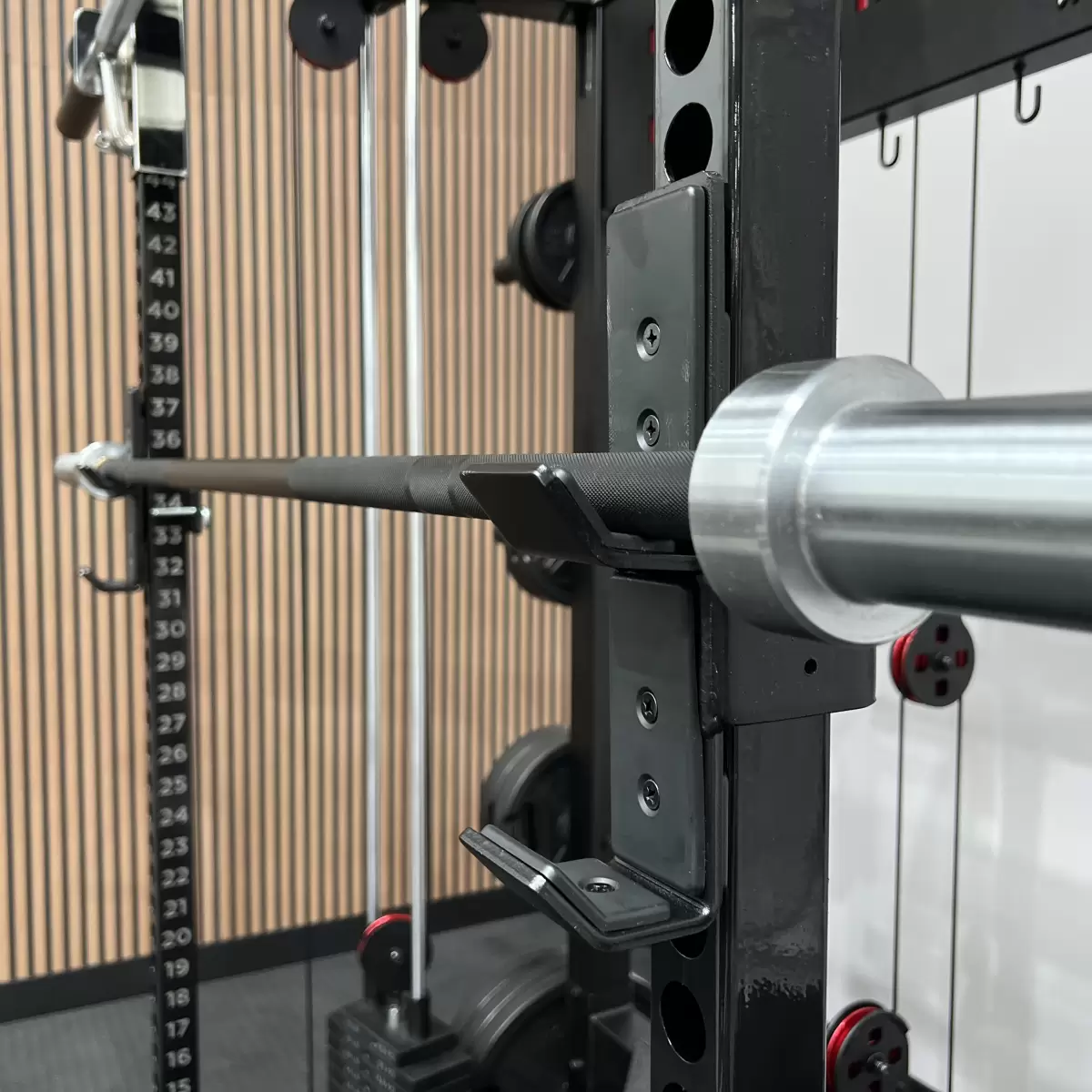

  • Half Rack: Add barbell hooks and spotting arms, both sold separately, for free-weight barbell work.

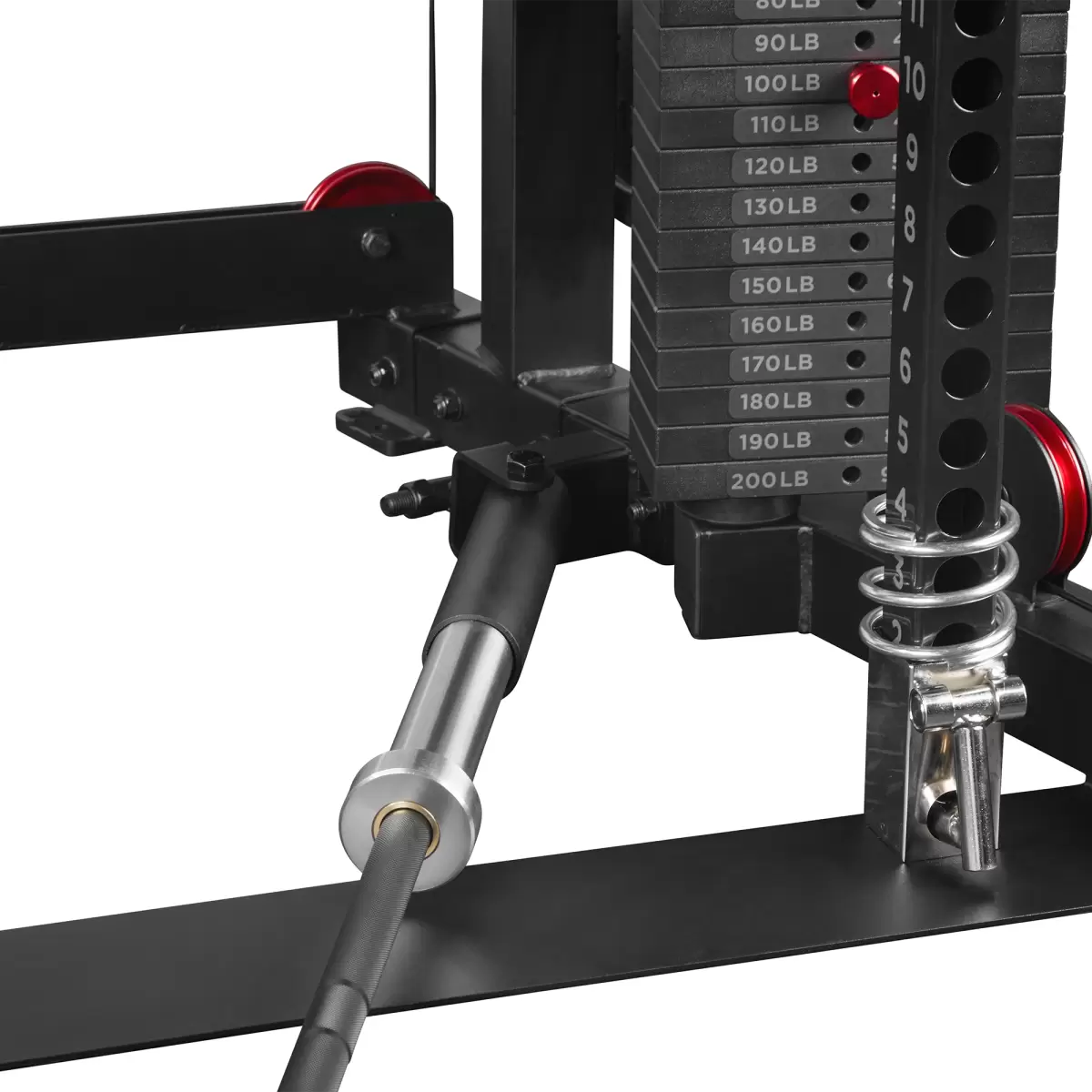

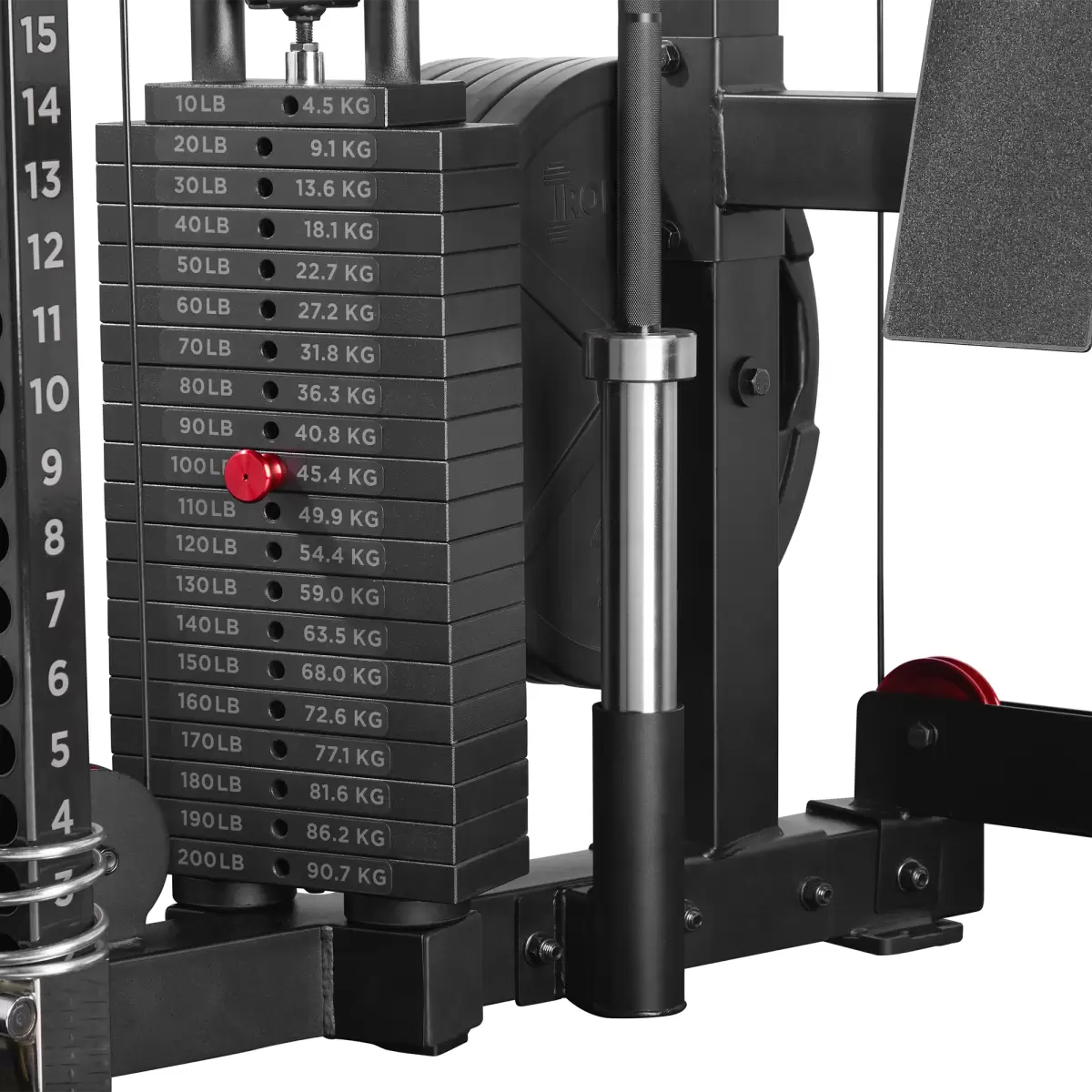

  • Bar holder on one side. Landmine attachment on the other side. Olympic barbell sold separately.

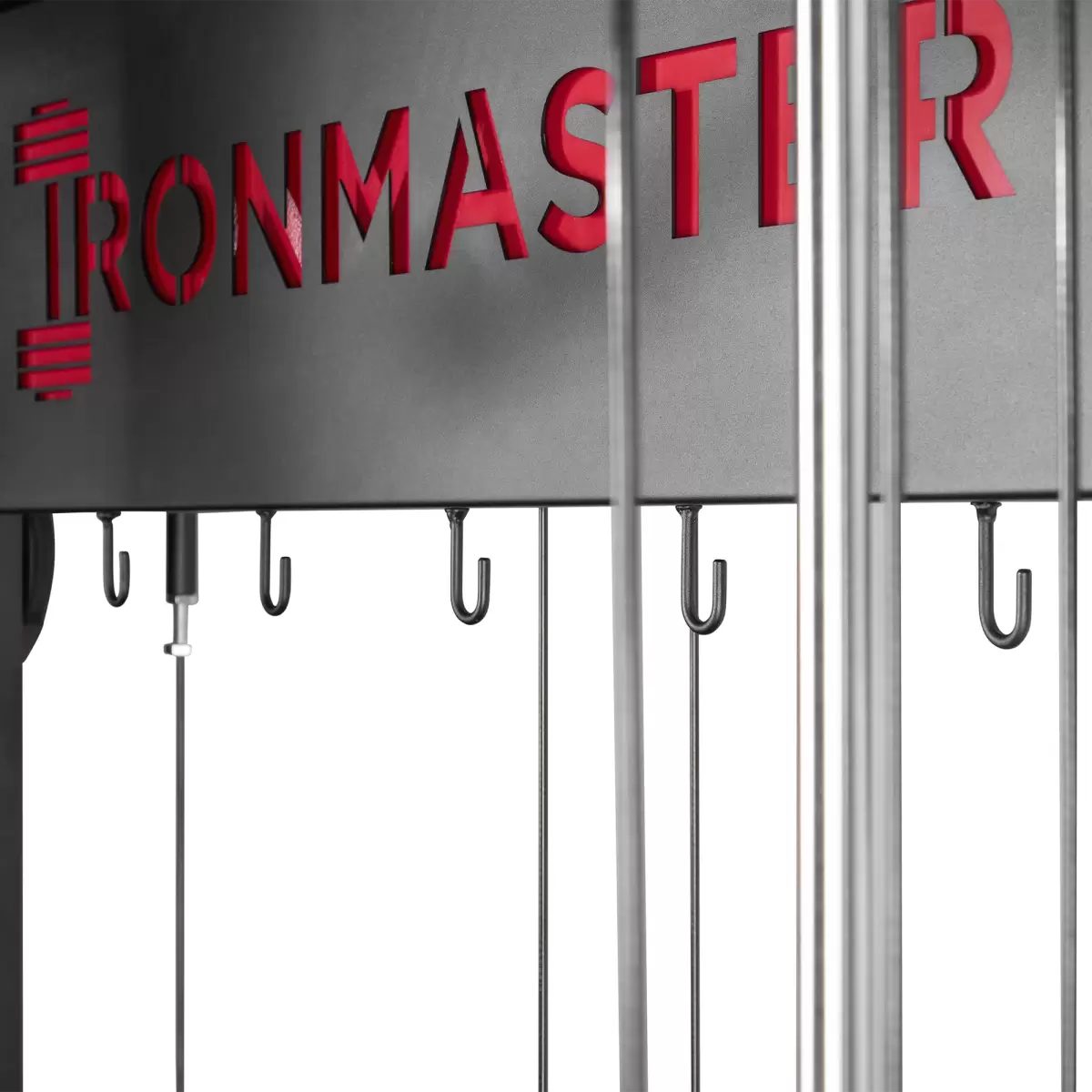

  • 5 x cable attachment storage hooks.

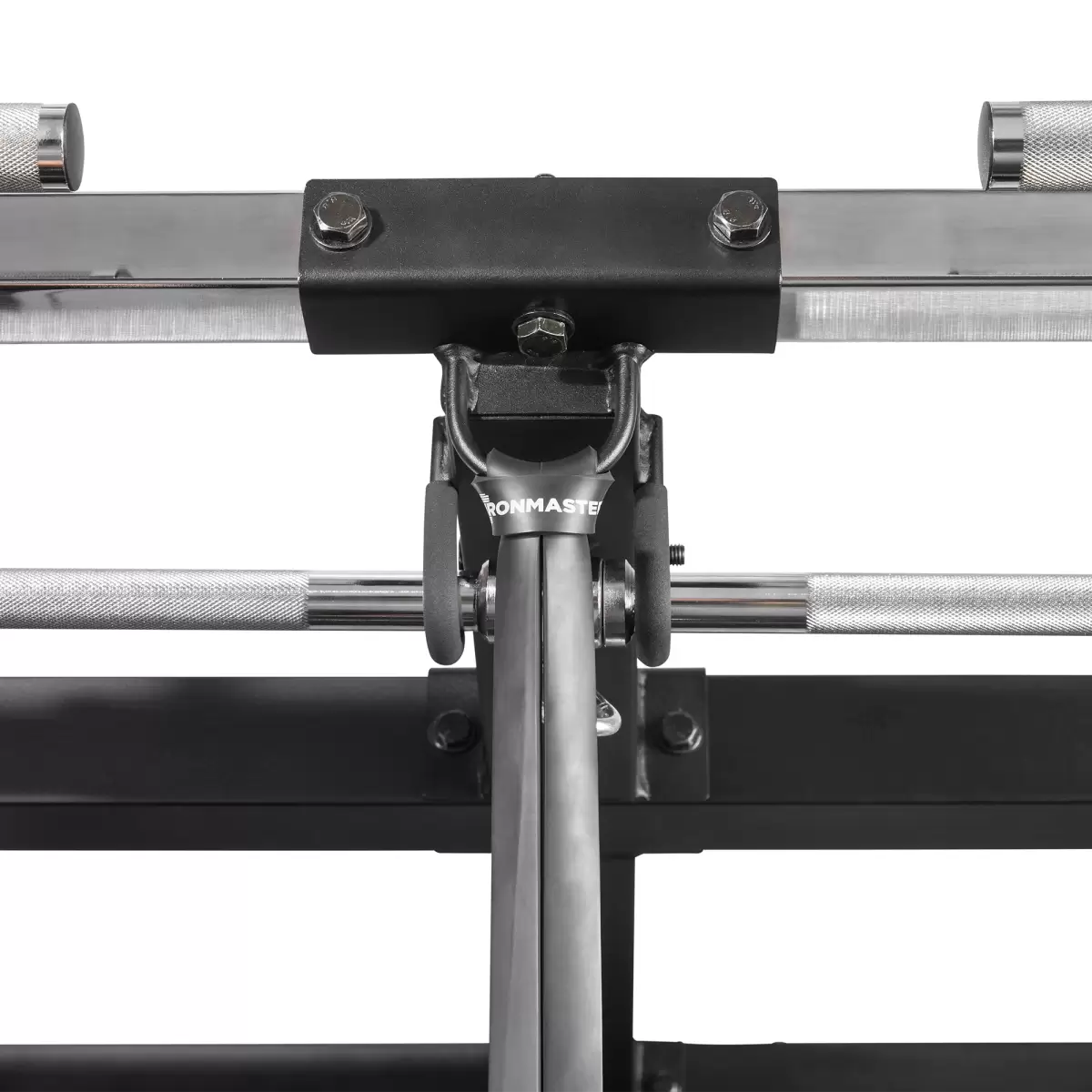

  • Overhead resistance band anchor. Bands sold separately.

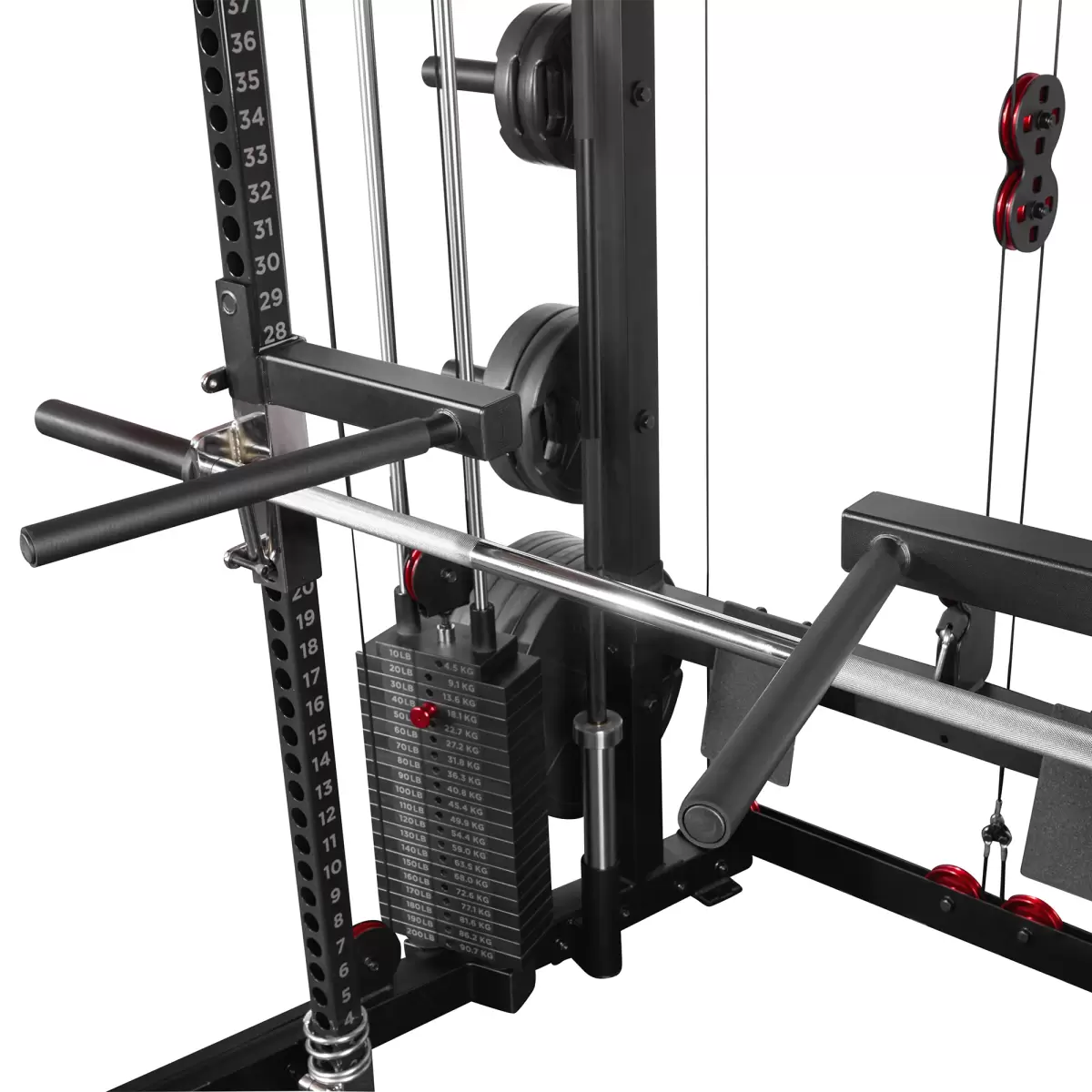

  • Dip handles, belt squat attachment and belt are sold separately for more exercise options.

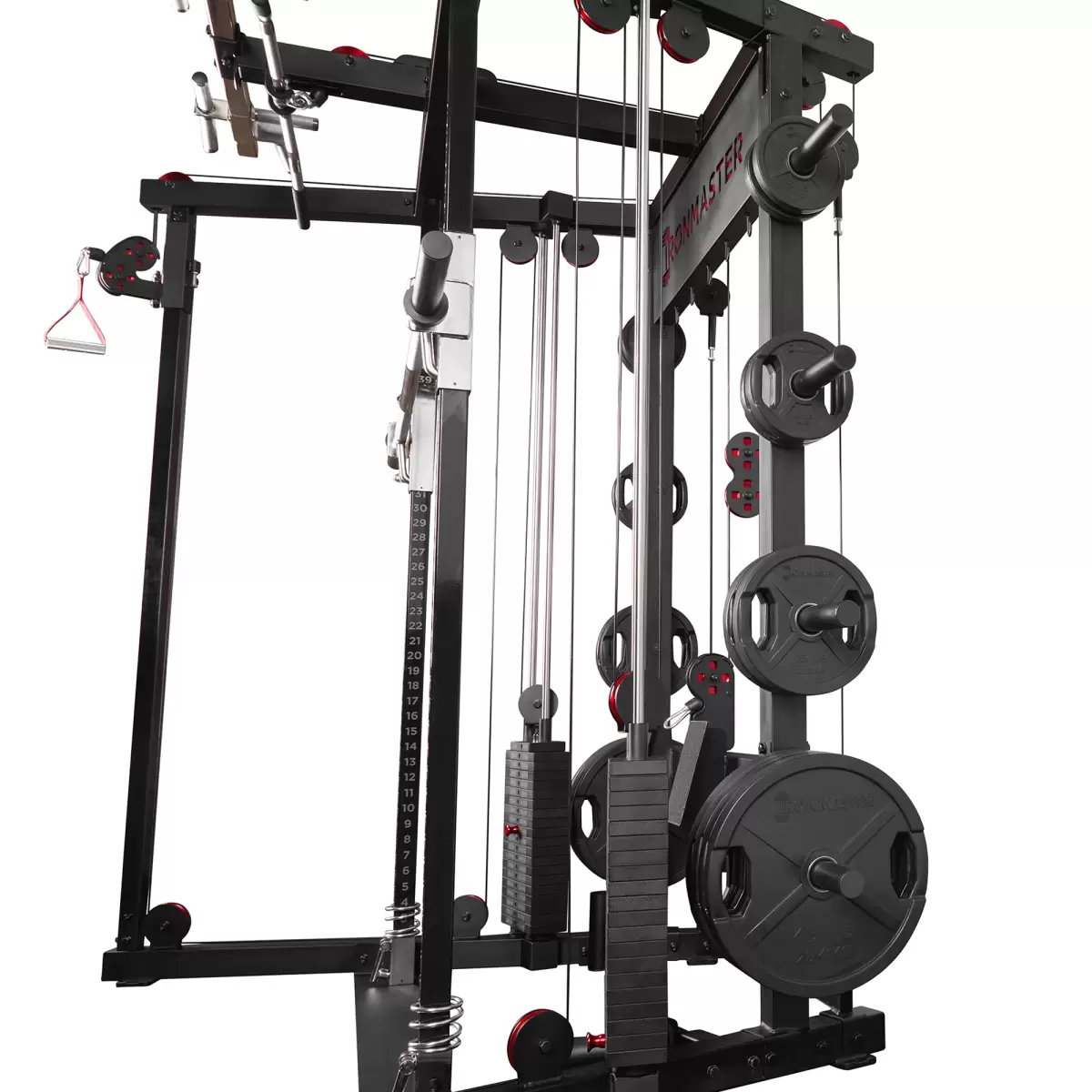

IM3000 side view with Olympic plate storage

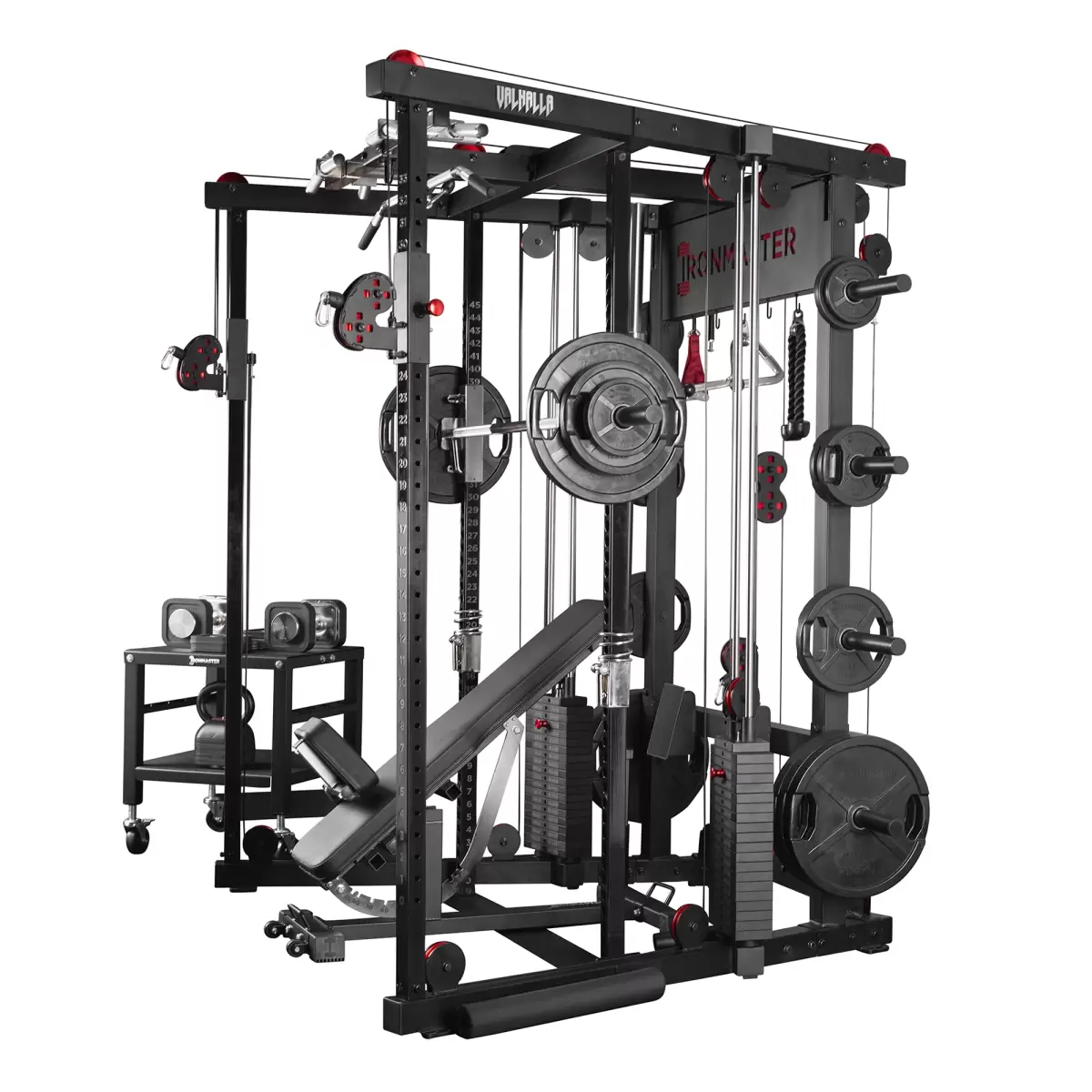

Rear three-quarter view of the Ironmaster IM3000
IM3000 belt squat setup with optional belt and attachment
Optional belt squat attachment and belt shown. These are not included with the base unit.

Assembly Tutorial

Assembly is required. Follow the Ironmaster IM3000 assembly and use instructions and the assembly tutorial below.

Additional Information

Inclusions

Main frame, self-spotting lifting bar, dual adjustable functional pulleys, 2 x 200 lb weight stacks, lat pull bar, 2 x stirrup handles, long bar pad, Ultimate Chin Up station, landmine attachment, barbell holder and 5 storage attachment hooks. All other accessories are sold separately and shown purely for demonstration purposes.

  • Not included: Olympic weight plates, free Olympic barbell, bench, barbell hooks, spotting arms, leg press attachment, dip handles, belt squat attachment and belt, and other optional accessories.
  • Safety: Use both safety catches for squats and leg presses. Set and test them at the same level before adding weight, following the manual. Keep hands and fingers clear of the slide rails while the lifting bar is in use.
  • Maintenance: Inspect cables for wear, fraying or kinking. Stop using damaged cables and arrange replacement. Follow the manual for lubrication and fastener checks.

Key Takeaways

  • Functional trainer, high/low cables and self-spotting lifting in one home-gym system.
  • Two 200 lb stacks deliver up to 100 lb per functional pulley or 400 lb through the combined high/low stations.
  • A free-bar half rack and optional attachments let you expand your training setup.
  • Confirm working clearance for your room and chosen accessories before ordering.

CUSTOMER REVIEWS

1 review for Ironmaster Valhalla ALL IN ONE GYM

  1. Daveharrison15@bigpond.com –

    A Practical Perspective for Home Gym Owners

    After spending considerable time researching and planning around the Ironmaster IM3000 Valhalla, what stands out most is not any single feature, but how thoughtfully the entire system has been designed.

    The IM3000 feels like the result of decades of refinement. Rather than chasing fitness trends, Ironmaster has focused on solving the practical challenges that home gym owners face every day: limited space, training alone, equipment clutter, and the need to transition efficiently between exercises.

    The first thing many people notice is how much functionality has been integrated into a relatively compact footprint. The combination of self-spotting Smith functionality, functional trainer, half-rack capabilities, pull-up station, plate, barbell & attachment storage, belt squat capability, cable training, and landmine work allows a remarkable amount of exercise variety without requiring multiple standalone machines.

    What impressed me most is the workflow.

    Many all-in-one systems look impressive on paper but require frequent attachment changes, equipment rearrangement, or compromises between different training modes. The Valhalla has clearly been designed by people who understand how home gym owners actually train. Moving from barbell work to cable exercises, pull-ups, belt squats, rows, presses, or accessory movements feels intuitive and efficient.

    One of the things that becomes more apparent the longer you look at and actually train with the IM3000 is the number of practical design touches built into the system.

    The integrated plate storage is positioned exactly where you need it when loading the self-spotting bar or barbell, while strategically placed storage hooks keep cable attachments, handles, belts, and accessories within easy reach. These small details may seem insignificant on paper, but they contribute enormously to the day-to-day training experience by reducing clutter and eliminating unnecessary movement around the gym.

    The cable system itself is particularly well thought out. Unlike many all-in-one systems that require adapters, linking mechanisms, or workarounds to access heavier resistance, the Valhalla’s design allows both weight stacks to be utilised seamlessly when required. This enables true heavy-duty lat pulldowns and rowing movements with over 180 kg (400 lb) of available resistance through a direct 1:1 ratio, giving serious strength athletes and larger lifters plenty of room to progress.

    Equally important is how these movements are performed. Rather than forcing users to improvise from the floor, the system allows comfortable seated pulldowns and rowing from the bench, creating a much more stable and practical training environment that feels closer to dedicated commercial equipment.

    The cable system also benefits from the integrated lifting bar, which can be locked into position during pulldowns and rowing movements. This creates a remarkably stable platform that feels much closer to a dedicated commercial lat pulldown machine than many home gym cable systems. The added stability is particularly noticeable during heavier sets where unwanted movement can otherwise detract from the exercise.

    An additional benefit of the locked lifting bar is that it provides a solid anchor point for Nordic curls, allowing the rack to support yet another effective lower-body exercise without requiring additional equipment.

    The rack also includes thoughtful additions such as TRX and suspension trainer anchor point, multiple pull-up grip options, integrated storage solutions, and a self-spotting Smith mechanism that operates exceptionally smoothly and quietly.

    The belt squat functionality, similar to the IM2000, is another standout feature. For many trainees, particularly those managing lower back fatigue, training around injuries, or simply wanting additional lower-body options, being able to perform belt squats without requiring a dedicated standalone machine is a major advantage. It adds significant versatility without consuming additional floor space.

    The modular design also allows users to expand functionality with optional attachments while maintaining the system’s efficient workflow. The vertical leg press attachment can be installed quickly when required, transforming the rack into a serious lower-body training station without permanently occupying valuable gym space. Likewise, the optional dip handles can be added or removed in moments, providing stable dip functionality when needed and preserving a clean training area when not in use.

    Importantly, these additions complement rather than complicate the overall design. The Valhalla’s strength lies in how quickly users can move between different training modes without lengthy setup procedures or major reconfiguration, and you can even walk through the rack.

    The included landmine attachment is another example of this philosophy. Rather than requiring a separate station, it is integrated into the system and opens up a wide range of exercises including rows, presses, squats, rotational work, and athletic training movements.

    What I appreciate most is that despite incorporating a 2:1 functional trainer with massive cable travel, self-spotting Smith system, belt squat capability, landmine functionality, and numerous attachment points, the IM3000 still maintains genuine half-rack functionality. You can comfortably perform free-weight squats, presses, rows, and other barbell movements without feeling like cables, trolleys, or attachments are constantly intruding into your working space.

    This balance between versatility and usability is where the Valhalla really shines. Many systems can claim to do everything; fewer manage to do so while keeping transitions quick, maintaining clear training space, and avoiding the feeling that you’re constantly reconfiguring the machine between exercises.

    Another major strength is space efficiency.

    For many garage gym owners, every square metre matters. The IM3000 provides functionality that would normally require several separate pieces of equipment while remaining suitable for standard residential ceiling heights. It delivers what feels closer to six-post rack functionality within a surprisingly compact footprint in comparison while preserving a comfortable and uncluttered training environment.

    From a training perspective, the system works particularly well for hypertrophy-focused programs, bodybuilding, general strength training, and long-term health and fitness goals. The combination of free weights, cables, machine-assisted movements, belt squat capability, and specialty training options provides excellent exercise variety while allowing users to manage fatigue and joint stress intelligently.

    Perhaps the biggest compliment I can give the Valhalla is that it appears designed to stay relevant for decades. The underlying principles of resistance training have not changed: progressive overload, consistency, safety, and efficient use of time. The IM3000 supports those principles extremely well.

    This is not a piece of beefy, overbuilt equipment designed primarily to impress people scrolling social media. It is designed to make training easier, safer, and more efficient year after year. There is a maturity to the design philosophy that prioritises practical functionality over novelty.

    Who the IM3000 Valhalla Is For

    Having trained on this system, one could say the IM3000 Valhalla is particularly well-suited to:

    • Lifters wanting a long-term “buy once” home gym solution
    • Bodybuilders and hypertrophy-focused trainees
    • Garage gym owners looking to maximise functionality within a relatively limited footprint
    • Lifters who train alone and value built-in safety features
    • Home gym owners looking to consolidate multiple pieces of equipment into a single integrated system
    • Those who value training efficiency and smooth workout flow
    • Trainees working within standard garage ceiling heights who still want extensive training options
    • Lifters looking to simplify their setup without sacrificing exercise variety

    Who May Want Something Different:

    The IM3000 may be less suitable for:

    • Athletes whose training is heavily focused on activities requiring large amounts of open rack space or dynamic movements such as kipping pull-ups
    • Lifters who enjoy regularly changing rack configurations and experimenting with equipment from multiple manufacturers
    • People whose primary hobby is collecting and constantly upgrading gym equipment rather than simplifying their setup
    • Commercial facilities that need multiple users to train simultaneously on different stations

    Final Thoughts

    The Ironmaster IM3000 Valhalla is not simply a rack with accessories attached. It is a highly integrated training system designed around the realities of home gym ownership.

    Its greatest strength is not any individual feature, but the way those features work together. The self-spotting system, functional trainer, half-rack capability, belt squat functionality, integrated storage, landmine, optional expansion attachments, and compact footprint combine to create a training environment that feels remarkably cohesive.

    The result is a super solidily built well engineered gym system that is efficient, versatile, safe, and exceptionally space-conscious for what it does. For serious home gym owners looking for a long-term solution that prioritises training functionality, workflow, ergonomics, and practical usability over marketing trends, the IM3000 Valhalla deserves very serious consideration as a one-and-done option.

    • Sam –

      Thank you so much for such a detailed review Dave. You pretty much summed up Ironmaster. The products are designed by someone who trains for people who train. Many pieces of equipment are designed these days to look amazing in a 30 second promo video. The Valhalla has been designed for someone who wants 30 years of quality training.
