ATX Lat Option 520 100kg Stack

ATX®
$1,425.00
Item No: ATX-LTO-520-SW

2 in stock

DESCRIPTION

Weight

Weight

The base weight of the item, without any packaging.

156 kg
Dimensions 2.15 × 0.35 × 0.21 cm
Rack Series

500

Weight

Weight

The base weight of the item, without any packaging.

141kg

Colour

Black

Inclusions

Inclusions

These are the specific items that you will receive when you purchase the product. Some products are shown with items that are not included for demonstration purposes.

Lat Tower, Footrests, 3 x Carabiners, Extension Chain

Certification

Domestic

Safe Working Load

140kg

Height

217cm

Warranty

5 Years – T & Cs

The ATX-LTO-520-SW is your ticket to turning your compact power rack into a complete gym. This lat pulldown attachment comes stacked with 100 kg of weights and hooks up easy to racks like the PRX-520 or PRX-620. It’s all about smooth reps and solid gains, whether you’re smashing lats or rowing your way to a beefier back.

It fits the ATX PRX 520, 520-XS, 620 and 720 power racks, and it is certified to EN 20957 I.II.IV Class H (home).

Key Features:

A stack of black ATX Lat Option 520 100kg Stack weight plates marked with pound and kilogram increments, featuring a red selector pin attached by a coiled cable.

100 kg Stack

20 plates at 5 kg each with a magnetic selector pin, so it is quick to tweak for whatever you are lifting today.

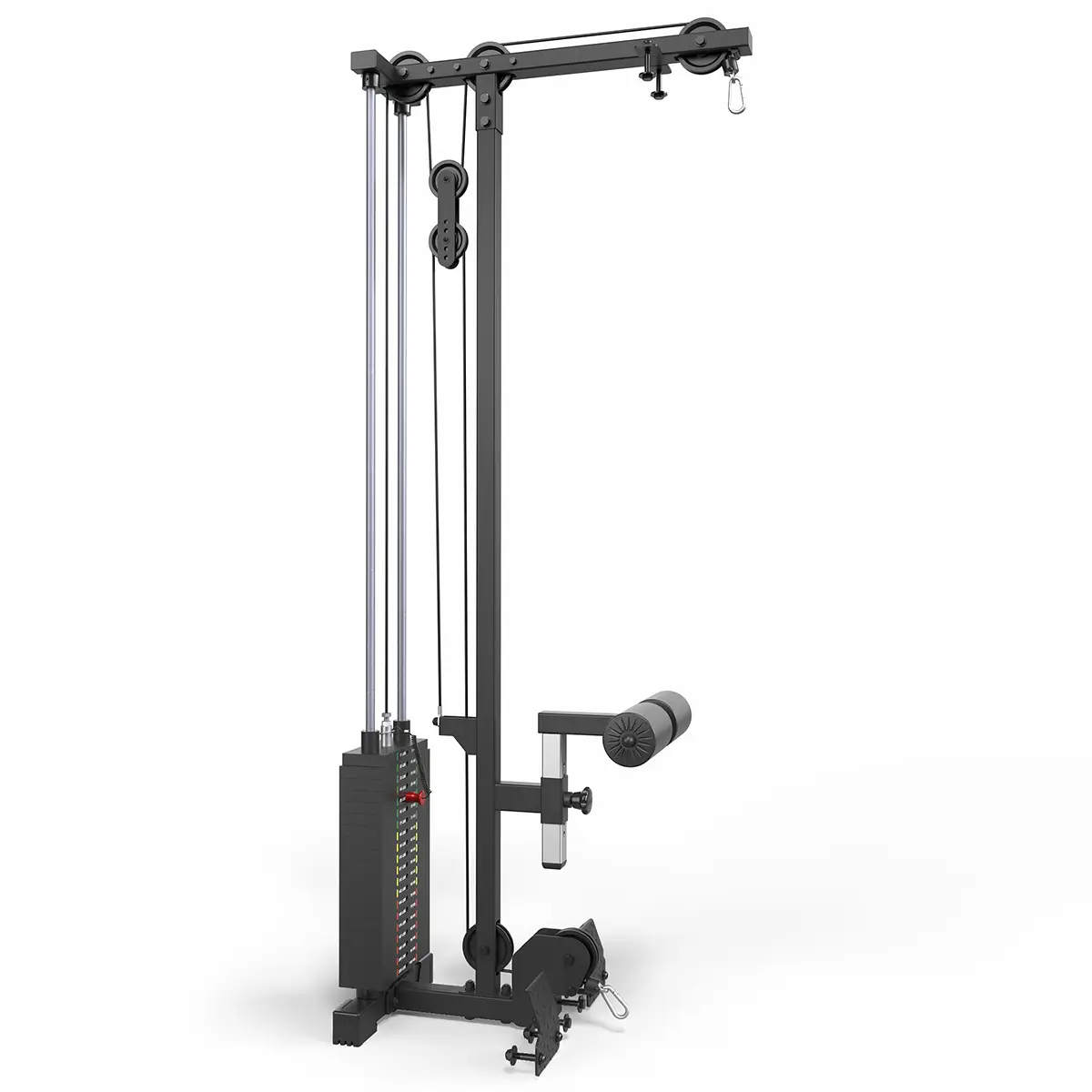

A close-up of the pulley system on an ATX Lat Option 520 100kg Stack, showing two black wheels connected by cables to a vertical frame.

Top and Bottom Cables

Hit pulldowns or switch to rows without faffing about.

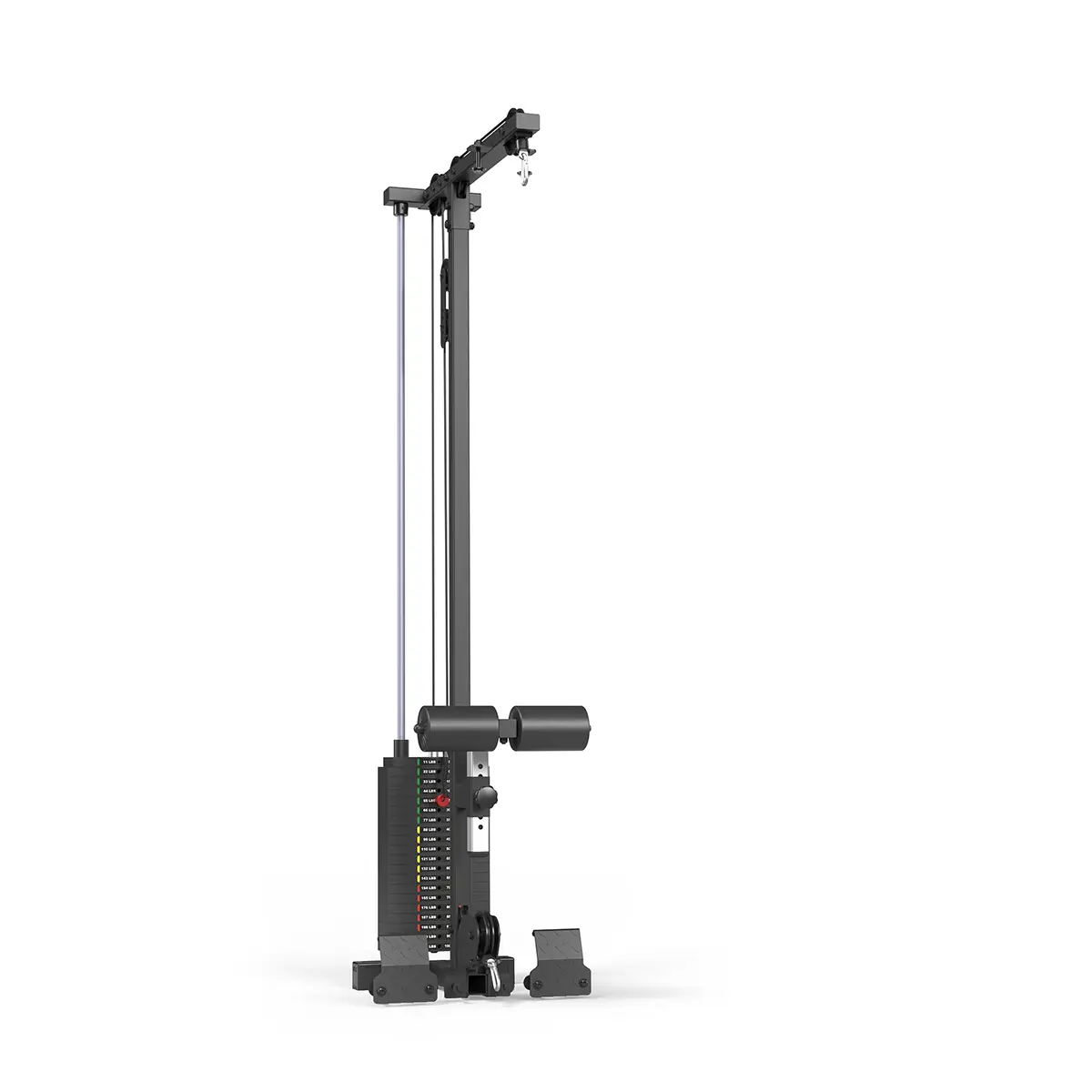

ATX Lat Option 520 100kg Stack weight machine featuring numbered weight plates and two padded leg rollers.

Adjustable Knee Pads

Lock yourself in tight for those big pulls, and brace your feet on the steel foot plates for rows.

Dimensions and Specifications

  • Height: 2172 mm
  • Stroke: 1610 mm
  • Weight stack: 100 kg (20 x 5 kg) with a magnetic selector pin and tether cord, marked in kg and lbs with colour codes
  • Weight ratio: 1:1
  • Net weight: 141 kg
  • Frame tube: 60 x 60 x 2 mm, black fine-texture powder coat
  • Pulleys and cables: ball-bearing pulleys and stretch-free steel cables with a black plastic sheath
  • Compatibility: ATX PRX 520, 520-XS, 620 and 720 power racks
  • Certification: EN 20957 I.II.IV Class H (home)

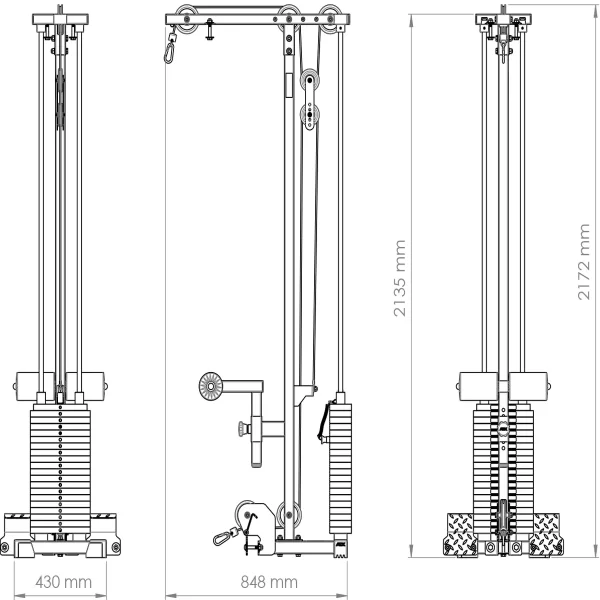

ATX lat option 520 weight stack dimension drawing showing 2172 mm height

Straight-Up 1:1 Ratio

A 1:1 pull means you feel every kilo, with no fluff or pulley tricks. Ball-bearing rollers and slick bush guides keep it smooth as you stack it up.

Fits Your Power Rack

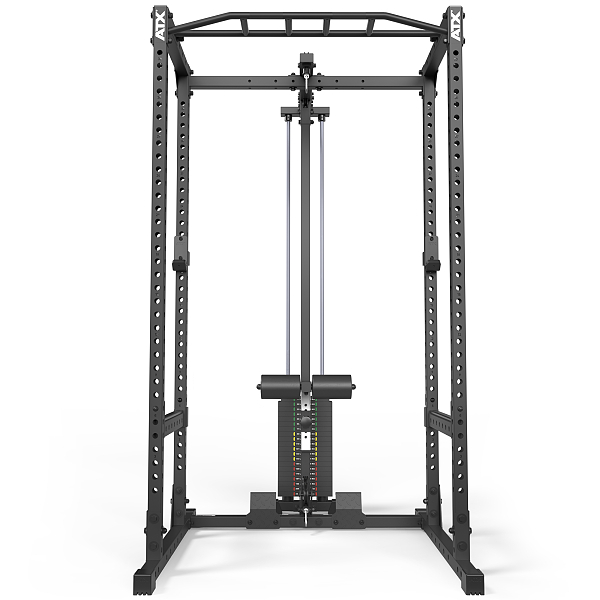

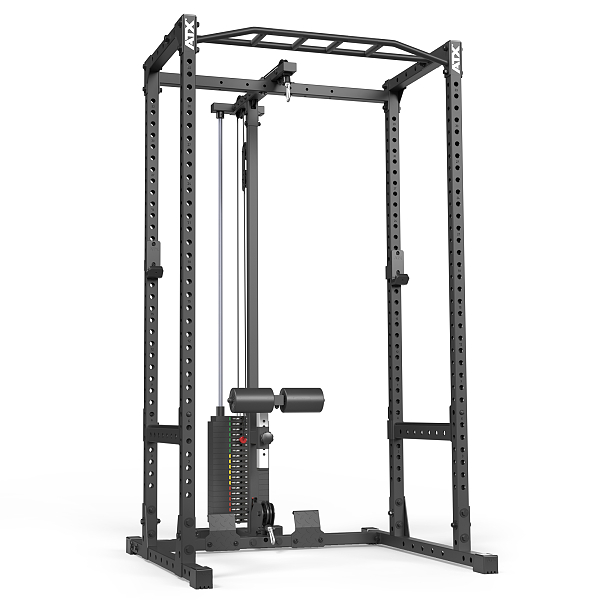

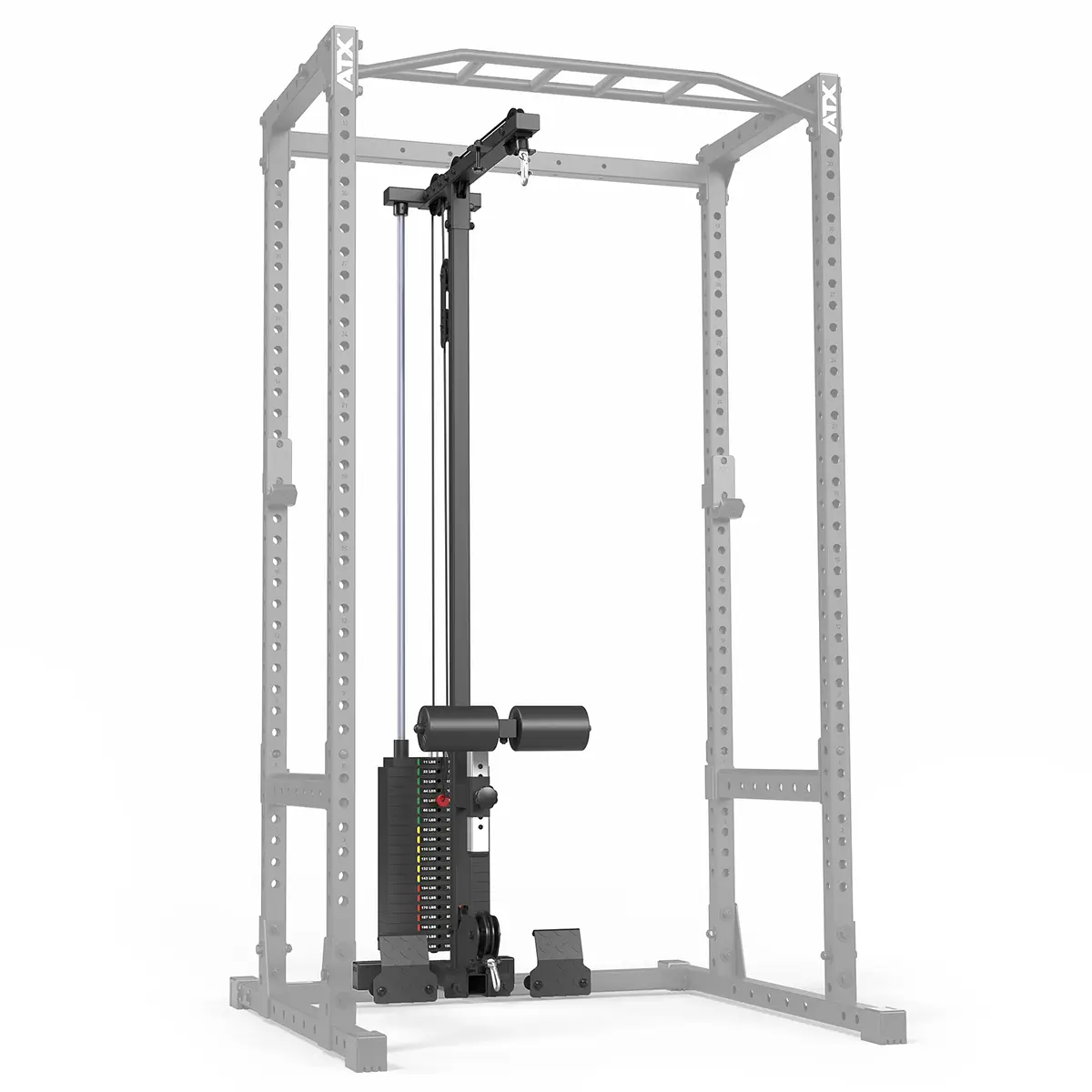

3D render of the ATX lat tower with a 100 kg weight stack fitted to a power rack shown in light grey

This lat tower attaches to the ATX PRX 520, 520-XS, 620 and 720 power racks. The rack shown in the pictures is not included.

It is delivered disassembled with assembly instructions.

Level Up Your Home Setup

This thing’s a ripper for anyone keen to level up their home setup. Bolt it onto your rack, pick your weight, and get stuck into some serious pulling action. It’s tough, simple, and ready to roll. Your back will be thanking you in no time!

Additional Information

What Is Included?

  • ATX Lat Option 520 with 100 kg weight stack (ATX-LTO-520-SW)
  • Magnetic selector pin with tether cord
  • Knee pads and steel foot plates
  • Extension chain and carabiners
  • Assembly instructions

Not included: the power rack shown in the pictures, and any lat bars, handles, rope or row seat.

Key Takeaways

  • Lat pulldown and row station with a 100 kg weight stack in 5 kg steps
  • Fits the ATX PRX 520, 520-XS, 620 and 720 power racks
  • Direct 1:1 ratio with top and bottom cables
  • Ball-bearing pulleys and stretch-free cables for a smooth run
  • Includes knee pads, foot plates and an extension chain
  • Certified to EN 20957 I.II.IV Class H (home)
