ATX® Smith Machine Half Rack

ATX®
$1,195.00
Item No: ATX-MPX-620

6 in stock

DESCRIPTION

Weight

Weight

The base weight of the item, without any packaging.

90 kg
Dimensions 210 × 45 × 40 cm
Lifting Bar

Bushing

Smith Capacity

200 kg

Footprint

Footprint

This is the area occupied by the item itself. You might need to allocate additional space for the use.

121/203 x 111cm

Height

215 cm

Weight

Weight

The base weight of the item, without any packaging.

85 kg

Load Capacity

250 kg

Lockouts

10

Lockout Spacing

120mm

Certification

EN 20957 I.II.IV – H

Gym Warranty

5 years see T&Cs

Grade

Domestic

Training solo but don’t want to compromise on your training options? The ATX Smith Machine Half Rack (ATX-MPX-620) is your all-in-one home gym hero, combining a guided Smith machine with a solid half rack for squats, presses, rows and more. It is compact enough for tight spaces yet built for a 250 kg total rack load, with a separate 200 kg Smith-machine rating. At just 111 cm deep, this is a practical way to combine guided and free weight training at home.

Key Features:

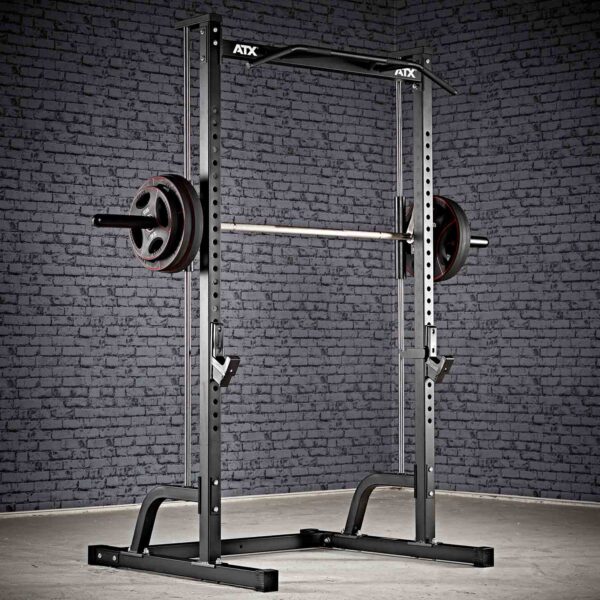

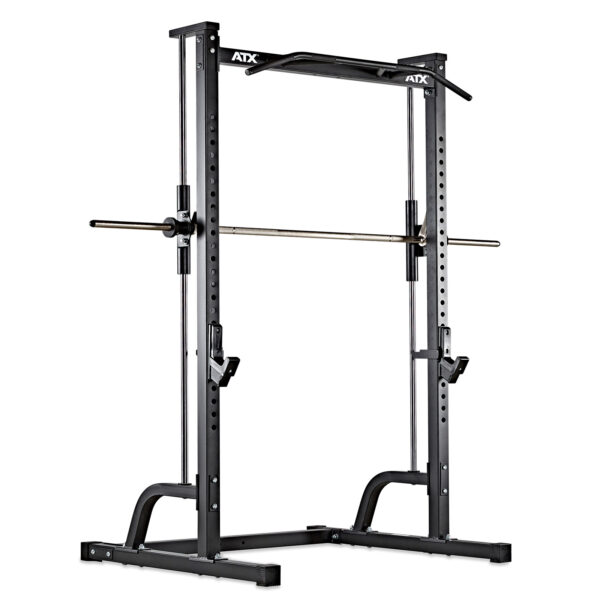

ATX MPX-620 Smith machine and half rack front view

250 kg Rack Capacity

A 60 x 60 mm steel-tube frame supports guided and free weight training in one compact unit.

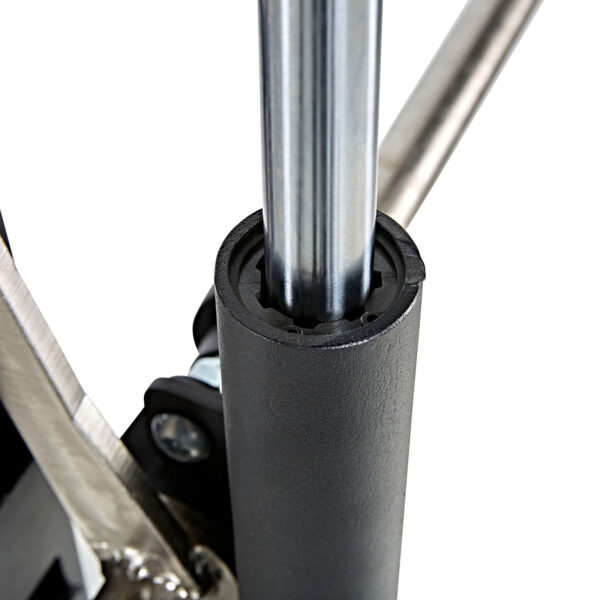

Sliding bearing on the chrome Smith guide rail

200 kg Smith Capacity

Sliding bearings run on 25 mm chrome-plated solid steel guide rails.

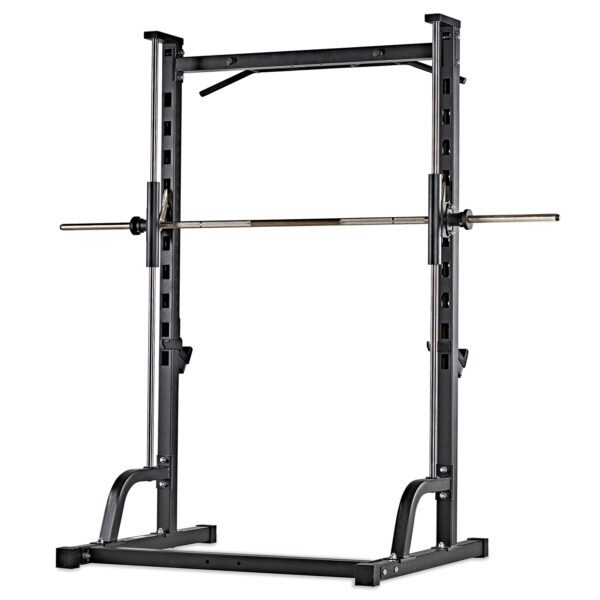

ATX MPX-620 Smith machine and half rack rear view

Multi-Grip Chin-Up Bar

Different grip options with a 110 cm grip width and a 200 kg station rating.

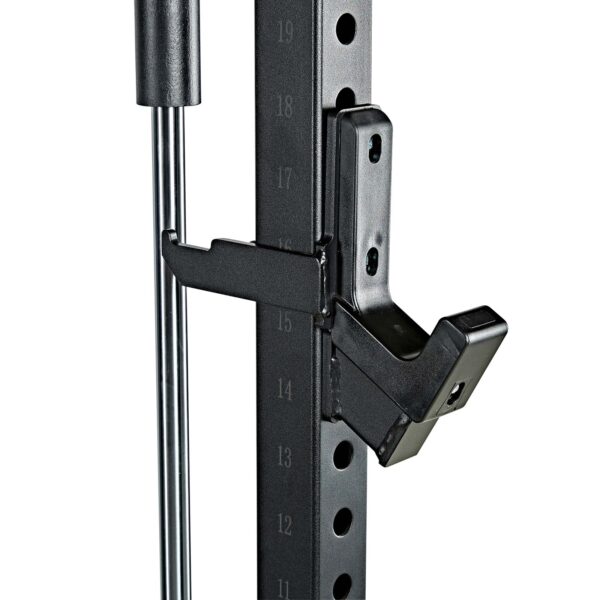

Rubber-covered adjustable J-hook on the rack upright

25-Position J-Hooks

Rubber-covered hooks adjust at 50 mm centres and also serve as additional Smith-bar stops.

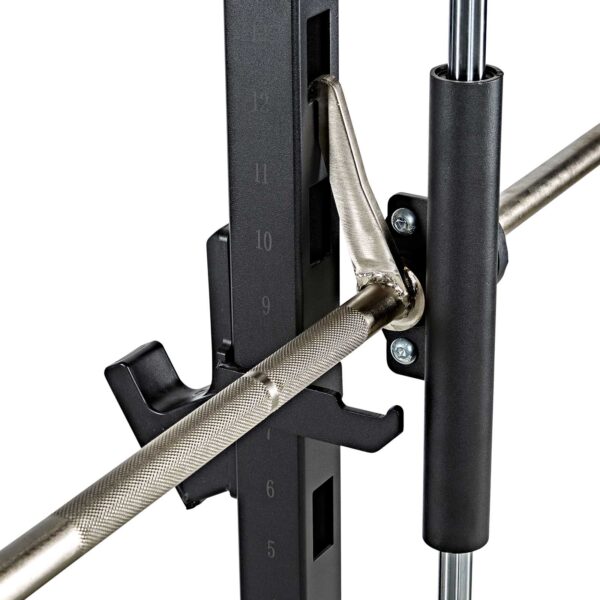

Smith bar catch and lockout hooks on the upright

10 Smith Lockout Heights

Rotate the guided bar to engage the safety catches at ten different heights.

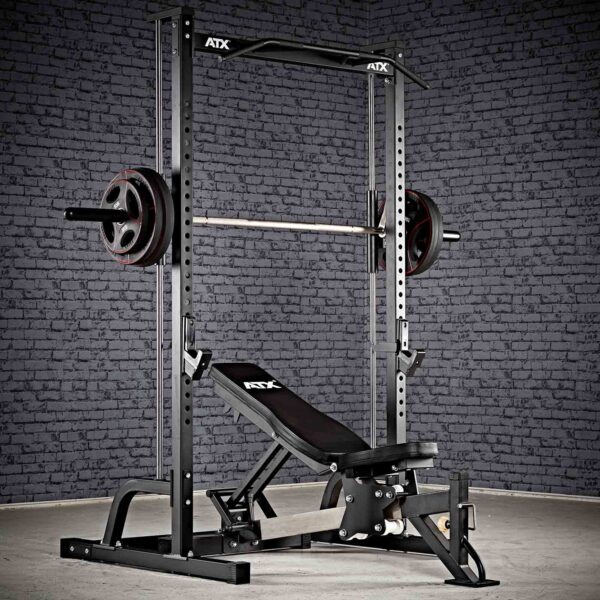

ATX MPX-620 with optional bench and weight plates
Optional bench and weight plates shown. Sold separately.

Compact Bench Setup

The supplier specifies the ATX-MBX-650 Multibench RAS for its shallow-depth bench setup.

Dimensions

  • Frame width: 120 cm.
  • Overall width across the Smith bar: 203 cm.
  • Depth: 111 cm.
  • Height: 215 cm.
  • Net weight: approximately 85 kg.
  • Smith-bar grip diameter: 30 mm. Maximum grip width: approximately 110 cm.
  • Separate free barbell: minimum 125 cm inner grip width.

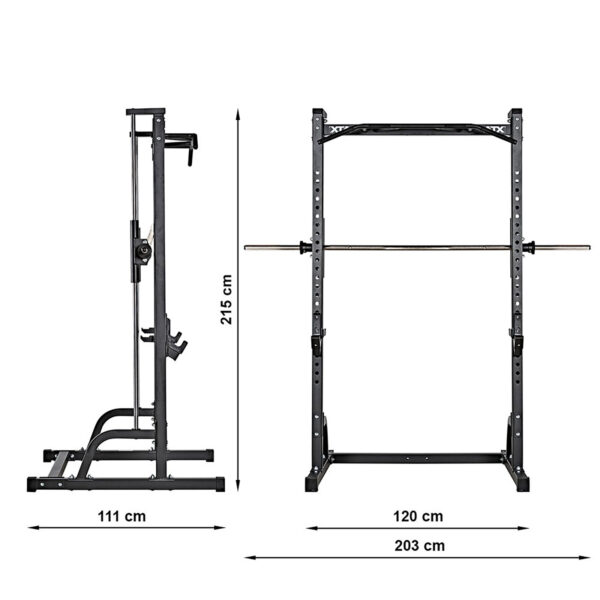

ATX MPX-620 dimension drawing showing frame width overall width height and depth

Why You Need This

  • Smith and Free Weight Combo: switch between guided Smith moves and free barbell lifts for training variety.
  • Adjustable Supports: set the J-hooks and Smith catches to suit the exercise before lifting. The rack hooks can provide additional Smith-bar stops.
  • Compact Footprint: just 111 cm deep for a space-conscious home gym setup. Allow room for the 203 cm bar width and plate loading.

Smash Your Lifts with ATX Quality

I’ve been banging on about Smith machines for ages – they are a handy option for solo lifters who want guided lifts alongside free weight work. This ATX-MPX-620 is a cracker, blending a smooth Smith with a proper half rack so you can mix the two styles of training in one setup. Its 60 x 60 mm steel frame, upright height markings and multi-grip chin-up bar give you plenty to work with. At around 85 kg and 111 cm deep, it is a practical option for Aussie home gyms in Sydney, Melbourne or beyond. Set the catches and supports correctly and stay within the rating for each part of the machine.

Build Your Compact Home Gym

Pair the rack with the ATX Multibench RAS (ATX-MBX-650) for the bench setup specified by the supplier. This bench is designed around the shallow rack depth. Sam’s existing listing also identifies the ATX-LTO-650-PL lat-pulldown option for high and low pulley work. The bench and lat option are sold separately.

Additional Information

  • Product code: ATX-MPX-620. ATX 600 Series.
  • Certification: EN 20957 I.II.IV – H (Home).
  • Load ratings: total rack 250 kg; Smith machine 200 kg; rack hooks 250 kg; chin-up station 200 kg. These are separate limits rather than additive capacities.
  • Guided bar: chrome-plated 30 mm grip diameter with knurling and grip markings; maximum grip width approximately 110 cm.
  • Guides: sliding-bearing system on 25 mm chrome-plated solid steel shafts.
  • Rack hooks: 25 height positions at 50 mm centres with height markings and protective rubber covers.
  • Smith catches: ten lockout heights. Sam lists 120 mm lockout spacing.
  • Protective feet help protect the floor and resist slipping.
  • Standard Smith plate sleeves are 30 mm diameter. Sam’s existing package includes 50 mm adaptors (BB-OA-350-PVC) for Olympic plates.
  • Included: MPX-620 Smith machine and free rack with guided bar rack hooks and multi-grip chin-up bar plus the 50 mm adaptors listed in Sam’s package.
  • Not included: separate free barbell weight plates bench lat-pulldown attachment or other pictured accessories.
  • Delivered disassembled with assembly instructions.
  • For a separate free barbell the inner grip width must be at least 125 cm.

Key Takeaways

  • Guided Smith training and a free rack in one home-use unit.
  • 250 kg total rack rating and 200 kg Smith-machine rating.
  • 111 cm depth with 120 cm frame width and 203 cm overall bar width.
  • 25 rack-hook positions and ten Smith lockout heights.
  • Optional bench and lat attachments expand the training setup.

Frequently Asked Questions

Is the ATX MPX-620 Smith machine vertical or angled?

It’s vertical. The bar runs straight up and down on 25 mm chrome-plated solid steel guide rails with smooth sliding bearings, giving a fixed, predictable path for squats, presses and rows.

Can I do free barbell training on the MPX-620 as well?

Yes. The MPX-620 is a Smith machine and free rack in one. Use the guided bar for fixed-path lifts, or switch to a separate free barbell on the rack’s adjustable hooks. The free barbell must have at least 125 cm inner grip width.

Can the MPX-620 be expanded?

Yes. It is modular: add a compatible ATX lat option and the ATX Multibench RAS (ATX-MBX-650) for the compact bench setup specified by the supplier. The bench and lat option are sold separately.

CUSTOMER REVIEWS

1 review for ATX® Smith Machine Half Rack

  1. Thomas Keleher (verified owner) –

    Its a decent smith machine good for small spaces, Id recommend getting it with the lat pulldown attachment for it. I had to dynabolt it for squats as I found it to be unstable when getting up to and past 100kg. Maybe with the lat pulldown with the stack it would help “anchor” it or act as a counterbalance. With incline or flat benching there is some flex I found at around the 80kg plus mark. Great machine for lighter weight and more reps I have found.

    • sam-lucas –

      Thanks for the review Thomas. This smith machine has a compact footprint so it can feel unstable if you aren’t pushing vertical. Some people have a tendency to push against the machine when fatiguing. Here is big Timo casually squatting 150kg with minimal movement – https://www.instagram.com/p/DTniacuiUvf/.
      He is doing partial shoulder press with 130kg here – https://www.instagram.com/p/DNJSmMNMyyf/
      If you review his lifts on his instagram page, he is smith squatting less weight and less reps than compared with his barbell squat. But doing them with more control.
      The MPX-500 has an even more compact footprint. So you have to be even more controlled. As long as the weight is going vertical it is sweet – but very humbling in terms of weight.
