ATX® Olympic Power Bar Chrome
$539.00
Item No: ATX-LH-50-LDC
4 in stock
DESCRIPTION

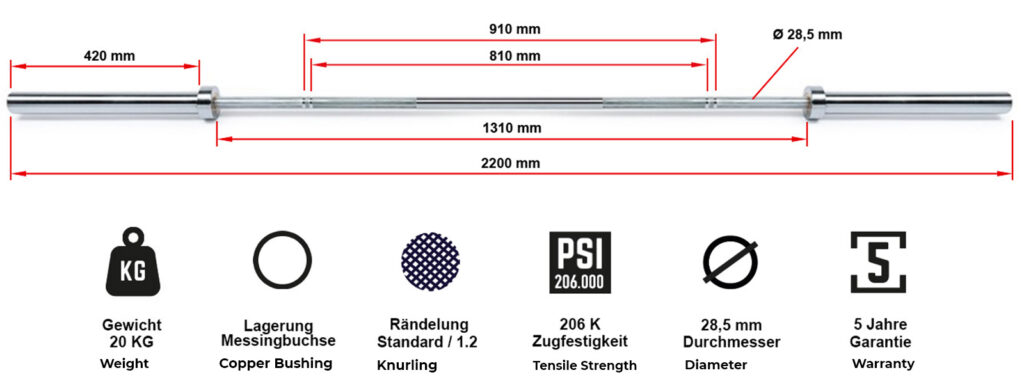

| Weight | 21 kg |
|---|---|
| Dimensions | 223 × 8 × 8 cm |
| Grip Diameter | 28.5mm |
| Sleeve Rotation | Bushing |
| Length | 220cm |
| Sleeve Length | 42cm |
| Coating | Chrome |
| Load Capacity | 700kg |
| Weight | 20kg+/-0.2% |
| Knurl Marking | IPF/IWF |
| Centre Knurl | None |
| Knurling Aggression | Medium |
| Tensile Strength | 206K |
The ATX® Chrome Power Bar offers world class performance for all levels of users. The ATX bars are crafted from the finest blends of steel and tested to meet strict benchmarks.
- Material – special steel according to EN 102775-5.
- Coating – Chrome.
- Shaft– 28.5 mm in diameter.
- Barbell Sleeves – Non-slip ribbing, combined with chrome finish.

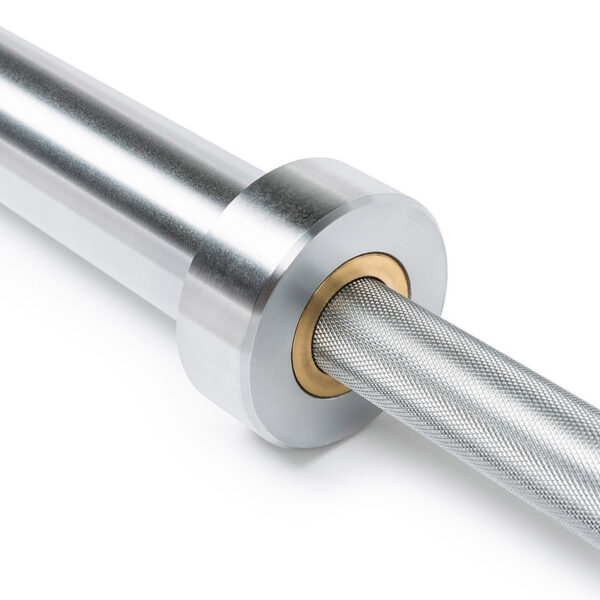

- Bushings – self lubricating, precision brass bushings.
- Weight load capacity – 700 kgs.

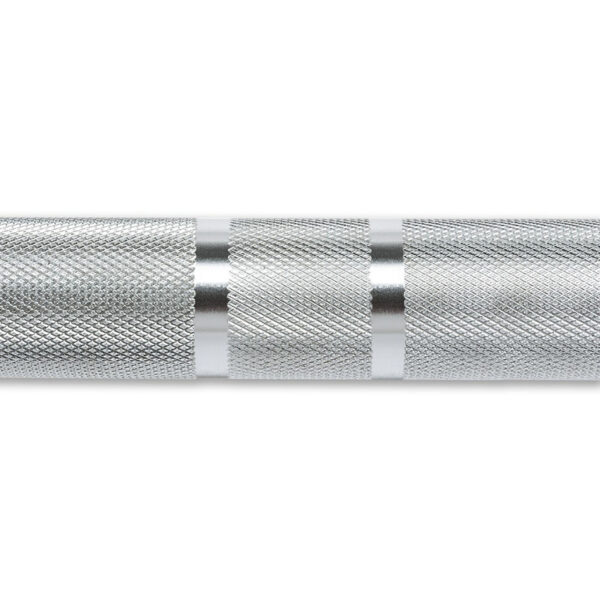

- Knurling – Medium deep with powerlifting and weightlifting markings.
- No centre knurl.
ATX® Power Bar Chrome
ATX® Power Bar Chrome is very similar to ATX® Black Mamba Power Bar and the ATX® Power Bar Black, the only difference would be the chrome finish.
The Power Bar is made of very strong and elastic spring steel. It has a massive 206,000 PSI (Tested!) meaning you will need quite a few plates to break it. Barbells under 190,000 PSI tend to bend over time from continuous use, while barbells over 190,000 PSI will remain straight even after years of lifting.
This bar offers dual markings (powerlifting and weightlifting) and no centre knurling. Bars with no central knurling won’t scrape your chest when performing Olympic lifts.
Weight Load Capacity
The weight load capacity varies between exercises due to the relevant load support of the different exercises. Squats are the lowest at 500kg because the load is only supported in the centre of the bar by your shoulders. Conversely, when you bench press your hands are spaced wider than the other lifts. This means there is less strain on the bar.
Regardless these capacities will not be an issue. The person that squats more than 500kgs will no doubt have back wider than the average bench press grip.
Please refer to the table below:
| Grip Type | Maximum Permitted Weight | Example of Exercise |
| Wide Handle Width | 700 kg | Bench Press |
| Medium Handle Width | 600 kg | Deadlift |
| Central/Narrow Handle Width | 500 kg | Squats |
ATX® offers top-quality, tested equipment for professional use.
The ATX® weight bars are tested in a German independent testing laboratory with the following material tests:
- Tensile test acc. To DIN EN ISO 6892-1.
- Hardness Rockwell acc. to DIN EN ISO 6508-1
The barbell has the following values: tensile strength (Tensile Strength): 206,000 psi = 206 K (K / NSI = kilo pounds per square inch) = / corresponds to 1420 N / mm2 HRC / surface hardness: 44.0
What’s Included? ATX® Chrome Power Bar (ATX-LH-50-LDC)
Please note the pictures may feature optional attachments or items which are not included with the unit, this is to show the possible configurations/use of the unit.
