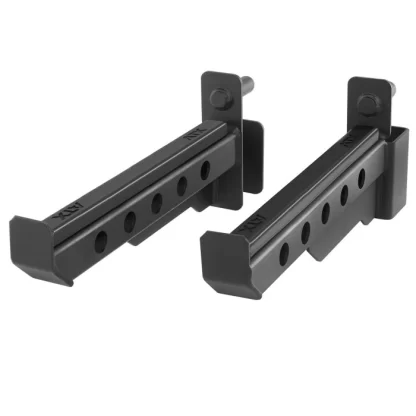

ATX Safety Spotter Arms 500

ATX®
$115.00
Item No: ATX-SPO-500

3 in stock

DESCRIPTION

Weight

Weight

The base weight of the item, without any packaging.

5 kg
Safe Working Load

200 kgs per pair

Certification

EN 20957 I.II.IV – H (class H = home)

Weight

Weight

The base weight of the item, without any packaging.

7 kgs per pair

The ATX-SPO-500 Spotter Arms will give you the confidence to go for that extra rep on a 500 series ATX rack. Training by yourself without safety spotters is not advisable at the best of times. But when you are pushing near to the limits, they are a must.

They fit ATX Series 500 power racks, half racks and free stands, plus the FTO-600 multi cable station.

Key Features:

ATX SPO-500 spotter arm fitted to a rack upright with the QR label

Reinforced Frame

Torsion-free construction with a reinforced under-beam. Made from 40 x 40 mm steel tube with 3 mm wall thickness, reinforced with 6 mm plates.

ATX SPO-500 spotter arm holding a barbell with a 20 kg plate on the rubber pad

12 mm Rubber Pad

A 12 mm thick rubber strip protects your barbell and its knurling and cuts the noise when you rack the bar. It can be replaced when needed.

ATX SPO-500 spotter arm holding a barbell with a 20 kg plate

Rated for 200 kg

Rated for 200 kg per pair with a 360 mm reach.

ATX SPO-500 spotter arm mounting pin and saddle close-up

Fits 5 x 5 cm Posts

Fits power racks and half racks with 5 cm x 5 cm posts and 21 mm holes. Latches onto the inside or outside of the post.

ATX SPO-500 spotter arm side view showing the row of holes

Extra Holes

Additional holes take band pegs or a utility seat.

ATX SPO-500 spotter arm angled view with pin and saddle

Easy On and Off

Gravity lock system – easy to take on and off. You will have no excuse not to use them.

Dimensions and Footprint

  • Length: 415 mm
  • Reach: 360 mm
  • Height: 160 mm
  • Tube: 40 mm
  • Mounting pin diameter: 20 mm
  • Weight: 7 kg per pair
ATX SPO-500 spotter arm dimension drawing with side and top views

Why Use Safety Spotters

When done correctly, weight training is not only perfectly safe, but it has also so many health benefits. Unless you are training for serious competition, there is no point to training recklessly. Taking an unnecessary risk could keep you out of the gym for months. Utilising safety spotters is really a no brainer.

They also protect you if the bar slips or your muscles give out part way through a rep.

ATX half rack with a barbell resting on the SPO-500 spotter arms

Additional Information

  • Fits: ATX Series 500 power racks, half racks and free stands, plus the FTO-600 multi cable station. Racks need 5 cm x 5 cm posts with 21 mm holes.
  • Material: 40 x 40 x 3 mm steel tube with 6 mm plates and a black fine-texture powder coat.
  • Load capacity: 200 kg per pair.
  • Rubber pad: 12 mm thick with an embossed ATX logo.
  • Certification: EN 20957 I.II.IV class H (home use).
  • What is included: 1 pair of ATX Safety Spotter Arms Series 500 (ATX-SPO-500).
  • Not included: Half rack, multi cable station, barbell and weight plates shown in the pictures.

Key Takeaways

  • Safety spotter arms for ATX Series 500 racks and the FTO-600.
  • 200 kg per pair, 360 mm reach and 7 kg per pair.
  • 12 mm replaceable rubber pad protects your bar and cuts noise.
  • Latch onto the inside or outside of 5 x 5 cm posts with 21 mm holes.
  • Class H (home) certified to EN 20957 I.II.IV.
