ATX® PRX Olympic Landmine

Landmine training is a great addition to your workouts. It allows you to perform multiple exercises targeting various muscle groups.

The new and improved ATX Olympic Landmine/Core Trainer features even thicker steel and easier mounting options.

You can either choose to bolt it down to the rack, or use a threaded pin to tighten it to the rack’s upright.

It has a bearing-mounted double joint for smooth movement and takes a 50 mm Olympic barbell. It fits ATX 500, 600, 700 and 800 series racks and rigs, and it is certified to EN 20957 I.II.IV Class S (studio).

Key Features:

Double Joint

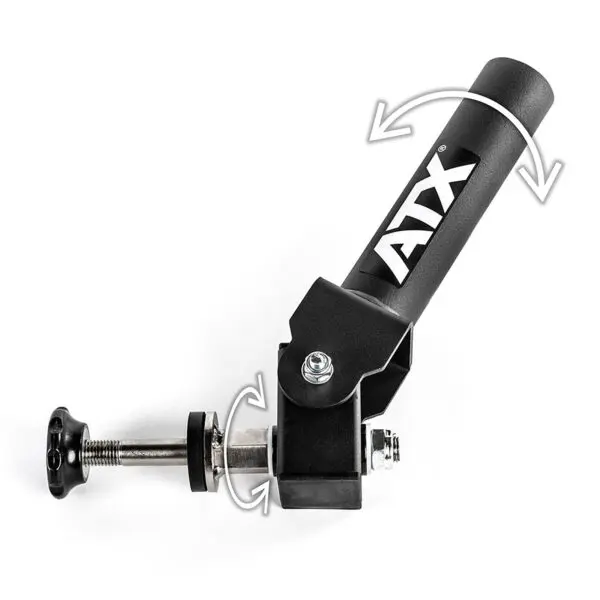

A bearing-mounted universal joint gives you smooth, three-dimensional movement.

Two Mounting Options

Use the threaded pin for easy adjustment or the lock nut for a more permanent fix.

Fits 50 mm Olympic Bars

The 50 mm sleeve is designed for Olympic barbells.

Dimensions and Specifications

• Size: 400 mm long, 255 mm wide and about 100 mm high
• Weight: 5 kg
• Material: steel tube, black fine-texture powder coat
• Safe working load: 250 kg
• Bar fit: 50 mm Olympic barbell
• Upright fit: 50 to 80 mm uprights with 21 mm holes
• Compatibility: ATX 500, 600, 700 and 800 series racks and rigs, and other racks with 50 to 80 mm uprights and 21 mm holes
• Certification: EN 20957 I.II.IV Class S (studio)

What You Can Train With It

Exercises such as alternating presses, one-arm cleans and one-arm jerks work all the major muscle groups, and you can use it with a variety of ATX Landmine Attachments.

You can mount one hinge, or two side by side on the uprights for dual alternating exercises. To use the ATX Revolving Handle you need this hinge plus a rotating 50 mm barbell.

Additional Information

What Is Included?

• ATX PRX Olympic Landmine (ATX-BAHL-5678)
• Mounting hardware

It is delivered disassembled with assembly instructions.

Not included: the rack or rig, barbell, weight plates, ATX Revolving Handle, Club Attach and Squat Attach.

Please note the pictures may feature optional attachments or items which are not included with the unit, this is to show the possible configurations/use of the unit.

NOT RECOMMENDED for use with squat stands. If you are planning on using this attachment with your ATX Squat Stand, make sure that it is secure properly (Squat Stands Brace – ATX-SQS-BRA), to prevent the squat stands from tipping over.

Key Takeaways

• Rack-mounted landmine hinge for 50 mm Olympic barbells
• Bearing-mounted double joint for smooth movement
• Two mounting options: threaded pin or lock nut
• Fits ATX 500, 600, 700 and 800 series racks and rigs, and other racks with 50 to 80 mm uprights and 21 mm holes
• Rated to 250 kg and certified to EN 20957 I.II.IV Class S (studio)
• Not recommended for squat stands unless they are secured properly
