360 Degree Screw Lock Fitting

BMG
$24.00
Item No: Z-CB-FREEMOTSCR

182 in stock

DESCRIPTION

Weight

Weight

The base weight of the item, without any packaging.

0.08 kg

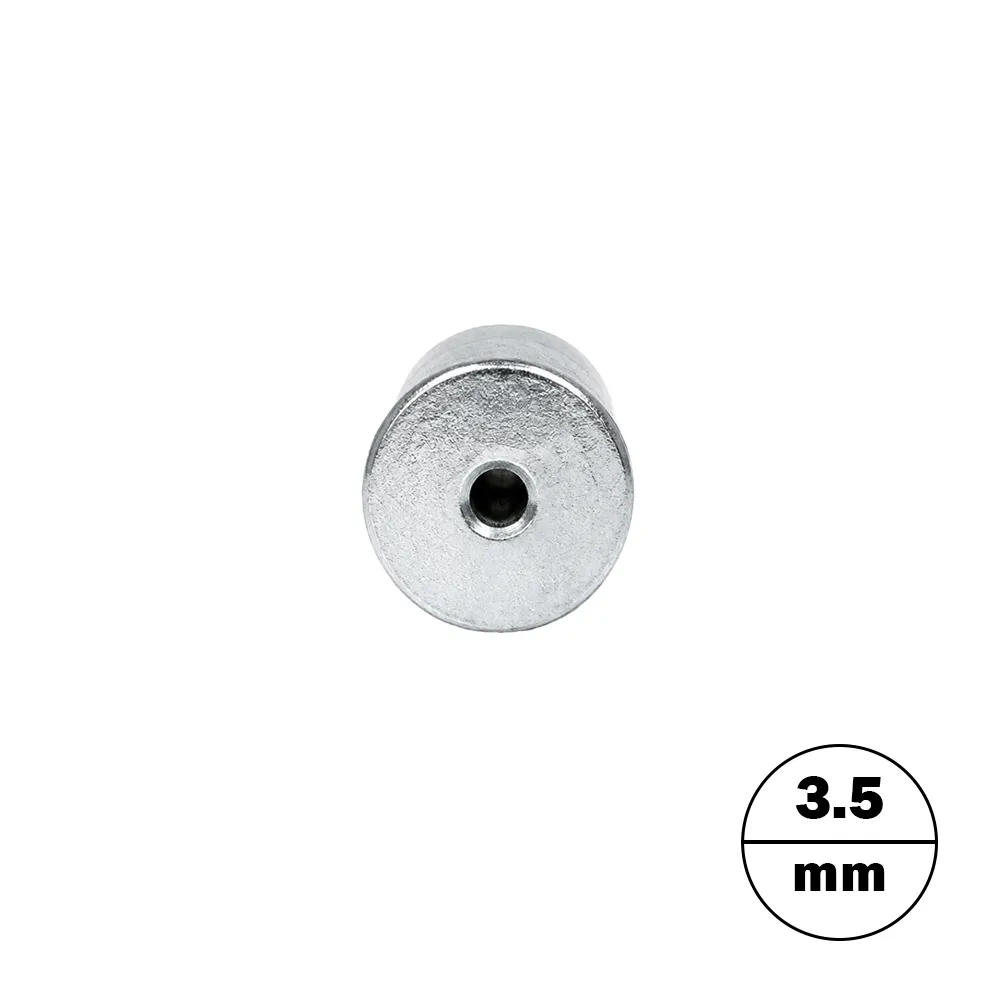

Cable Entry Hole

3.5 mm

Tool Required

3mm Allen key (hex key)

Compatible Cable

3mm gym cable only (not 4mm).

Inclusions

Inclusions

These are the specific items that you will receive when you purchase the product. Some products are shown with items that are not included for demonstration purposes.

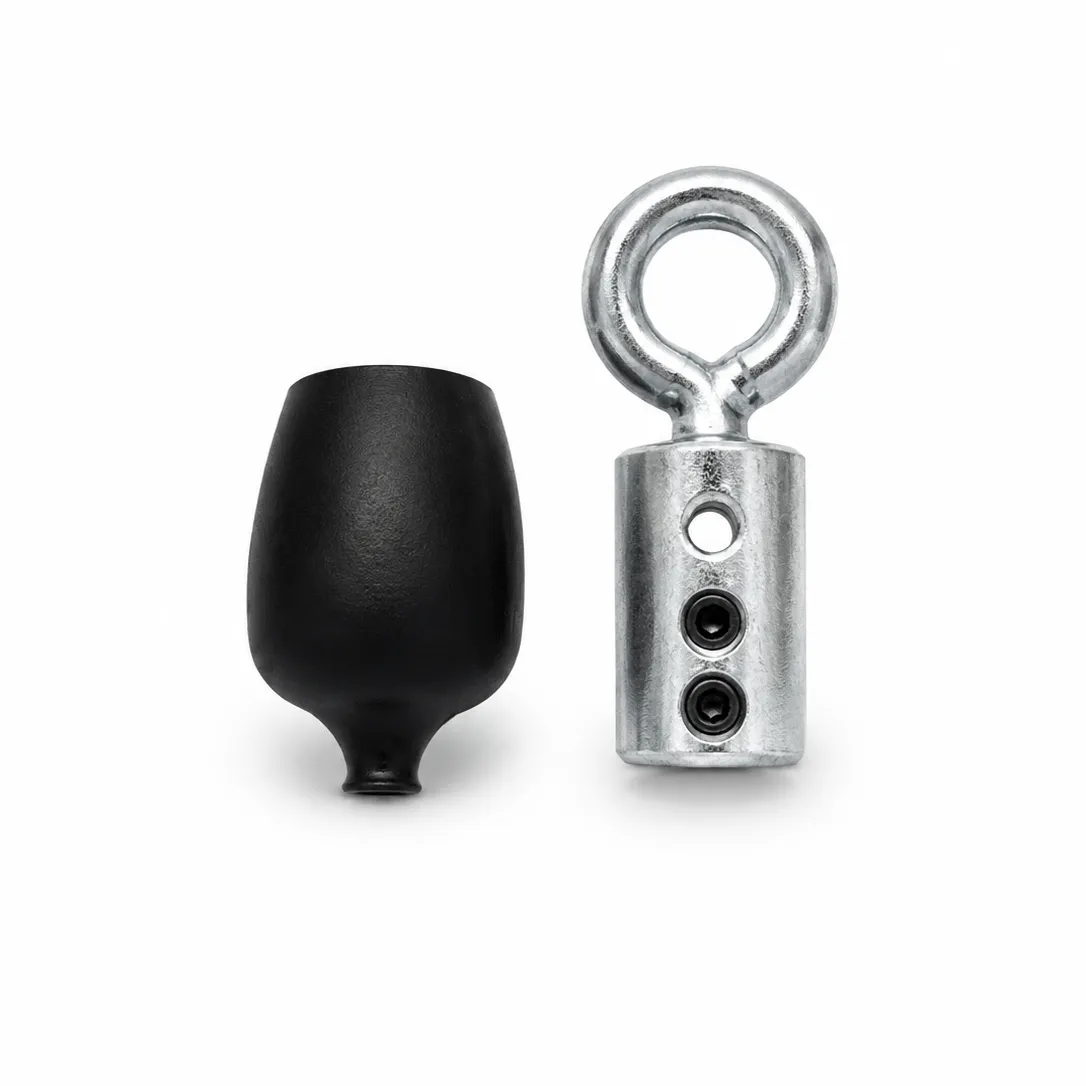

1 x Cable Swivel End Assembly
1 x Rubber Protective Boot
4 x Pre-Installed Hex Screws

We have got a treat for you here. Screw lock cable fittings were a godsend because you didn’t need a hydraulic crimper to swage them on. The only issue was that the range was limited. For machines like the “Free motion” Cable Cross Machines that required rotational fittings, the OEM cable fittings are PRICEY! I am talking $40 to $50USD for the fitting alone.

Sam explains how the 360° Screw Lock Fitting works

Crunch Fitness came to us for a solution. We have sourced a replacement that functions and operates the same at a fraction of the price. You can see in the video that it held 3.1KN or 316kgs with ease. etter still Crunch has put a couple out in their gyms with no dramas. If they survive in Crunch they will survive in your gym!

These fittings will only work with 3mm gym cable. You have to strip off the protective coating and insert the 3mm wire in bareback. Tighten up the grub screws and you are done. If you got a technician in to replace it with OEM parts it would cost hundreds of dollars. You can use these fittings on any machine that uses 3mm gym cable.

Key Features

  • Heavy-Duty Steel Construction – Built to withstand high-tension commercial gym use.

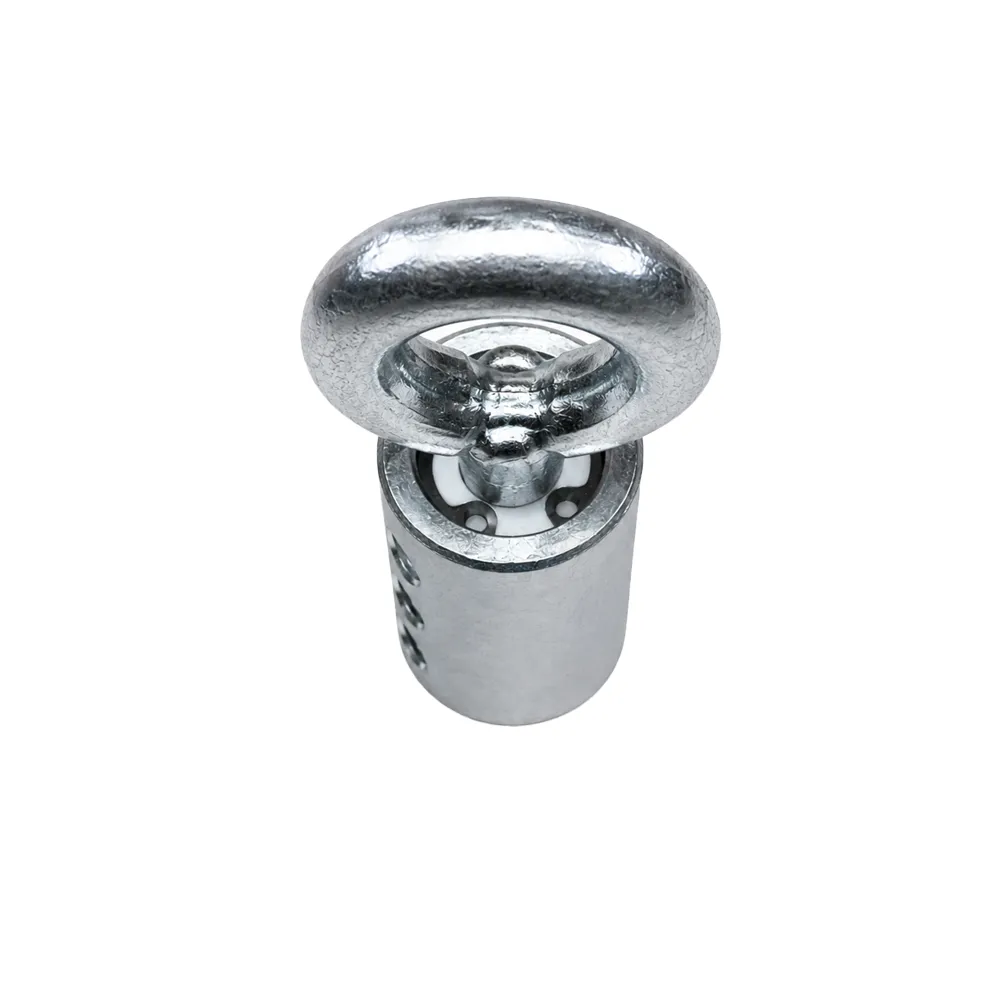

  • Swivel Eyelet Design – Rotates during movement to help minimise cable twisting and wear.
  • Quad Set-Screw Locking System – Quad Set-Screw Locking System – Four pre-installed set screws clamp onto the bare 3mm wire. Tighten them with a 3mm Allen key for a strong, reliable connection.

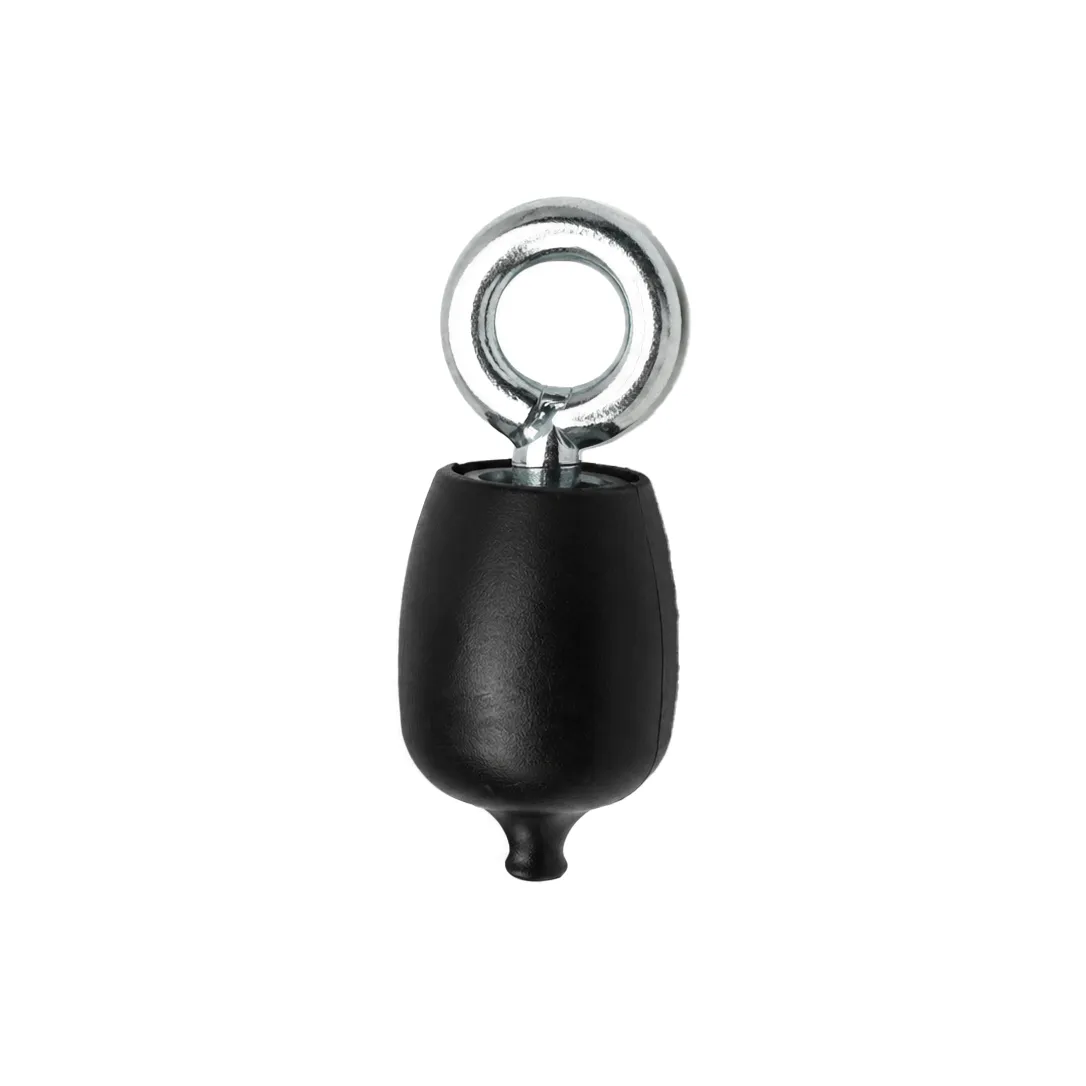

  • Protective Rubber Boot Included – Covers the cable termination and locking screws for a cleaner finish and added safety.
  • Commercial Gym Compatible – Suitable for cable machines, functional trainers, lat pulldowns and cable crossover systems.
  • Ideal for Repairs & Custom Builds – Perfect for replacing worn cable ends or building custom gym cables.

Strength Testing

  • Manufacturer test: this fitting was tested holding 3mm wire to 300kg.
  • In-house test: in our own testing, 3mm wire with screw lock fittings has held up to 600kg.
  • Our pull test video on this page shows the fitting holding 3.1kN (316kg).

What You Need

  • 3mm gym cable (this fitting does NOT work with 4mm cable)
  • A 3mm Allen key (hex key)
  • Strip the protective coating off the end of the cable, insert the bare 3mm wire and tighten
    all four screws. Make sure they’re tight.

More Screw Lock Fittings for 3mm Cable

Why Buy This Product?

The Cable Swivel End Assembly offers a simple and reliable solution for replacing damaged cable ends or building custom gym cables. The swivel eyelet helps minimise cable twisting during use, while four set screws securely clamp the cable without requiring specialised swaging tools. Finished with a protective rubber boot, it provides a clean, professional appearance suitable for both commercial and home gym equipment.

Frequently Asked Questions

Will this fitting work with 4mm gym cable?

No. It only works with 3mm gym cable. Strip the coating off the end and insert the bare 3mm wire.

What tool do I need to fit it?

A 3mm Allen key (hex key). It tightens the four pre-installed screws. No crimper or swaging tool needed.

Do I need to strip the coating off the cable?

Yes. Strip the protective coating off the end of the 3mm cable, insert the bare wire and tighten all four screws. Make sure they’re tight.

Will it fit my Freemotion cable crossover?

It’s designed as a lower-cost replacement for the original Freemotion 360° cable fitting, and works on machines that use 3mm gym cable. Not sure
about your machine? Call us on 1300 790 432.

How strong is it?

The manufacturer tested this fitting holding 3mm wire to 300kg. In our own testing, 3mm wire with screw lock fittings has held up to 600kg.

Is 3mm gym cable weaker than 4mm?

In our own testing, 3mm wire with screw lock fittings held up to 600kg. Thinner cable can also run smoother through complicated cable paths, with less wear.
