ATX Dip Bar 700 Series

ATX®
$125.00
Item No: ATX-DPX-700

4 in stock

DESCRIPTION

Weight

Weight

The base weight of the item, without any packaging.

8 kg
Dimensions 57 × 34 × 17 cm
Warranty

5-Years T&C's

Certification

EN 20957 I.II.IV – S

Safe working load

250 kgs per pair

Rack series

700

These might be the entry level dip bars for your 700 series ATX rack, but there is nothing entry level about these. They are the latest model and have received a couple of handy upgrades.

The gravity lock brackets now feature extra reinforcement in the form of a welded bracket made from 8 mm thick steel. Combined with the thick walled 45 mm grip tube, they now can handle a 250 kg load. Most people will not need anywhere near that capacity. For those that do and are worried about protecting their power rack uprights, ATX have got you covered. The brackets now feature inserts that will protect your paint work.

Key Features:

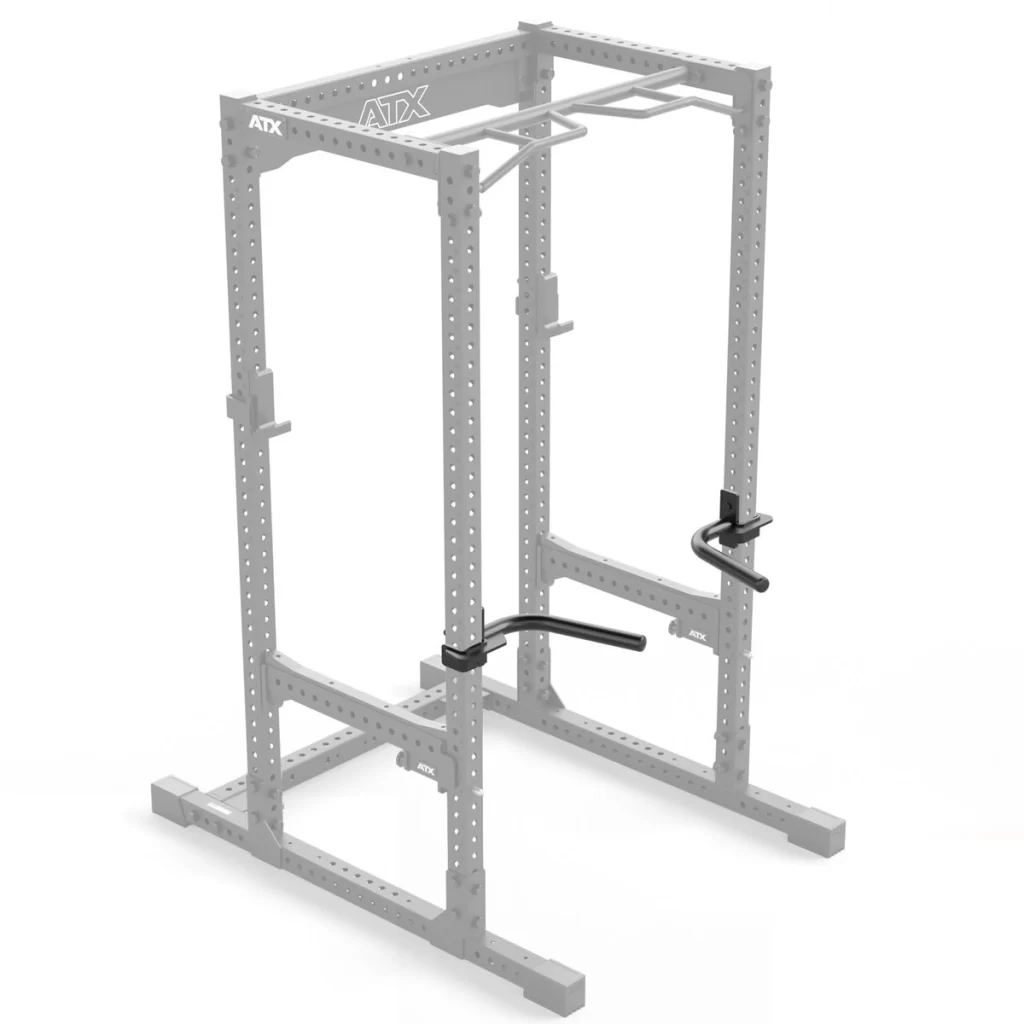

ATX DPX-700 dip bar fitted to a power rack with the rack faded out

Fits 700 Series Racks

Suitable for all 700 series (70 x 70 mm) ATX racks with holes on all 4 sides of the uprights.

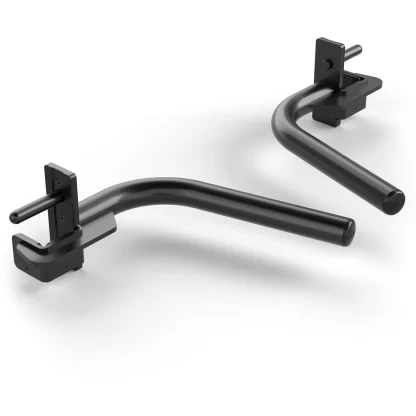

ATX DPX-700 dip bar pair angled view with mounting brackets

Thick Walled 45 mm Grip

Made from thick walled tube with a 45 mm grip diameter – which is perfect for grip.

ATX DPX-700 dip bar bracket and locating pin close-up

8 mm Reinforced Bracket

Angled bracket made from 8 mm thick steel – rated for 250 kg.

Two black ATX Dip Bar 700 Series metal attachments with mounting brackets designed for connection to a rack.

Nylon Inserts

Internal nylon inserts protect your paint work.

Two black metal ATX Dip Bar 700 Series attachments with mounting brackets for a power rack.

Angled Design

The angled design makes it easier on your shoulders.

ATX DPX-700 dip bar pair front view

Gravity Lock Docking

The brackets lock onto the upright quickly and sit with no play.

Dimensions and Footprint

  • Grip diameter: 45 mm
  • Grip length: 258 mm
  • Head height: 170 mm
  • Bracket width: 71 mm
  • Locating pin diameter: 20 mm
  • Weight: 7.5 kg
ATX DPX-700 dip bar dimension drawing with grip and pin sizes

Before You Buy

These dip bars will not work on older models that only have holes on the front and back of the uprights. The reason why these are built to dock from the side is to accommodate the smith options that are now available for ATX power racks.

Additional Information

  • Fits: ATX Series 700 racks with 70 x 70 mm posts and a 4-sided hole pattern.
  • Construction: Thick walled steel with an extra reinforced 8 mm U-mount and a precise, low-tolerance fit.
  • Load capacity: 250 kg.
  • Grip: 45 mm diameter with a slight angle for an ergonomic position.
  • Protection: Plastic protectors inside the brackets look after your rack and paintwork.
  • Finish: Black fine-texture powder coat.
  • Certification: EN 20957 I.II.IV class S (studio).
  • What is included: 1 pair of ATX Dip Bars 700 Series (ATX-DPX-700).
  • Not included: The rack and accessories shown in the pictures.

Key Takeaways

  • Dip bars that dock into 70 x 70 mm rack uprights with a 4-sided hole pattern.
  • Rated for 250 kg with a 45 mm angled grip.
  • Welded 8 mm bracket with nylon inserts that protect your paint.
  • Will not suit older racks with holes on only the front and back.
  • Class S (studio) certified to EN 20957 I.II.IV.
