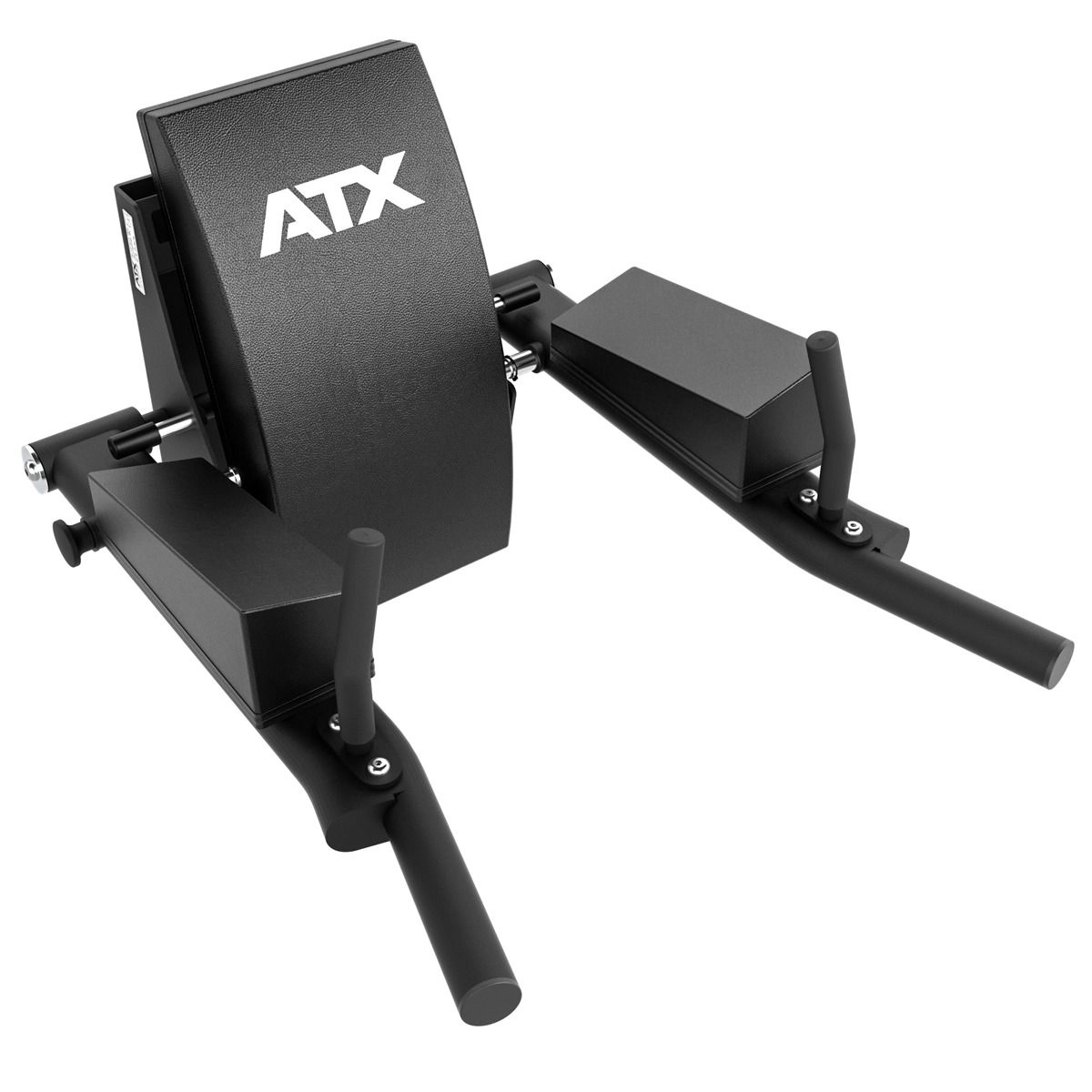

ATX® Wall Mounted Knee Raise & Dip attachment in black, featuring padded sections, handles, and angled metal bars to support the legs during workouts—ideal for knee raise exercises.

A woman with long hair, dressed in a red sports bra and black shorts, adjusts an ATX® Wall Mounted Knee Raise & Dip machine attached to a wall. She stands sideways, looking at the camera against a white brick background.

A woman in a red sports bra and black shorts uses the ATX® Wall Mounted Knee Raise & Dip machine. She grips the handles, supporting her body weight with her legs extended forward against a white wall background.

A person with a ponytail, dressed in a red sports bra, black shorts, and sneakers, is performing an upper body exercise on an ATX® Wall Mounted Knee Raise & Dip in a gym. A white brick wall and a radiator are visible in the background.

The ATX® Wall Mounted Knee Raise & Dip is a black wall-mounted dip station featuring an ATX-labeled padded backrest, angled arm pads, and two horizontal grip handles. It is installed on a white wall and designed for bodyweight exercises such as dips, leg raises, and wall-mounted knee raise routines.

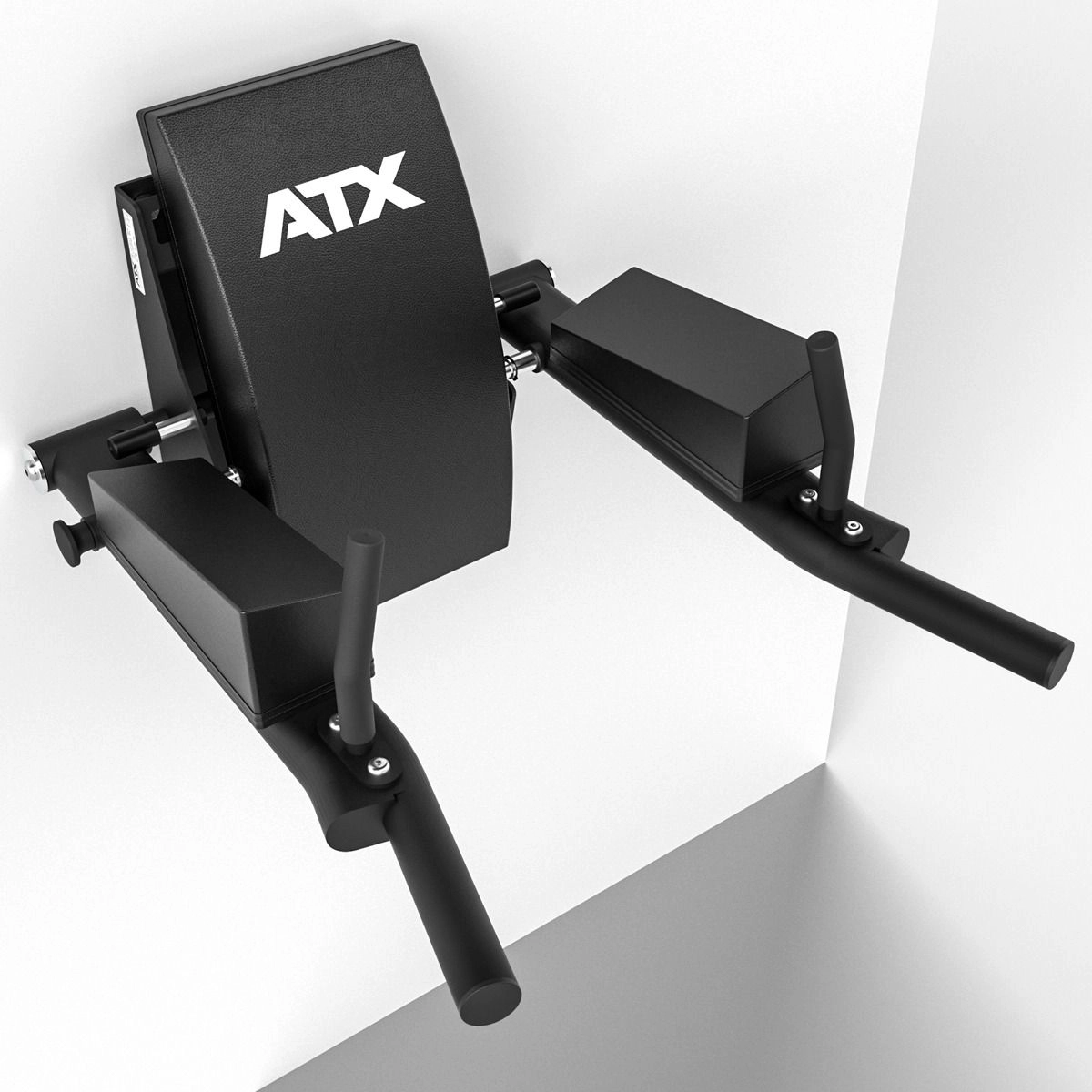

ATX® Wall Mounted Knee Raise & Dip fitness equipment in black, featuring padded arm supports, a backrest, and angled handles, shown from above against a white background.

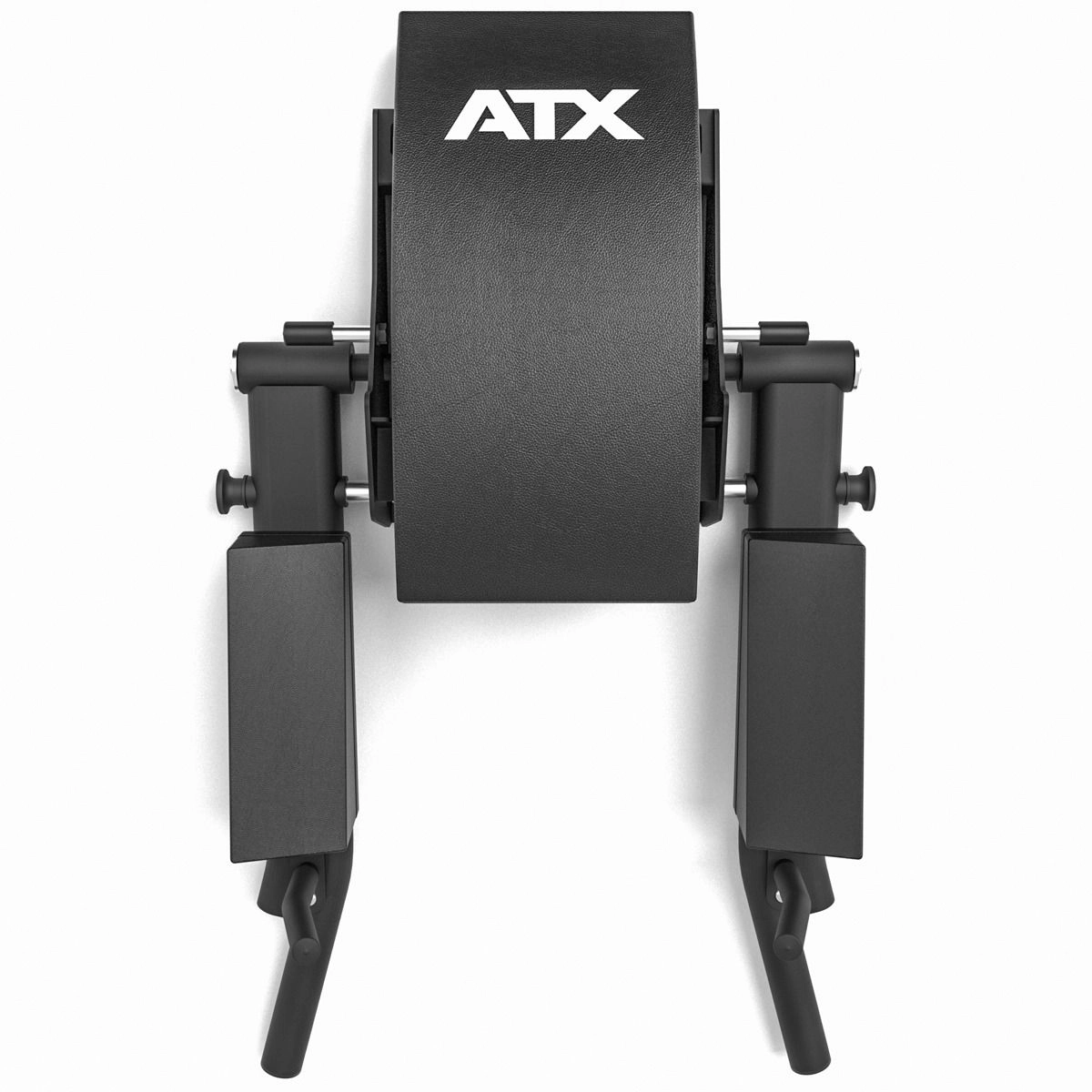

The ATX® Wall Mounted Knee Raise & Dip is a black, wall-mounted dip bar engineered for effective knee raise exercises. It features a padded backrest and arm supports, along with two pairs of outward-extending grip handles. The unit is shown mounted on a white wall in a minimal, well-lit environment.

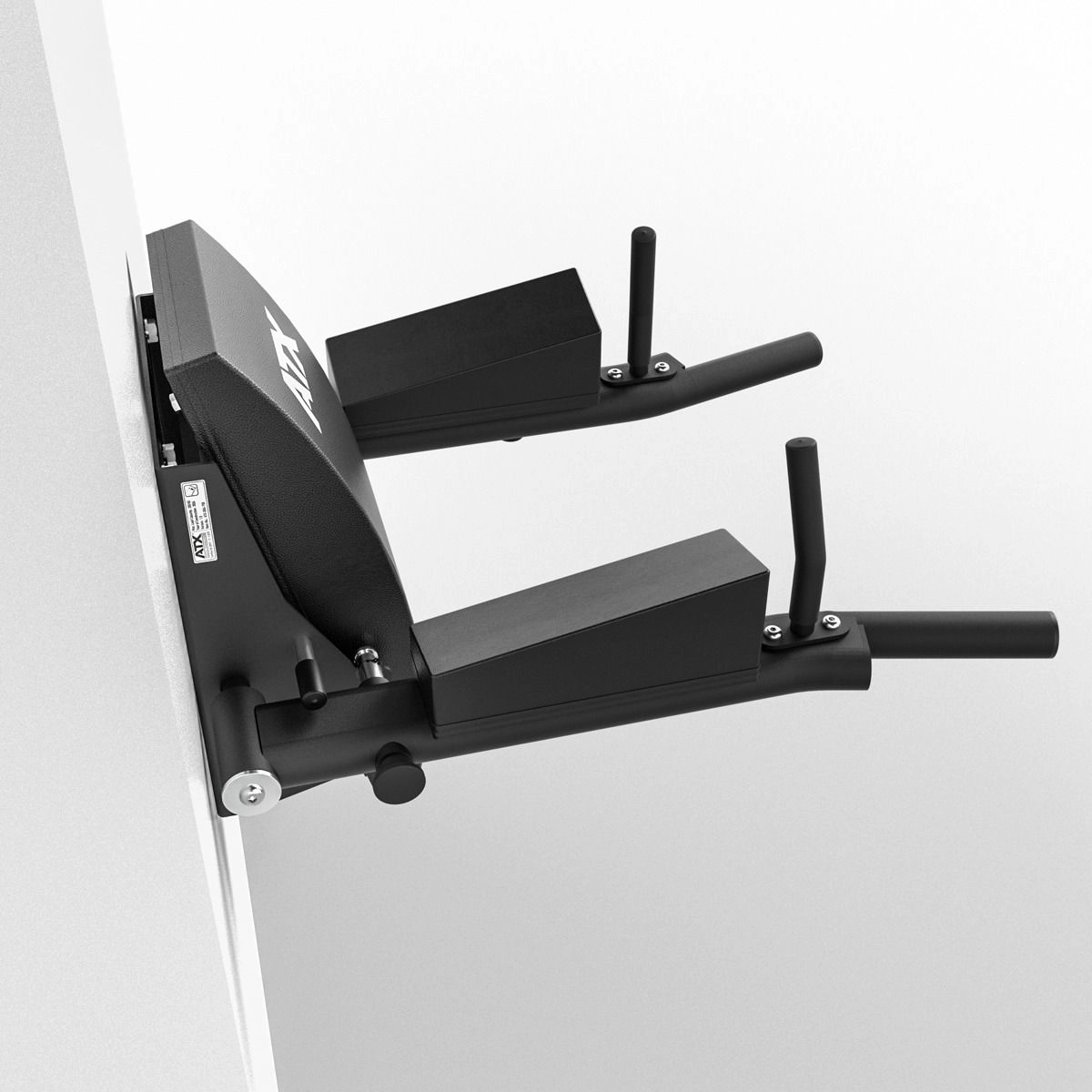

The ATX® Wall Mounted Knee Raise & Dip features a black, sturdy metal frame with padded back and arm rests, angled handles, and is installed on a white wall—making it ideal for upper body exercises and effective wall mounted knee raises.

ATX® Wall Mounted Knee Raise & Dip

Write a Review

$695.00

Item No: ATX-DBA-750

Out of stock

DESCRIPTION

Weight Weight The base weight of the item, without any packaging.	39 kg
Dimensions	108 × 80 × 32 cm
Weight Weight The base weight of the item, without any packaging.	38kg
Footprint Footprint This is the area occupied by the item itself. You might need to allocate additional space for the use.	72cm x 89/29 cm x 59/121 cm
Certification	EN 20957 I.II.IV – S
Weight Capacity	200kg

Vertical leg raises are one of the best core exercises out there. Combine it with some posterior chain exercises and you will have the core you need to squat and deadlift heavy. Not only does a strong core look good. More importantly it will also prevent injuries and even be more stable in everyday movements.

Let’s not forget dips. They are the perfect exercise for your chest, triceps and shoulders. The foldable space-saving design allows you to mount them to any corner of your gym. Best of all it does not take up much space at all.

Close-up of the ATX® Wall Mounted Knee Raise & Dip in black, featuring padded surfaces and handles, mounted against a light gray brick wall near a window with curtains.

A foldable weight bench is stored upright against a white brick wall in a home gym with gray curtains and a window showing trees and buildings outside, positioned beside the ATX® Wall Mounted Knee Raise & Dip station for versatile workouts.

Modern home gym featuring the ATX® Wall Mounted Knee Raise & Dip in black, installed against a light gray brick wall; a potted plant is placed in the foreground, with shelves and drawers visible to the side.

The ATX® Wall Mounted Knee Raise & Dip, finished in black and featuring angled handles and robust padding, is mounted against a black tiled wall on a light wooden floor—ideal for exercises such as knee raises, dips, and other upper body workouts.

Close-up of a black metal handle attached to the ATX® Wall Mounted Knee Raise & Dip, featuring ATX branding, and positioned against a white brick wall background.

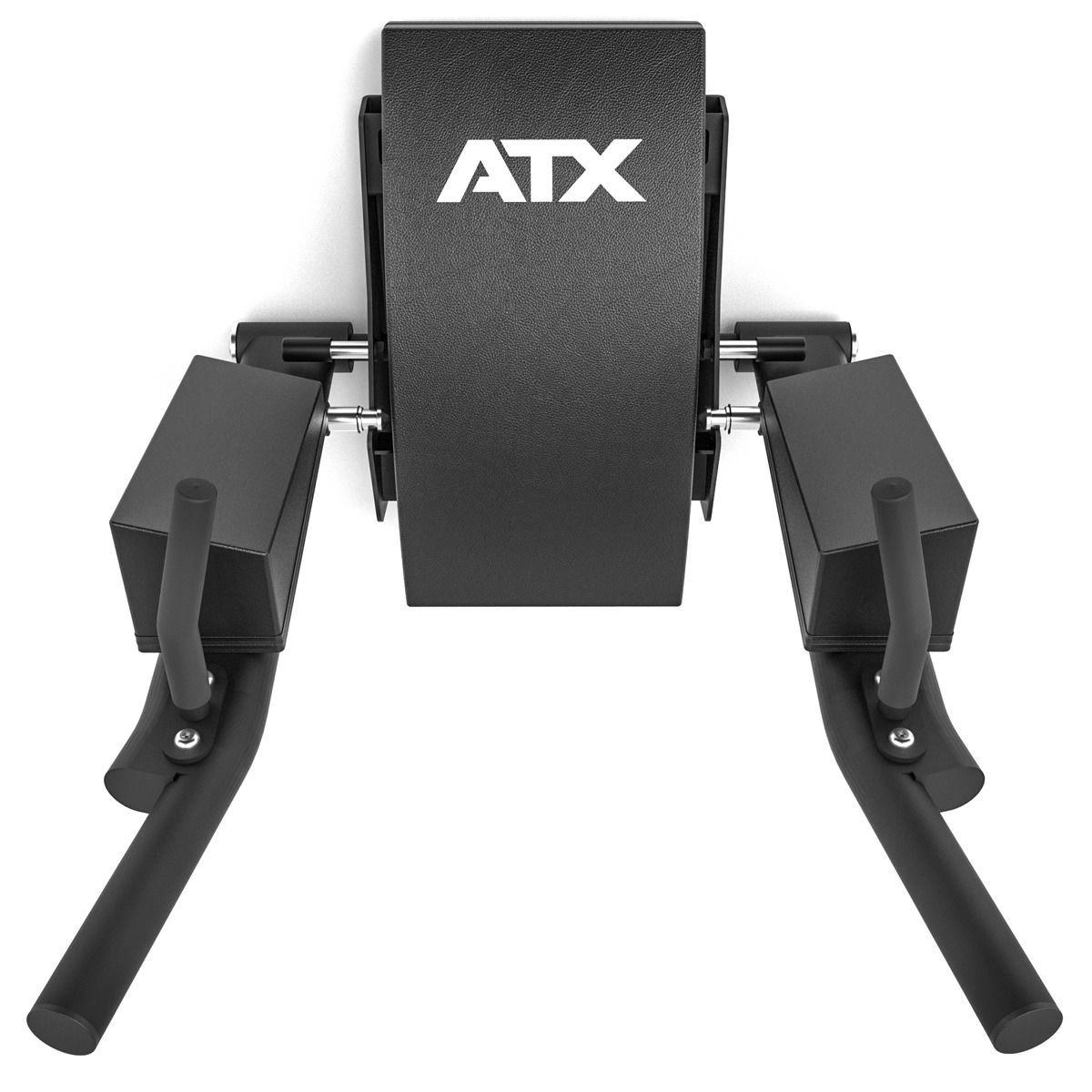

An ATX® Wall Mounted Knee Raise & Dip in black is installed on a white brick wall, featuring two padded arm supports and two downward-angled handles.

A modern home gym with various black ATX workout equipment, including a bench, weights, and the ATX® Wall Mounted Knee Raise & Dip station, set against a white brick wall.

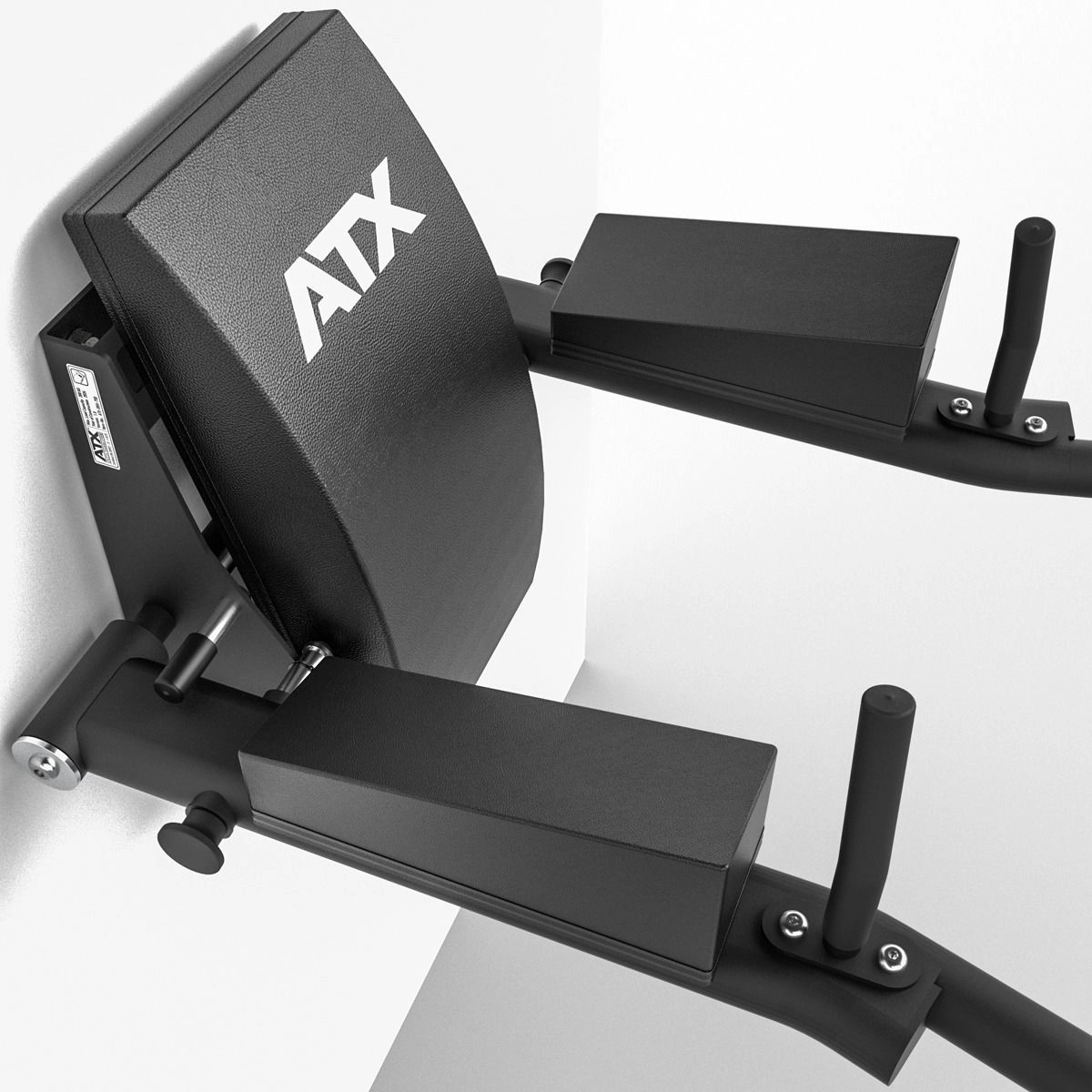

Close-up of the black padded backrest of the ATX® Wall Mounted Knee Raise & Dip, featuring white ATX lettering, securely mounted on a textured light-colored wall with visible bolts and adjustment mechanisms, designed for wall-mounted knee raise and dip exercises.

Wall Mounted Knee Raise and Dip Features

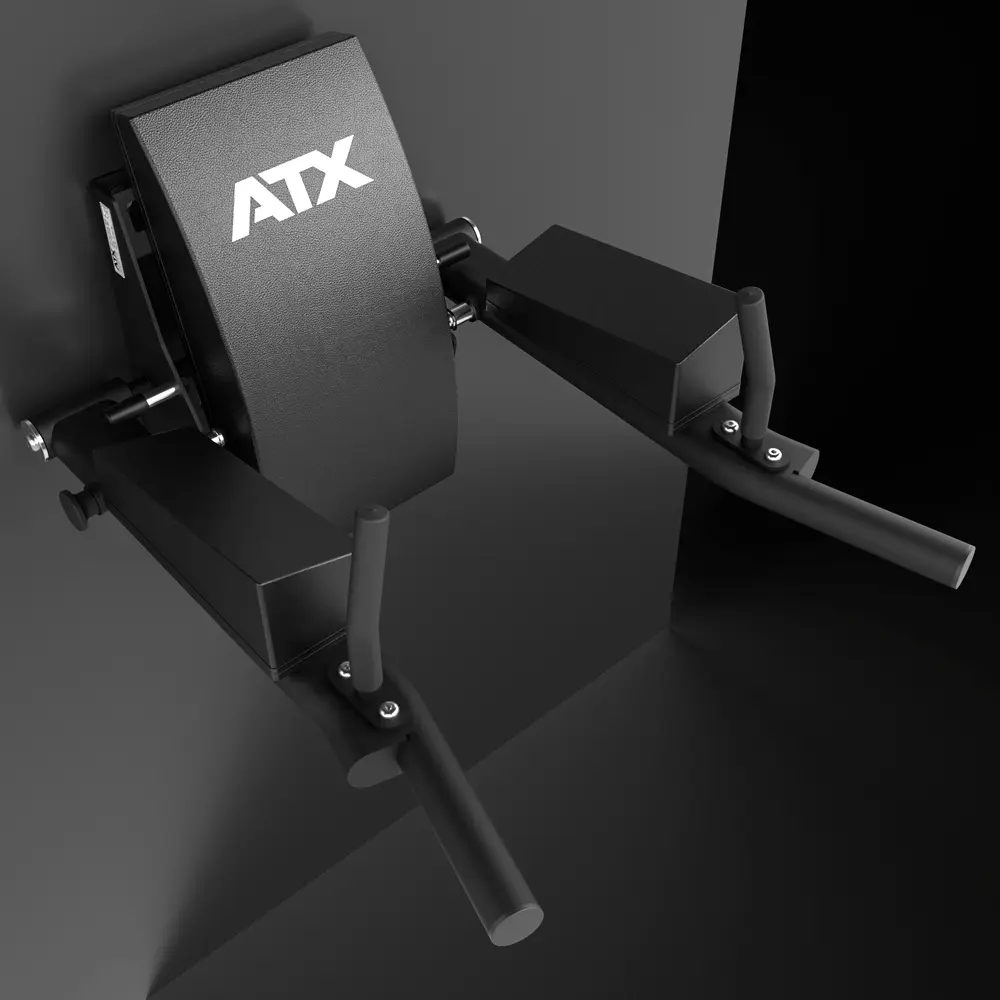

A close-up of the ATX® Wall Mounted Knee Raise & Dip, a black gym station attached to a wall, featuring padded armrests and angled handles designed for tricep dip exercises as well as knee raise workouts.

Set up in Seconds

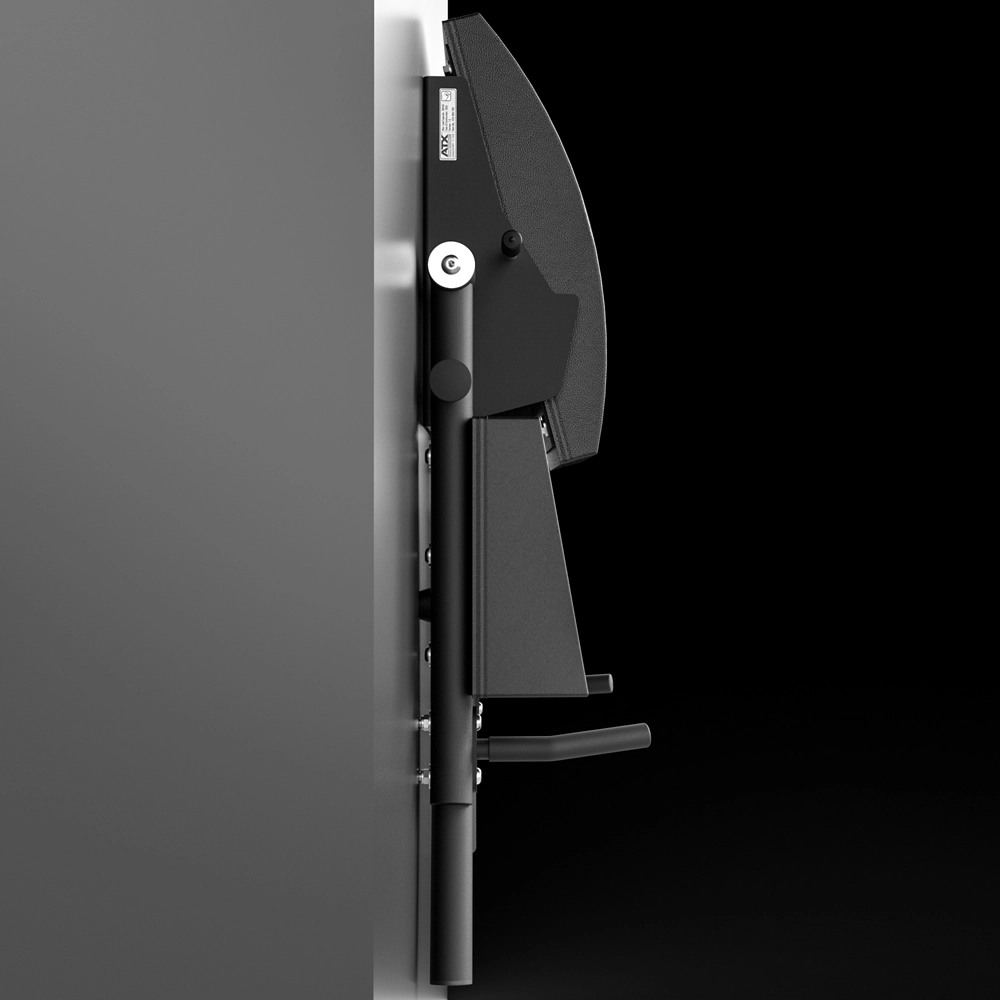

Side view of the ATX® Wall Mounted Knee Raise & Dip—a black, modern wall-mounted folding bench or seat attached to a gray wall—ideal as a knee raise station—shown in the upright, stowed position against a black background.

Ultra Compact Footprint

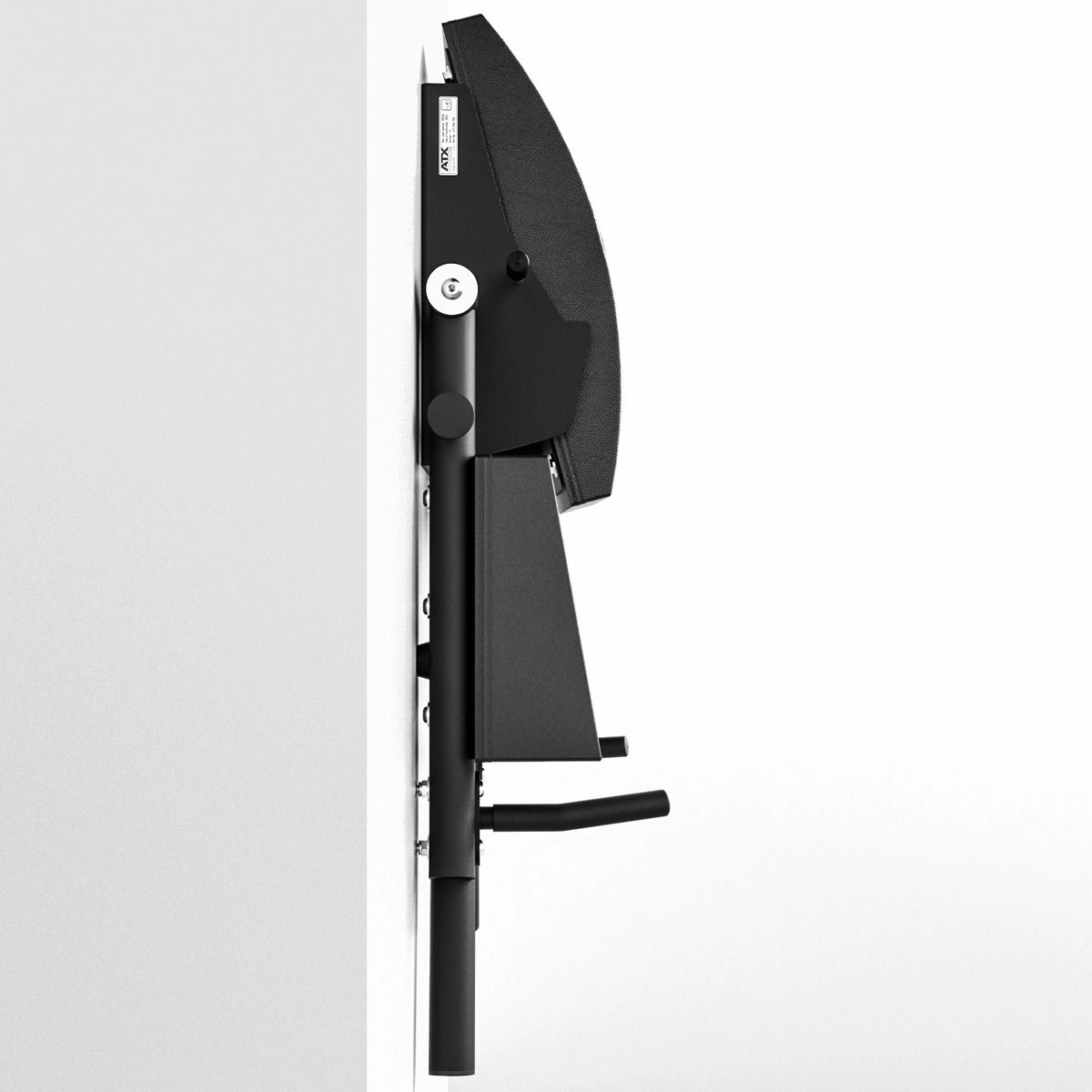

The dip ab combo sticks out only 29 cm off the wall when folded down.

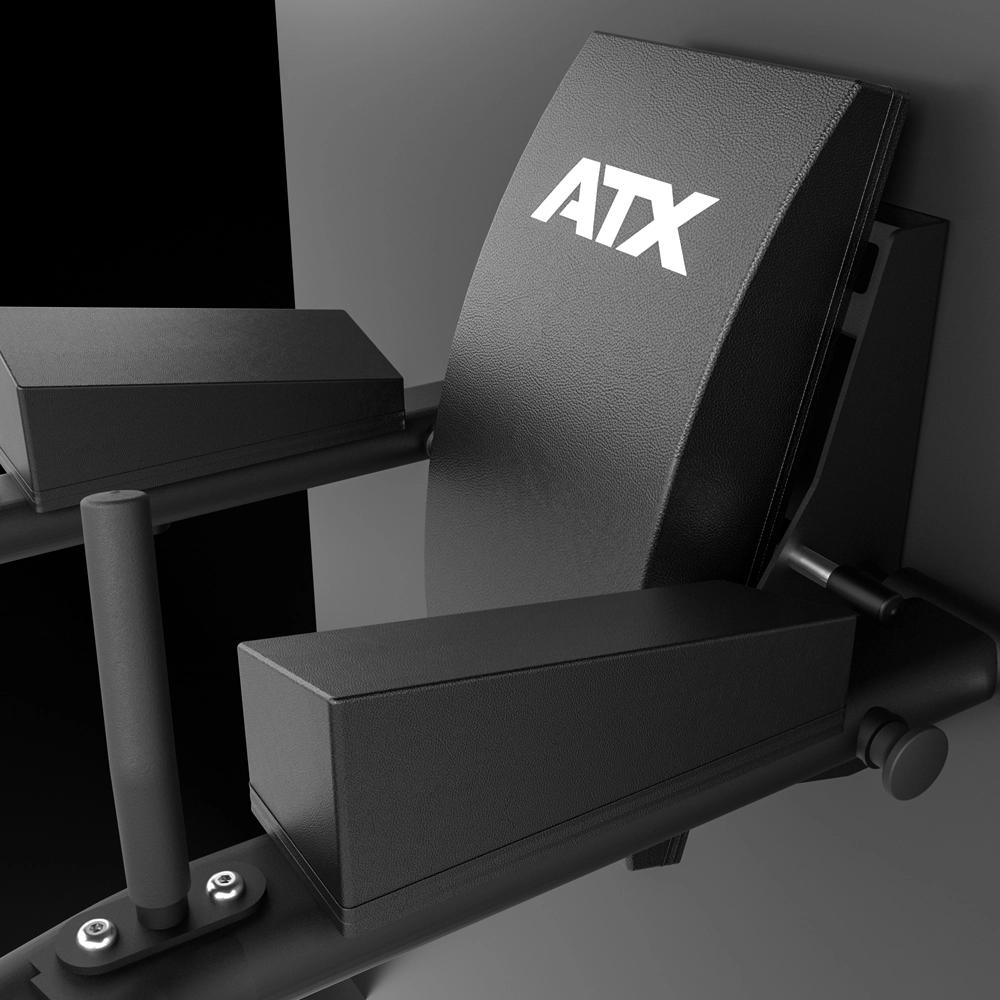

Close-up of a black gym bench with ATX in white letters on the backrest, featuring arm and leg pads, handles, and a metallic frame against a dark background—perfect for pairing with the ATX® Wall Mounted Knee Raise & Dip to elevate your strength training routine.

Ergonomic Design

Curved backrest pad and angled arm rest for maximum comfort.

Certified for commercial use according to EN 20957 I.II.IV Class S.
Stable and robust frame is a guarantee with the base weight of the unit being shy of 40 kgs.
Set the station up in just a seconds thanks to the 20 mm thick steel pins. The arms can also be secured in the lowered position.
The Medium firm backrest pad has been curved to allow the user to work through the whole range of motion by offering the maximum pre-stretch and contraction of your abdominal muscles.
The arm cushions have been angled back and bevelled on the inside. This ensures a perfect stabilization and stability of the upper body allowing you to focus on training your core.
Just because it is a folding/wall mounted design does not mean it cannot handle some serious weight! The safe working load of this unit is 200kgs!
The dip bars feature fat grips (∅50 mm) and have been angled to reduce the strain on your wrists and shoulders. Max Grip Width approx. 62cm.
The ATX® Wall Mounted Foldable Dip Knee Raise is a life save for the space conscious trainers as the whole unit sticks out only 29 cm when folded.

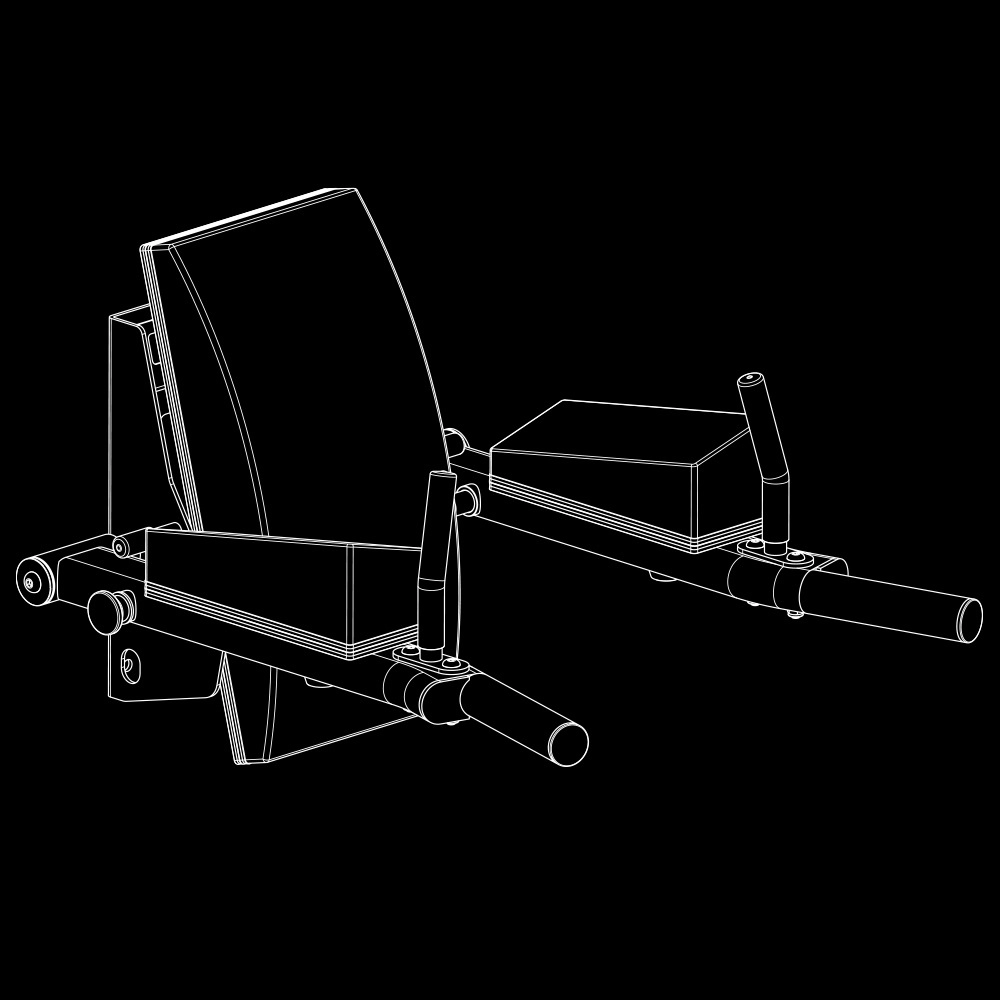

Line drawing of the ATX® Wall Mounted Knee Raise & Dip gym equipment featuring a padded inclined backrest, two arm pads, and parallel handles on each side, set against a black background.

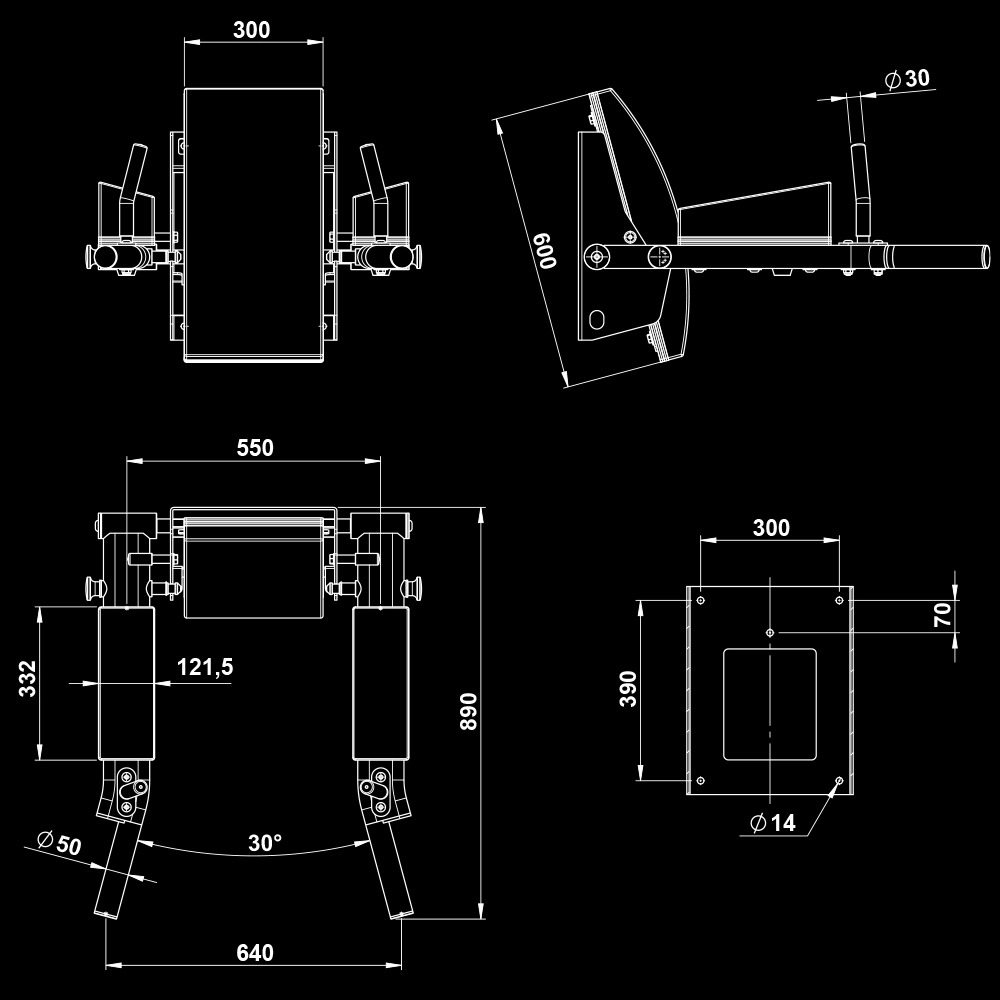

Technical drawing of the ATX® Wall Mounted Knee Raise & Dip, illustrating four views with detailed dimensions, angles, and cylinder placements. All measurements and hole diameters are labeled in millimeters.

The Footprint: Width – 72cm, Height 59 cm (unfolded) 121cm (folded), Depth 89 cm (unfolded), 29 cm (folded).

What’s Included? ATX® Wall Mounted Foldable Dip Knee Raise (ATX-DBA-750)

Please note the pictures may feature optional attachments or items which are not included with the unit. They are used to show the possible configurations/use of the unit. The bolts required for mounting are not included. The type of bolts you will need will depend on the surface you are planning on mounting the unit on.
