ATX® 3D Smith Machine Power Rack

Write a Review

$5,395.00

Item No: ATX-PSR-780

4 in stock

DESCRIPTION

Rack Series	700
Frame	70 x 70 x 3 mm
Weight Weight The base weight of the item, without any packaging.	305 kg
Footprint Footprint This is the area occupied by the item itself. You might need to allocate additional space for the use.	180 cm x 129.5 cm
Colour	Black, fine structure, powder-coated
Inclusions Inclusions These are the specific items that you will receive when you purchase the product. Some products are shown with items that are not included for demonstration purposes.	You will receive the Base Unit, Multi-Grip Chin Up Bar, 1 x pair of J-Hooks, 1 x pair of Spotter Arms, 8 x weight plate holders, 8 x resistance band rollers, 2 x accessory storage hooks and 1 x bar holder. Everything else shown in the photos are optional extras.
Certification	EN 20957 I.II.IV – S (Studio)
Safe Working Load	J- Hooks – 500 kg, Spotters – 400 kg, Chin Up – 200 kg, Rack – 1000 kg, Smith – 200 kg
Height	228 cm
Warranty	5 Years – T & Cs
Hole Grid	Four-sided Hole size – 21 mm, Center Distance – 5 cm.

If you thought a 3D smith machine was a luxury that you could not afford, maybe this latest offering by ATX may change your mind. In true ATX style, their 3D Smith Machine offers more than the competition. Not only do you get a high-quality 3D smith machine, you can lock it and use it as a traditional smith machine, and it also can be used as a power rack.

Bent Over Rows

Flat Bench Press

To sum it up, you are covering all options in one footprint:

3D Smith Machine
Smith Machine – Although it does not feature a counterweight system, it does have an adjustable band peg system which can be used to reduce or add resistance to the 32mm knurled lifting bar.
Power Rack – with premium j-hooks & spotters. Which you can also use at the front of the rack. You can also use many of the 700 series ATX power rack attachments and accessories.
Multi Grip Chin Up Bar

With weight storage at the back, plus a handy accessory storage rack, it is a truly unique system.

Lunges

Front Squats

Key Features:

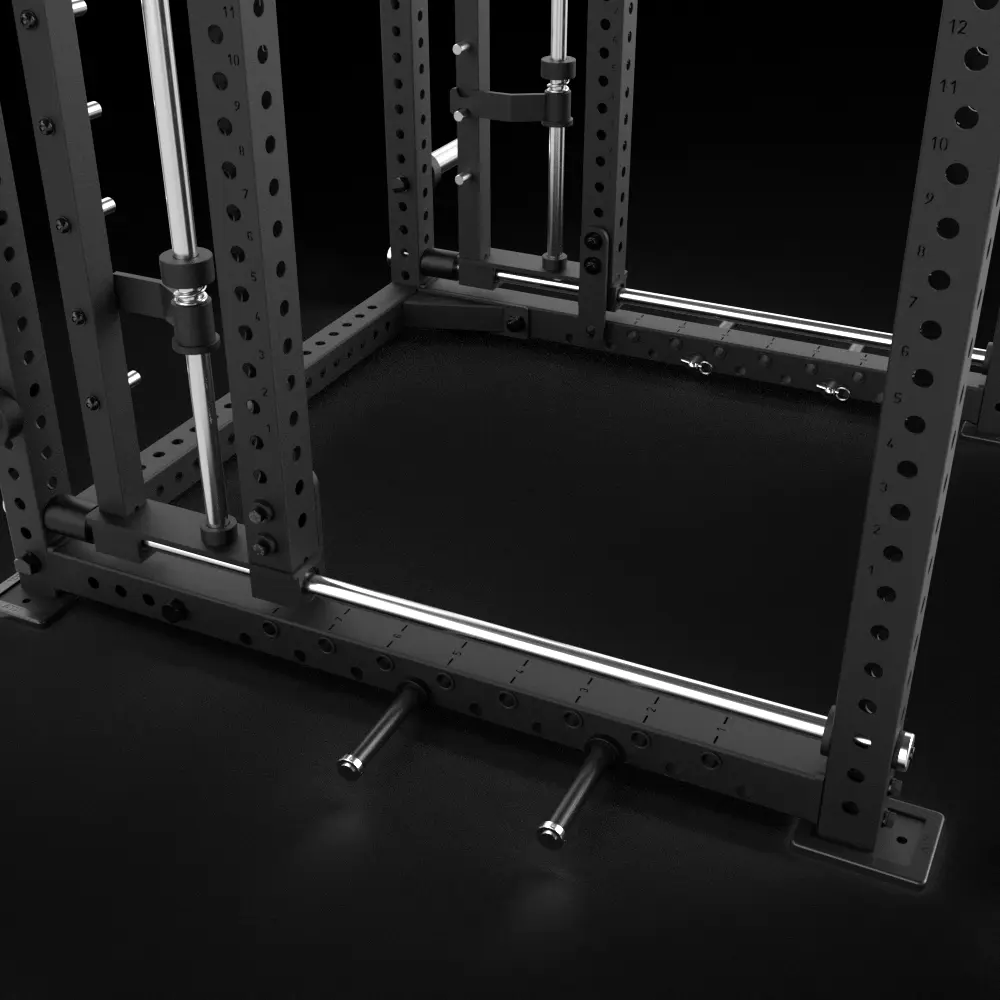

Freedom of Movement

Max Horizontal travel distance – 71 cm.
Max Vertical Travel Distance – 155 cm (lowest 44 cm)

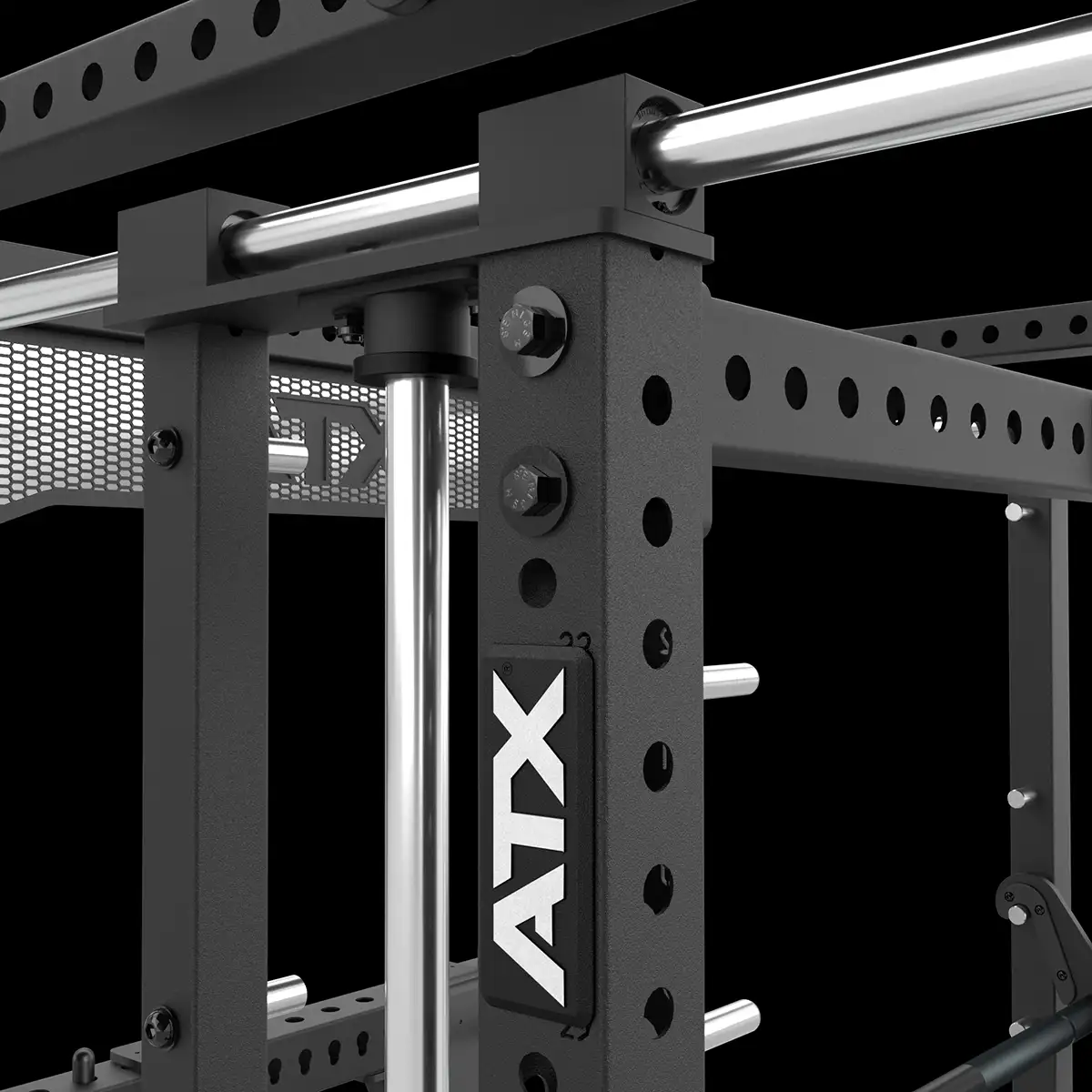

Top Bearing Housing

Running on hard chrome plated 30 mm thick solid steel guiderails for that jerk-free movement.

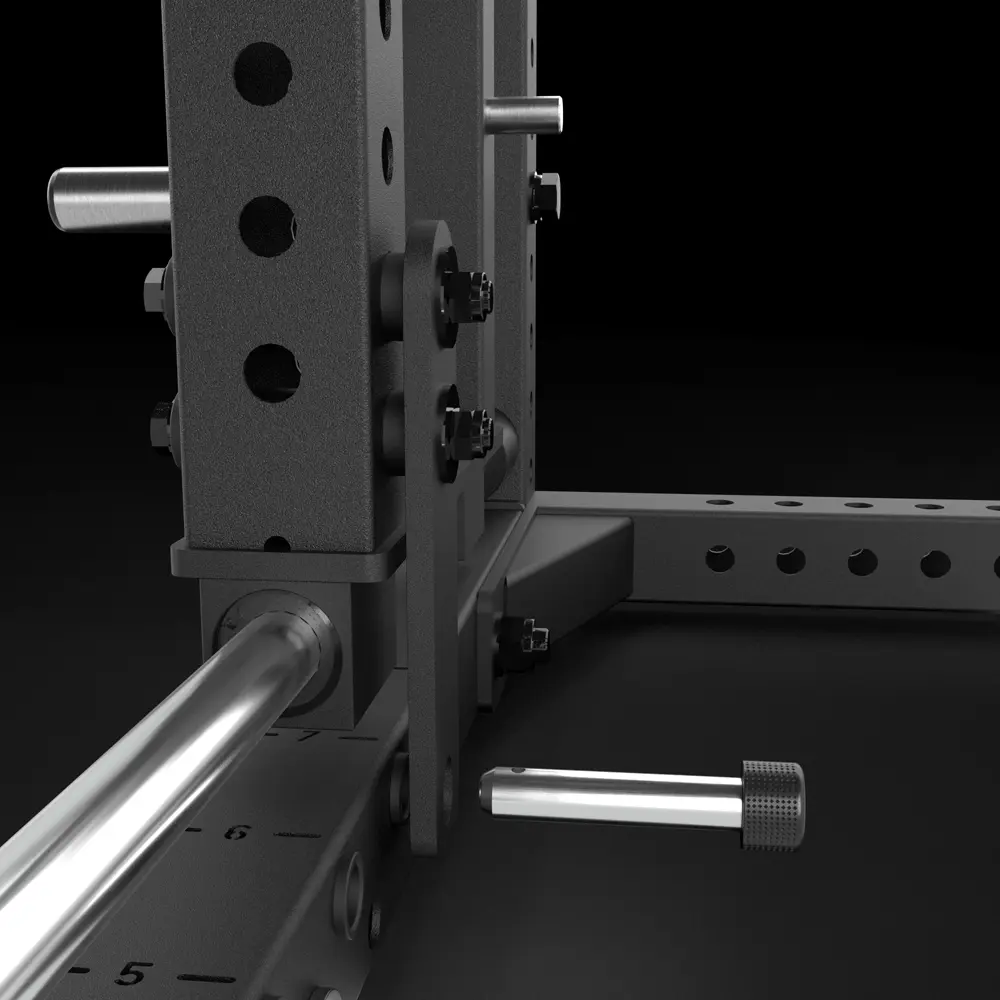

Fixed Smith Machine

Want a traditional smith machine? Just lock it in with the included pins. Total locking positions – 8. Position Spacing – 9 cm.

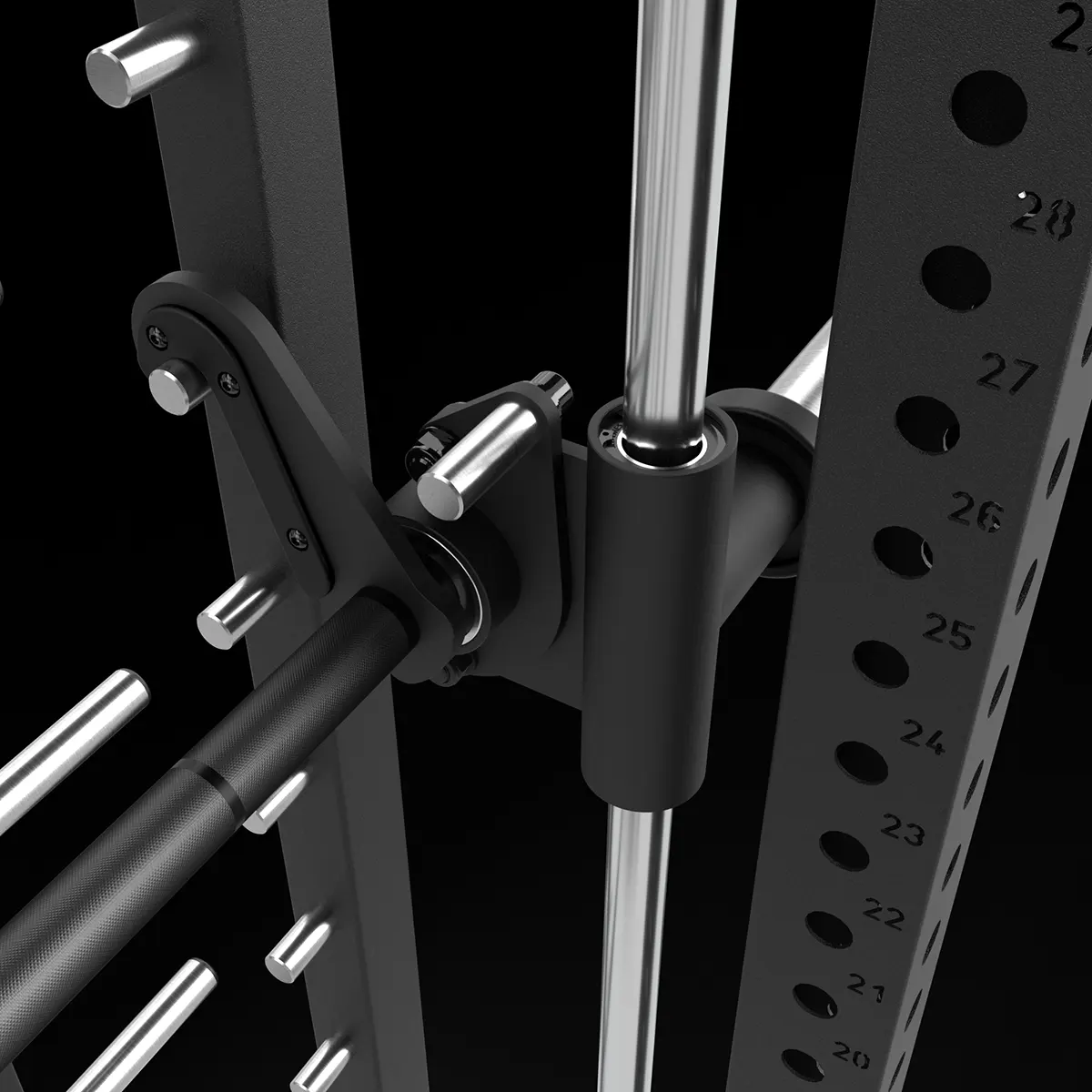

Smith Machine Bar

Hard Chrome Plated 30 mm thick solid steel guiderails combined with linear bearings guarantees minimal flex and smooth movement.

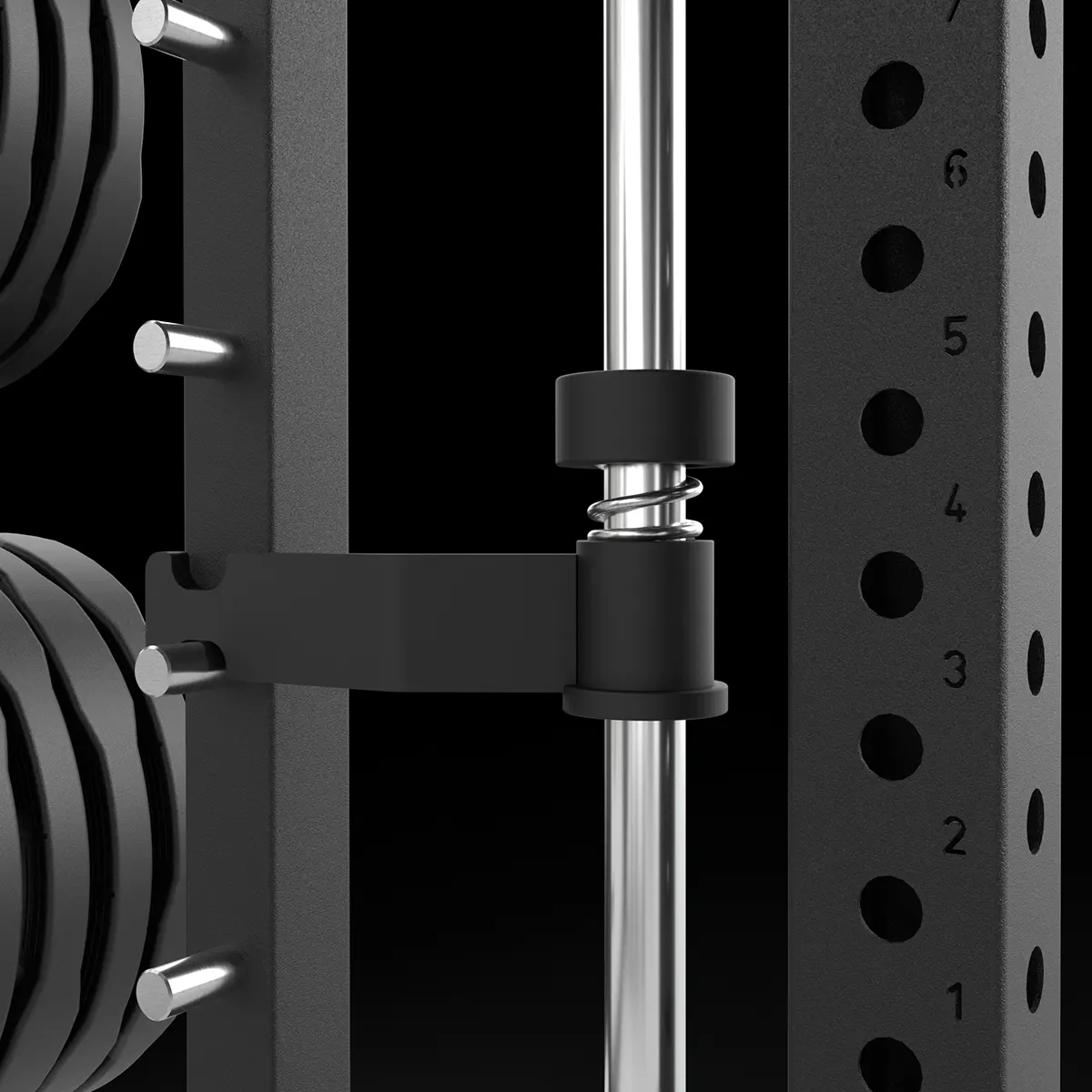

Safety Stopper

Easy to adjust safety lock with a spring and thick rubber stopper.

Top Lockout Position

Approx. 196 cm off the ground.

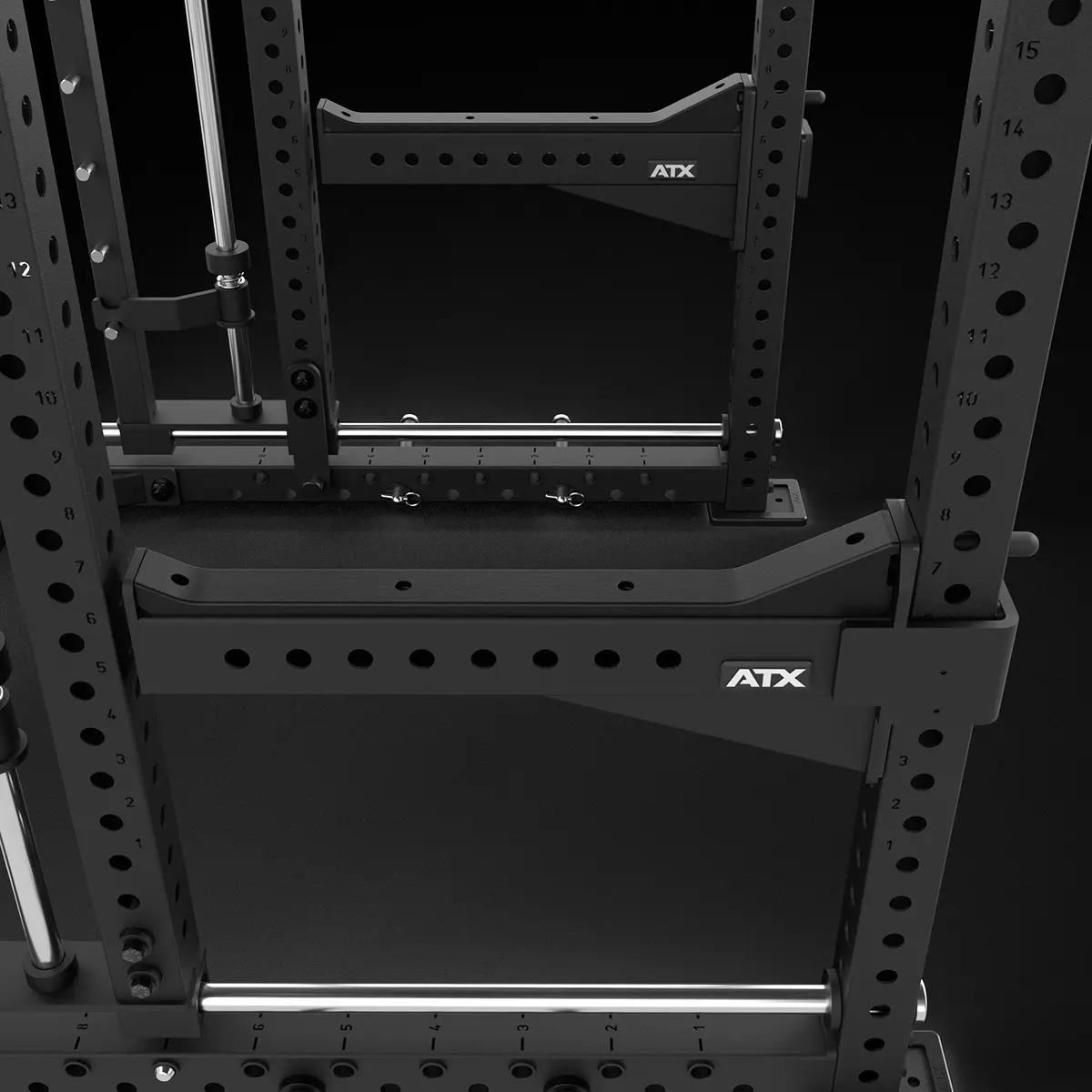

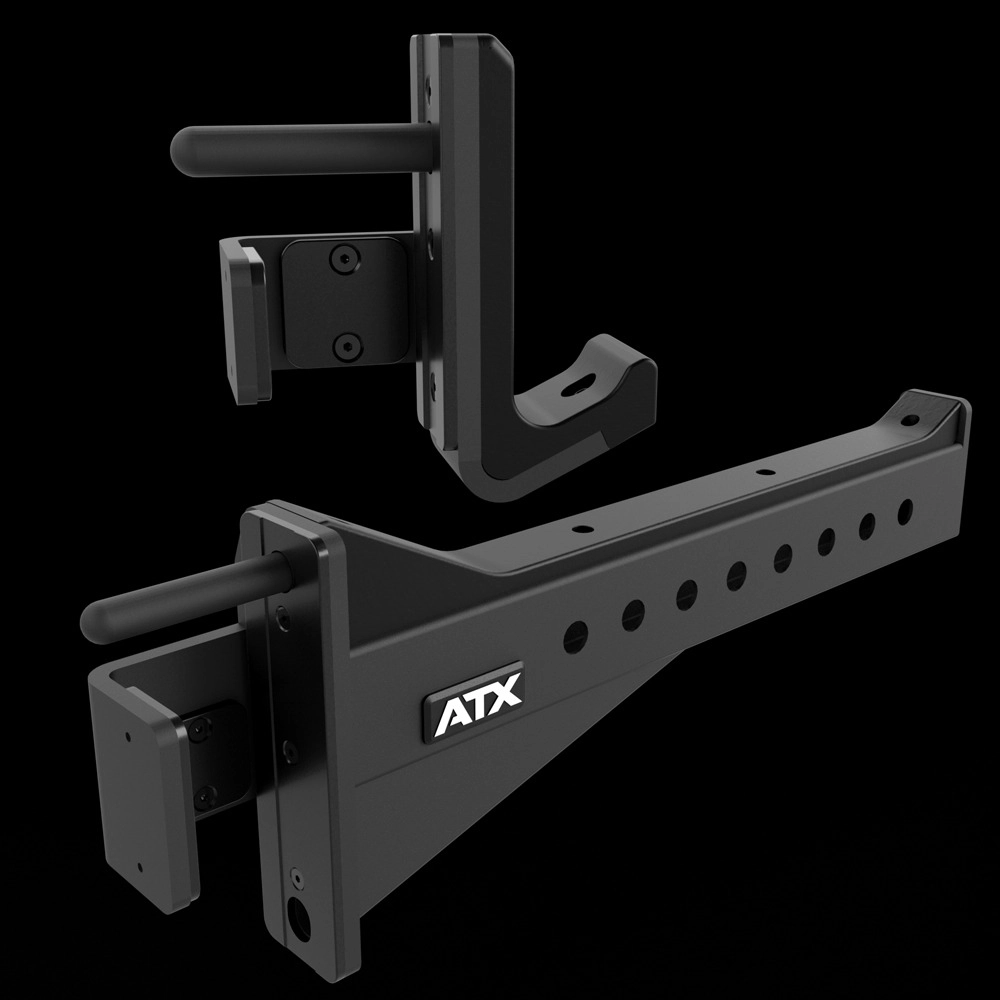

Spotter Arms

600 mm long. Heavy load – 400 kg
Built in face savers.

Half Rack

Can be set up inside or outside of the cage. If setting up outside, you will need to bolt the unit down.

Inner Cage

Spacious internal design 108 cm x 123 cm.

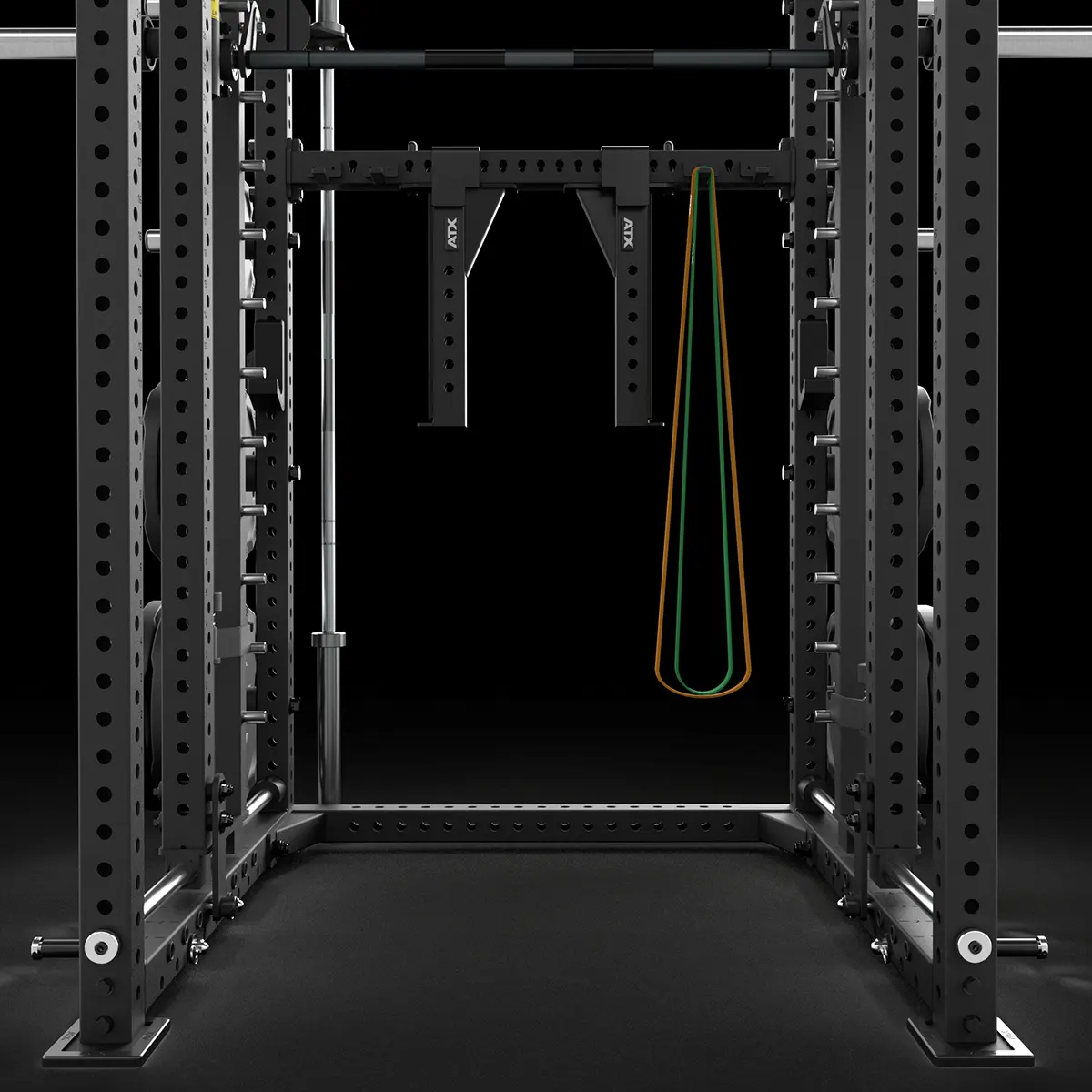

Attachment Storage

For organizing your accessories when not in use.

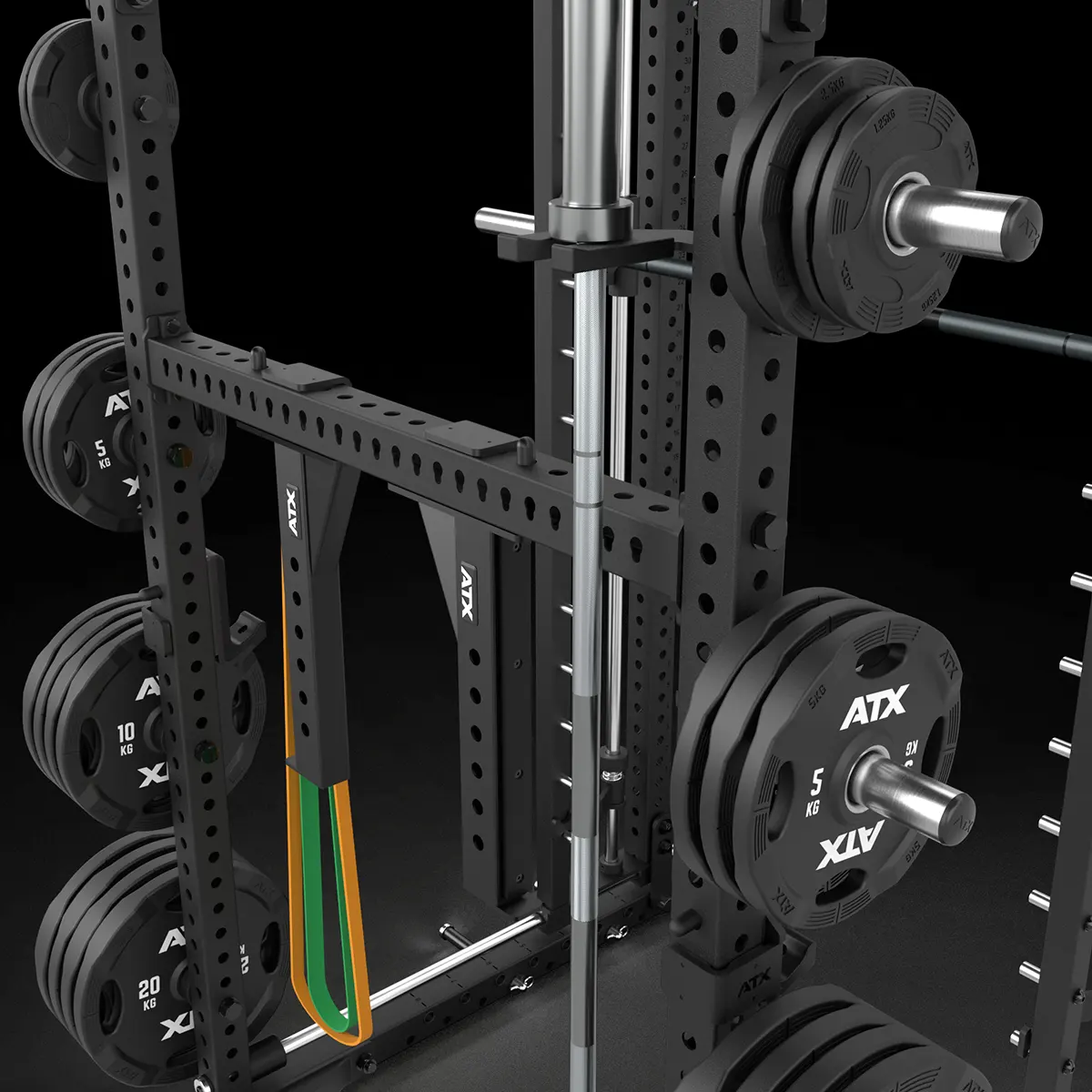

Weight Storage

Comes with 8 x Olympic Storage Horns (Plate ID +51mm). 4 x 20 cm and 4 x 25 cm.

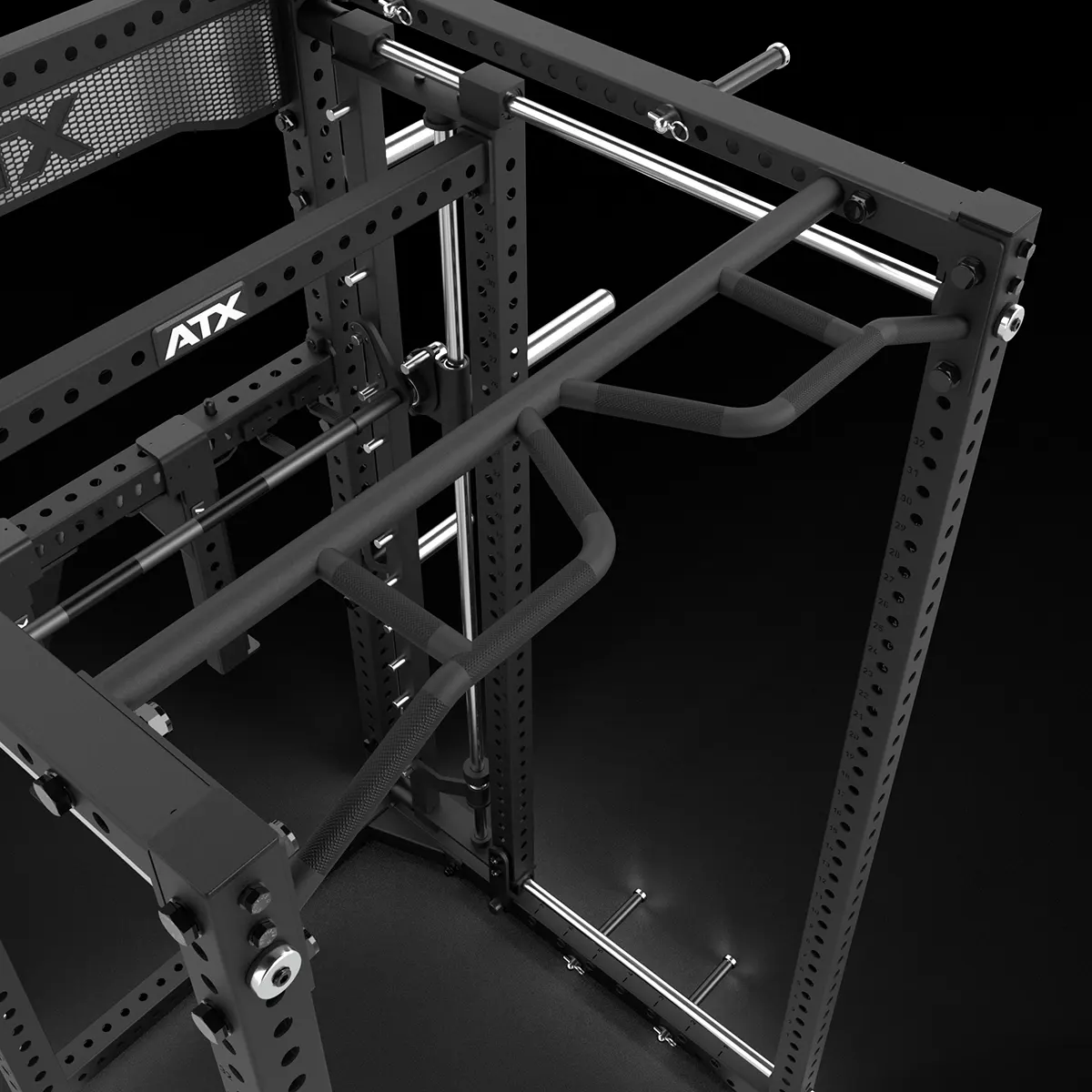

Multi-Grip Chin Up

Knurled for optimal grip. Fat-Grip Handle – Ø 42 mm. Max. load- 200 kgs.

Logo Plate

3D Logo with stainless steel honeycomb pattern.

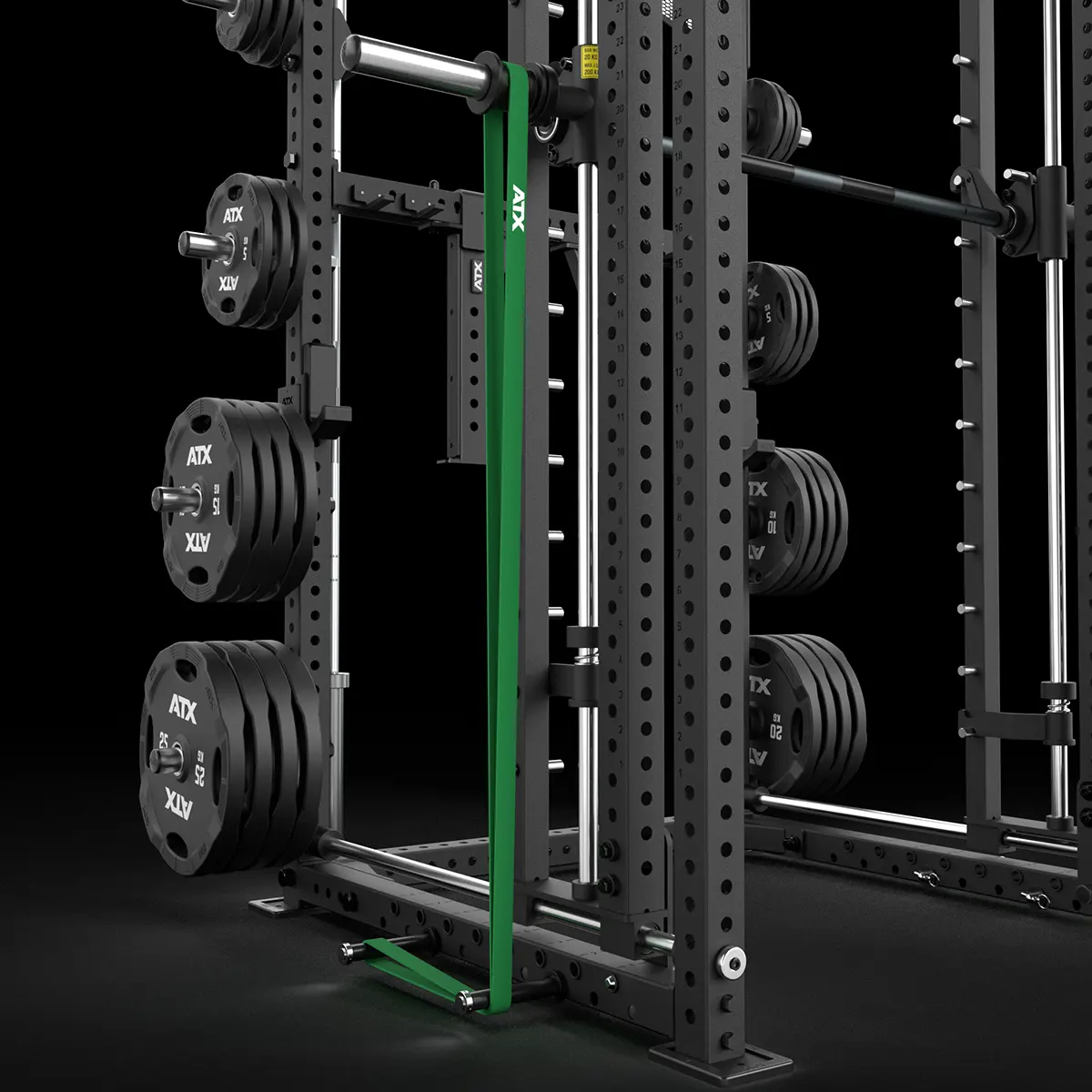

Resistance Band Pegs

Increase of decrease the resistance with the help of resistance band pegs!

Use any Bench

No need for a special bench to get full range of motion!

Shoulder Press

Close Grip Bench Press

Elbow Room during Shoulder Press

Back Squats

White line drawing of a power rack for weightlifting with multiple adjustable holes, safety bars, and weight plate holders, shown on a black background. The rack is labeled ATX at the top.

Technical drawing of a 3d smith machine power rack showing front and side views with detailed measurements in millimeters, including height, width, and depth, along with labeled bar and attachment positions.

A black power rack with multiple grip pull-up bars and adjustable attachments, featuring metal frame construction and various holes for customization, against a dark background.

Close-up view of a black ATX power rack with multiple holes for adjustable attachments, sturdy metal construction, and safety spotter arms, set against a dark background.

Close-up view of the lower section of a black metal power rack, showing safety bars, numbered holes, and two horizontal pegs for weight storage on a dark gym floor.

Close-up view of a black metal power rack with multiple holes, adjustment pins, and a steel barbell loaded on a support arm. The background is dark, highlighting the gym equipment’s sturdy construction.

Close-up view of a Smith machine, focusing on the barbell and sliding mechanism attached to vertical metal rails with numbered holes for adjustable settings. The background is black, highlighting the equipment.

Close-up of a black gym squat rack with multiple weights loaded on both sides, a barbell resting on hooks, and a metal handle with green and orange stripes attached to the rack.

Close-up of a gym squat rack, showing a barbell with weight plates, a safety catch, and numbered adjustment holes on the metal frame. The background is black.

A black power rack with several weight plates stored on its side and a green vertical lever arm attachment. The setup is positioned on a black floor against a dark background.

Smith Machine Details.

This smith machine bar weighs 20 kgs/44 lbs.
There are 12 height adjustment positions which are spaced out 125 mm apart.
Because you can lock the smith machine bar in 8 different depth positions, meaning you would be able to use any adjustable bench on this unit.
The lowest position of the smith machine bar is 44 cm, measured from the ground to the top of the smith machine bar.
The highest position when training – 166 cm (measured from the ground to the top of the smith machine bar). You highest position when stored away – 196 cm.

Why Do I Need a 3D Smith Machine?

Smith Machines were considered dangerous by some over the years. Now I am seeing a resurgence. Not just in stand alone machines. You see smith style fixed plane set ups on machines like rows and hip thrusts.

The 3D smith machine combines the best of both worlds. You get the stability to focus on isolating the muscle. While also being able to follow the path of the exercies if using a traditional barbell. For a gym, you are just offering many of the favourite exercises in another format.

These machines used to cost a bomb and only had the 3D functionality. Whereas ATX offer the power rack and fixed smith capability. So you can perform the same exercise in multiple formats all on machine. German engineering at it’s best!

What’s Included?

Multi-Grip Chin Up Bar, 1 x pair of J-Hooks, 1 x pair of Spotter Arms, 8 x weight plate holders, 8 x resistance band rollers, 2 x accessory storage hooks and 1 x bar holder. Everything else shown in the photos are optional extras.

Frequently Asked Questions

Do I need to mount it to the floor?

The rack is designed to be freestanding, in saying that you do have an option to mount it to the floor. If you want to use the outer uprights as your half rack, then you would need to mount it to the floor to prevent any possibility of it tipping.

If you are training inside of the cage only, then you would be okay to use it as a freestanding unit.

Can I do standing shoulder press with the Smith Machine inside the Cage?

The maximum height of the smith machine measured from the ground to the top of the smith machine bar is 198 cm. You would not be able to perform standing shoulder press on this machine.

Is it difficult to assemble?

The instructions are not overly complicated, but you do need to follow them thoroughly as it is very easy to use the wrong rubber stopper which ends up setting you back by a fair few minutes. Generally if you are handy with the tools, you could basically knock this machine off in 3-5 hours.

Why are 30 mm guiderails important?

This machine comes with SOLID STEEL 30 mm thick guiderails. The industry standard for smith machines is anywhere from 20 to 25 mm. With some of them being hollow to save on costs. Subsequently the Solid Steel part is especially important if you want to minimize the guiderails flexing when training.
