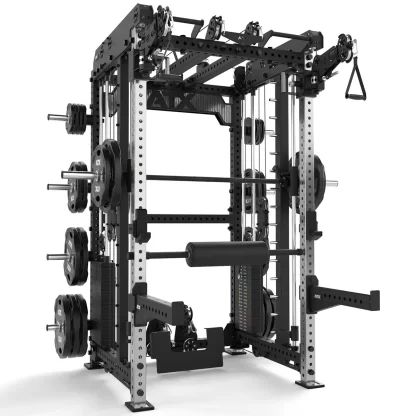

ATX® Multi Smith Rack All In One

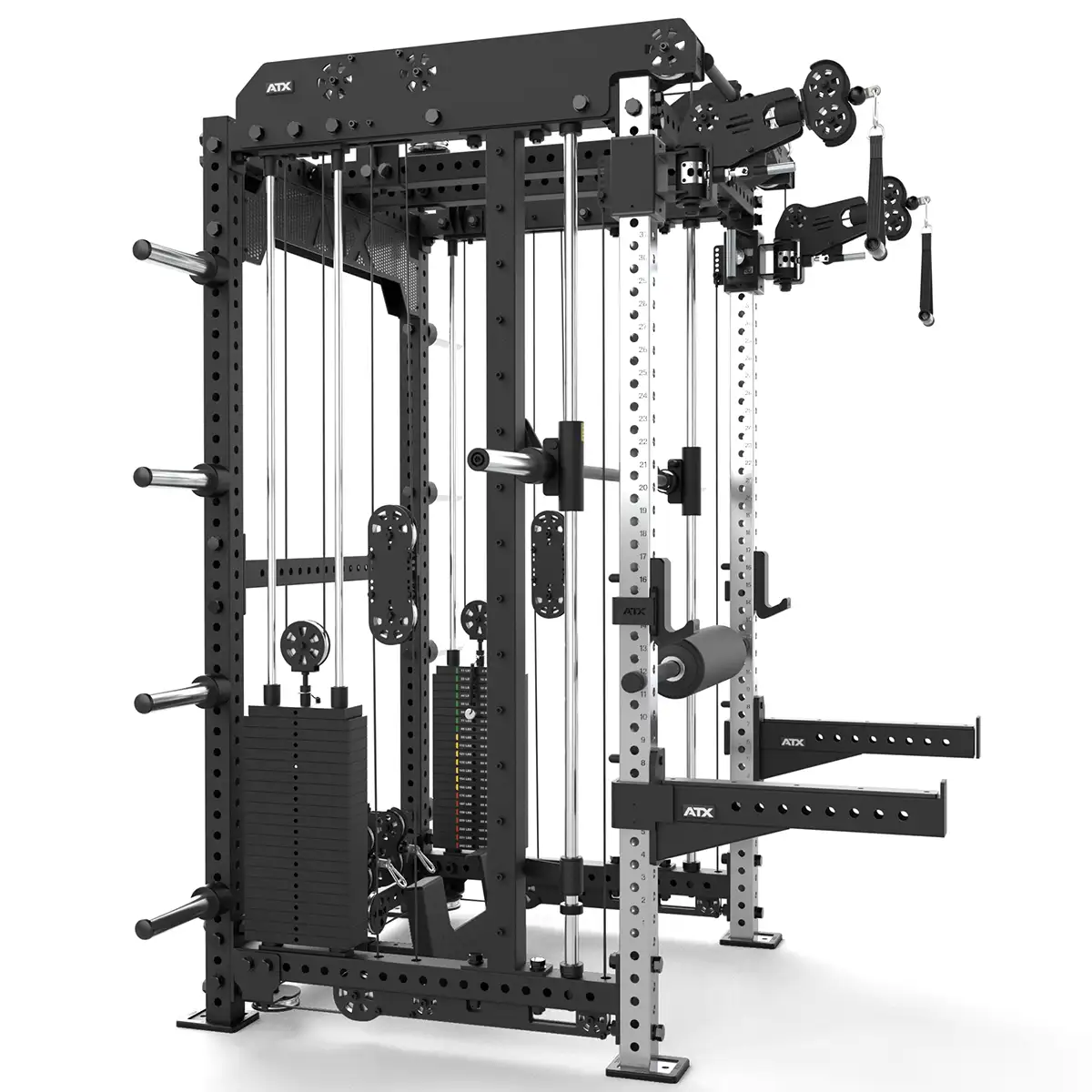

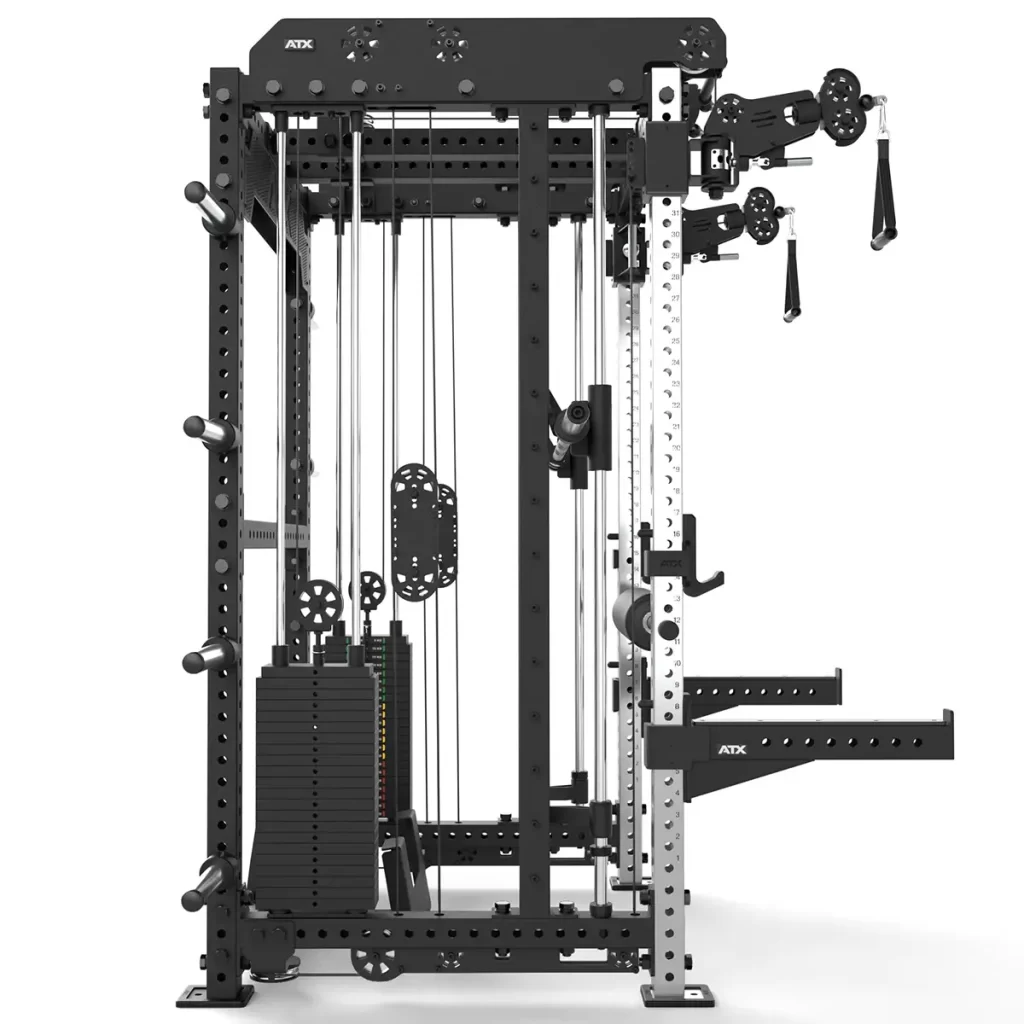

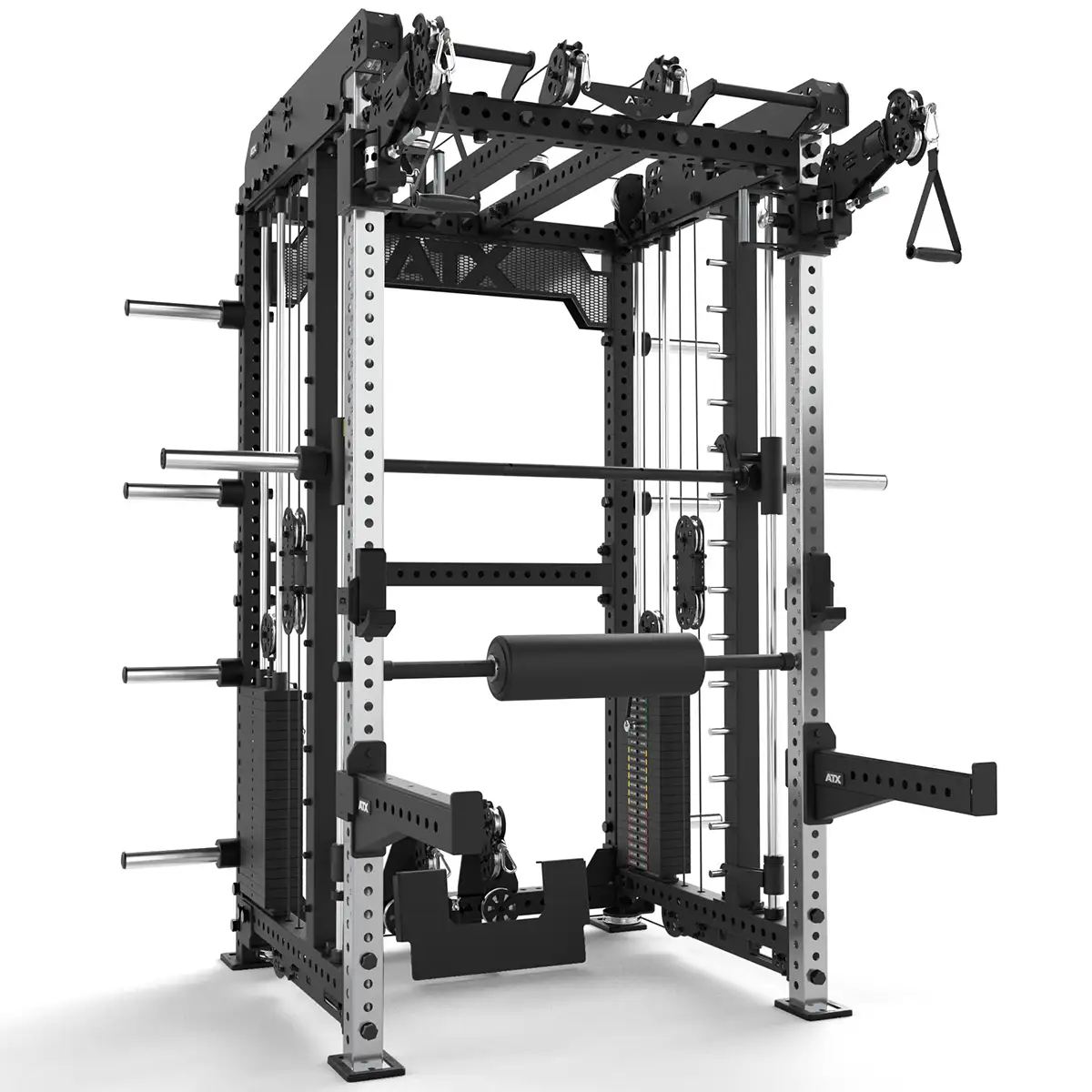

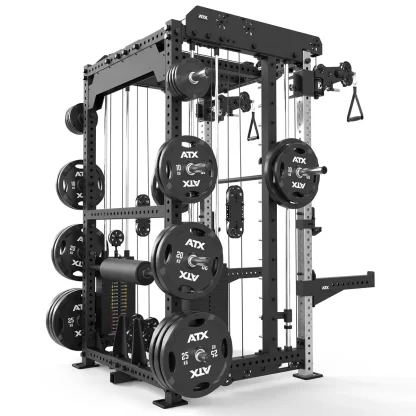

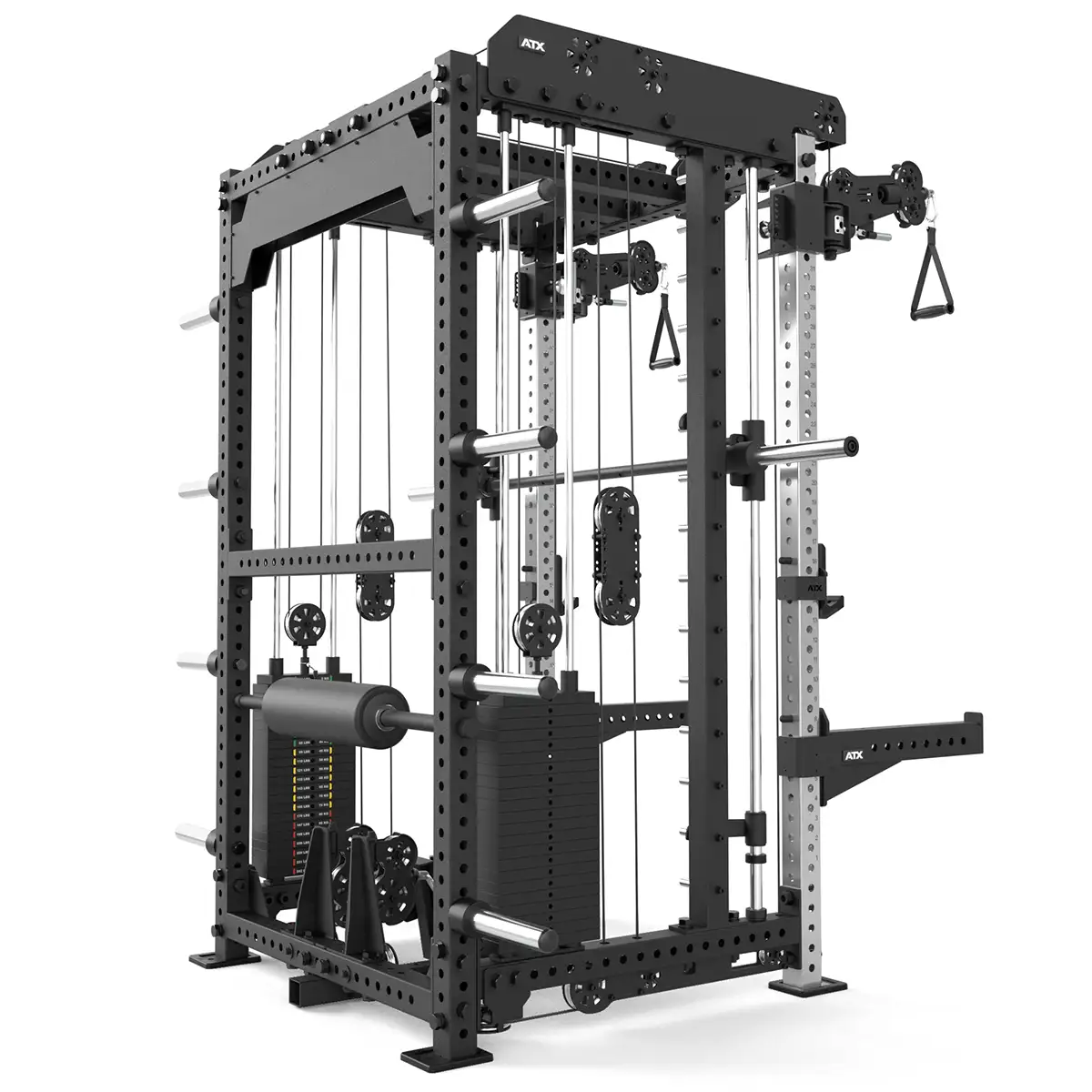

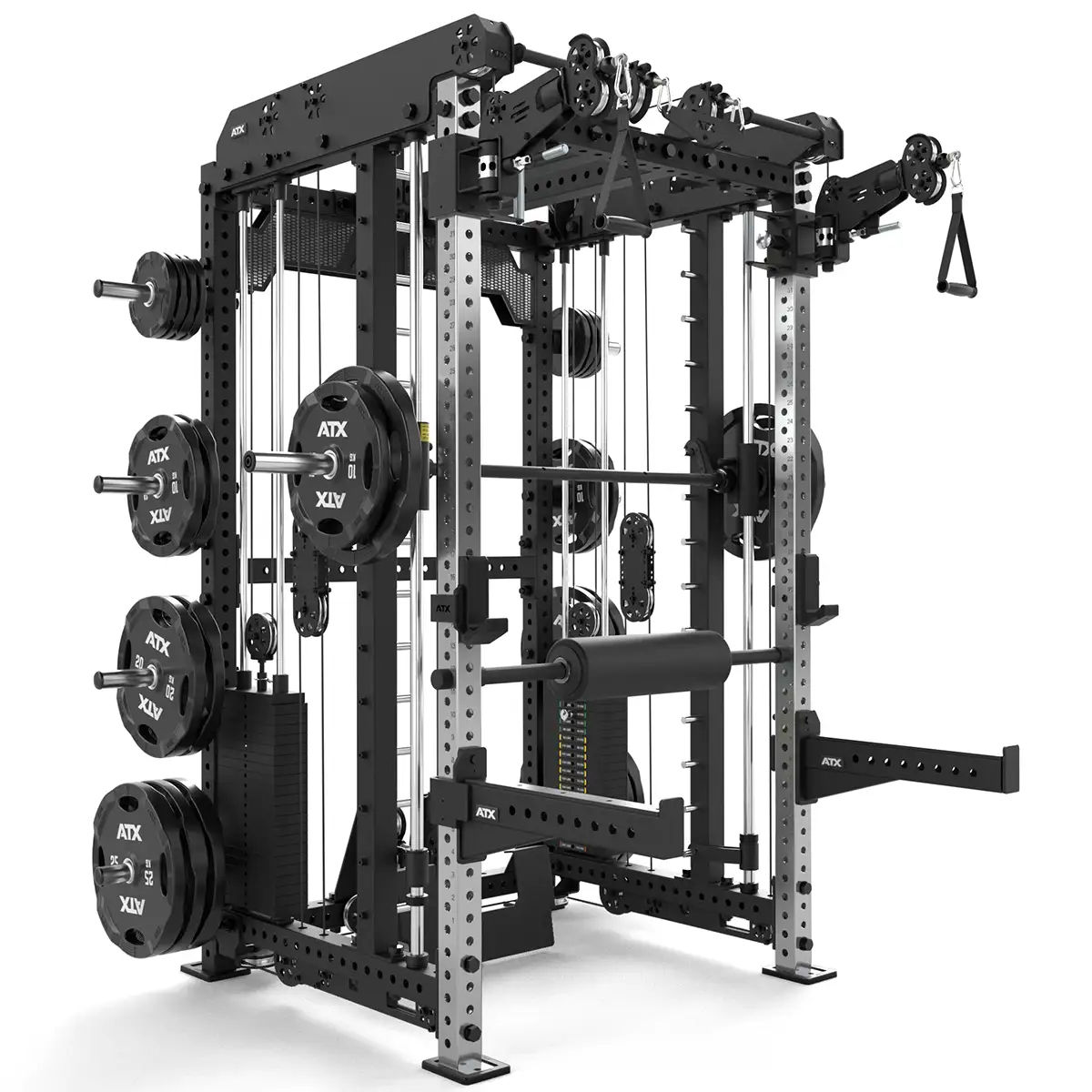

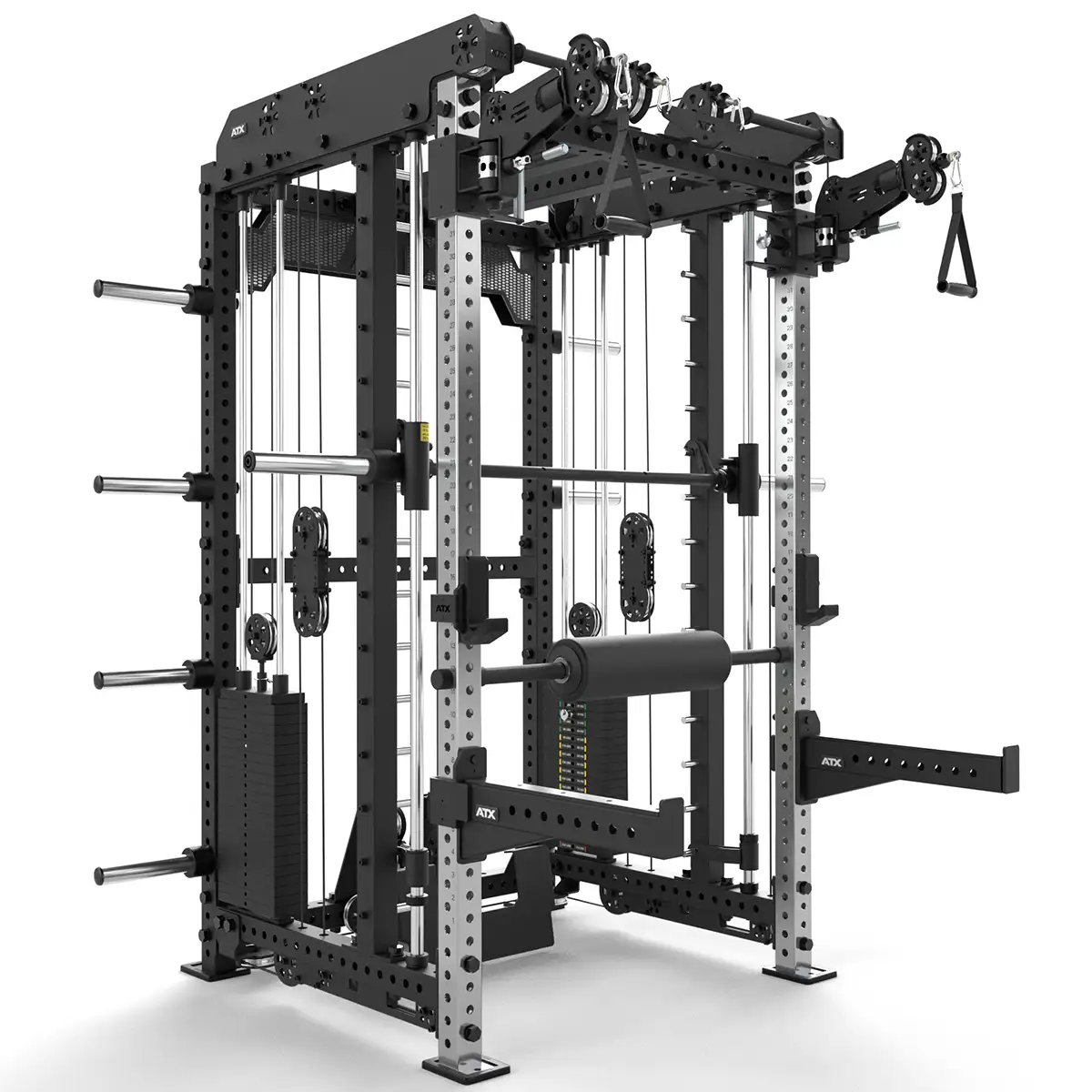

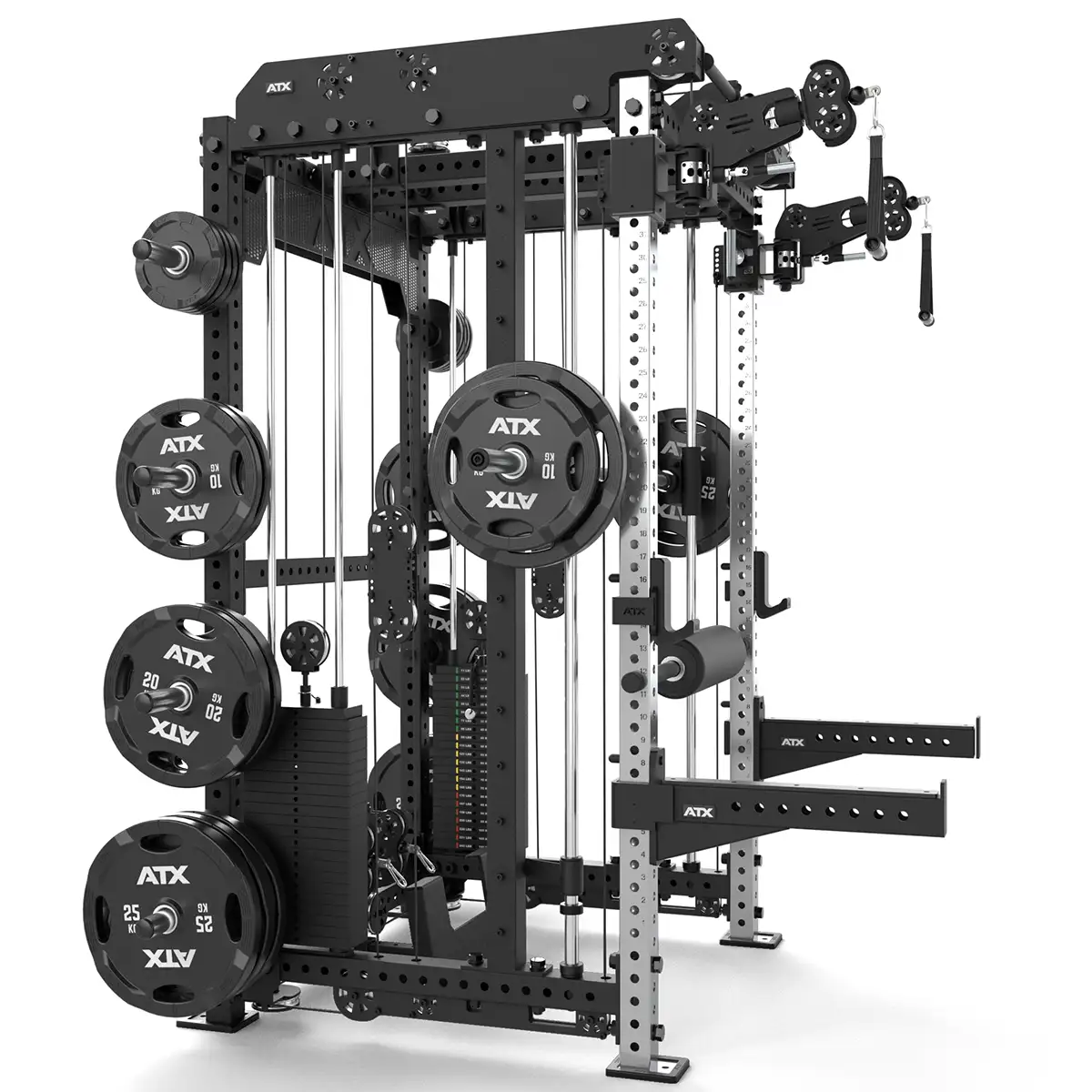

The ATX-MPHR-780 is the new force in the Smith Rack All in One market. It was unveiled at HomeGymCon in the USA and received rave reviews – after checking out the specs you will understand why. ATX have combined a commercial quality half rack, smith machine, functional trainer, and a high and low pulley system all in one compact footprint.

Before purchasing a competitor’s machine, do your own research on how ATX stacks up against the other brands. You are getting the top shelf components that all feature and have already been battled tested on many of the other ATX machines. What makes this machine amazing is that the design combines all these elements without sacrificing the functionality of the various exercise.

Key Features:

Footrests

Telescopic footrests can be extended to suite everyone. Angled with anti-slip surface.

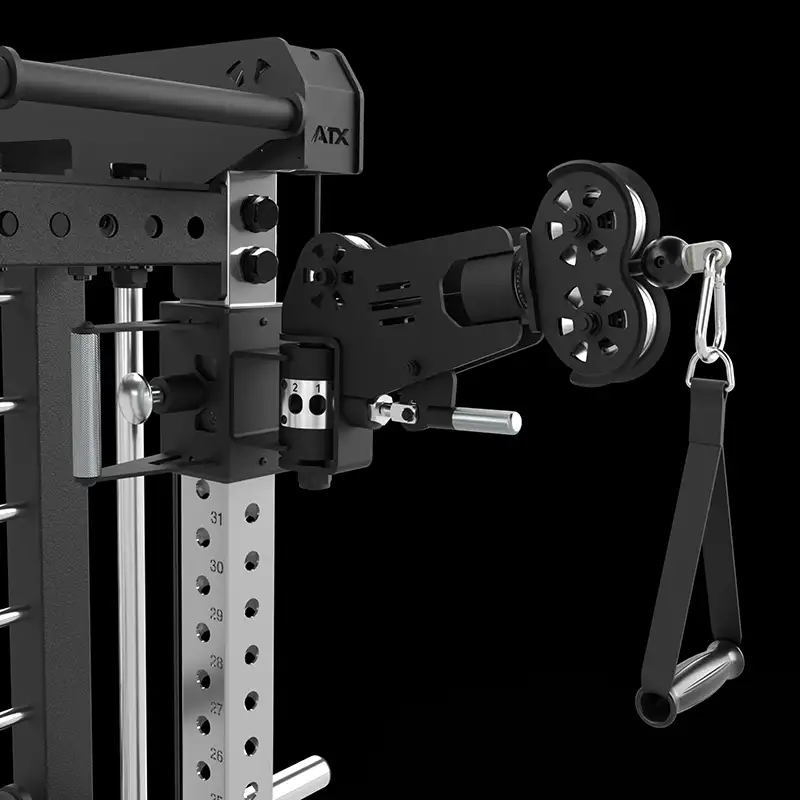

ATX XT-ARMS®

Height adjustable and swivelling arms. Swivel range 170 degrees.

Logo Plate

In stainless steel honeycomb design, it not only looks great but further reinforces the construction.

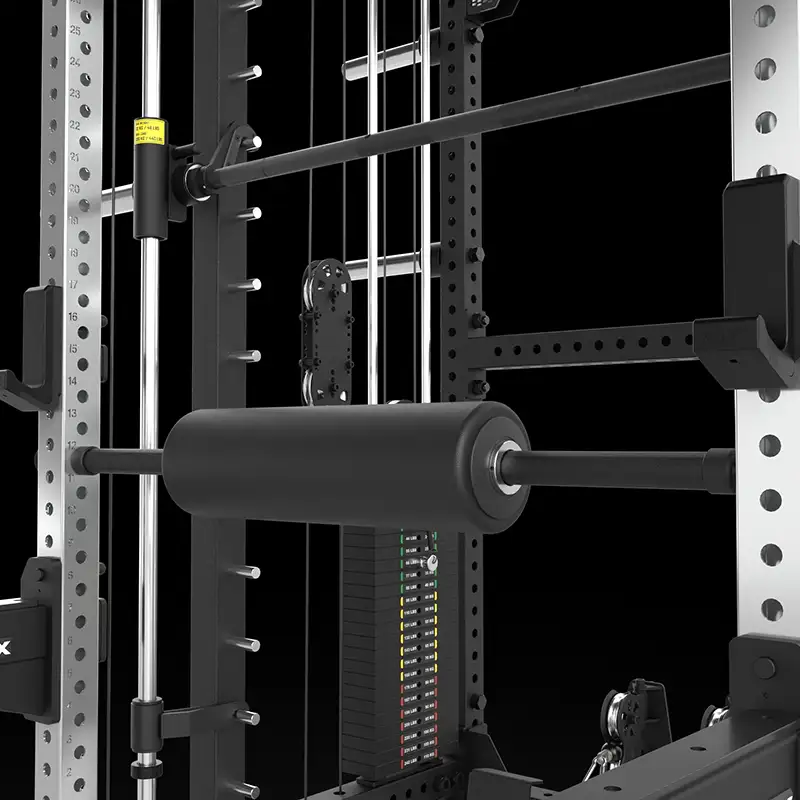

Adjustable Knee Roller

Keeps you locked in during heavy lat pulldowns. Can be set at custom height in 50 mm increments.

Front Uprights

Made out of Stainless Steel with Laser Scaling.

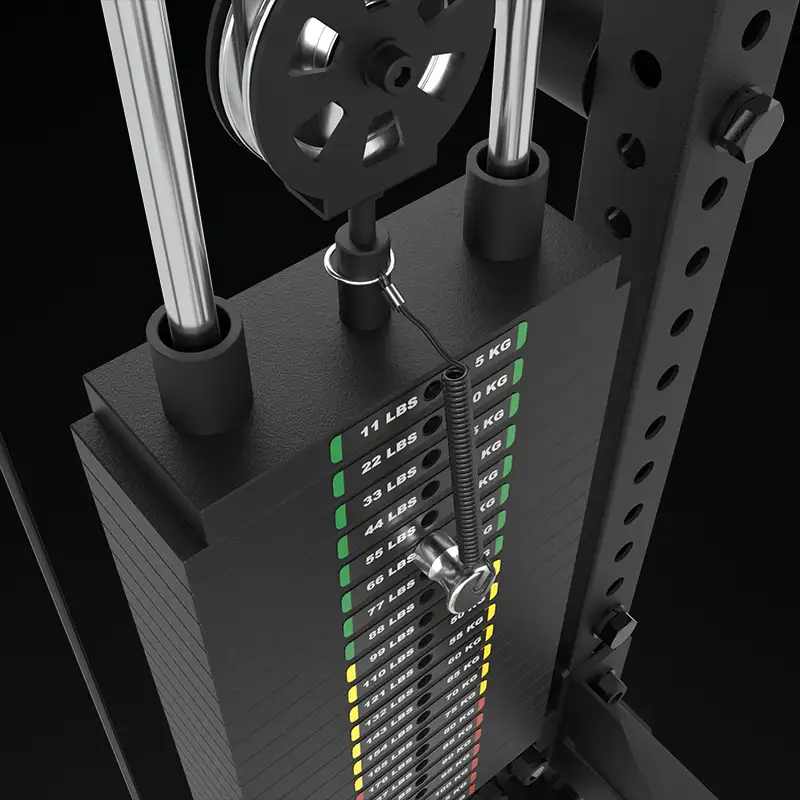

2 x 110 kg Weight Stacks

22 x 5 kg plates with 2:1 ratio. Can be connected for seated rows and pulldowns.

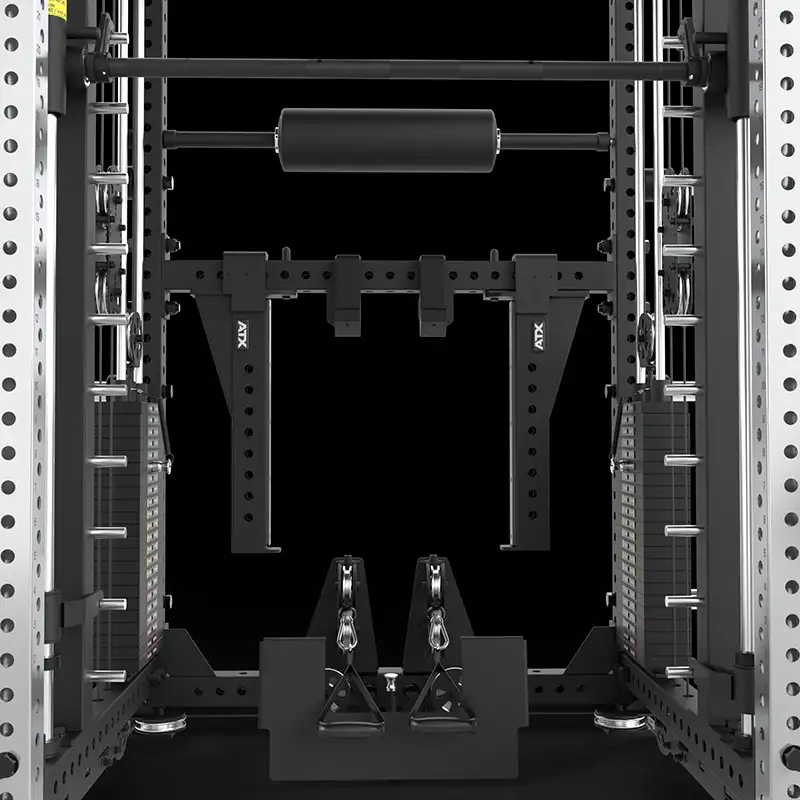

Accessory Storage

Get the included Spotters and J-Hooks out of the way with the built in accessory storage.

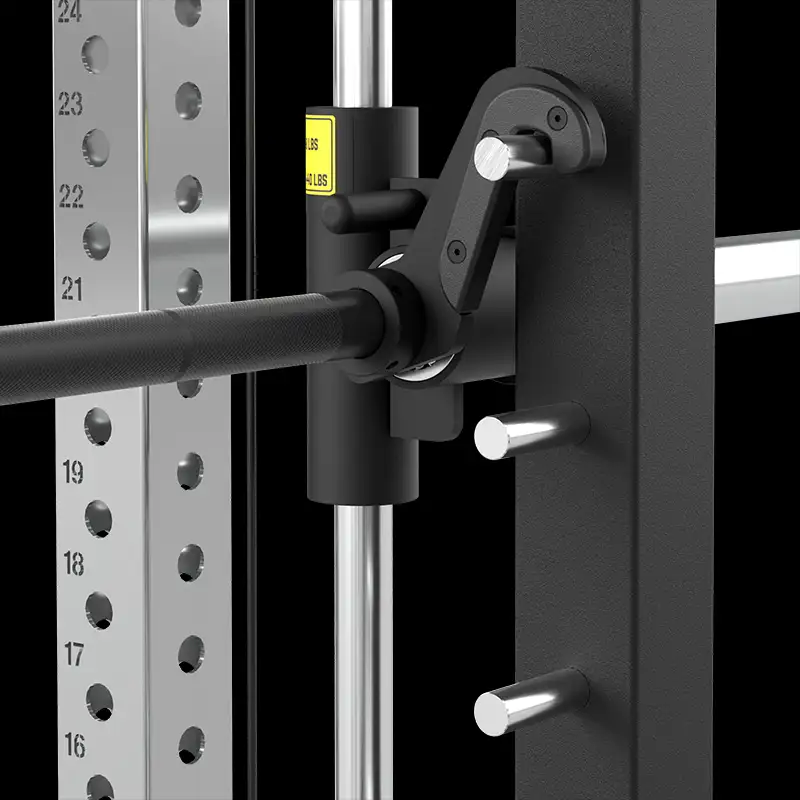

Smith Machine Bar

Silky Smooth linear bearings, with the locking hook featuring protective strips to reduce the noise while training.

Nylon Inserts

On both spotters and J-Hooks, protects the frame/paint from damage.

Specs for Nerds:

• J-Hooks – made from 10 mm thick steel strip, with all-round protection. Rated to 500 kgs

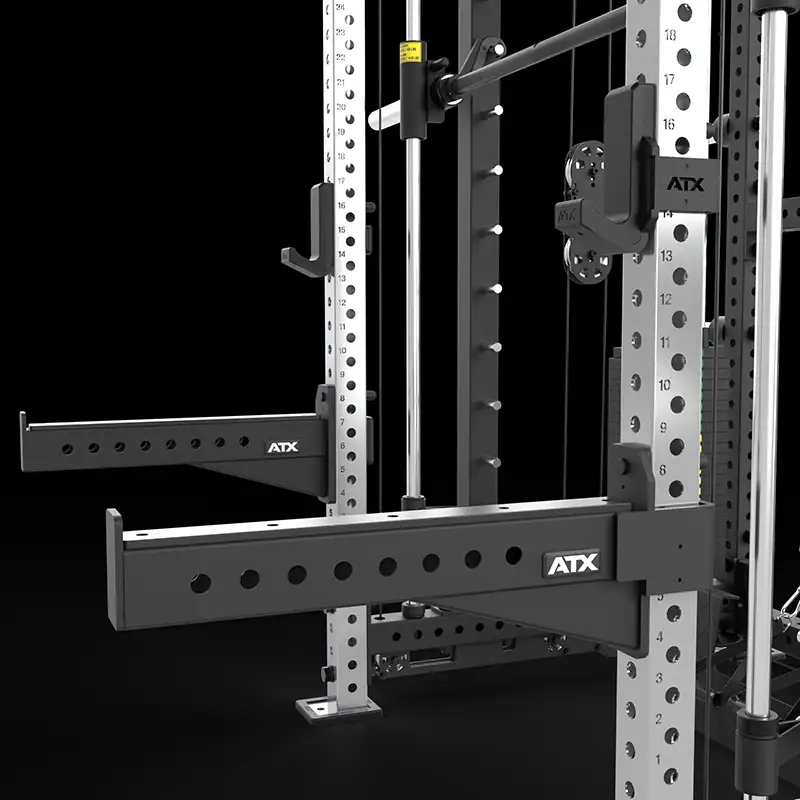

• Spotters – total length 625 mm, with anti-roll lip. With all-round protection. Rated to 400 kgs.

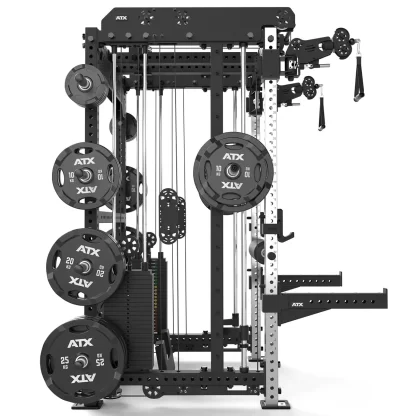

• 8 x weight storage horns, can be mounted at custom height in 50 mm increments.
• The unit does not need to be bolted to the ground thanks to the high base weight of 645 kgs.
• Frame is manufactured out of 70 mm x 70 mm x 3 mm thick steel tube, with front uprights being made out of Stainless Steel.
• Uprights – holes on all four sides. Hole Diameter – 21 mm, center to center distance 50 mm. Total holes per side – 35.
• Laser Cut hole markings on two sides.
• Built In pull up handles at the front of the unit.
• Smith Machine – operates on linear bearings and 30 mm thick hard chrome steel guiderails. With 30 mm thick knurled grip. Olympic Sleeve Length – 300 mm. Rated to 200 kgs.
• Comes with J-Hooks, Spotters and a Pair of Stirrup Handles. All other accessories shown in the demo photos are sold separately.
