780 Rack + Plate Load Lat + Smith Options

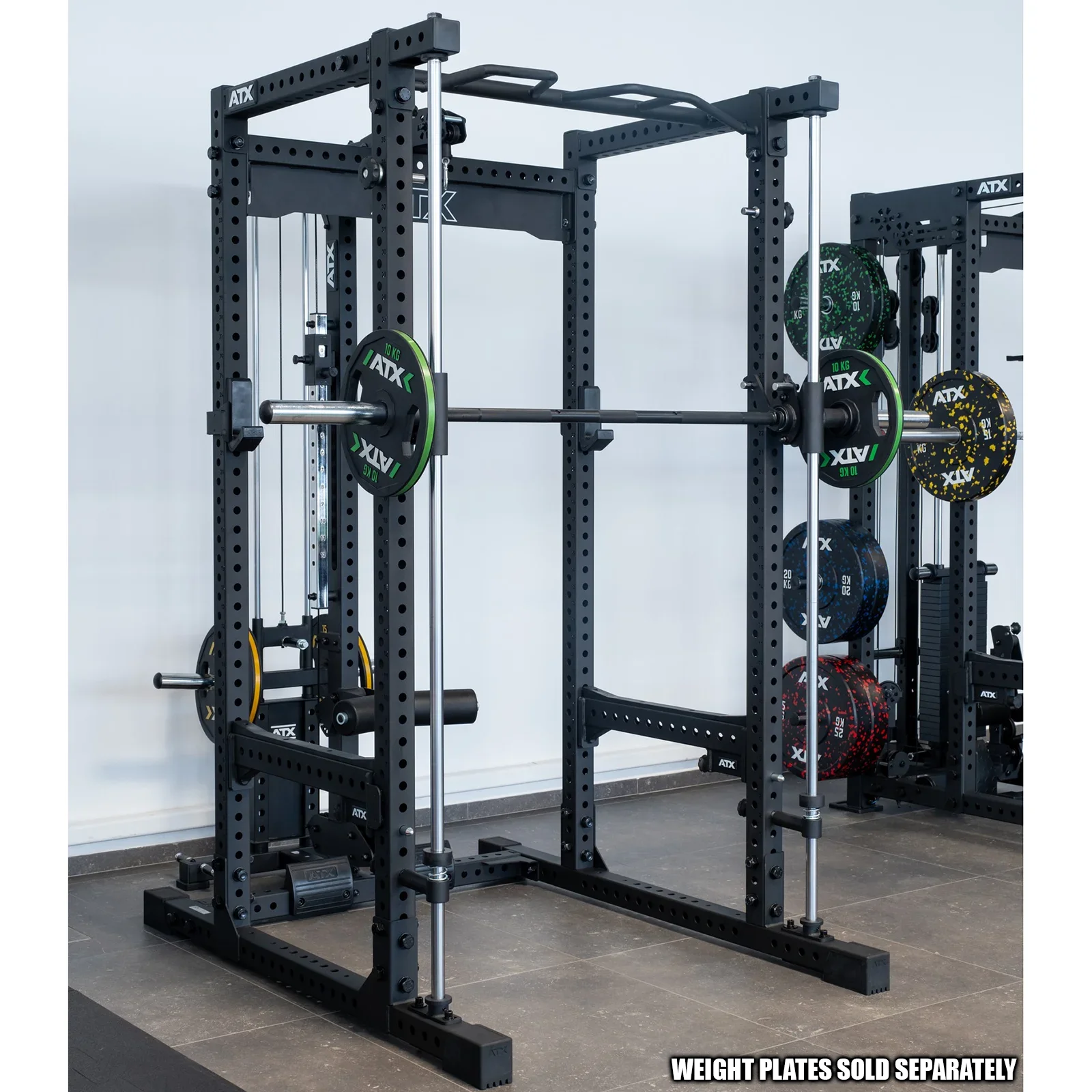

The ATX® Power Rack features adjustable safety bars, a weightlifting bar, and a versatile pull-up bar on top. This sleek black model includes a Smith and pulley system for diverse workouts, all against a plain background.

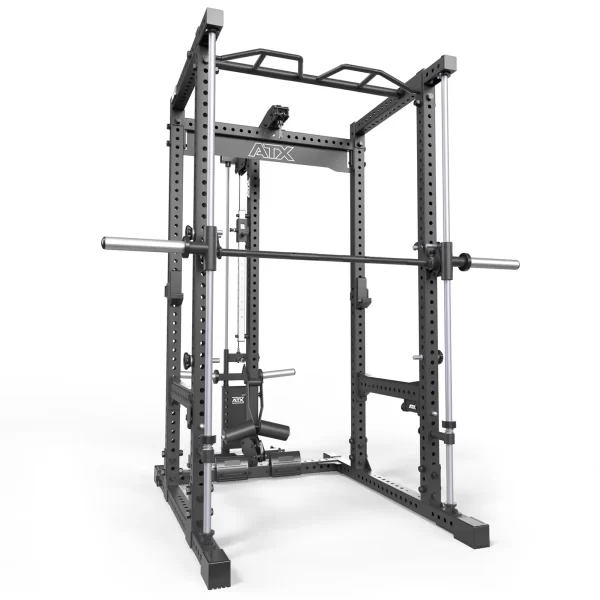

The ATX® Power Rack with Smith & Pulley System, in black metal cage style, includes barbell holders and chin-up bars. Its sturdy design is ideal for strength training exercises.

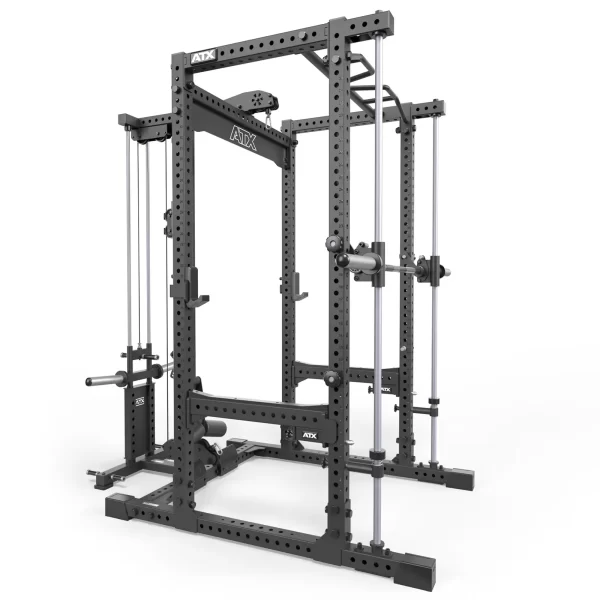

The ATX® Power Rack with Smith & Pulley System includes a barbell, adjustable weight machine, pull-up bar, safety supports, and weight stack. Its robust metallic structure is perfect for diverse strength training exercises.

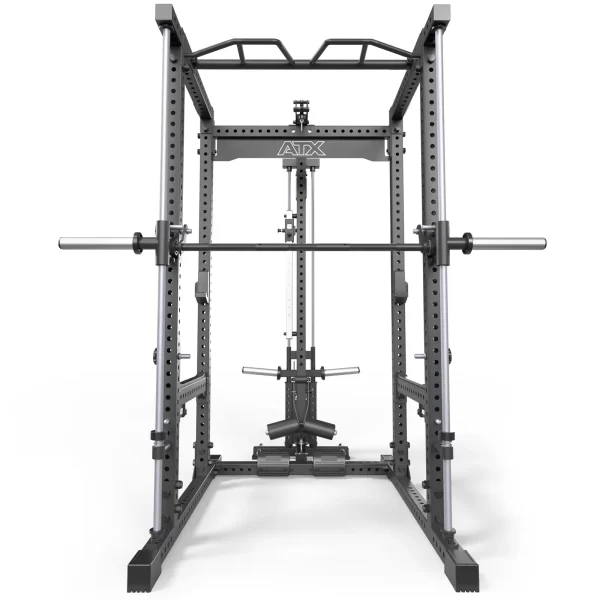

The ATX® Power Rack with Smith & Pulley System is a black, multi-functional structure featuring adjustable hooks and a pull-up bar, ideal for strength training with numerous attachment options for diverse exercises.

780 Rack + Plate Load Lat + Smith Options

Name: 780 Rack + Plate Load Lat + Smith Options
SKU: ATX-PRX-780-KPS-200
Availability: OutOfStock

Write a Review

$3,414.00

Item No: ATX-PRX-780-KPS-200

Out of stock

DESCRIPTION

Dimensions	222 × 100 × 65 cm
Rack Series	700
Frame	70 x 70 x 3 mm
Weight Weight The base weight of the item, without any packaging.	274 kg
Footprint Footprint This is the area occupied by the item itself. You might need to allocate additional space for the use.	122/200 cm x 211 cm
Colour	Black
Inclusions Inclusions These are the specific items that you will receive when you purchase the product. Some products are shown with items that are not included for demonstration purposes.	J-Hooks, Spotter Bars, Multi-Grip Chinup Bar
Certification	Studio
Safe Working Load	J- Hooks – 500 kg, Spotters – 600 kg, Chin Up – 200 kg, Rack – 1000 kg, Pulldown – 200 kg, Smith – 200 kg
Height	228 cm
Warranty	5 Years – T & Cs
Inner Cage Footprint	108 cm x 73 cm
Hole Grid	Hole size – 21 mm, 35 x Center Distance – 5 cm.

This is a brute of a gym designed for seriously strong lifters. The lat pulldown can take up to 200kgs. Whilst being built like a tank, it also has so many features to make training easier.

Key Features:

Cable Length Adjustment

No need for extension chains, with the rope length adjustment system you can change the starting point from 200 cm to 155 cm.

Heavy Duty J-Hooks

500 kgs safe working load (per pair) with extended barbell knurling protection and nylon inserts to protect the paint on the uprights.

High Pulley

Thick steel sheet housing with double pulleys for the ultimate pulldown experience.

Resistance band pegs

For attaching resistance bands for those who want an even more dynamic resistance loading.

Adjustable Knee Pads

Spring Pin Operated knee rests.

Choose from 6 different positions.

With sweat resistant PU-Rollers.

Rubber Footrests

Large anti-slip rubber footrests with steel inner core.

Safety Stopper

Can be adjusted in seconds in 50 mm increments.

Smooth Movement

Thanks to 30 mm thick hard chrome plated solid steel guiderails and linear bearings.

Locking Pins

You will get 3 sets of locking pins, which you can mount at any height you want.

Multi-Grip Chin-Up Bar:

Knurled for extra grip and designed for a variety of pull-up styles. When not in use you can store the smith bar on the pull up handles.

Heavy-Duty Lifting Bar

Made from solid steel with knurled grips for maximum control, rated for 200kg.
Ø 32 mm

Seamless Operation

Lower the cable for both high and low pulley in seconds.

Customizable Safety

Adjustable safety stops and locking positions for a secure workout.

Heavy-Duty Build

Constructed from 70x70x3mm steel tubing for unmatched strength and stability.

Expandable

Optional Band pegs, Lat pulldown option, dip bars, monolifts, or wrist rollers.

Why Choose the ATX-PRX-780-KPS-200?

This power rack combines the freedom of barbell training, the safety of a smith machine, and the versatility of a professional-grade pulley system—all in one compact, heavy-duty unit. Whether you’re hitting heavy squats, lat pulldowns, or controlled Smith machine bench presses, this rack handles it all with ease.

Upgrade your gym today with the ATX-PRX-780-KPS-200—a power rack with smith and pulley system designed for strength training at the highest levels. Perfect for both commercial and advanced home gym setups.

Heads up: Barbells, extra plates, or accessories in pics aren’t part of the deal—just the rack, lat station, smith machine option as listed.
