The Wall – Rack System & Crossover

ATX®
$8,875.00
Item No: ATX-MCR-780

3 in stock

DESCRIPTION

Weight

Weight

The base weight of the item, without any packaging.

763 kg
Rack Series

700

Frame

70 x 70 x 3 mm

Weight

Weight

The base weight of the item, without any packaging.

760 kg

Footprint

Footprint

This is the area occupied by the item itself. You might need to allocate additional space for the use.

322.5 cm x 157.5/161.5 cm

Colour

Black

Certification

Studio

Safe Working Load

J-Hooks – 500 kg per pair, Spotters – 400 kg per pair, Chin Up – 200 kg, Cable Stations – 150 kg each, Total Frame – 2000 kg

Height

229.5 cm

Warranty

5 Years – T & Cs

Hole Grid

Hole size – 21 mm, holes on all four sides, 36 x Center Distance – 5 cm.

Version

2

Weight Stacks

2 x 125 kg pin loaded (5 kg x 25 plates)

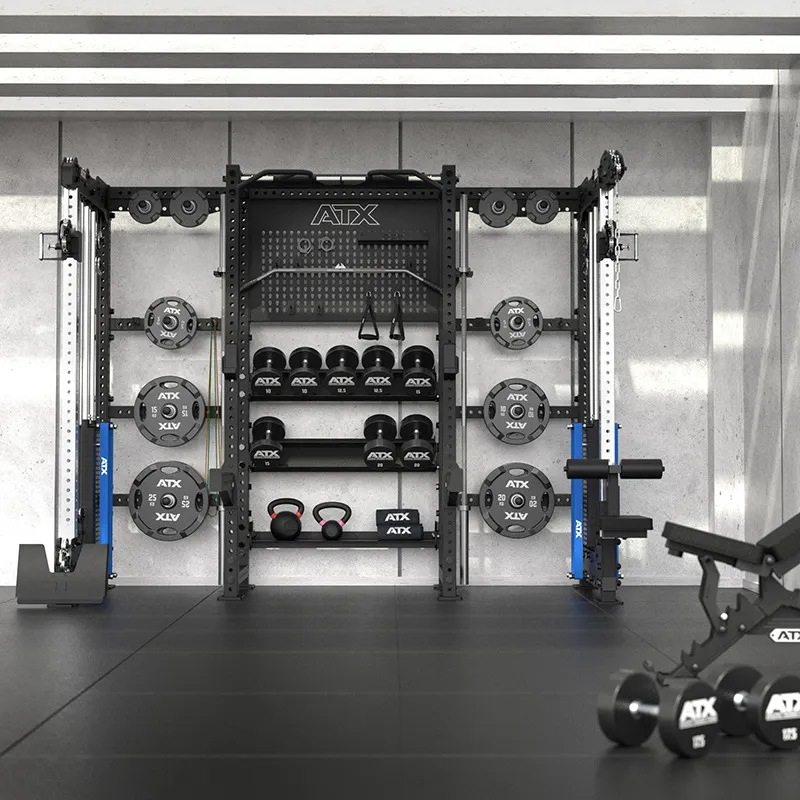

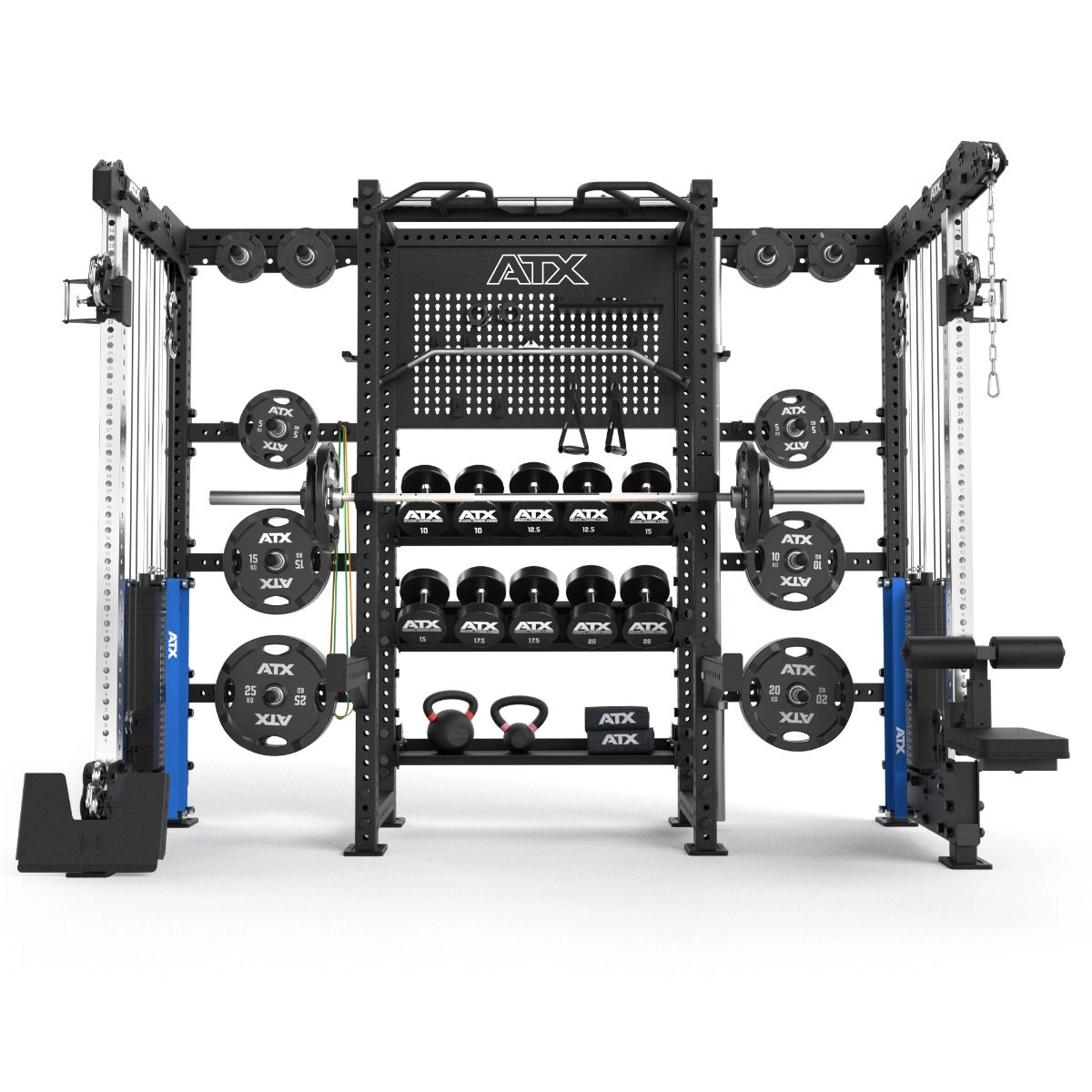

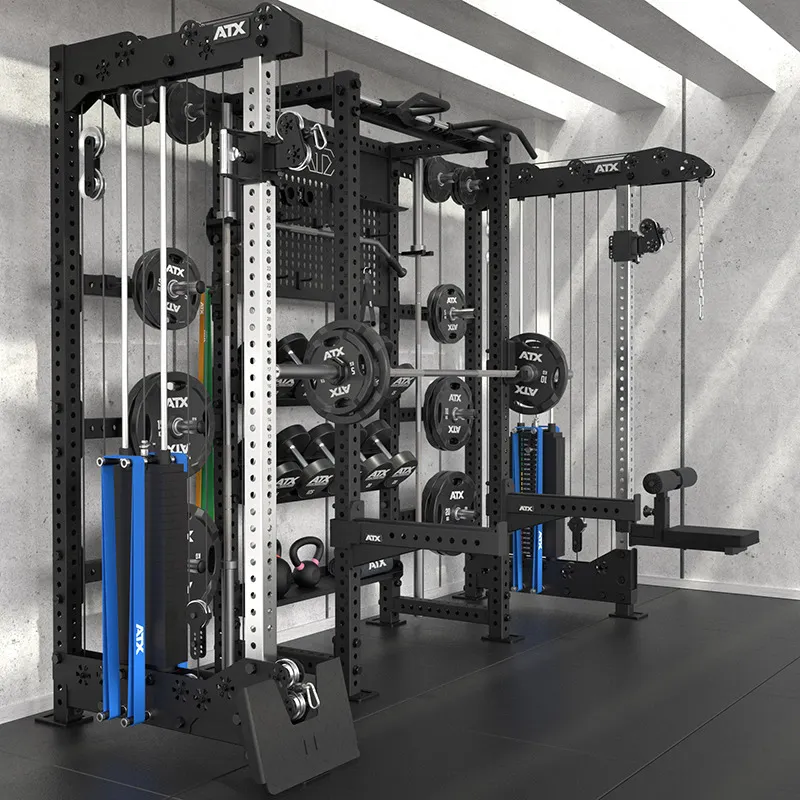

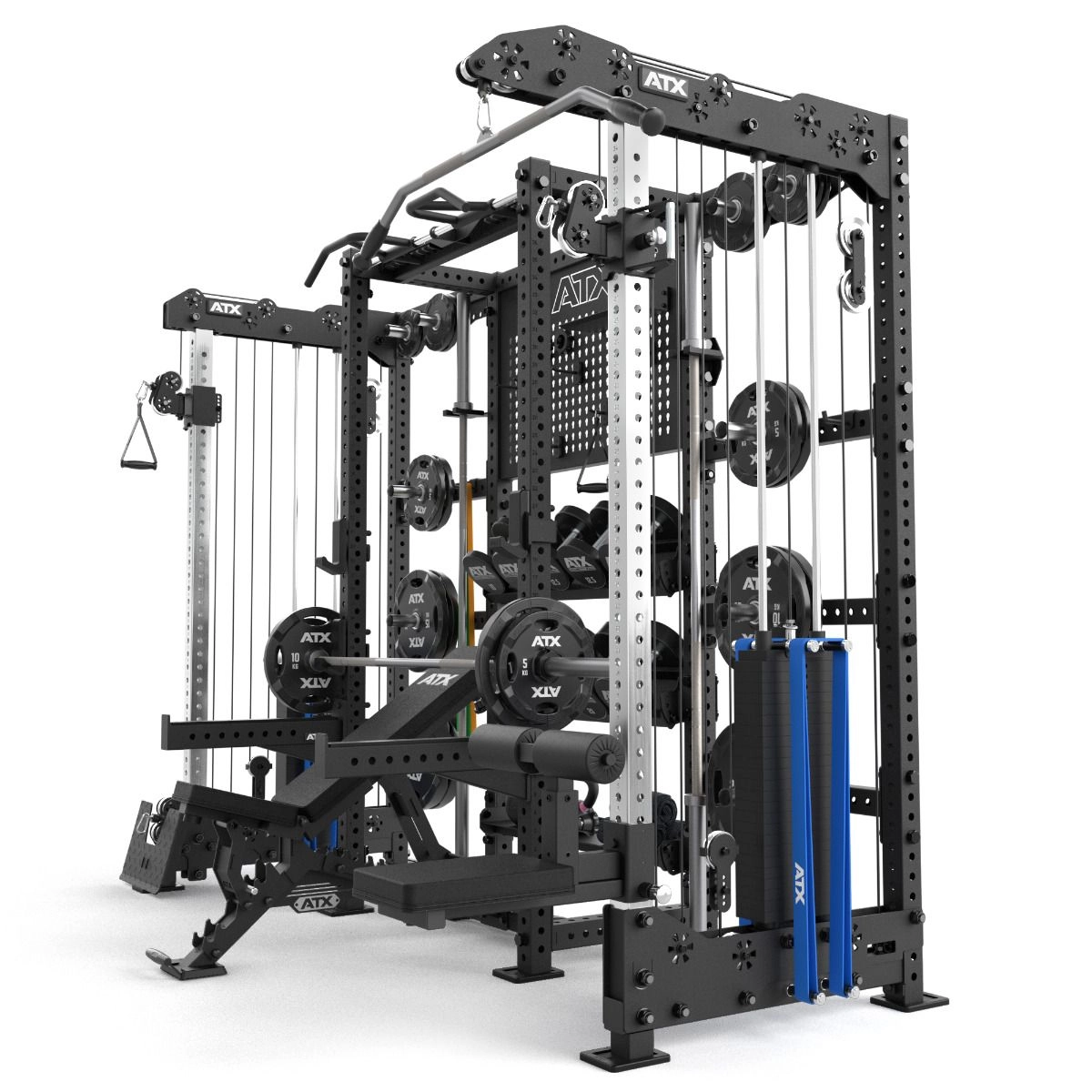

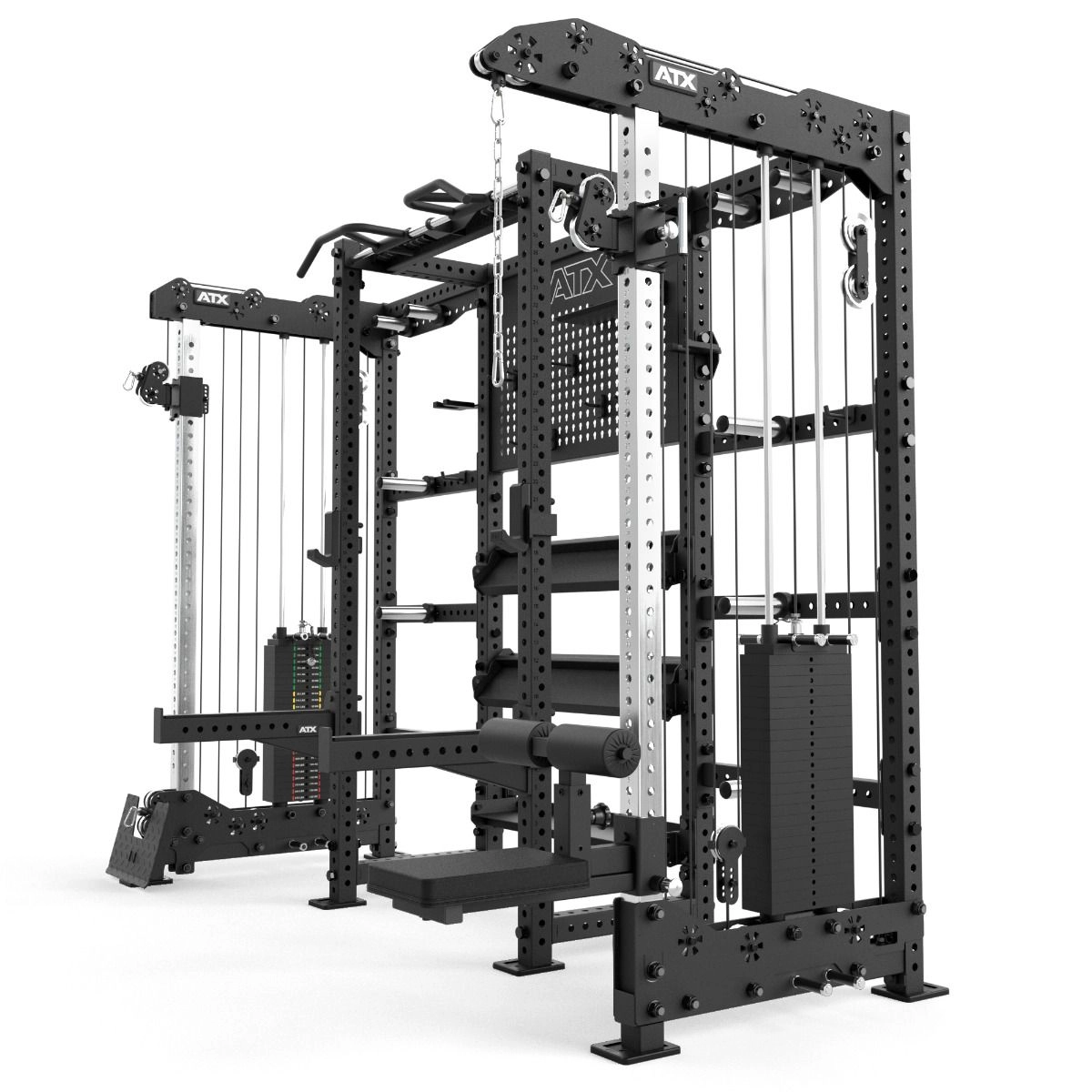

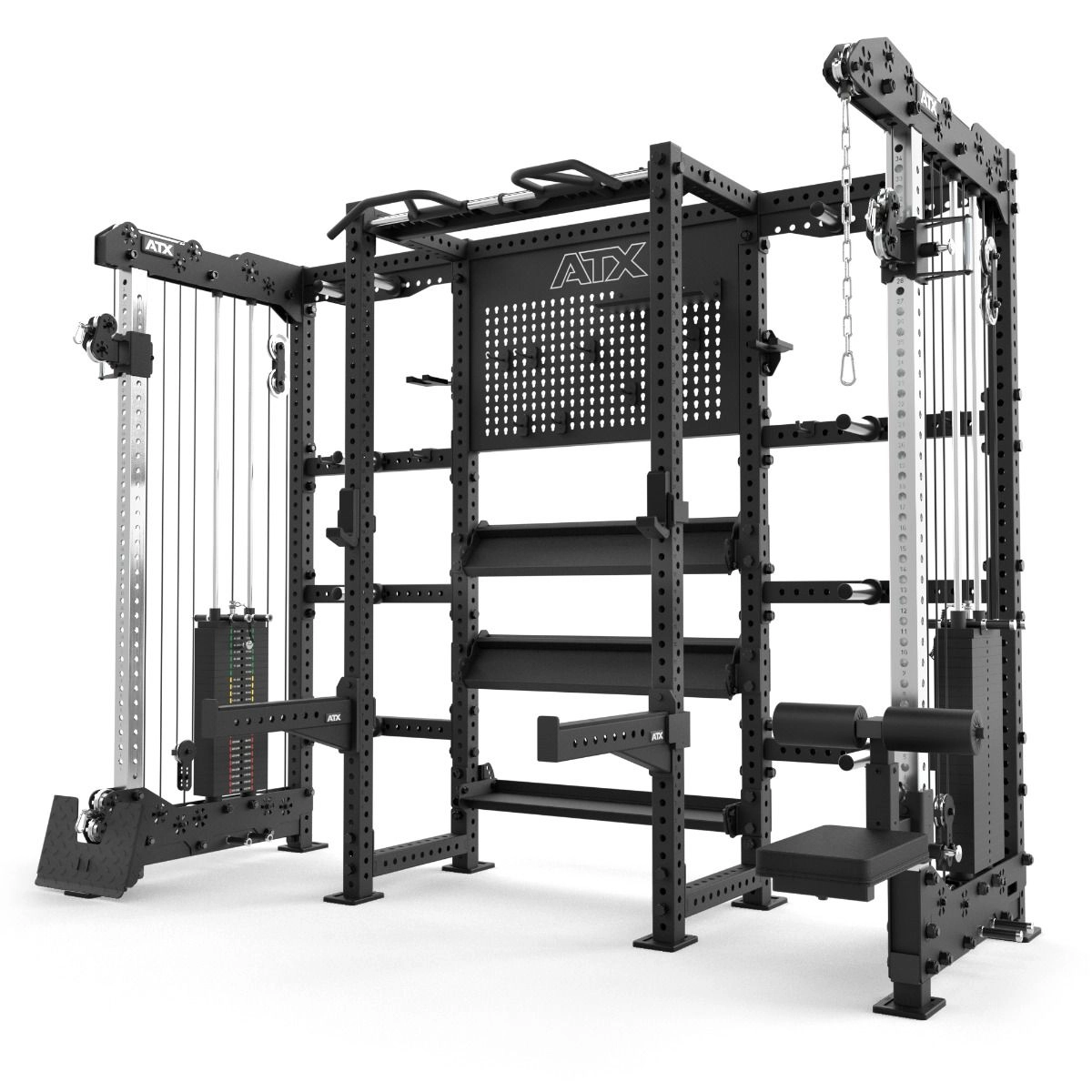

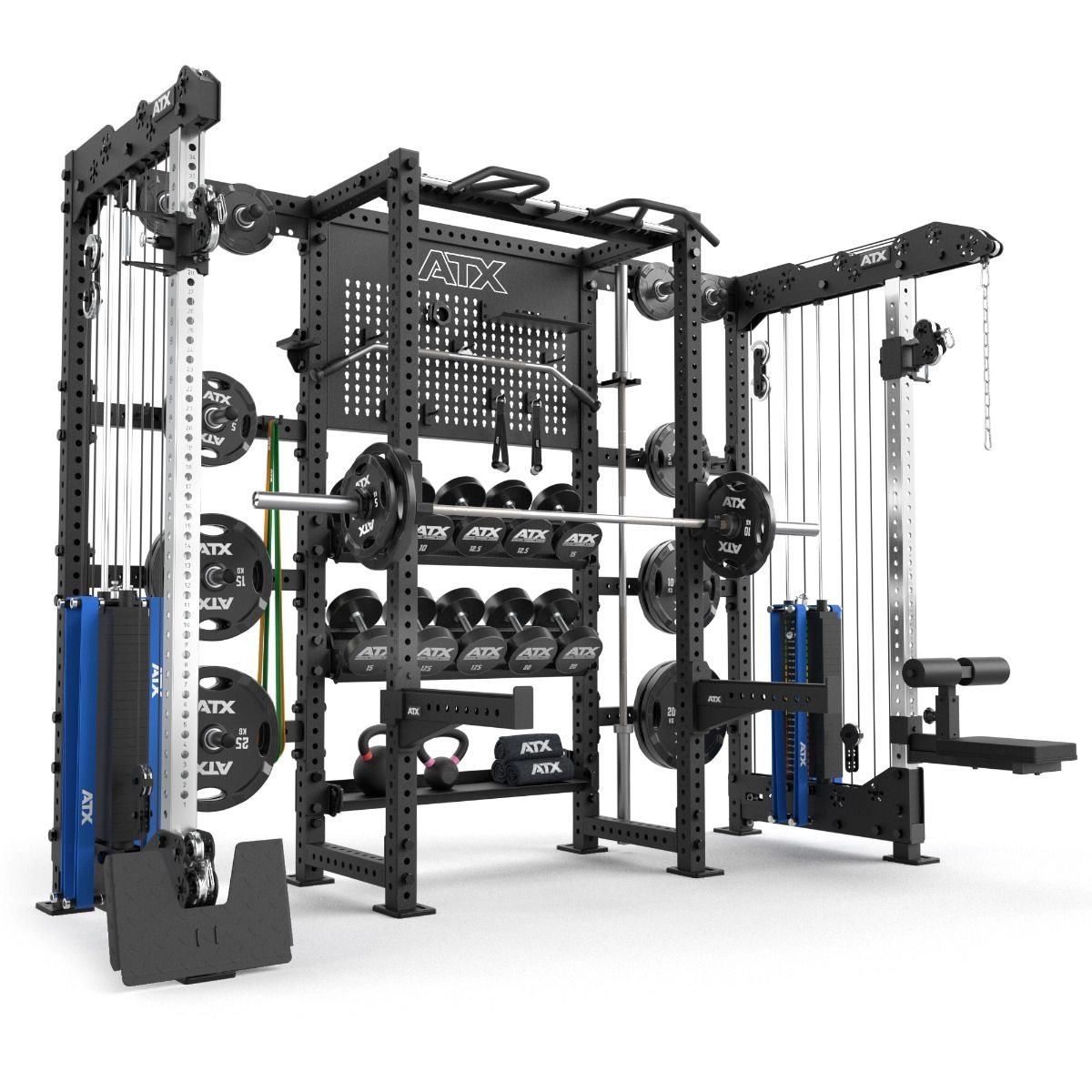

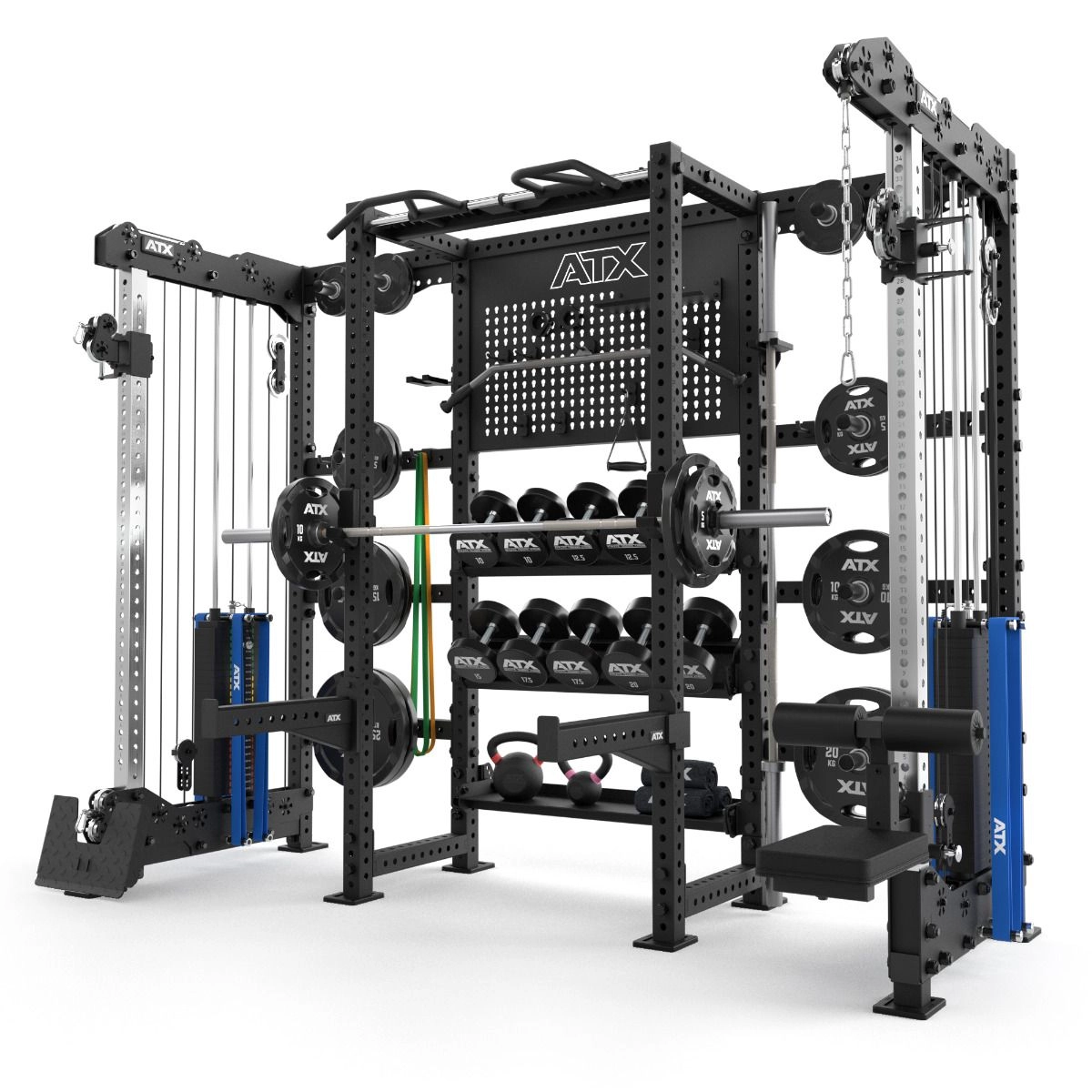

The Wall by ATX is a great training option for the free weight enthusiast. It packs a power rack, lat pulldown, cable crossover plus multiple storage options into one relatively compact footprint. Your training options can be further expanded with ATX’s growing list of power rack attachments.

When you add up the individual components, the Wall is a cost and space efficient way to add these machines to your gym. It is certified to EN 20957 I.II.IV Class S (studio).

Key Features:

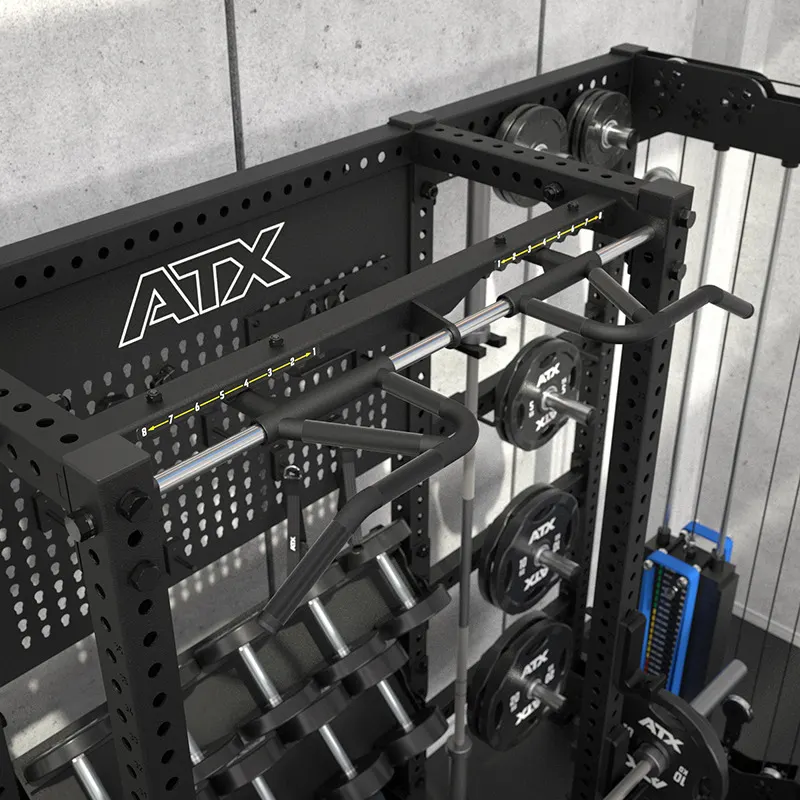

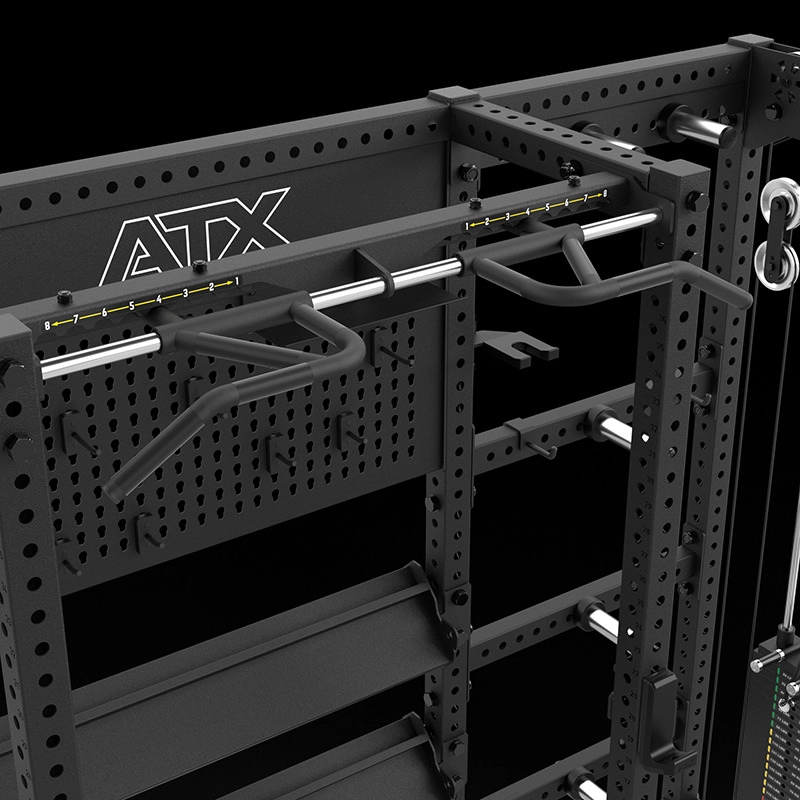

Close-up of the indexing multi-grip pull-up bar on The Wall with width markers and the ATX pegboard behind

Indexing Pull Up Bar

4 x grip positions which can be adjusted 8 times, allowing over 30 grip variations.

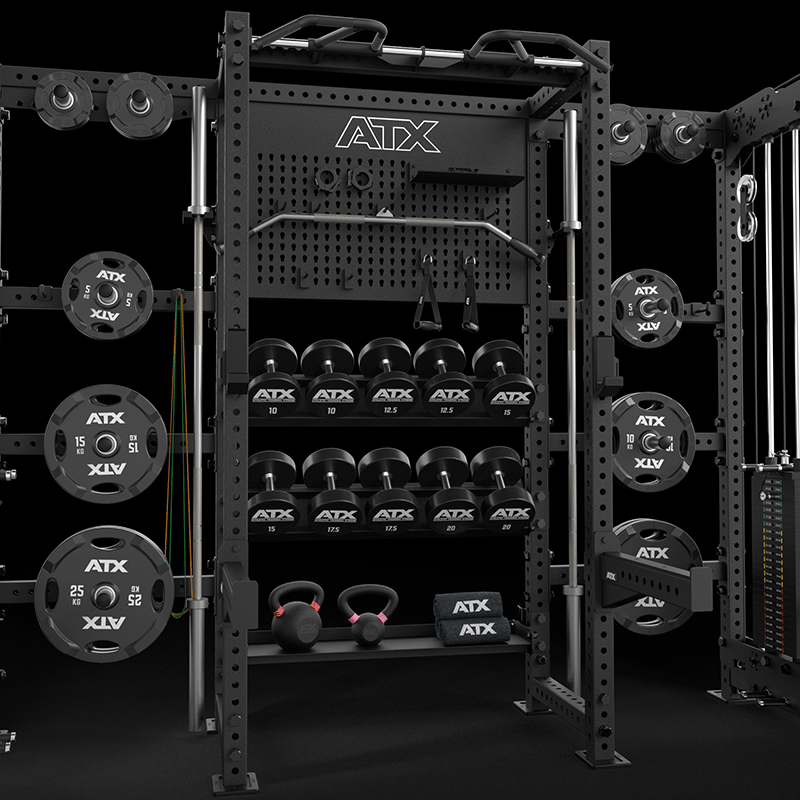

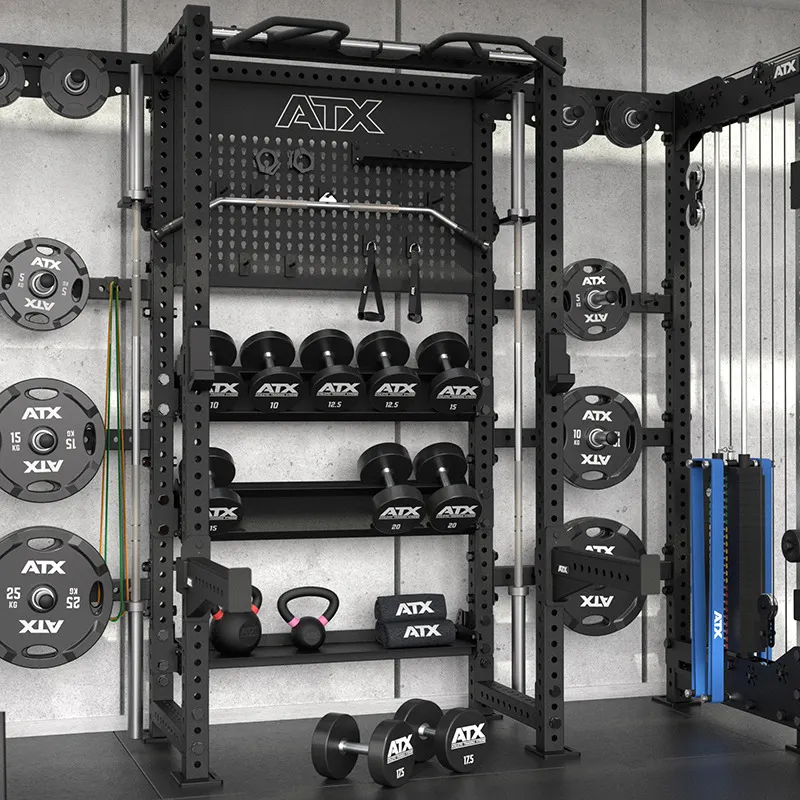

Animation of the storage wall on The Wall with weight plates on side pegs dumbbells on shelves and bars on hooks

Storage System

A total of 10 Olympic plate holders, 2 x barbell holders, and a pegboard for all your cable attachments!

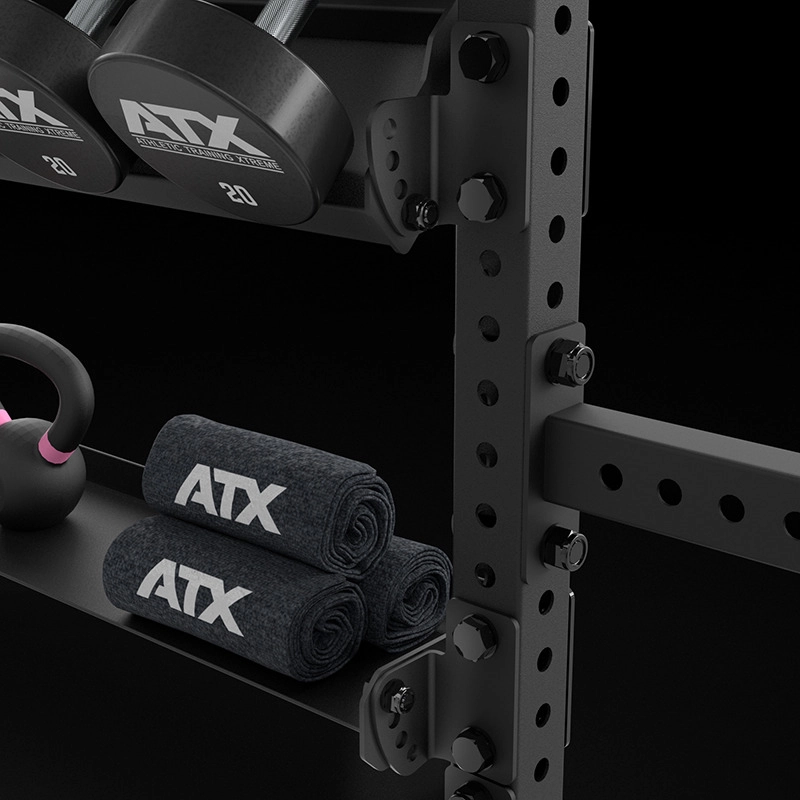

Close-up of an adjustable shelf on The Wall holding weight plates rolled ATX towels and a lifting belt

Shelves

3 shelves which can be mounted at custom height with 4 angle adjustment positions.

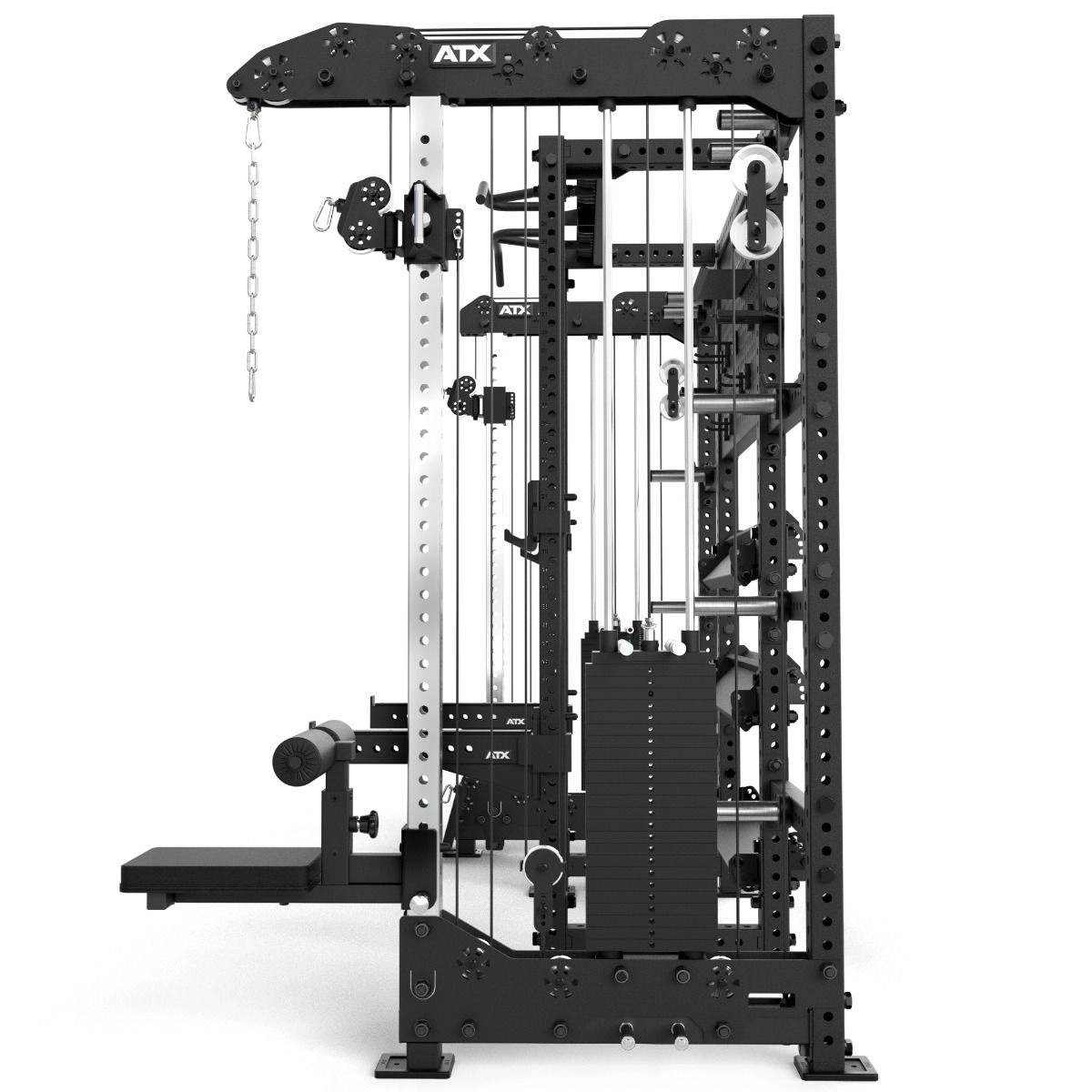

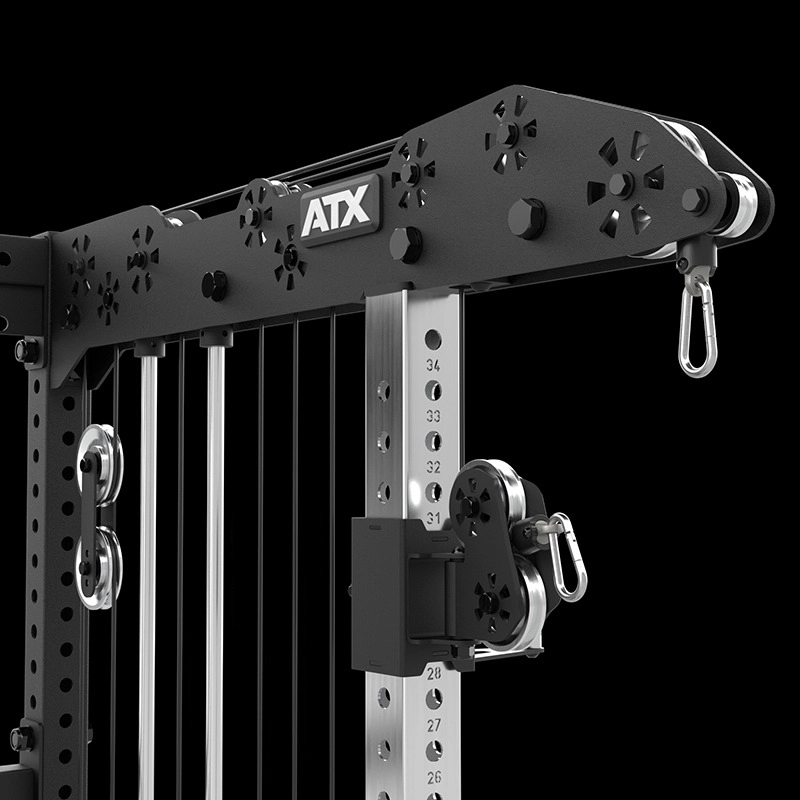

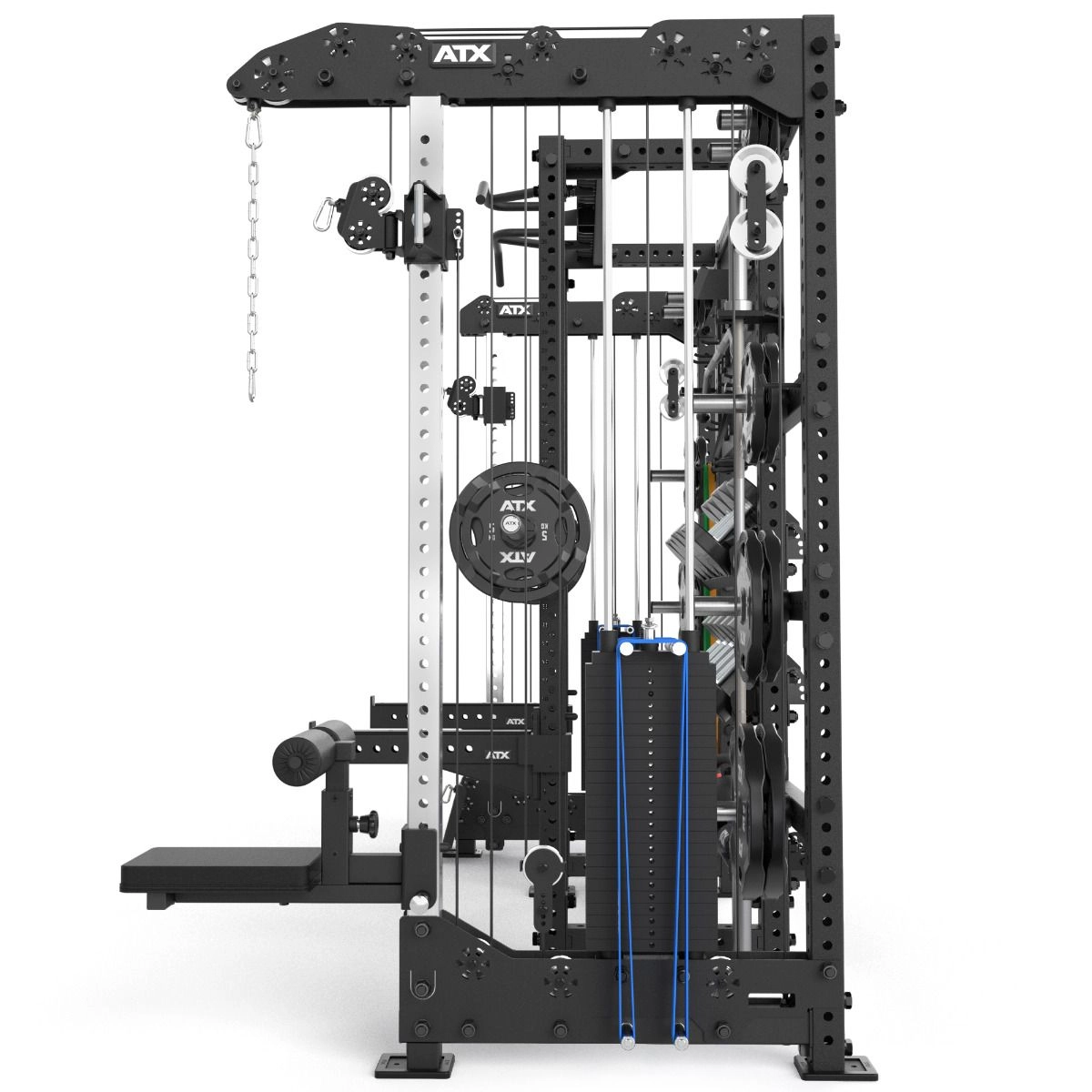

Close-up of the lat pulldown tower on The Wall with ATX boom aluminium pulleys carabiner and numbered upright

Lat Pulldown Station

125 kg pin loaded stack with a 1:1 ratio and an extra counter-rotating pulley for high free cable variations.

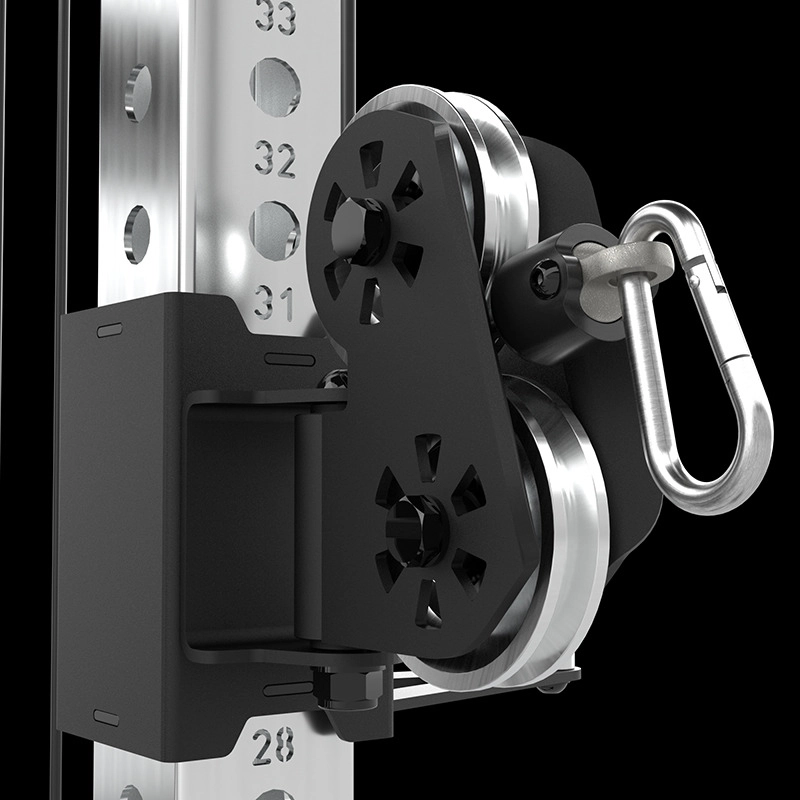

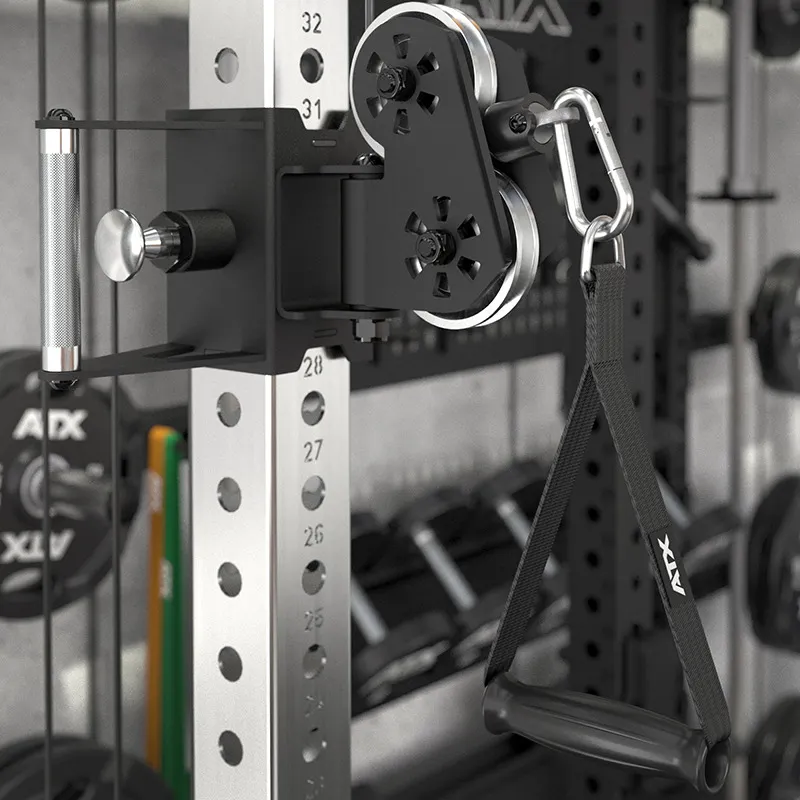

Close-up of a ball bearing aluminium pulley and carabiner on a numbered upright of The Wall

Quality Components

Stainless steel front uprights with holes on all four sides, laser cut scaling and ball bearing aluminium pulleys.

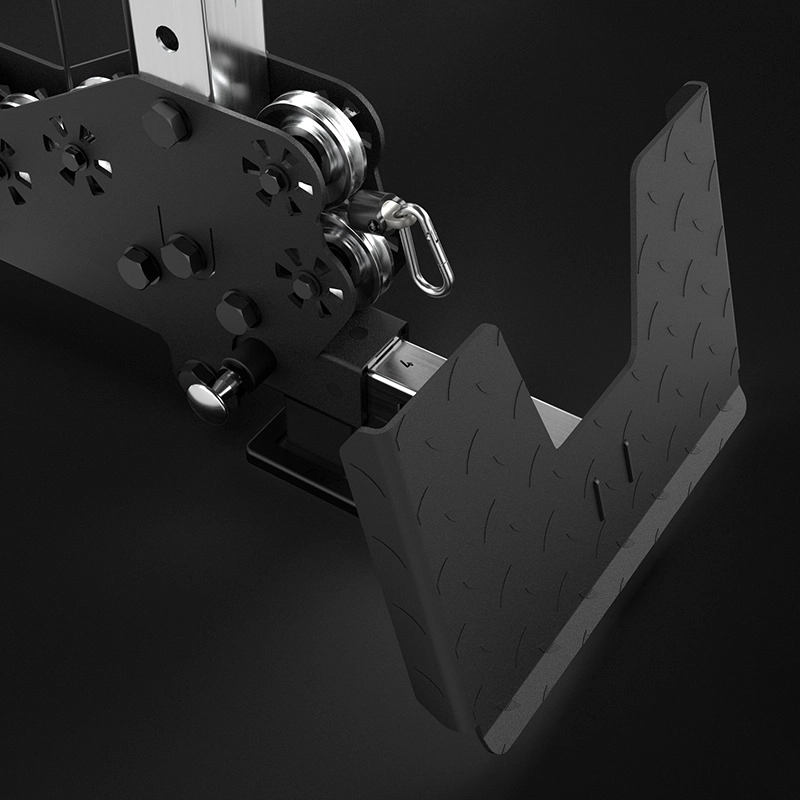

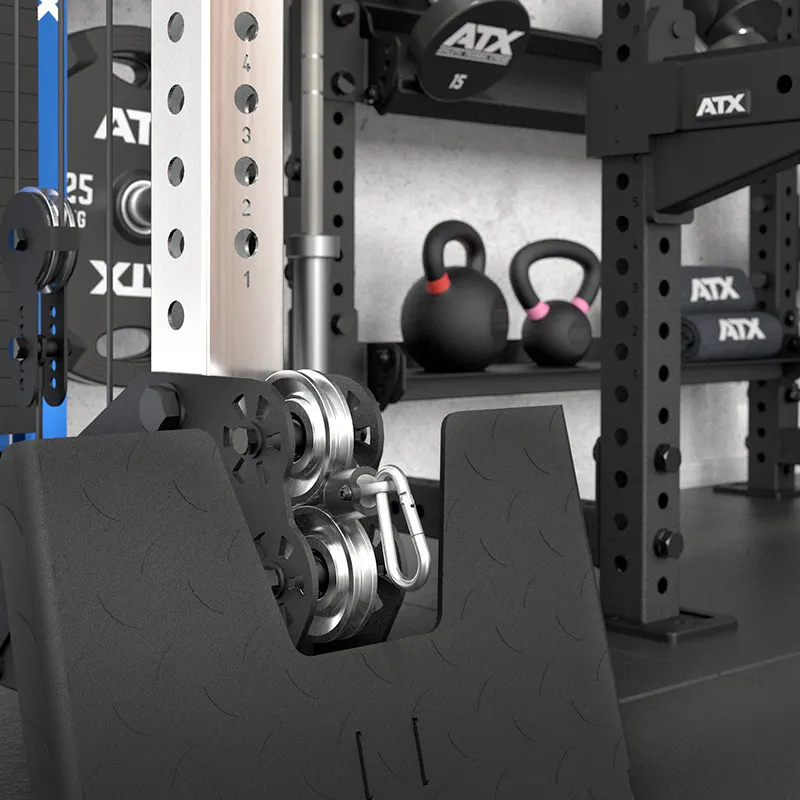

Close-up of the angled textured telescopic footrest on the seated row station of The Wall

Telescopic Footrest

Can be extended over 30 cm, angled with a corrugated anti slip finish.

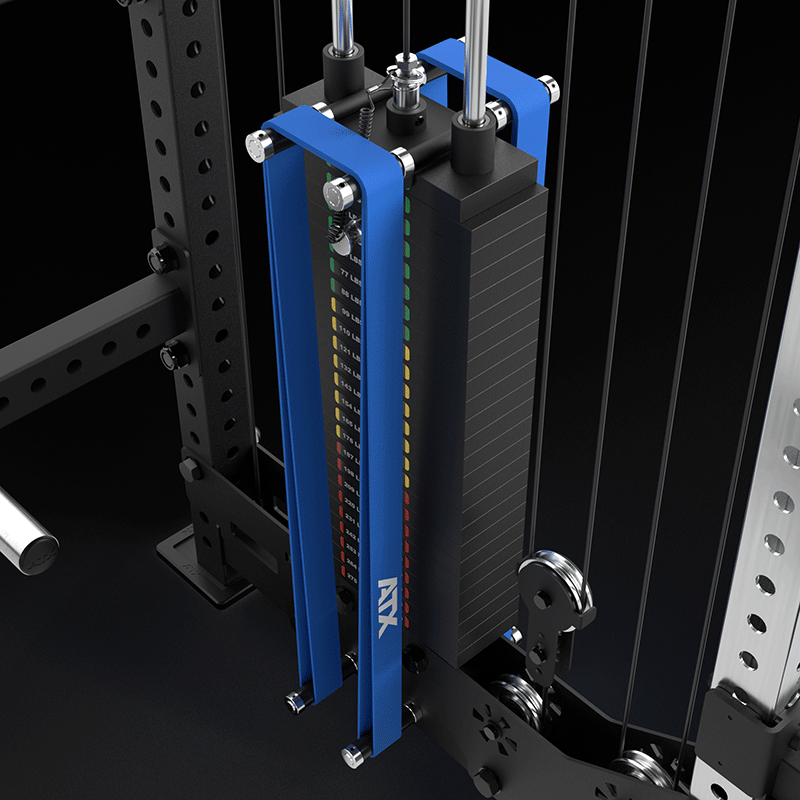

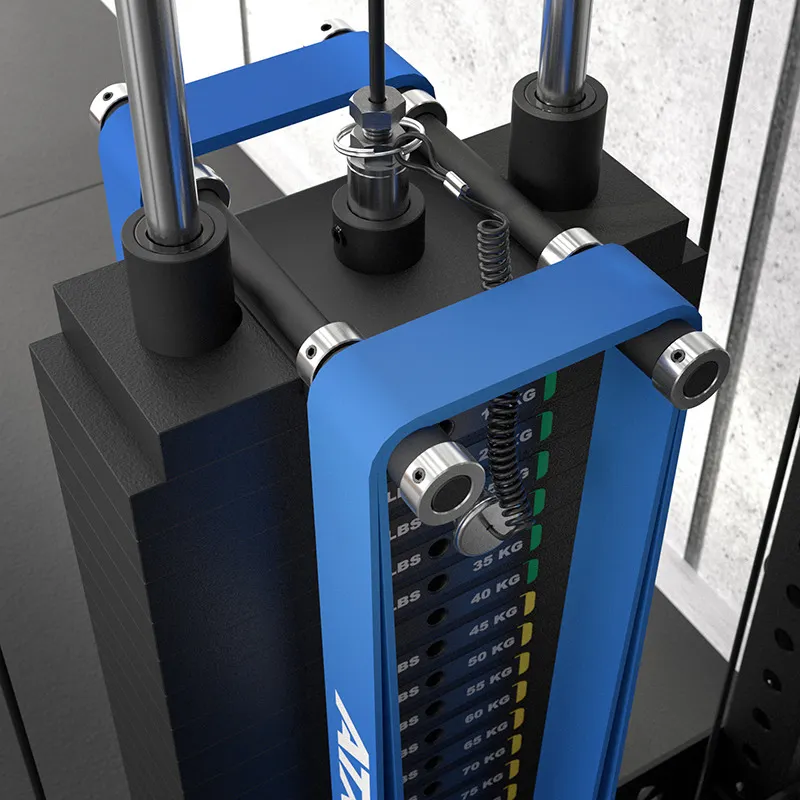

Animation of a 125 kg weight stack on The Wall with blue frame and resistance band roller pegs

2 x 125 kg Weight Stacks

In 5 kg increments (5 kg x 25 plates), with built in resistance band rollers.

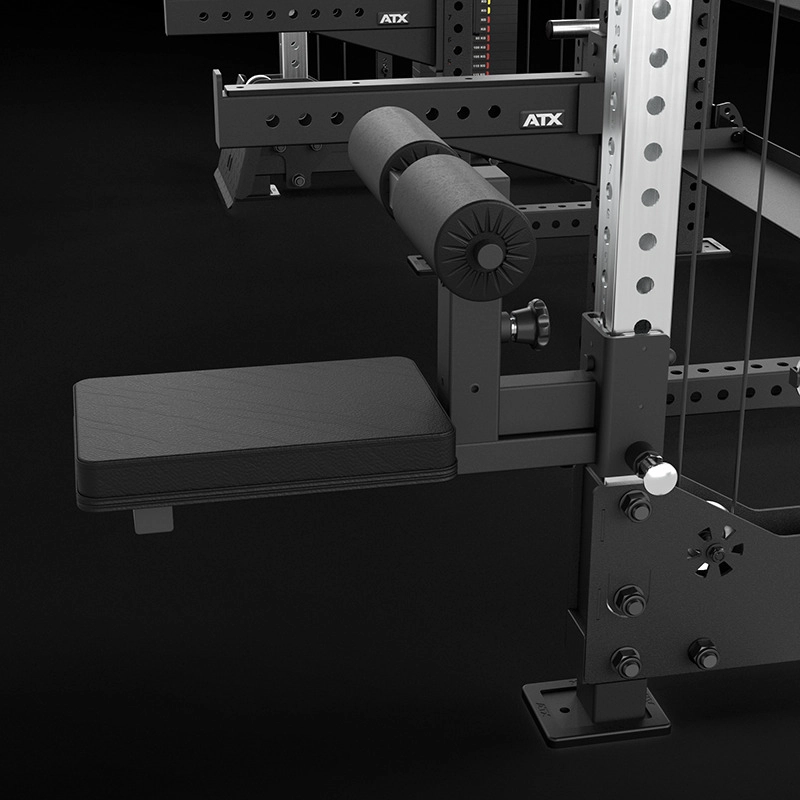

Close-up of the removable seat and round leg pad on The Wall lat pulldown station

Knee Rest

Removable seat which can be set at custom height with adjustable knee rollers.

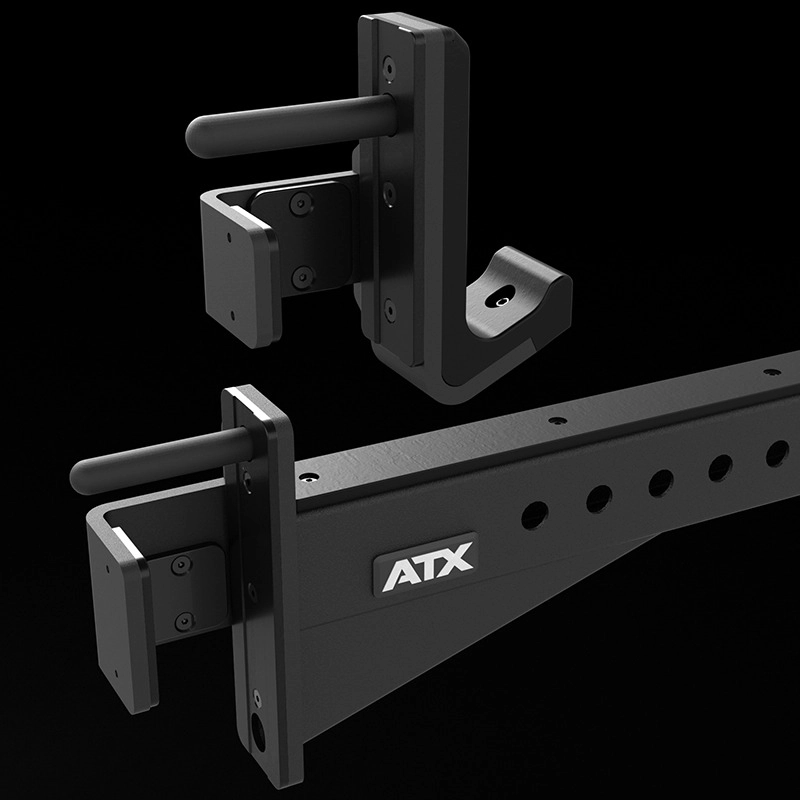

Close-up of a J-hook and flip-down spotter arm with ATX logo on The Wall

Spotters and J-Hooks

Internal plastic inserts protect both the frame and the barbell while keeping the noise down.

Dimensions and Specifications

  • Overall size: 3225 mm wide, up to 1615 mm deep and 2295 mm high
  • Rack cage inside: 1080 mm wide and 1200 mm deep
  • Frame: 70 x 70 x 3 mm steel tube with 21 mm holes on all four sides at 5 cm spacing and laser-etched numbers
  • Weight stacks: 2 x 125 kg, pin loaded (25 x 5 kg)
  • Weight: approx. 760 kg
  • Colour: black fine-texture powder coat, with stainless steel front posts
  • Safe working loads: J-hooks 500 kg per pair, spotter arms 400 kg per pair, pull up bar 200 kg, cable stations 150 kg each, total frame 2000 kg
  • Rack series: 700, Version 2.0
  • Certification: EN 20957 I.II.IV Class S (studio)

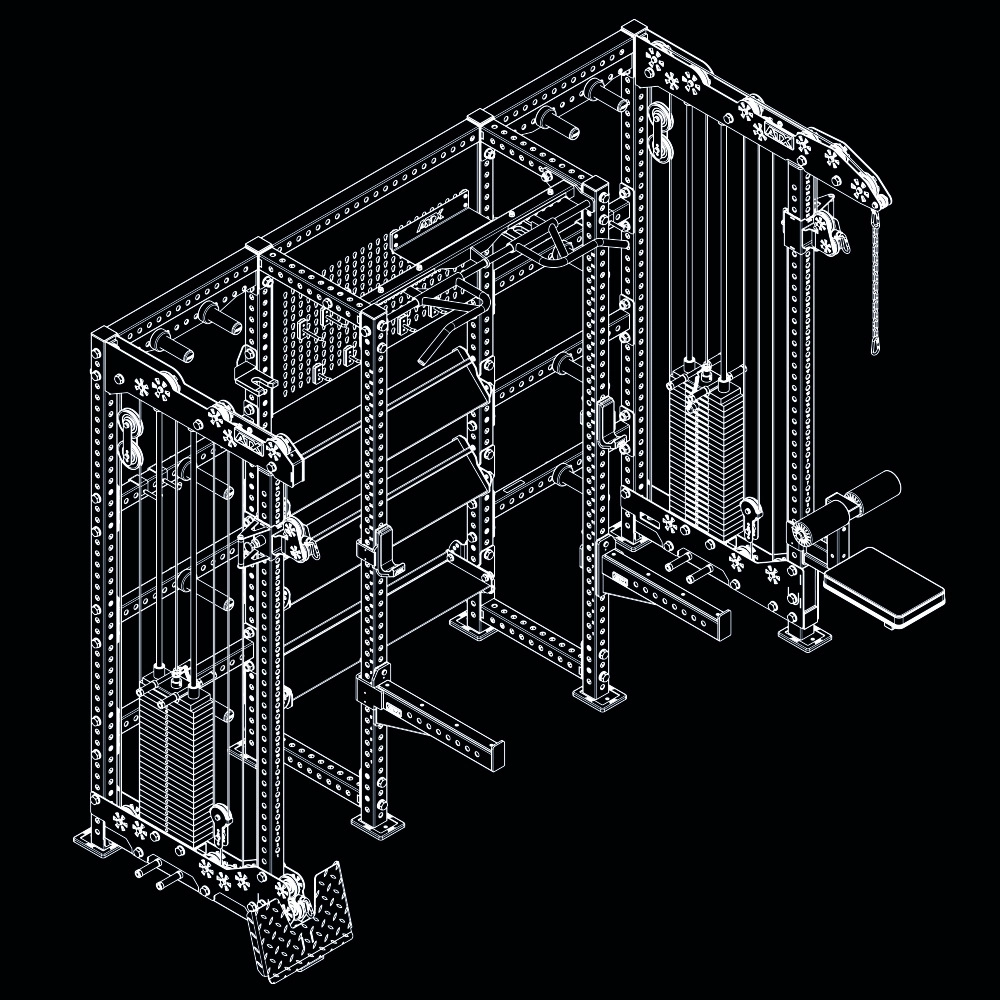

White line drawing of the ATX MCR 780 The Wall rack system and crossover on a black background

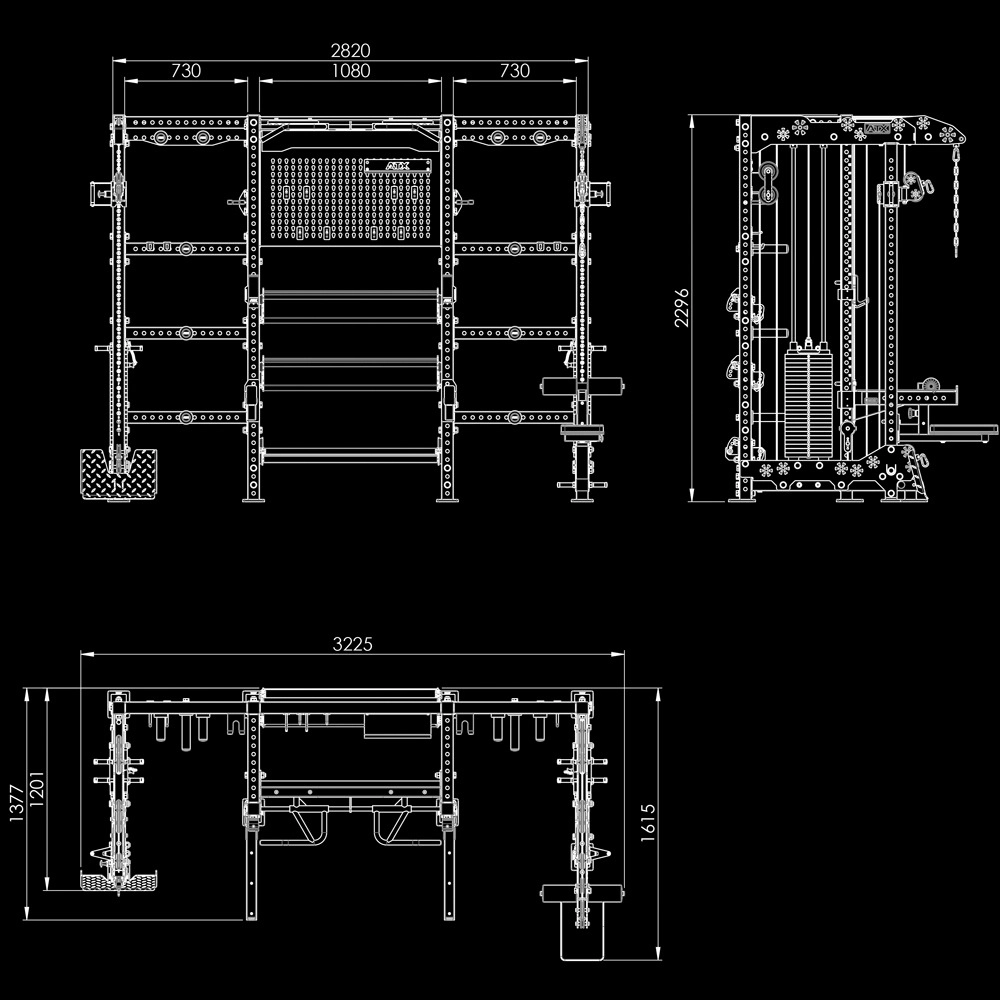

Dimension drawing of the ATX MCR 780 The Wall rack system and crossover from the front side and top showing 3215 mm width 2295 mm height and 1615 mm depth

Add The Smith Option

Front view of The Wall with the ATX Smith Option bar racked across the half rack and chrome guide rods on both front posts
Second angle of The Wall with the ATX Smith Option fitted to the half rack and the bar at mid height
Close-up of the ATX Smith Option carriage and chrome guide rod on a front upright of the half rack on The Wall

If you want to add even more variety, the ATX Smith Option (ATX-MPO-MCR) turns The Wall into a complete Smith machine. It bolts into the two front posts of the Version 2.0 rack, so you get guided squats, presses and rows without extending the footprint.

Four linear ball bearings run on 30 mm hard-chromed solid steel guide shafts, so the path stays smooth and low-flex even when the bar is loaded. It has a 200 kg load rating.

  • Full-steel 30 mm black chrome bar with knurling and grip-width marks.
  • Adjustable safety stops with spring buffering, so you can set a bottom position for solo training.
  • Plastic protected bar hooks keep the bar quiet when you rack it.
  • 50 mm x 300 mm hard-chrome plate sleeves accept standard Olympic plates.

Have a look at the ATX Smith Option for ATX-MCR-780 for the full details. It fits The Wall Version 2.0 only. If you own the original Version 1.0, you will need the extended crossmember set to fit it.

Specs for Nerds

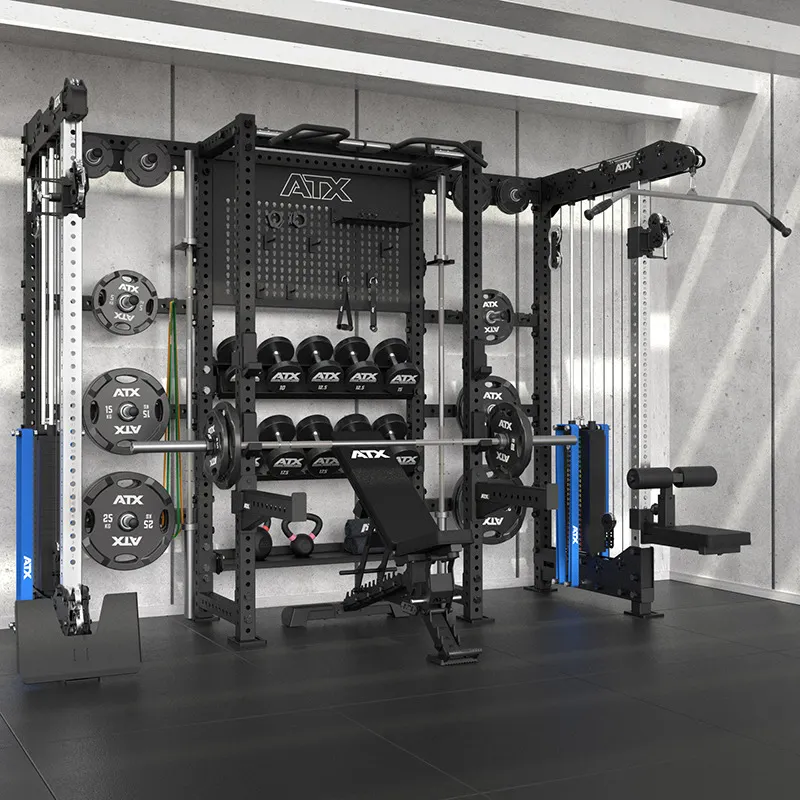

Wide banner view of The Wall with the ATX pegboard weight plates and dumbbells

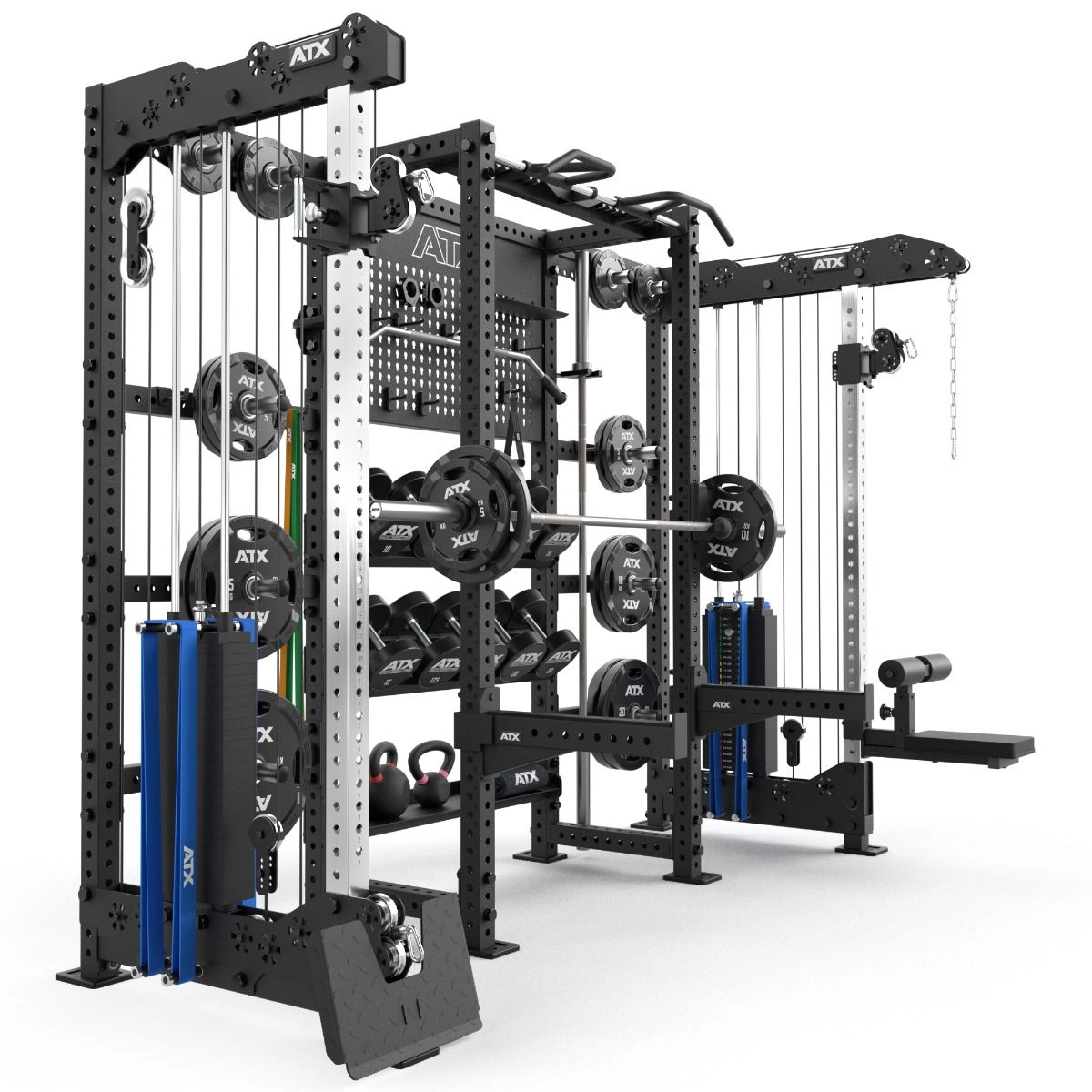

  • Lat Pulldown and Seated Row: positioned at opposite sides of the unit, they can use the 125 kg weight stack without any mechanical advantage (1:1 ratio).
  • Cable Crossover: 2:1 ratio (max effective load per side 62.5 kg), with aluminium pulleys, swiveling pulley housing and a knurled height adjustment handle.
  • Construction: 70 mm x 70 mm x 3 mm thick steel with high tensile strength M20 hardware.
  • Loads: J-hooks rated to 500 kg per pair, spotter arms (60 cm long) rated to 400 kg per pair, pull up bar rated to 200 kg, cable stations rated to 150 kg each, total frame loading rated to 2000 kg.
  • Storage: 10 x Olympic weight horns (50 mm diameter), 2 x barbell hooks, pegboard with 8 x hooks and a small shelf, 3 x angle adjustable shelves (1070 mm wide).
  • Freestanding: rubberised feet protect the floor and stop it sliding, and the base weight is approx. 760 kg.
Wide banner view of The Wall lower storage shelves and weight stacks

Additional Information

What Is Included?

  • ATX Multi Cable Rack MCR-780 Version 2.0 (ATX-MCR-780) with 2 x 125 kg weight stacks
  • Indexing chin up bar, J-hooks and spotter arms
  • 1 pair of ATX single handles
  • 10 Olympic weight horns, 2 barbell hooks, pegboard and 3 adjustable shelves

It is delivered disassembled with assembly instructions.

Not included: the weight plates, barbell, extra handles, resistance bands and the Smith Option shown in the pictures. All other accessories are sold separately.

Key Takeaways

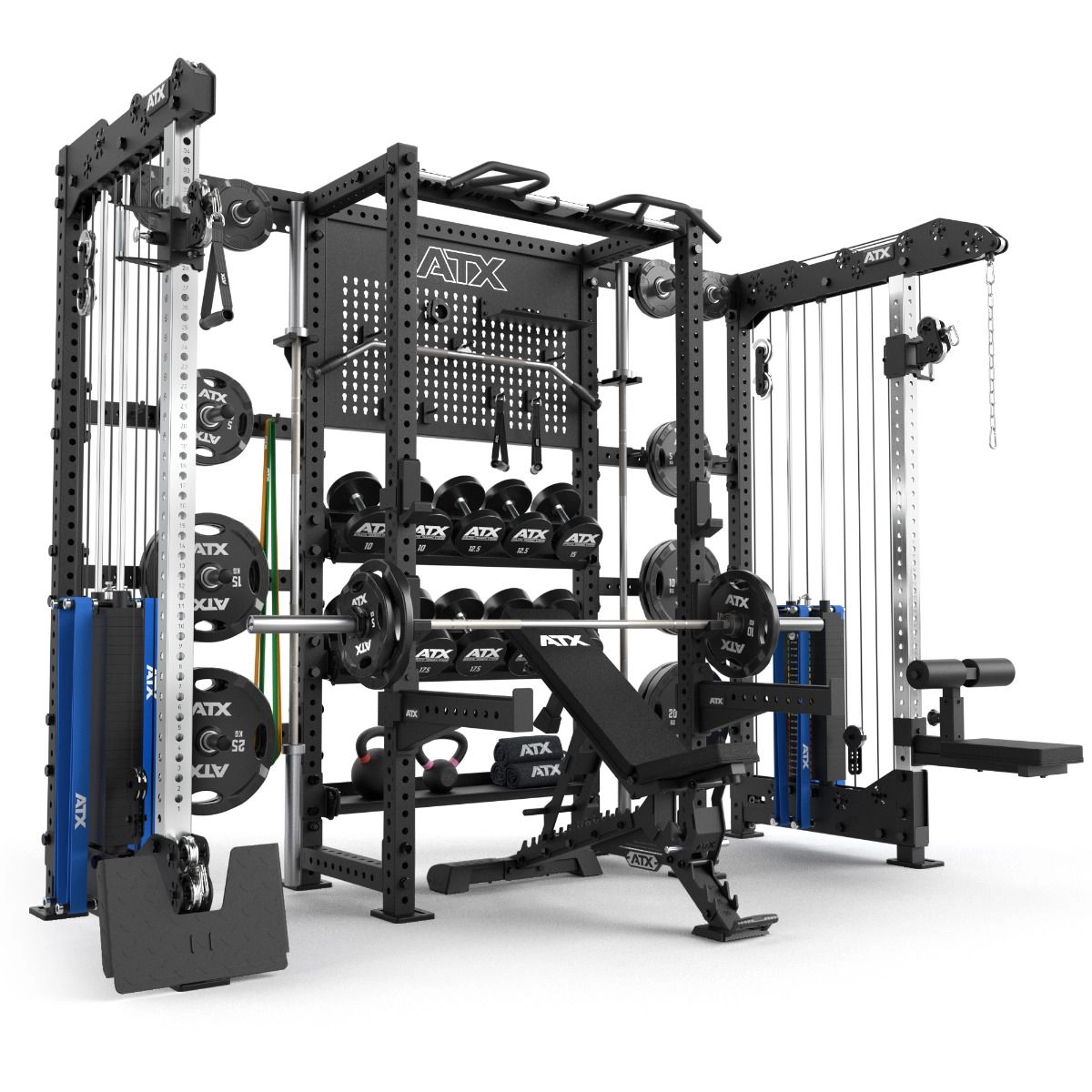

  • Power rack, lat pulldown, seated row, cable crossover and storage in one freestanding unit
  • 2 x 125 kg pin loaded weight stacks with 1:1 lat pulldown and row
  • Indexing pull up bar with over 30 grip variations
  • 70 x 70 x 3 mm frame with 21 mm holes on all four sides
  • Smith Option available for the Version 2.0 rack
  • Certified to EN 20957 I.II.IV Class S (studio)
