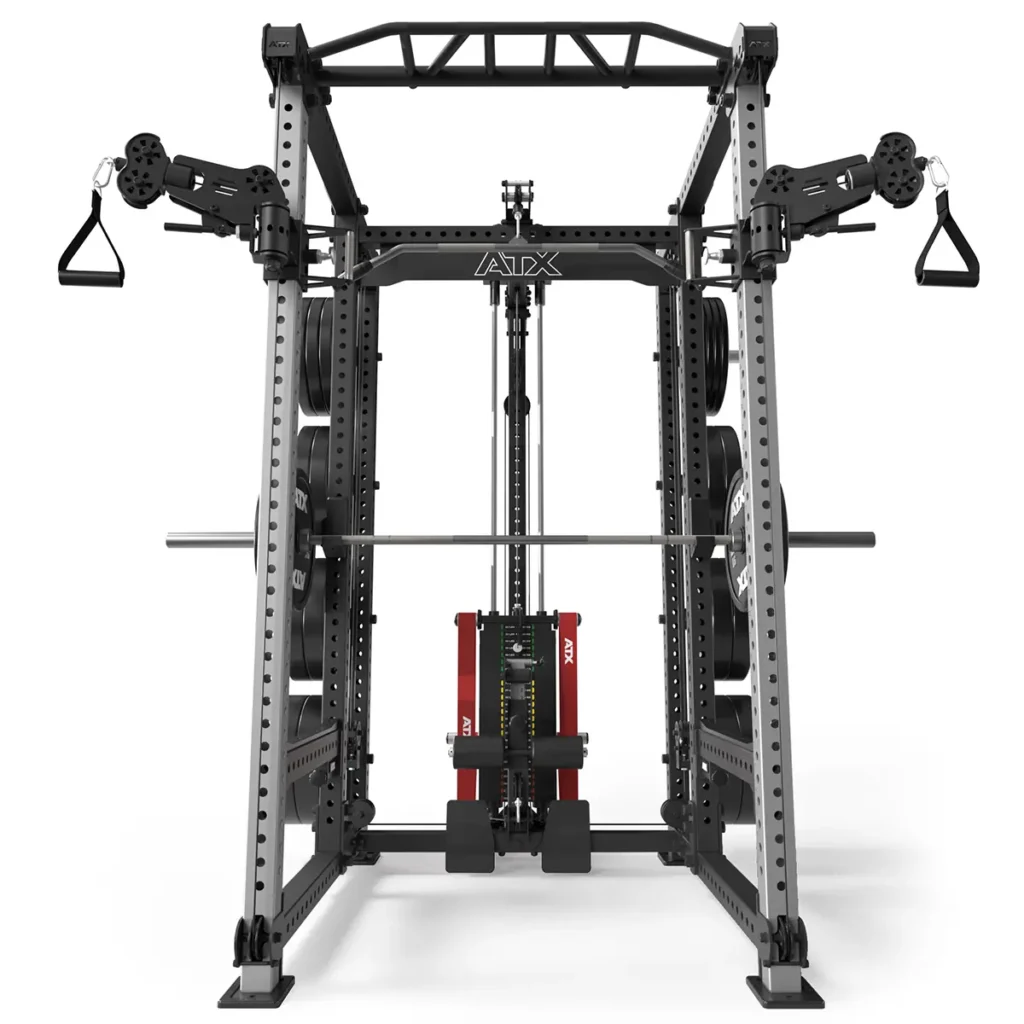

ATX® Power Cage with Cables

ATX®
$6,595.00
Item No: ATX-FCR-780

1 in stock

DESCRIPTION

Weight

Weight

The base weight of the item, without any packaging.

500 kg
Dimensions 230 × 65 × 75 cm
Rack Series

700

Frame

70 x 70 x 3 mm

Weight

Weight

The base weight of the item, without any packaging.

434 kg

Footprint

Footprint

This is the area occupied by the item itself. You might need to allocate additional space for the use.

122/186 cm x 190 cm

Colour

Black

Inclusions

Inclusions

These are the specific items that you will receive when you purchase the product. Some products are shown with items that are not included for demonstration purposes.

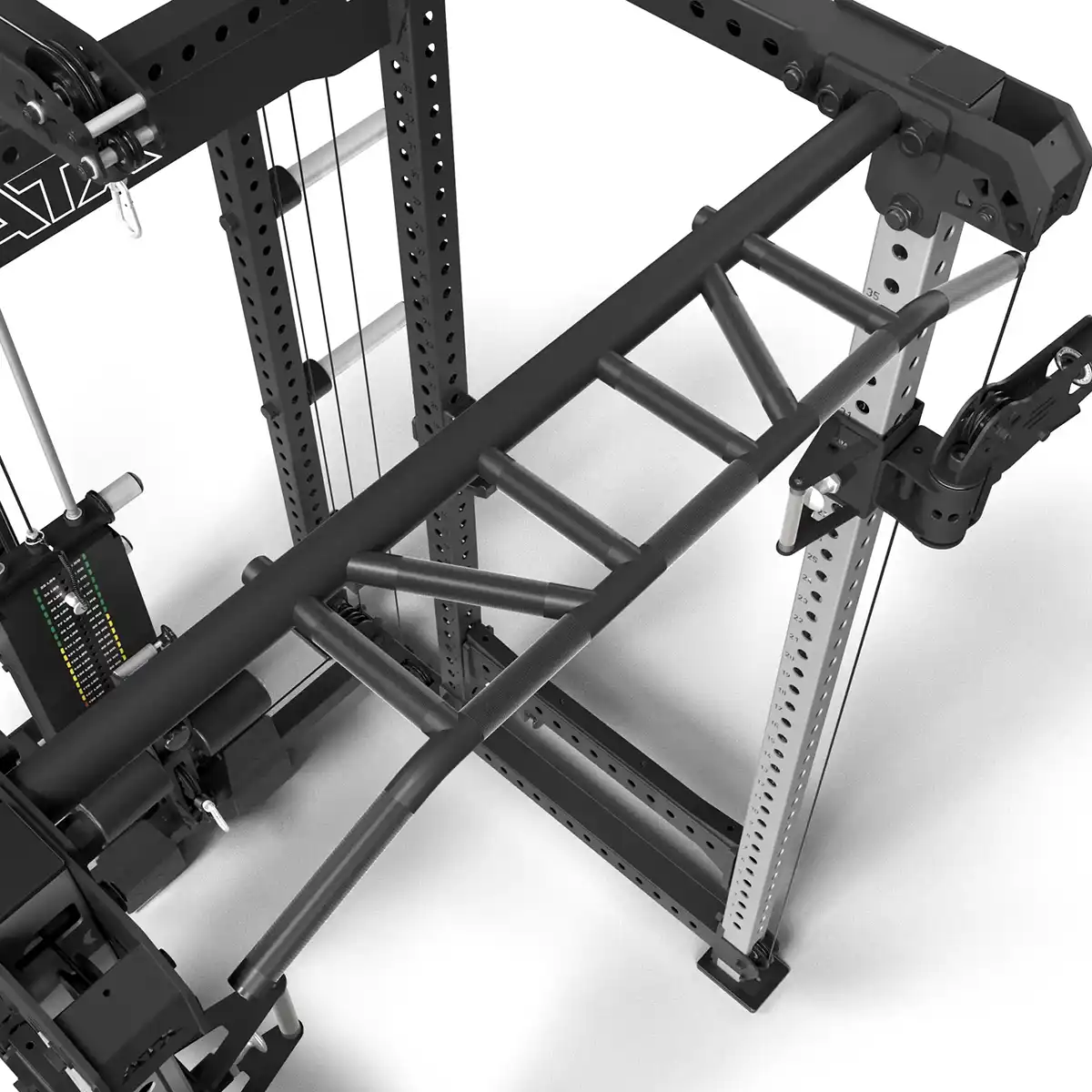

J-Hooks, Spotter Bars, Multi-Grip Chinup Bar

Certification

Studio

Safe Working Load

J- Hooks – 500 kg, Spotters – 600 kg, Chin Up – 200 kg, Pulldown – 200 kg

Height

232 cm

Warranty

5 Years – T & Cs

Inner Cage Footprint

108 cm x 73 cm

Hole Grid

Hole size – 21 mm, 35 x Center Distance – 5 cm.

The ATX-FCR-780 combines a full-size ATX power cage with built-in cables. This full size power cage with the XT Wide Arm Cable System gives you a versatile free weight training setup. With this machine alone you could train for the rest of your days with enough variety to keep you motivated. But the ability to add your favourite power rack attachments makes this an even sweeter deal.

Key Features:

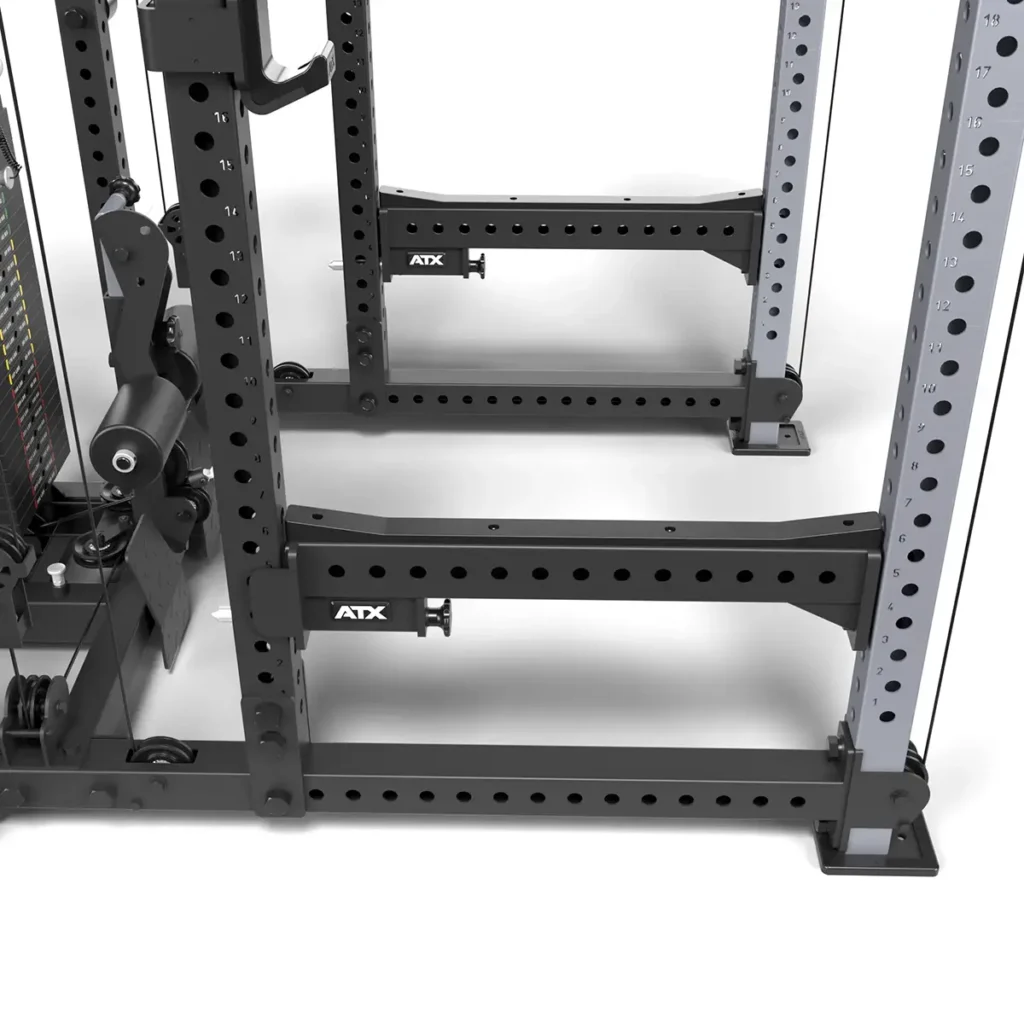

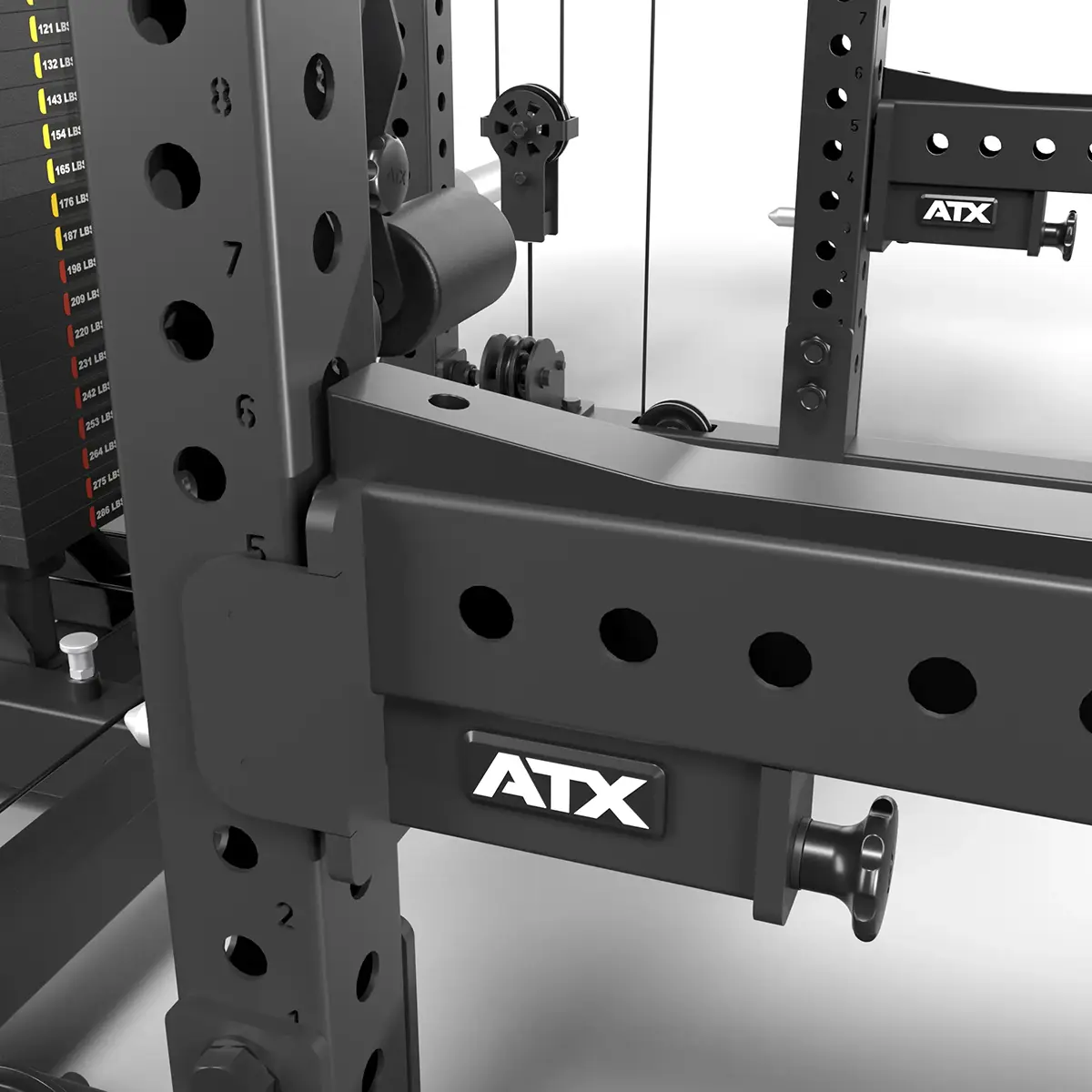

Flip-down spotter with protective pads and locking pins

Heavy Duty Spotters

Protected flip-down spotters with double locking pins and a supplier-listed 600 kg rating.

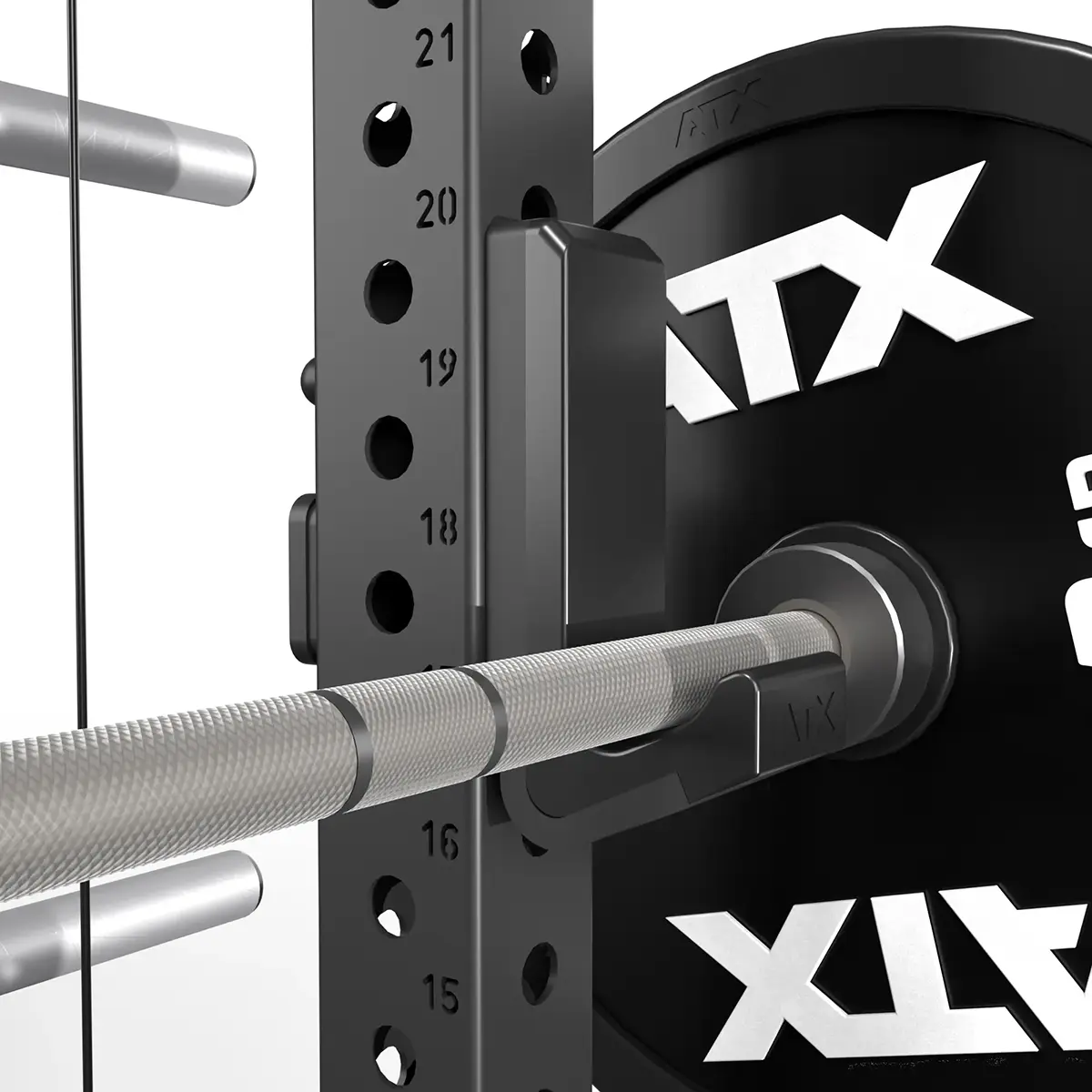

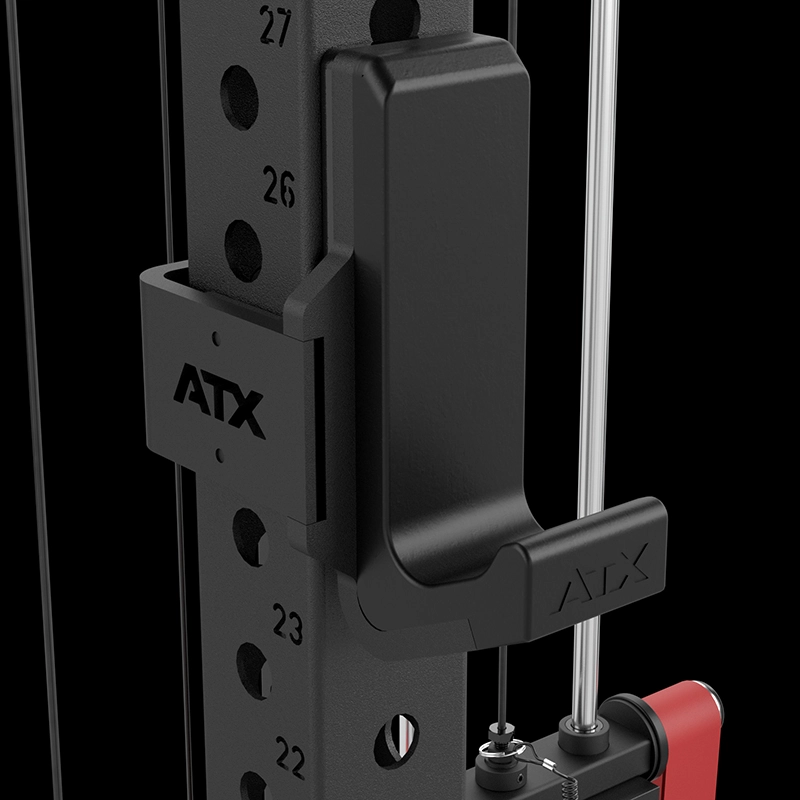

Protective J-hook mounted on a numbered upright

Solid J-Hooks

10 mm solid steel J-hooks with protective inserts and a supplier-listed 500 kg rating.

Animated weight plate storage horn with optional plates

Weight Plate Storage

Eight 50 mm diameter storage horns can be mounted at your preferred height.

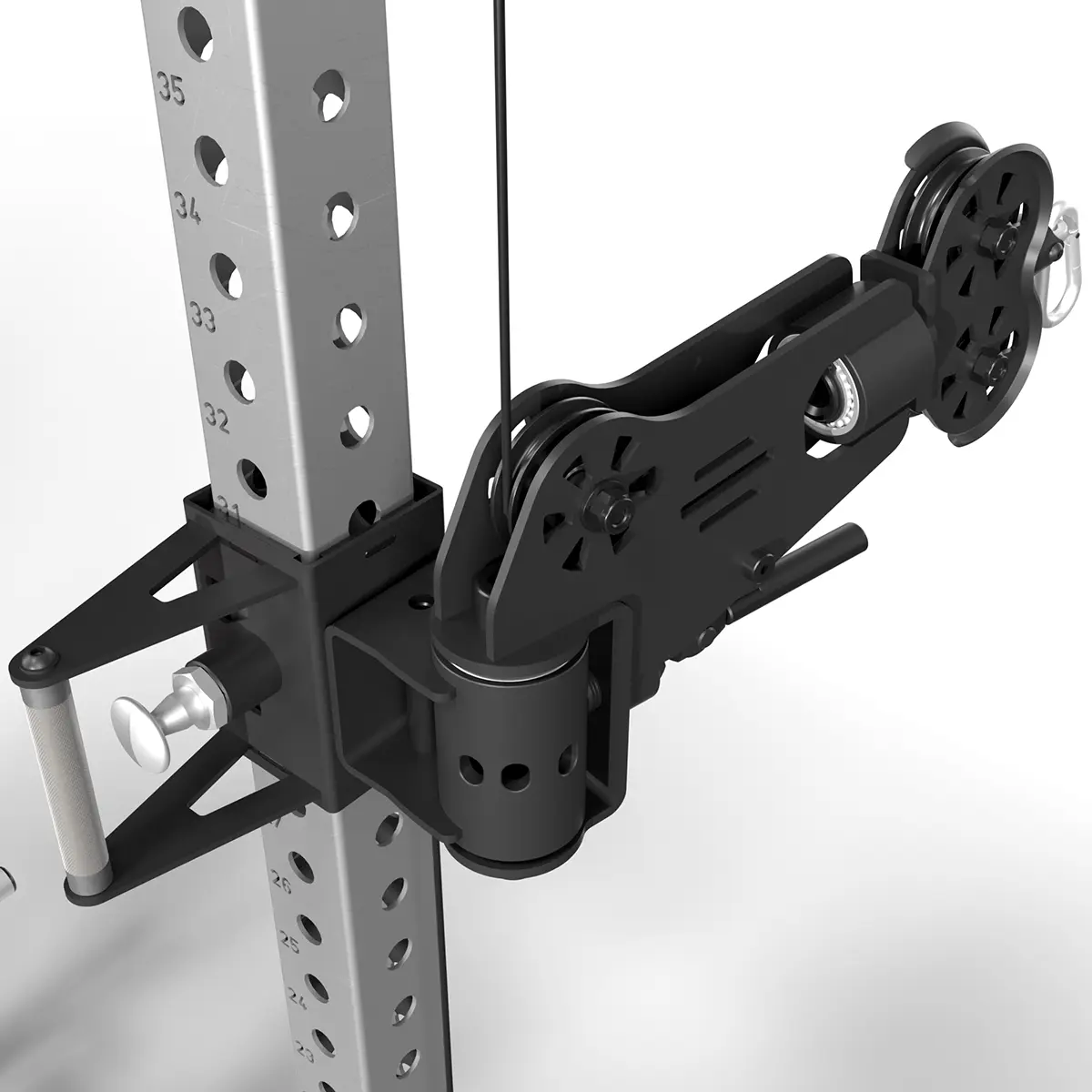

X-Wide Crossover Arms

Knurled adjustment handles and laser height markings make setup straightforward.

XT cable arm pivot and stainless height adjustment upright

5 Locking Positions

Five locking positions with up to 170 degrees of swing and a 189 cm maximum arm span.

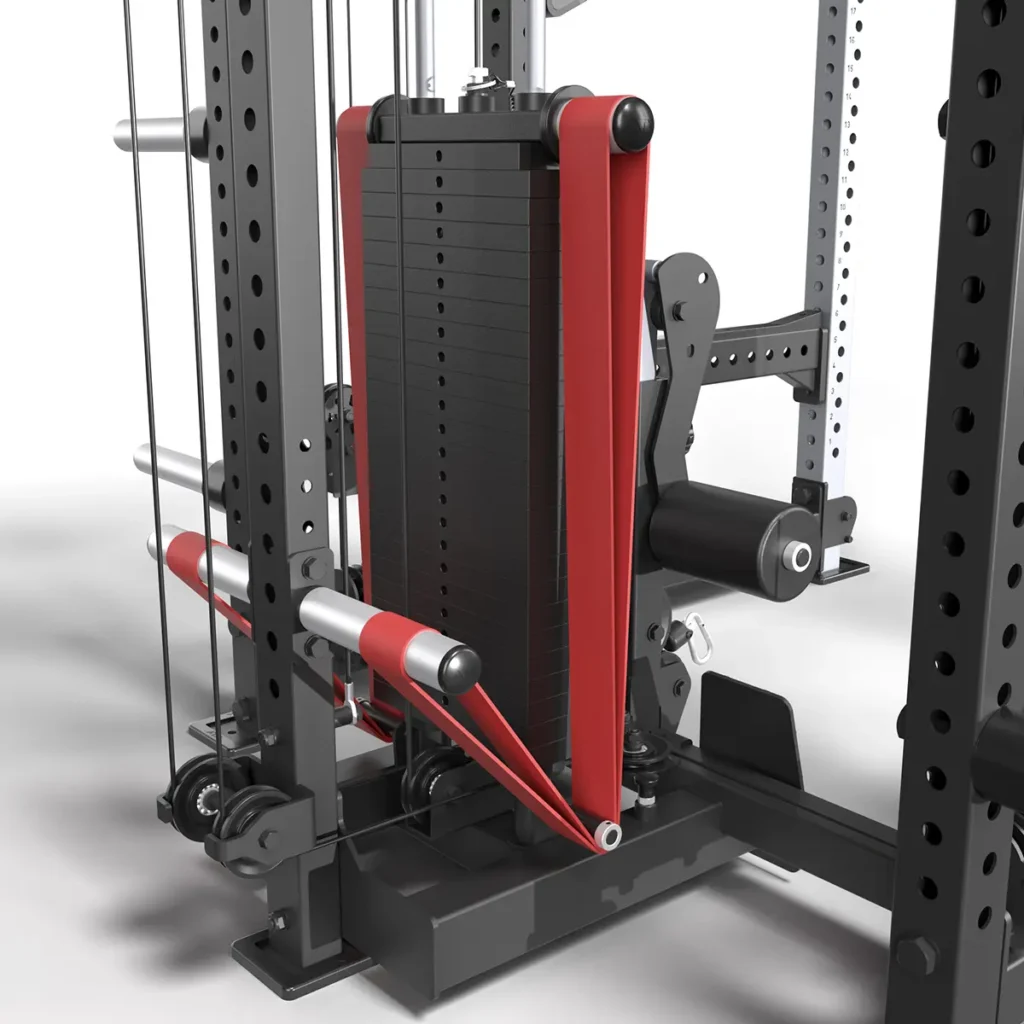

125 kg weight stack with roller band pegs and optional bands

125 kg Weight Stack

125 kg stack in 5 kg steps with 1:1 lat-pulldown and 2:1 cable-crossover ratios.

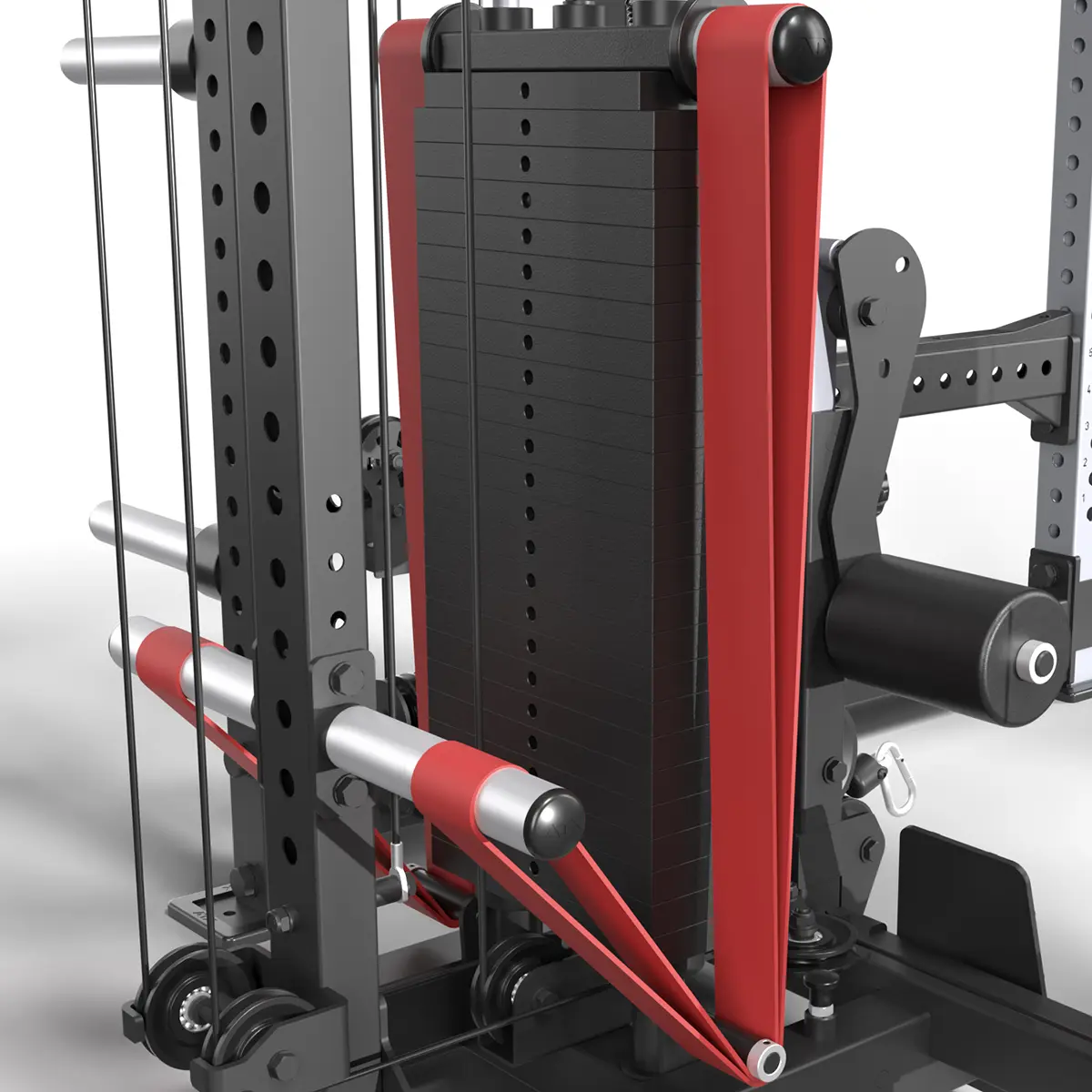

Micro Loading

The top-of-stack plate holders let you make smaller loading adjustments.

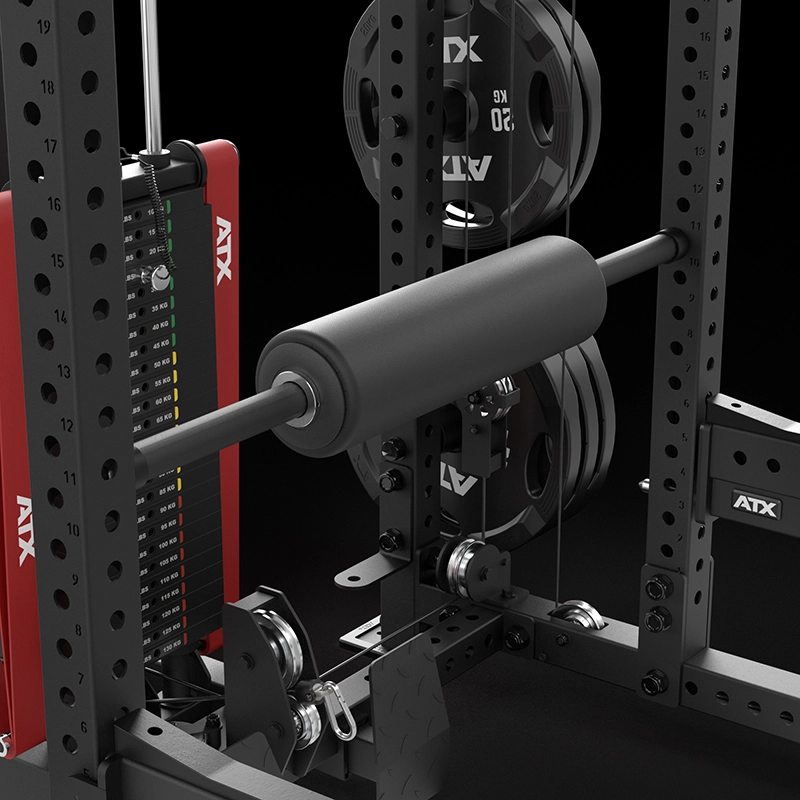

Adjustable padded leg support on the FCR-780

Adjustable Knee Rest

Adjustable padded support for pulldowns and split-squat variations.

Animated telescopic footrests at the low cable station

Adjustable Footrests

Spring-pin-operated telescopic footrests support seated rows.

Dimensions

Height: 232 cm. Supplier-listed overall width: 186 cm. Depth: 185 cm. Net weight: 434 kg. The drawing also shows a 122 cm frame width and a maximum XT-arm span of 189 cm. Inner cage space is 108 cm wide x 73 cm deep. Allow additional working clearance around the cage.

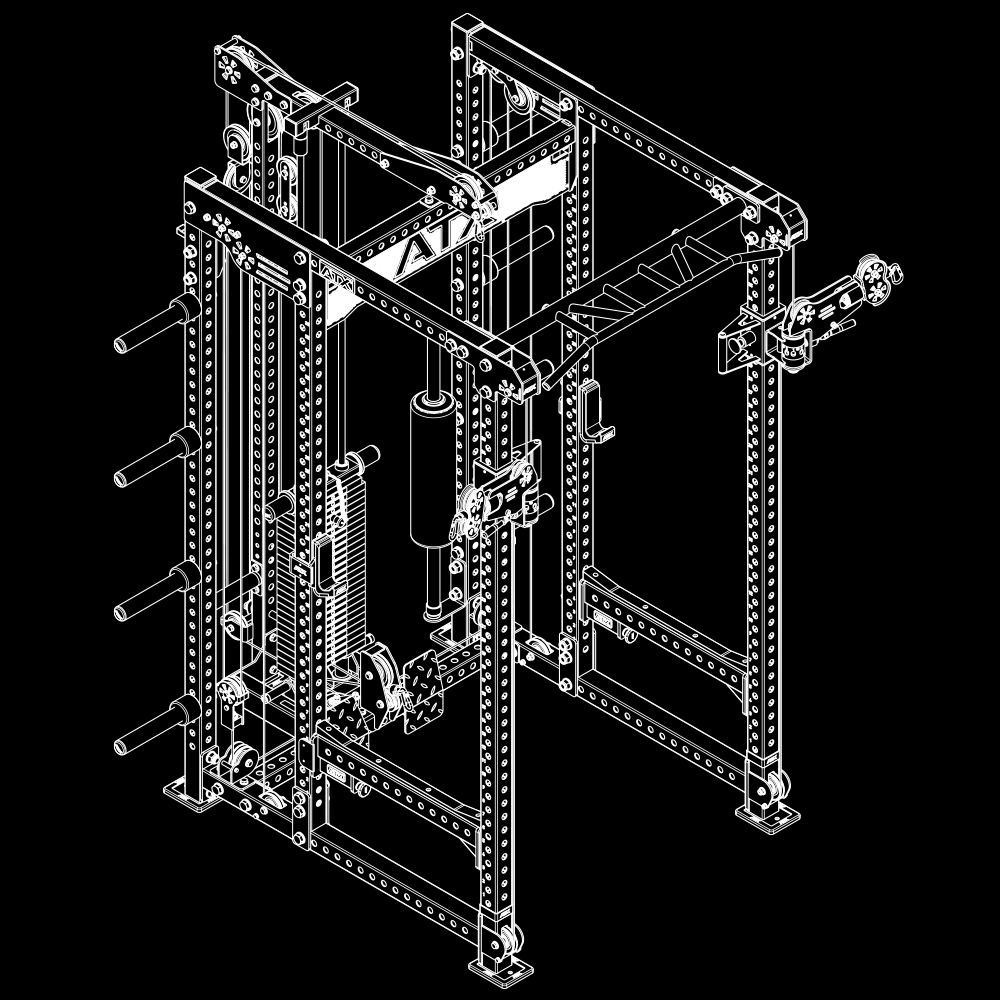

ATX FCR-780 perspective frame drawing

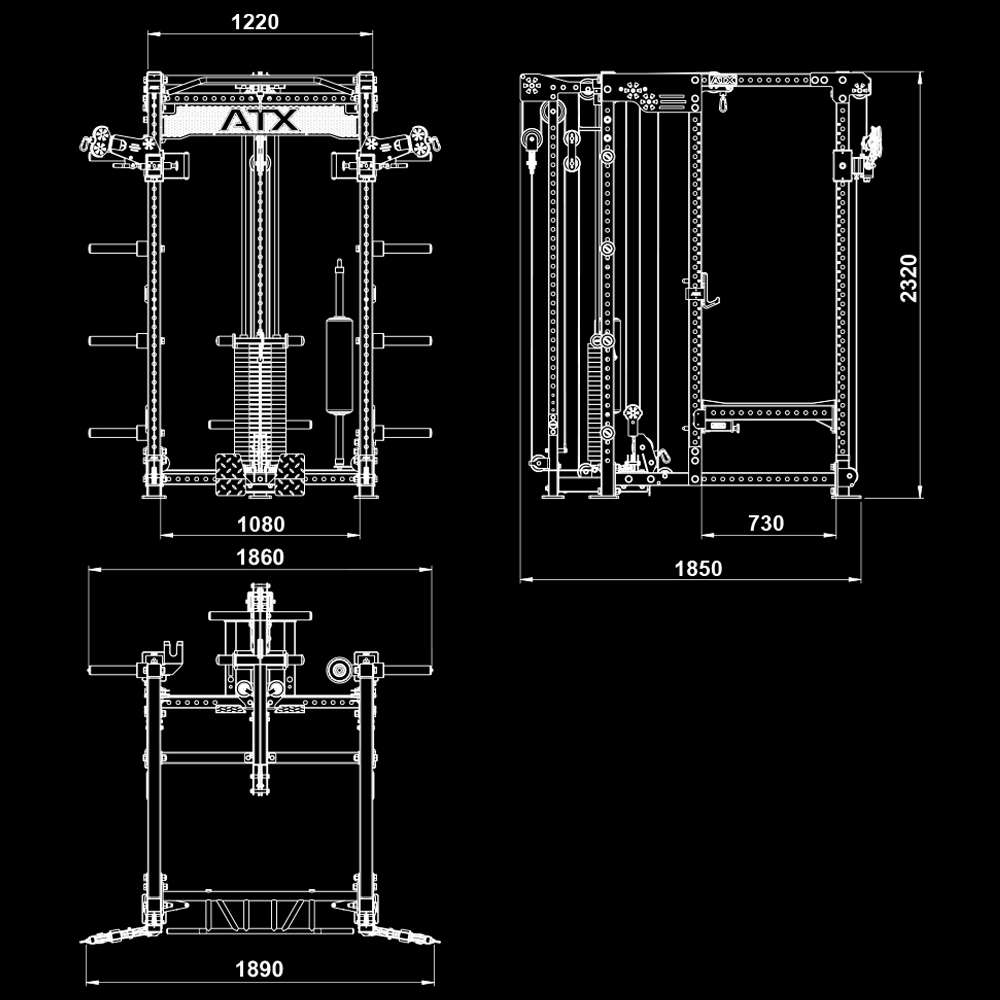

ATX FCR-780 dimension drawing with front side and top views

More Ways to Train

While this power cage with cables might be missing a smith machine bar, it does not mean that you can’t add some more variation to your training. Take the ATX Jammer Arms B4 as a perfect addition. Due to their unique design, you can use them inside the cage and when they are not in use, you can simply mount on the rear uprights.

Power Cage Paradise

ATX have one of the ranges of All-in-One Trainers and have an option to suit all tastes. The Power Cage with Cables is for the person that prefers training in a full cage. Previously you were restricted to the old lat option attachment. With the integration of the XT Wide Arm functional trainer, ATX have taken the humble power cage to a new level.

Power Cage

  • Built from 70 x 70mm 3mm structural steel.
  • Rated for 500kgs.
  • Industrial 20mm hardware.
  • Uprights numbered. Holes are 21mm, spaced 50mm apart.
  • Does not need to be bolted down.
  • Includes J-Hooks, Spotters, Chin Up Bar, 2 x Barbell Holders and 8 weight plate storage pins (diameter 50 mm).

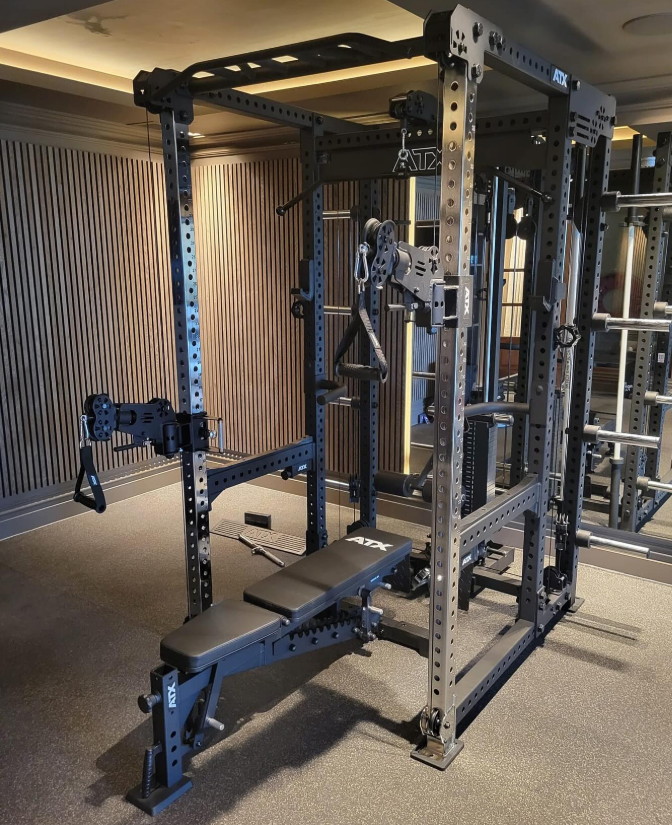

FCR-780 installed in a home gym

Lat Pulldown/Seated Row

  • 125kg weight stack in 5kg increments. 1:1 ratio.
  • Resistance band pegs for micro loading and resistance curve.
  • Telescopic Footrests.
  • Leg lock system for heavy pulldowns.
  • Solid 20mm guide rails, aluminium pulleys and nylon bushes for smooth movement.
  • 200kg load rating.

Functional Trainer

  • XT Wide Arms featuring aluminium pulleys
  • Height adjustable in 50mm increments. Swivel 170 degrees.
  • 2:1 ratio ideal for isolation and dynamic exercises.
  • Includes a pair of nylon stirrup handles.

The Final Word

I always say you can never go wrong with a power rack. So the Power Rack with Cables is the ideal choice for the barbell trainer who wants endless exercise options. There are a lot of lifters out there who do not rate smith machines – so this is the All-in-One Trainer for you.

Being certified for studio use, this is an option for the personal trainer or small gym who is tight on space. Alternatively, it can be the centrepiece of a home gym that combines barbell work with cable training.

Built-in Cable Details

Stainless ATX logo panel and upper cable pulley

The stainless logo plate sits below the upper pulley assembly. The weight stack runs on guide rods, while roller band pegs provide an attachment point for optional resistance bands. The lat station has upper and lower cable outlets without conversion between the two.

Additional Information

  • Product code: ATX-FCR-780. ATX 700 Series.
  • Construction: 70 x 70 x 3 mm steel tube with stainless front adjustment uprights and laser height markings.
  • Adjustment: 21 mm holes at 50 mm centres. Sam lists 35 positions.
  • Supplier component ratings: J-hooks 500 kg; flip-down spotters 600 kg; lat-pulldown station 200 kg. These are distinct ratings and must not be treated as a per-arm rating or as the included stack weight.
  • The included weight stack is 125 kg. The 200 kg lat-station rating is not a 200 kg supplied stack.
  • Certification: EN 20957 I.II.IV – S (Studio).
  • Included: power cage and cable system with 125 kg weight stack; XT arms; J-hooks; flip-down spotters; multi-grip chin-up bar; adjustable padded leg support; telescopic footrests; eight 50 mm plate-storage horns; two 50 mm barbell holders; two single-hand handles and carabiners.
  • Not included: weight plates barbells bench resistance bands jammer arms and other pictured accessories apart from the stated inclusions.
  • Delivered disassembled with assembly instructions.
  • Freestanding: the supplier states that the unit does not require floor anchoring. Assemble and use in accordance with the supplied instructions.
  • Not compatible: ATX-JAM-RX-700 and ATX-JAM-RRL-700 jammer arms.

Key Takeaways

  • A full-size power cage combined with lat-pulldown seated-row and adjustable XT-arm cable stations.
  • 125 kg included stack with 1:1 lat-station and 2:1 crossover ratios.
  • 232 cm tall with a 185 cm supplier-listed depth and up to 189 cm XT-arm span.
  • J-hooks spotters plate-storage horns barbell holders and two cable handles included.
  • Studio-class certification with model-specific attachment compatibility to check before adding accessories.

Frequently Asked Questions

<strong>Does the rack need to be bolted to the floor?</strong>

Despite being raised on feet to accommodate the lower cable section, the power cage with cables does not need to be bolted down because the heavy components and wide footprint keep it stable.

<strong>Can I micro-load the weight stack on the cable stations?</strong>

Yes, the weight plate holders on top of the stack allow you to add small plates for micro-loading when the standard stack jumps are too large.

<strong>How much floor space do I need for this power cage with cables?</strong>

You should allow enough room for the full cage footprint plus space front and sides for barbell work and wide cable crossover movements; check the product specs for exact dimensions.

<strong>How is a power cage with cables different from a standalone all in one trainer?</strong>

A power cage with cables like this gives you a full barbell rack with spotters plus built-in cables, whereas many all in one trainers focus only on cables and smith, with limited true rack functionality.

<strong>Is the ATX Power Cage with Cables hard to assemble?</strong>

Assembly is more involved than a basic rack because of the cable routing and weight stack, but most users can build it with two people, basic tools and the provided instructions.

<strong>What ongoing maintenance does this all in one trainer need?</strong>

Periodic checks of bolts, lubrication of guide rails and light cleaning of the cables and pulleys will keep the unit running smoothly for years.

What exercises can I do on this machine?

You can find our <a data-id=”https://samsfitness.com.au/exercises-workouts/atx-xt-arm-exercise-guide/” data-type=”link” href=”https://samsfitness.com.au/exercises-workouts/atx-xt-arm-exercise-guide/”>ATX XT Arm Exercise Guide here</a>.
